Superwinch Winch 9500 Pound Vehicle Mounted Automatic - 1695211
Brake Type
Load Holding
Color
Blue
Conforms To J706 Standards
No
Drive Gear Type
Planetary And Spur
Electrical Control Type
Vented/ Sealed Submersible Solenoid
Fairlead Type
Hawse
Free Spooling
Yes
Includes Mounting Hardware
Yes
Line Diameter (IN)
3/8 Inch
Line Length (FT)
80 Feet
Line Material
Synthetic
Share this page

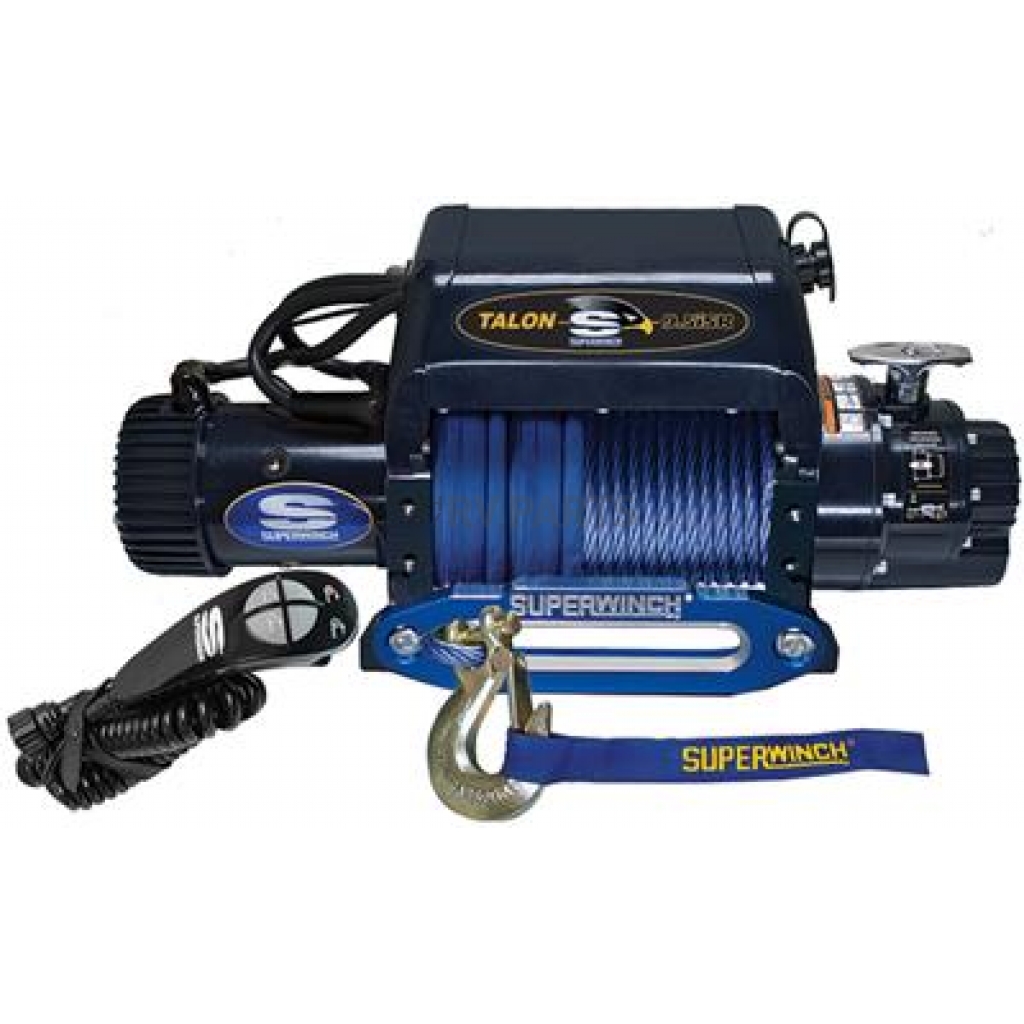

Superwinch Winch
Winch; Talon 9.5i SR; Vehicle Mounted; Vehicle Recovery; 12 Volt Electric; 9500 Pound Line Pull Capacity; 80 Foot Synthetic Rope; Hawse Fairlead; Wired Remote; Vented/ Sealed Submersible Solenoid; 2-Stage Planetary and 2 -Stage Spur Gear
MPN: 1695211
This is the industry's best truly sealed vehicle recovery winch assembly. All seals on the entire winch meet the IP67 standard, from the outermost end of the high performance motor and groundbreaking solenoid to the 2-stage planetary and 2-stage spur gearbox. Superwinch synthetic ropes are genuine AmSteel-Blue™ with Samthane™, a special coating to help resist abrasion. The raw material in AmSteel-Blue™ is made from genuine Dyneema(R) SK-75 High Modulus Polyethylene fiber, "which is the worlds strongest fiber™" made by Samson Rope Technologies. AmSteel(R)-Blue is a torque-free 12-strand single braid that yields the maximum in strength-to-weight ratio and, size for size, is the same strength as steel—yet it floats. AmSteel(R)-Blue outlasts wire 3:1, making it an excellent wire rope replacement. It has extremely low stretch and superior flex fatigue and wear resistance. Average strength is 19,600 Pound and minimum strength is 17,600 Pound Elastic elongation is only 0.96 Percent at 30 Percent of the break strength.
Winch Rating: 9500 Pound
Recommended Use: Self-Recovery
Type: Electric
Mount Type: Fixed Mount
Voltage: 12 Volt
Motor Horsepower: 5.2 Horsepower
Max Amp Draw: 430 Amp Max Draw At 9500 Pound
Electrical Control Type: Vented/ Sealed Submersible Solenoid
Motor Type: Series Wound Motor
Thermal Shutoff: No
Drive Gear Type: Planetary And Spur
Gear Reduction Ratio: 148:1
Free Spooling: Yes
Operation Type: Automatic
Brake Type: Load Holding
Line Diameter (IN): 3/8 Inch
Line Length (FT): 80 Feet
Line Material: Synthetic
Fairlead Type: Hawse
Conforms To J706 Standards: No
Remote Type: Hand Held
Mounting Hole Quantity: 4
Mounting Pattern Length (IN): 10 Inch
Mounting Pattern Width (IN): 4-1/2 Inch
Includes Mounting Hardware: Yes
Color: Blue
Line Speed At Max Pull: 5 Feet Per Minute At 9500 Pound
Features
- The Solenoid Will Keep Out Water, Mud, Snow, And Dust And Has A Patented Venting Feature That Allows The Contacts To Resist Water And Release Contact Damaging Internal Condensation
- Vented, Sealed Submersible Solenoid
- Free-Spooling Clutch
- Automatic, 100 Percent Load Holding Brake
- Heavy-Duty/Clevis Pinned/Latched Hook
- Limited Lifetime Warranty For Mechanical Components And Limited 3 Year Warranty For Electrical Components
| Specifications of Superwinch Winch 9500 Pound Vehicle Mounted Automatic - 1695211 | |
| Brake Type | Load Holding |
| Color | Blue |
| Conforms To J706 Standards | No |
| Drive Gear Type | Planetary And Spur |
| Electrical Control Type | Vented/ Sealed Submersible Solenoid |
| Fairlead Type | Hawse |
| Free Spooling | Yes |
| Includes Mounting Hardware | Yes |
| Line Diameter (IN) | 3/8 Inch |
| Line Length (FT) | 80 Feet |
| Line Material | Synthetic |
| Line Speed At Max Pull | 5 Feet Per Minute At 9500 Pound |
| Max Amp Draw | 430 Amp Max Draw At 9500 Pound |
| Motor Horsepower | 5.2 Horsepower |
| Motor Type | Series Wound Motor |
| Mount Type | Fixed Mount |
| Mounting Hole Quantity | 4 |
| Mounting Pattern Length (IN) | 10 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Operation Type | Automatic |
| Recommended Use | Self-Recovery |
| Remote Type | Hand Held |
| Thermal Shutoff | No |
| Type | Electric |
| Voltage | 12 Volt |
| Winch Rating | 9500 Pound |
