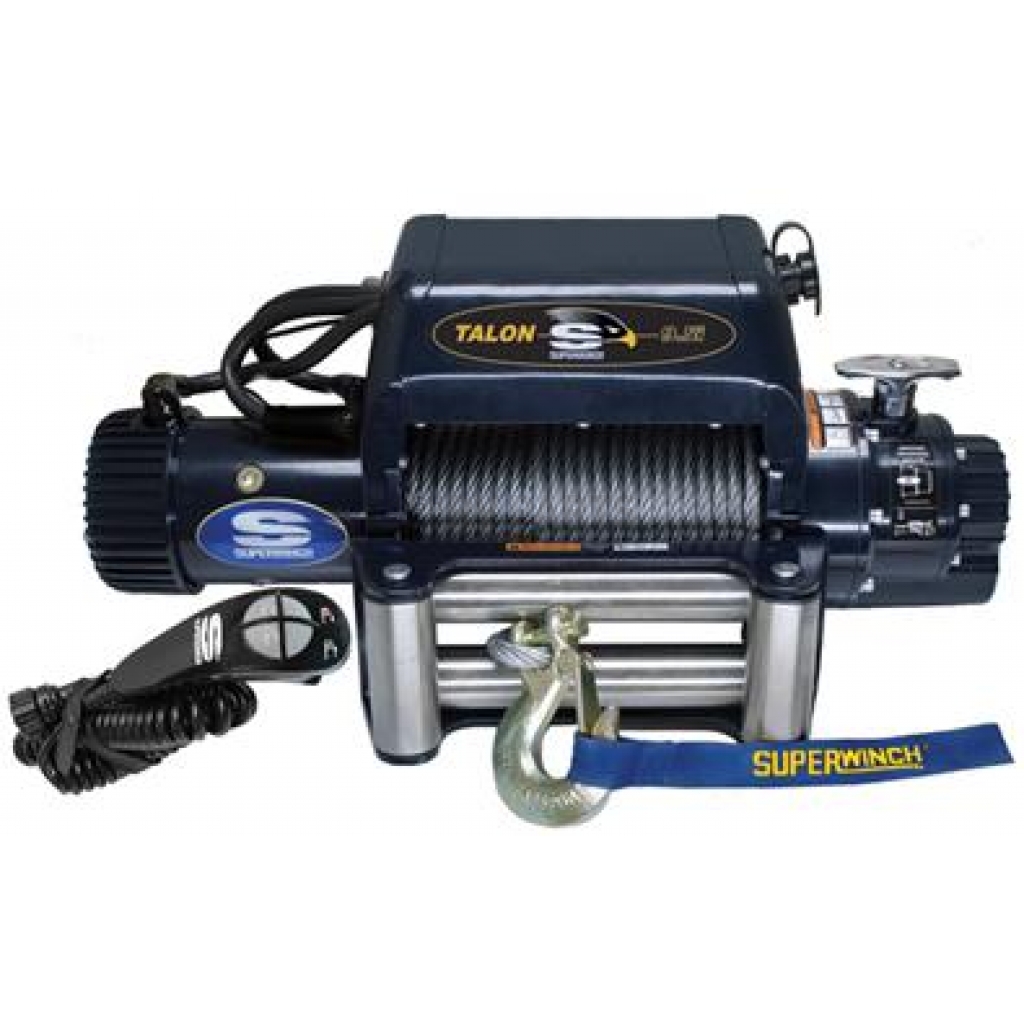

Superwinch Winch 9500 Pound Vehicle Mounted Automatic - 1695210

Authorized Dealer
Brand: Superwinch Superwinch
0 reviews
  • Have a product question? Ask us
  • Part Number: 1695210
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 15
Retail: $1,689.44
Price: $1,608.99
You Save: $80.45
Brake Type
Load Holding
Color
Blue
Conforms To J706 Standards
No
Drive Gear Type
Planetary And Spur
Electrical Control Type
Vented/ Sealed Submersible Solenoid
Fairlead Type
Roller
Free Spooling
Yes
Includes Mounting Hardware
Yes
Line Diameter (IN)
3/8 Inch
Line Length (FT)
85 Feet
Line Material
Steel
Share this page

Superwinch Winch

Winch; Talon 9.5i; Vehicle Mounted; Vehicle Recovery; 12 Volt Electric; 9500 Pound Line Pull Capacity; 85 Foot Wire Rope; Roller Fairlead; Wired Remote; Vented/ Sealed Submersible Solenoid; 2-Stage Planetary and 2 -Stage Spur Gear

MPN: 1695210

Winch Rating: 9500 Pound
Recommended Use: Self-Recovery
Type: Electric
Mount Type: Fixed Mount
Voltage: 12 Volt
Motor Horsepower: 5.2 Horsepower
Max Amp Draw: 430 Amp Max Draw At 9500 Pound
Electrical Control Type: Vented/ Sealed Submersible Solenoid
Motor Type: Series Wound Motor
Thermal Shutoff: No
Drive Gear Type: Planetary And Spur
Gear Reduction Ratio: 148:1
Free Spooling: Yes
Operation Type: Automatic
Brake Type: Load Holding
Line Diameter (IN): 3/8 Inch
Line Length (FT): 85 Feet
Line Material: Steel
Fairlead Type: Roller
Conforms To J706 Standards: No
Remote Type: Hand Held
Mounting Hole Quantity: 4
Mounting Pattern Length (IN): 10 Inch
Mounting Pattern Width (IN): 4-1/2 Inch
Includes Mounting Hardware: Yes
Color: Blue
Line Speed At Max Pull: 5 Feet Per Minute At 9500 Pound

Features

  • Limited Lifetime Warranty For Mechanical Components And 3 Year Warranty For Electrical Components
Specifications of Superwinch Winch 9500 Pound Vehicle Mounted Automatic - 1695210
Brake Type Load Holding
Color Blue
Conforms To J706 Standards No
Drive Gear Type Planetary And Spur
Electrical Control Type Vented/ Sealed Submersible Solenoid
Fairlead Type Roller
Free Spooling Yes
Includes Mounting Hardware Yes
Line Diameter (IN) 3/8 Inch
Line Length (FT) 85 Feet
Line Material Steel
Line Speed At Max Pull 5 Feet Per Minute At 9500 Pound
Max Amp Draw 430 Amp Max Draw At 9500 Pound
Motor Horsepower 5.2 Horsepower
Motor Type Series Wound Motor
Mount Type Fixed Mount
Mounting Hole Quantity 4
Mounting Pattern Length (IN) 10 Inch
Mounting Pattern Width (IN) 4-1/2 Inch
Operation Type Automatic
Recommended Use Self-Recovery
Remote Type Hand Held
Thermal Shutoff No
Type Electric
Voltage 12 Volt
Winch Rating 9500 Pound
