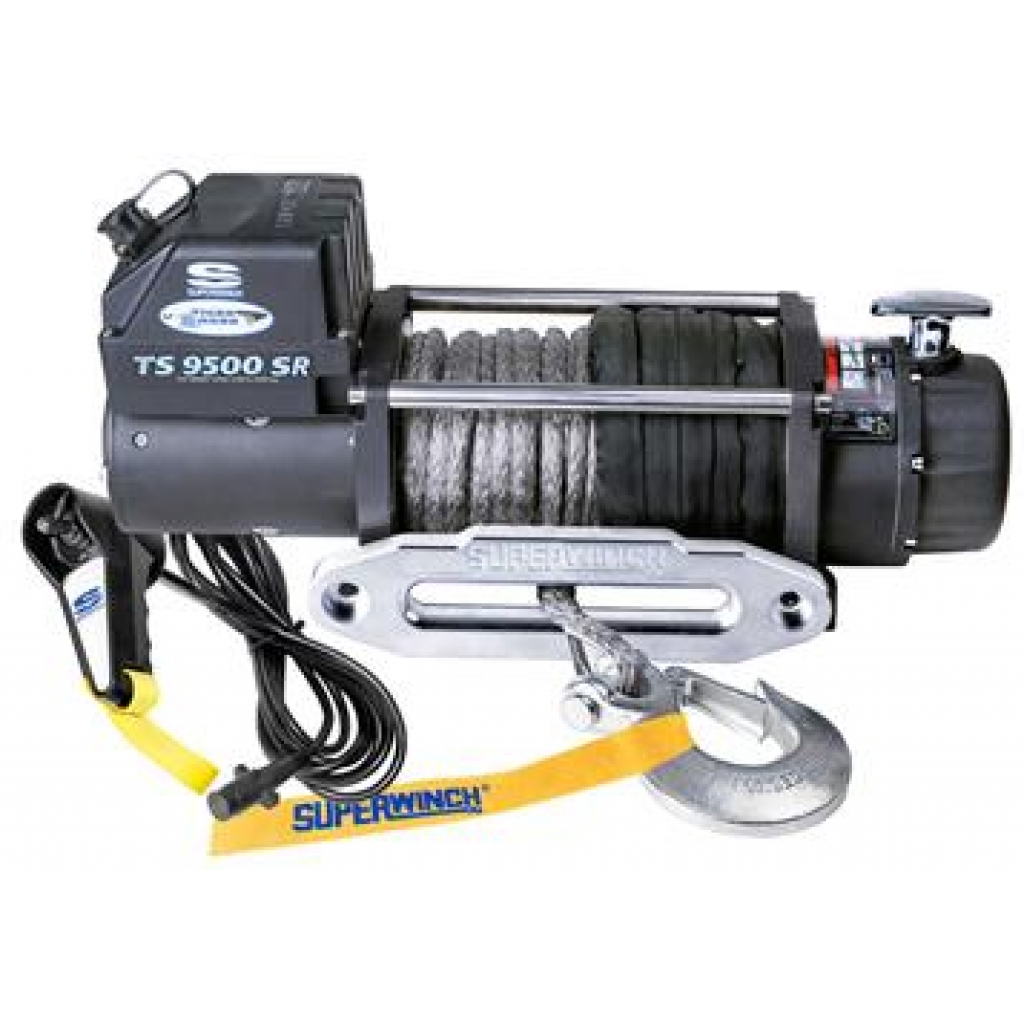

Superwinch Winch 9500 Pound Vehicle Mounted Automatic - 1595201
Superwinch Winch
Winch; Tiger Shark; Vehicle Mounted; Vehicle Recovery; 12 Volt Electric; 9500 Pound Line Pull Capacity; 80 Foot Synthetic Rope; Hawse Fairlead; Wired Remote; Sealed Solenoid/ Circuit Breaker Protected; Planetary Gear Drive
MPN: 1595201
Features
- Weather Sealed Motor And Solenoids - Reduces Damage From Rain, Snow And Blowing Dust
- Heavy-Duty 3-Stage Gearbox - Handles Stress And Torque On Demand
- Resists Harsh Outdoor And Off-Road Abuse
- Heavy-Duty Rubber Hand-Held Remote - Field Proven Design Provides Effortless Switching
- CNC'd Aluminum Hawse - Brushed Finish Endures Weather And Wire Rope Abuse
- Mechanical, Automatic Load Holding Brake
- Heavy-Duty Clevis Pinned Latched Hook
- Limited 2 Year Warranty
Specifications of Superwinch Winch 9500 Pound Vehicle Mounted Automatic - 1595201 | |
Brake Type | Mechanical And Load Holding |
Color | Gray |
Conforms To J706 Standards | No |
Drive Gear Type | Planetary |
Electrical Control Type | Sealed Solenoid And Circuit Breaker Protected |
Fairlead Type | Hawse |
Free Spooling | Yes |
Includes Mounting Hardware | Yes |
Line Diameter (IN) | 3/8 Inch |
Line Length (FT) | 80 Feet |
Line Material | Synthetic |
Line Speed At Max Pull | 4 Feet per Minute At 9500 Pound |
Max Amp Draw | 340 Amp Max Draw At 9500 Pound |
Motor Horsepower | 5.2 Horsepower |
Motor Type | Series Wound Motor |
Mount Type | Fixed Mount |
Mounting Pattern Length (IN) | 10 Inch |
Mounting Pattern Width (IN) | 4-1/2 Inch |
Operation Type | Automatic |
Recommended Use | Self-Recovery |
Remote Type | 12 Feet Wired |
Thermal Shutoff | No |
Type | Electric |
Voltage | 12 Volt |
Winch Rating | 9500 Pound |
