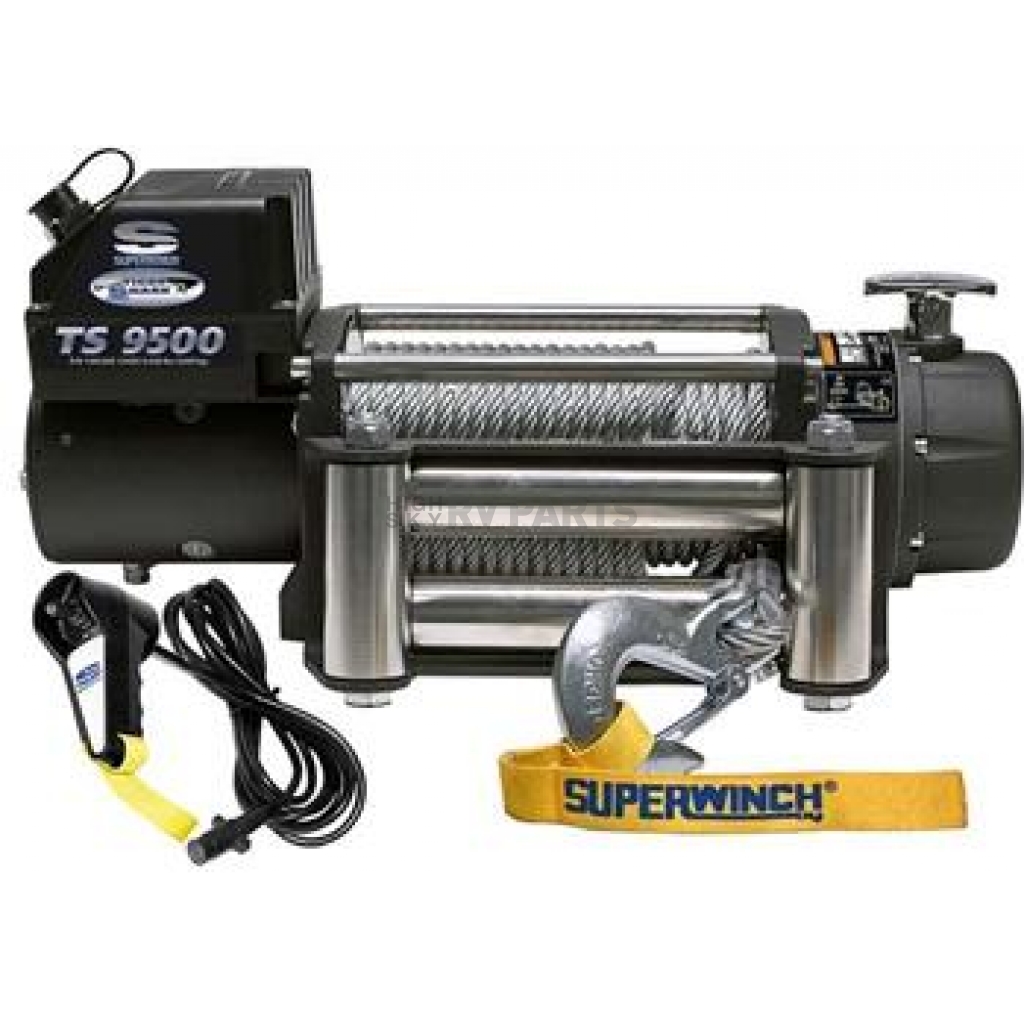

Superwinch Winch 9500 Pound Vehicle Mounted Automatic - 1595200
Brake Type
Mechanical And Load Holding
Color
Black
Conforms To J706 Standards
No
Drive Gear Type
Planetary
Electrical Control Type
Sealed Solenoid And Circuit Breaker Protected
Fairlead Type
Roller
Free Spooling
Yes
Includes Mounting Hardware
Yes
Line Diameter (IN)
0.328 Inch
Line Length (FT)
95 Feet
Line Material
Steel
Share this page
Superwinch Winch
Winch; Tiger Shark; Vehicle Mounted; Vehicle Recovery; 12 Volt Electric; 9500 Pound Line Pull Capacity; 95 Foot Wire Rope; Roller Fairlead; Wired Remote; Sealed Solenoid/ Circuit Breaker Protected; Planetary Gear Drive
MPN: 1595200
Earning multiple SEMA Awards and the ProPickup “Rock Solid” award, the Superwinch Tiger Shark Series is setting the bar for innovation, design, durability and functionality. The "Entry Level" waters are dark, full of bottom feeders and are soon to be consumed by a winch series destined to raise the bar for the winch marketplace. Superwinch is redefining the entry level winch market with the new Tiger Shark Series with "Standard Issue" features and benefits designed for the enthusiast-level consumer. Created from everything we have already learned over the past 40+ years, the Tiger Shark brings unmatched functionality, quality and value.
Winch Rating: 9500 Pound
Recommended Use: Self-Recovery
Type: Electric
Mount Type: Fixed Mount
Voltage: 12 Volt
Motor Horsepower: 5.2 Horsepower
Max Amp Draw: 340 Amp Max Draw At 9500 Pound
Electrical Control Type: Sealed Solenoid And Circuit Breaker Protected
Motor Type: Series Wound Motor
Thermal Shutoff: No
Drive Gear Type: Planetary
Gear Reduction Ratio: 218:1
Free Spooling: Yes
Operation Type: Automatic
Brake Type: Mechanical And Load Holding
Line Diameter (IN): 0.328 Inch
Line Length (FT): 95 Feet
Line Material: Steel
Fairlead Type: Roller
Conforms To J706 Standards: No
Remote Type: Hand Held
Mounting Hole Quantity: 4
Mounting Pattern Length (IN): 10 Inch
Mounting Pattern Width (IN): 4-1/2 Inch
Includes Mounting Hardware: Yes
Color: Black
Line Speed At Max Pull: 4 Feet per Minute At 9500 Pound
Features
- Reduces Damage From Rain, Snow And Blowing Dust
- Handles Stress And Torque On Demand
- Resists Harsh Outdoor And Off-Road Abuse
- Field Proven Design Provides Effortless Switching
- Brushed Finish Endures Weather And Wire Rope Abuse
- Weather Sealed Solenoid And Circuit Breaker Protected. Heavy-Duty Clevis Pinned Latched
- Mechanical, Automatic Load Holding Brake
- Limited 2 Year Warranty
| Specifications of Superwinch Winch 9500 Pound Vehicle Mounted Automatic - 1595200 | |
| Brake Type | Mechanical And Load Holding |
| Color | Black |
| Conforms To J706 Standards | No |
| Drive Gear Type | Planetary |
| Electrical Control Type | Sealed Solenoid And Circuit Breaker Protected |
| Fairlead Type | Roller |
| Free Spooling | Yes |
| Includes Mounting Hardware | Yes |
| Line Diameter (IN) | 0.328 Inch |
| Line Length (FT) | 95 Feet |
| Line Material | Steel |
| Line Speed At Max Pull | 4 Feet per Minute At 9500 Pound |
| Max Amp Draw | 340 Amp Max Draw At 9500 Pound |
| Motor Horsepower | 5.2 Horsepower |
| Motor Type | Series Wound Motor |
| Mount Type | Fixed Mount |
| Mounting Hole Quantity | 4 |
| Mounting Pattern Length (IN) | 10 Inch |
| Mounting Pattern Width (IN) | 4-1/2 Inch |
| Operation Type | Automatic |
| Recommended Use | Self-Recovery |
| Remote Type | Hand Held |
| Thermal Shutoff | No |
| Type | Electric |
| Voltage | 12 Volt |
| Winch Rating | 9500 Pound |
