Spod Accessory Control Module BXHDJL
Input/ Output
Control Up To 8 Additional Accessories
Switch Type
Without Switch
Used With
Power And Control 12/24 VDC Accessories
With Control Modula
Yes
With Monitor
Yes
With Wiring Harness
Yes
Share this page

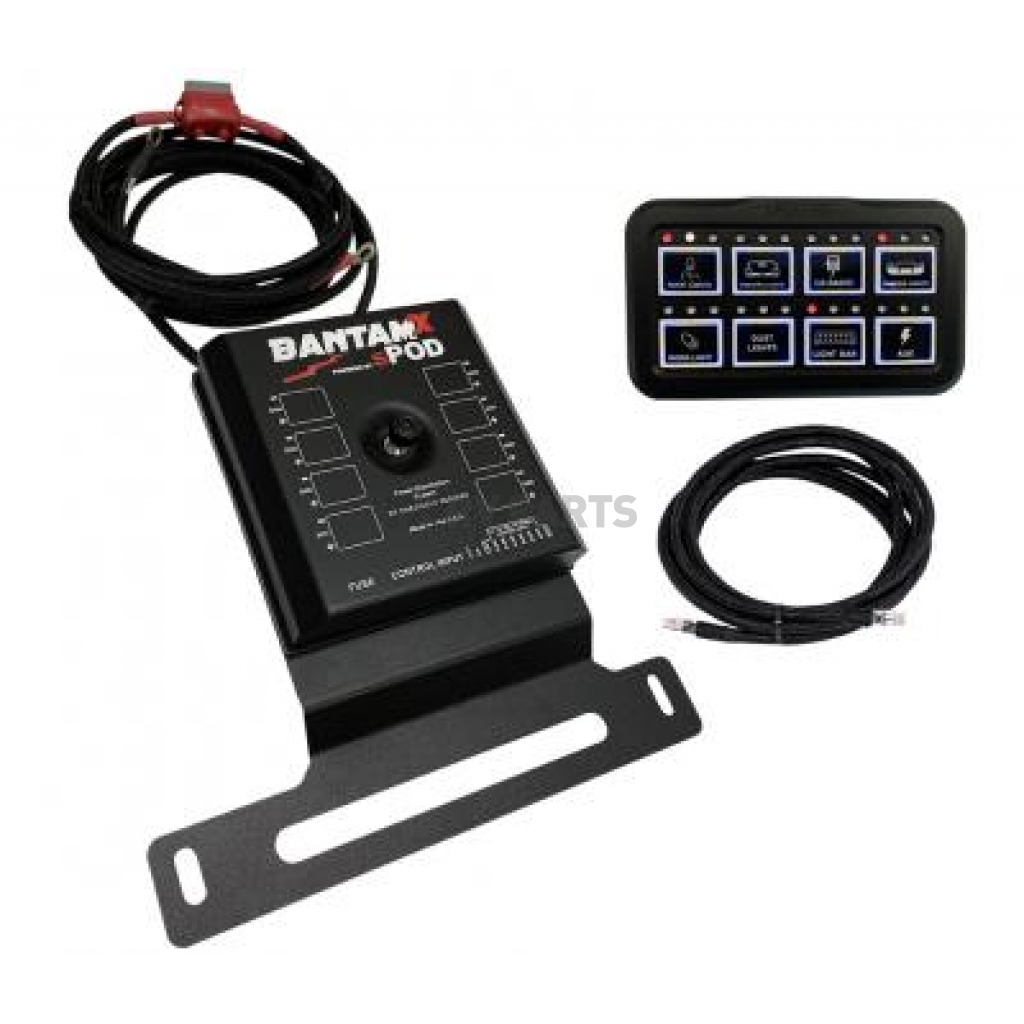

Spod Accessory Control Module
Accessory Control Module; Bantmx; For Power And Control 12/24 VDC Accessories; With HD Smart Panel; 16 Position Terminal Block And 2 Controller Port; With Touch Screen Monitor/ Control Module/ Wiring Harness
MPN: BXHDJL

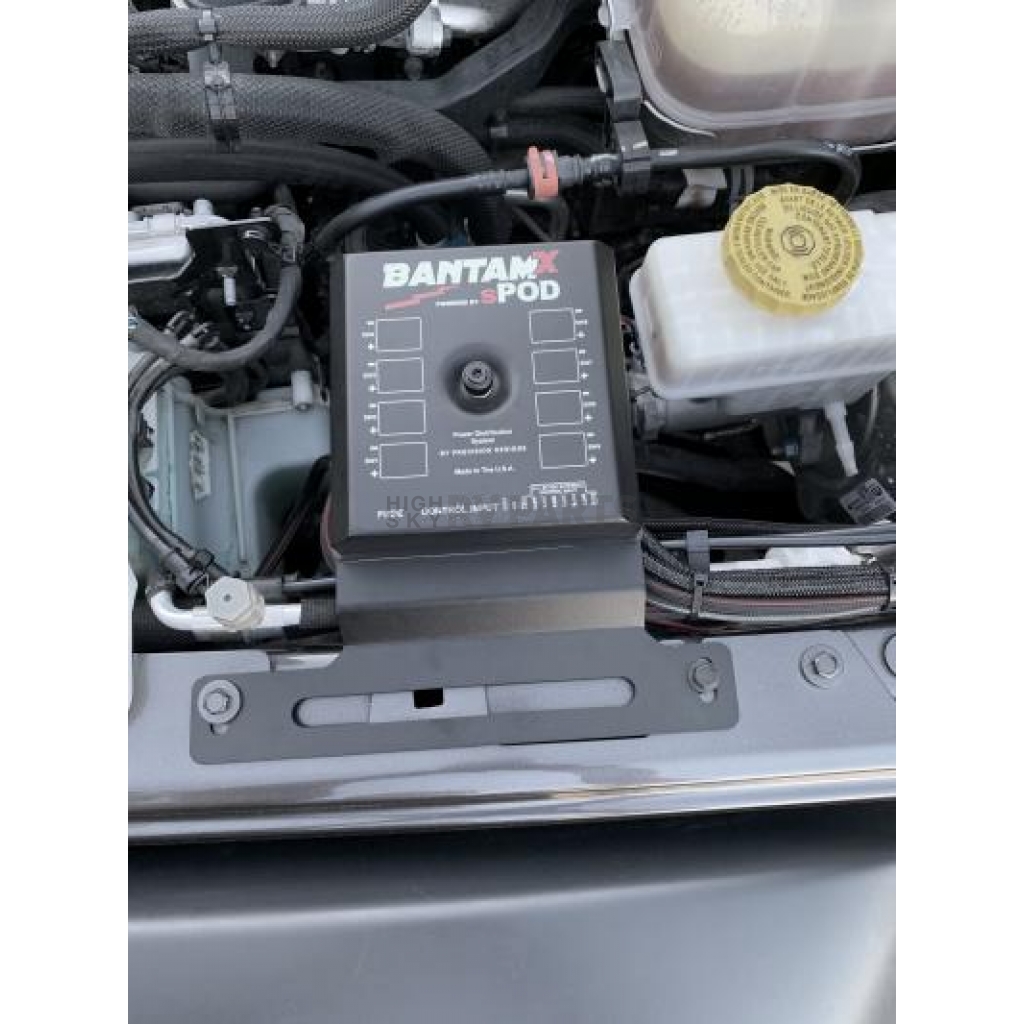

The BantamX will save hours of wiring and installation time. It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/ 24VDC accessories. Due to the small footprint of the BantamX, the placement options are endless. No cutting, fishing wires into the cab or tapping into the vehicle‘s electrical system.
Used With: Power And Control 12/24 VDC Accessories
Switch Type: Without Switch
Input/ Output: Control Up To 8 Additional Accessories
With Monitor: Yes
With Control Modula: Yes
With Wiring Harness: Yes
Features
- Fully Programmable, Digital Controlled System; 8 Circuits Rated At 30 Amps At 12.5 VDC Per Circuit; Integrated Low Voltage Cutoff Battery Protection With Optional Override
- One ATM Mini-Style Fuse For LVCO Protection And Reset; Failsafe Self-Healing Fault Protection System (From 1.5 To 30 Amp); Current-Sensing MOSFETs Controlled By A Microprocessor (No Fuses And Relays)
- 50 Amp Auto Resetting Circuit Breaker; Nylon Braided Battery Cables Are Hi-Strand Cross-linked Copper Wire With A Silicone Jacket; Built-in Bluetooth Capabilities For Remote Control
- Protection Against: Overheating, Over-Current, Shorts, Reverse Polarity And Field Collapse; Ignition Control And Safety Lock-Out For Switches 1 And 2; On-Demand Wireless Software Updates/Upgrades
- Encased In An Aluminum Billet Machined Housing, Powder Coated Black, Utilizing Tactile Switches Encapsulated In Silicone; Silicone Buttons With Positive Touch Feedback
- Panel Is Designed To Withstand The Harshest Environments With All Weather Conditions Considered; Universal Back With Two Pressed-In 1/4-20 Studs X 5/8 Inch Long For Flat Mounting
- Adjustable Timer To Turn Backlight Off And A Simple Touch On Any Switch To Reactivate; Quickly Turn Backlight Off By Holding 2 Designated Buttons; Panel Lock-Out Feature For Safety And Security
- Each Switch Has 3 Status Lights: Red (Left) = On, White (Center) = Flash/Strobe Active, Blue (Right) = Active Visual Feedback When Button Is Pushed; Status Lights Can Be Dimmed
- Additional HD Smart Controller Can Be Added For Different Locations; HD Can Run In Conjunction With Our Touchscreen, Bluetooth And 8 Switch Panel
- Limited 1 Year Warranty
Specifications of Spod Accessory Control Module BXHDJL | |
Input/ Output | Control Up To 8 Additional Accessories |
Switch Type | Without Switch |
Used With | Power And Control 12/24 VDC Accessories |
With Control Modula | Yes |
With Monitor | Yes |
With Wiring Harness | Yes |
