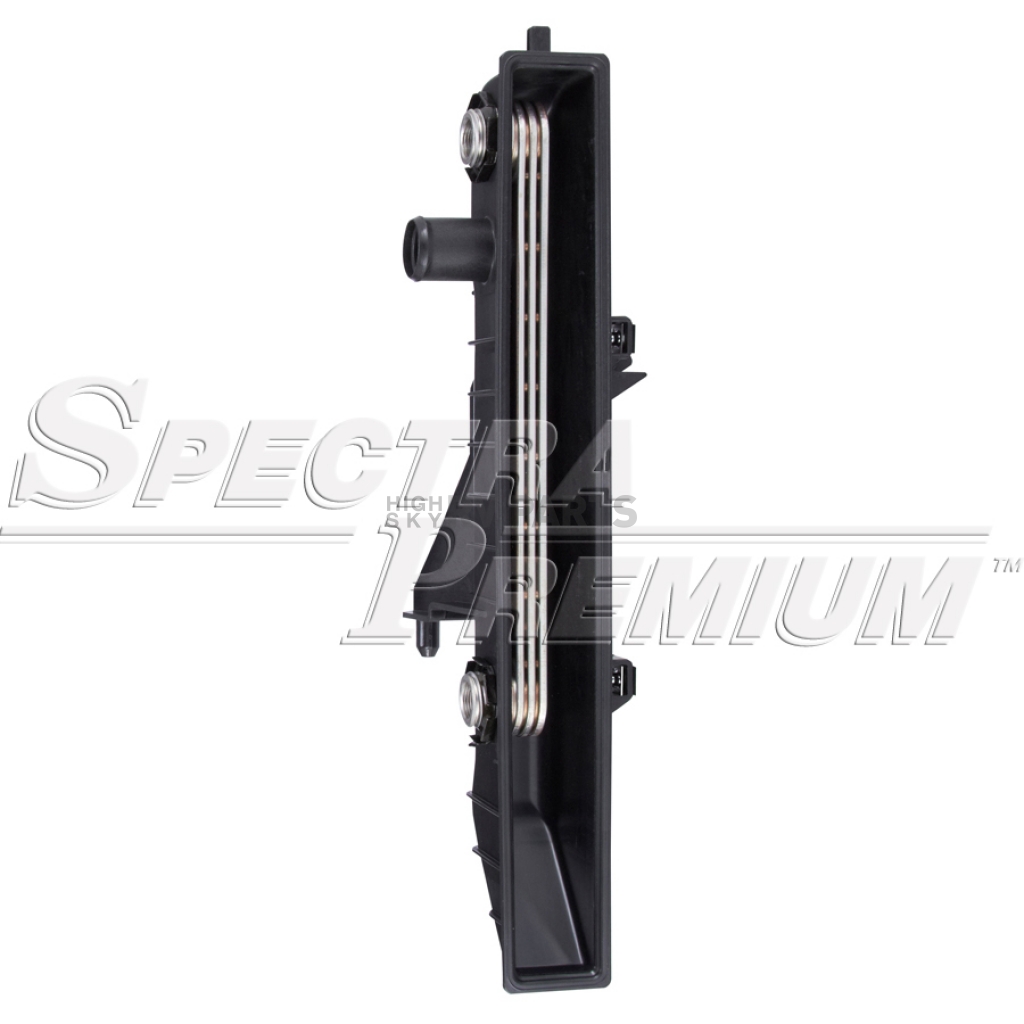

Spectra Premium Radiator CU1786
Color
Silver Core With Black Tank
Core Depth (IN)
5/8 Inch
Core Height (IN)
28-1/4 Inch
Core Length (IN)
17-1/4 Inch
Core Material
Aluminum
Core Rows
Single
Finish
Natural
Flow Direction
Cross Flow
Includes Fittings
Yes
Includes Mounting Hardware
Yes
Inlet Hose Location
OEM
Share this page

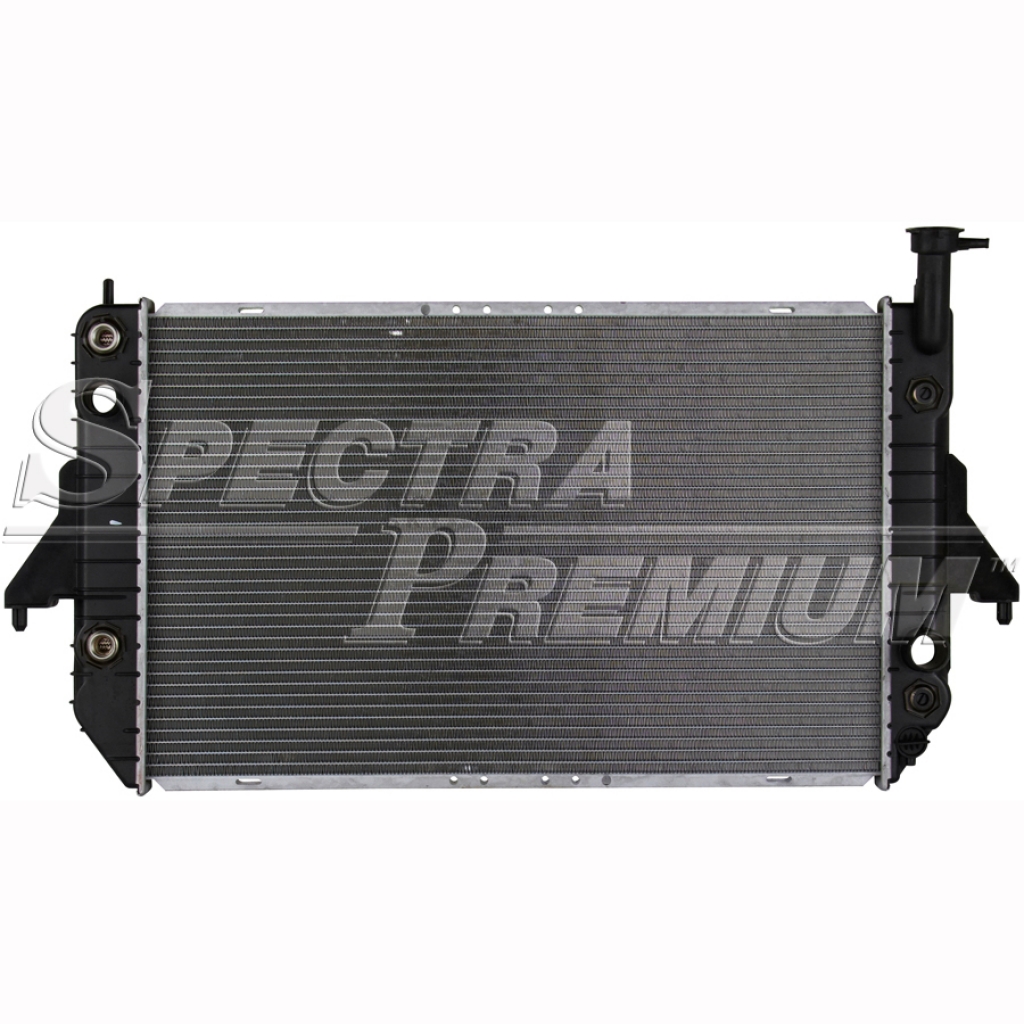

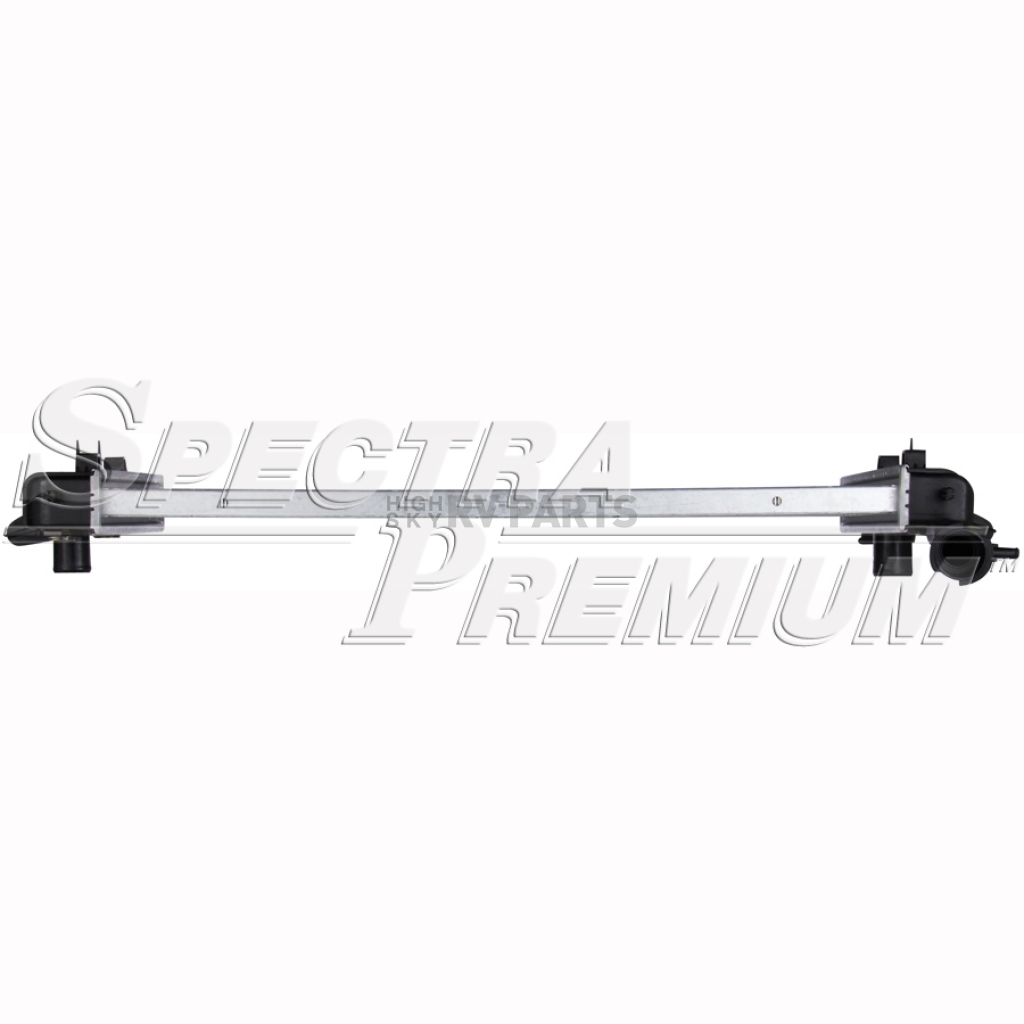

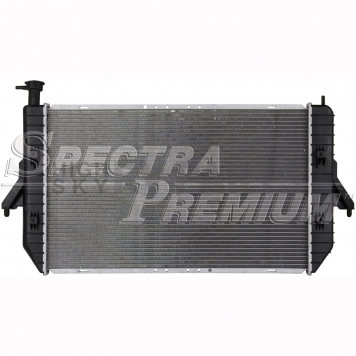

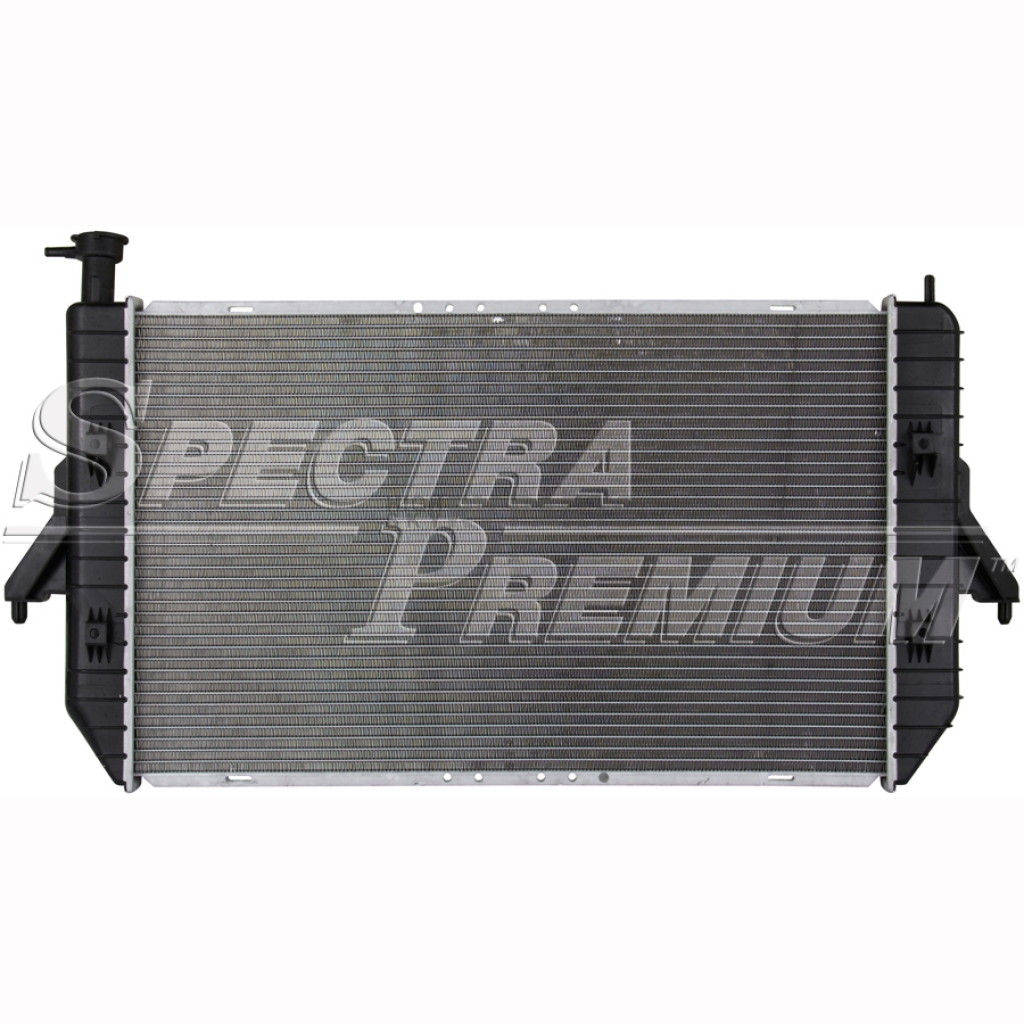

Spectra Premium Radiator

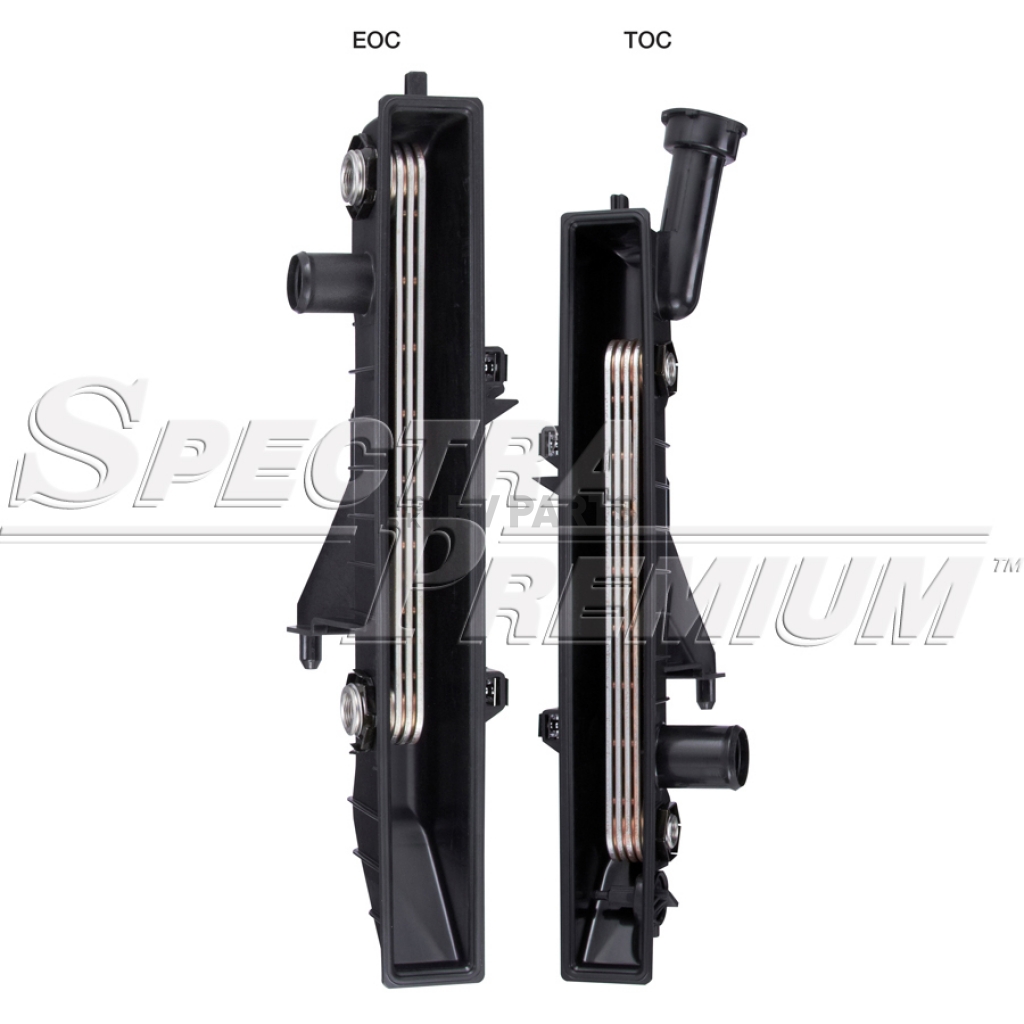

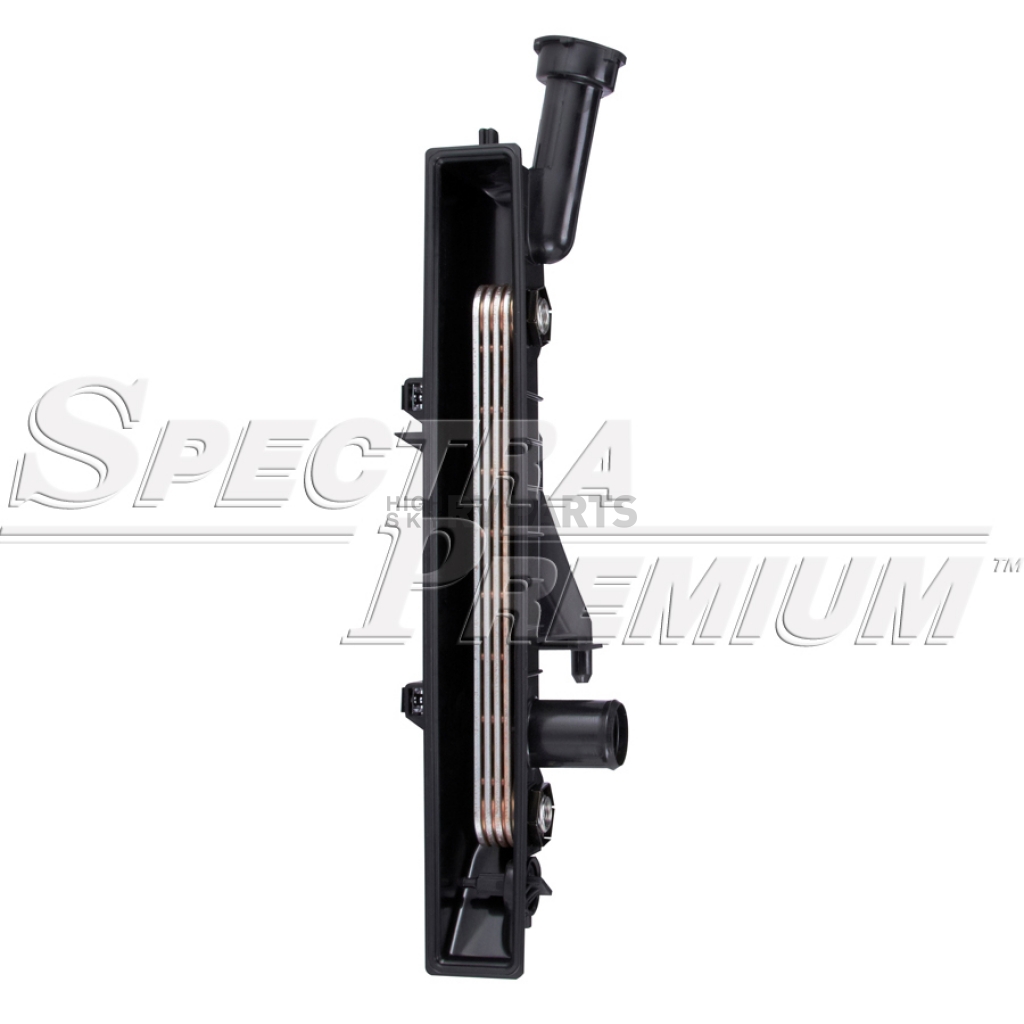

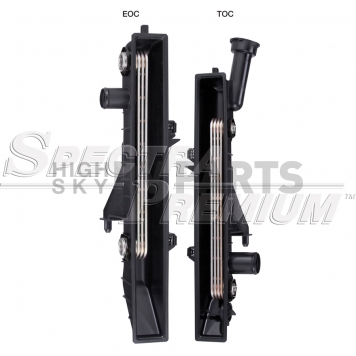

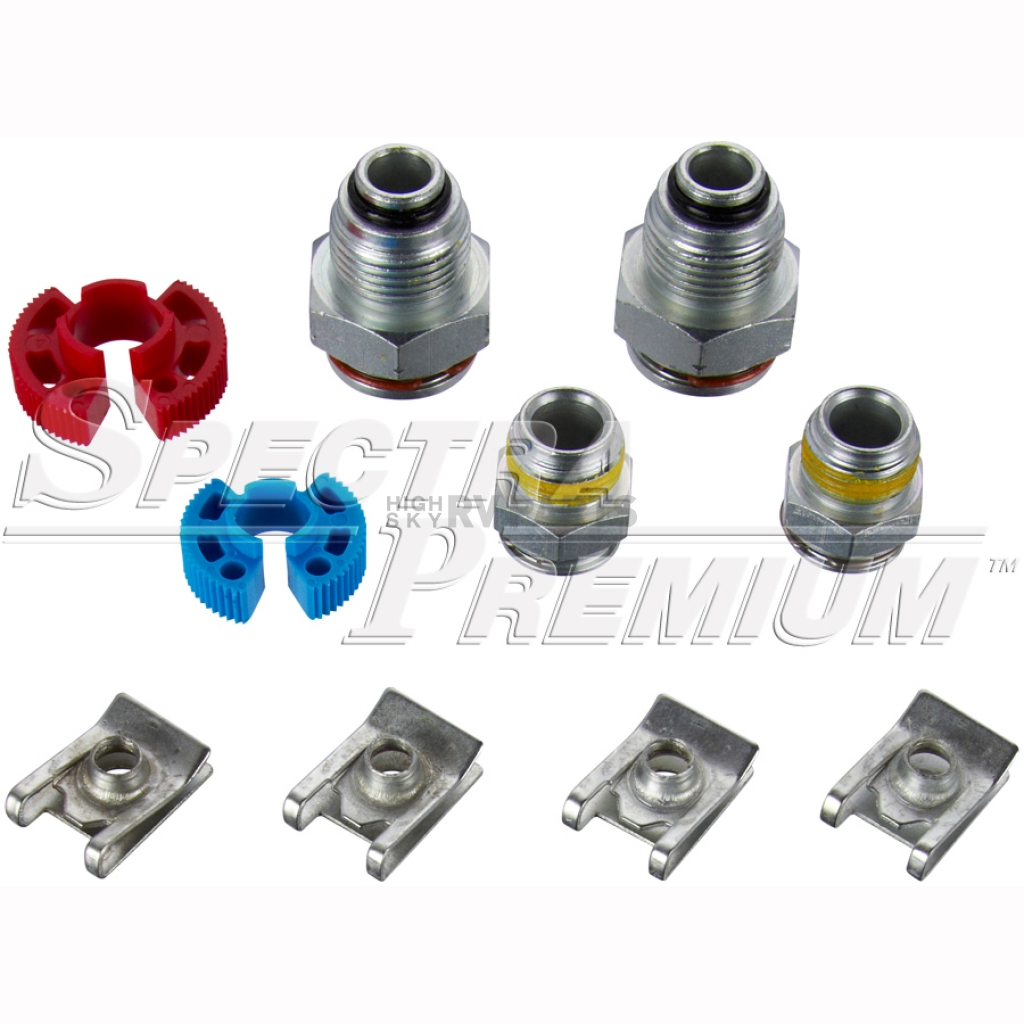

Radiator; 28-1/4 Inch Length x 17-1/4 Inch Height x 5/8 Inch Depth Core Dimension; Single Core Row; Cross Flow; Aluminum Core With Plastic Tanks; 1-5/16 Inch Inlet x 1-9/16 Inch Outlet; With 11-1/2 Inch 4 Plate Transmission Cooler; With 11-1/2 Inch 3 Plate Engine Oil Cooler; With 3/8 Inch Quick Connect Oil Cooler Adapter x 5/8 Inch-18 UNF Male/ 2-1/2 Inch Quick Connect Oil Cooler Adapter/ M20 x 1.5 Male Fitting/ Two Disconnect Tools
MPN: CU1786
Year after year, spectra premium has been supplying innovative cooling system solutions for the north American automotive aftermarket. Dedicated development for late model applications. Over 75 new models introduced annually. Manufactured under ISO 9001 / TS 16949 quality system. Only the highest grades of materials are used in our production to ensure product longevity. All models are validated for fit, form, and function before released into the market.
Flow Direction: Cross Flow
Overall Length (IN): OEM
Overall Height (IN): OEM
Overall Depth (IN): OEM
Core Rows: Single
Core Length (IN): 17-1/4 Inch
Core Height (IN): 28-1/4 Inch
Core Depth (IN): 5/8 Inch
Core Material: Aluminum
Inlet Hose Location: OEM
Inlet Size (IN): 1-5/16 Inch
Outlet Hose Location: OEM
Outlet Size (IN): 1-9/16 Inch
Finish: Natural
Color: Silver Core With Black Tank
Tank Material: Plastic
With Radiator Cap: No
With Transmission Cooler: Yes
With Engine Oil Cooler: Yes
Includes Fittings: Yes
Includes Mounting Hardware: Yes
Features
- Premium Quality Heavy-Duty Fittings
- Heavy-Duty Tanks With Reinforcement Ribs To Prevent Flexing And Failure
- High Quality Aluminum Alloy For Optimum Crimp Strength And Performance
- Thermal Approved Gaskets For The Most Extreme Weather Conditions
- Precisely Engineered Tube To Header Fit Design
- Oil Cooler Designed For Maximum Cooling Efficiency
- Radiators Are 100 Percent Leak Tested
- Limited Two Year Warranty
| Specifications of Spectra Premium Radiator CU1786 | |
| Color | Silver Core With Black Tank |
| Core Depth (IN) | 5/8 Inch |
| Core Height (IN) | 28-1/4 Inch |
| Core Length (IN) | 17-1/4 Inch |
| Core Material | Aluminum |
| Core Rows | Single |
| Finish | Natural |
| Flow Direction | Cross Flow |
| Includes Fittings | Yes |
| Includes Mounting Hardware | Yes |
| Inlet Hose Location | OEM |
| Inlet Size (IN) | 1-5/16 Inch |
| Outlet Hose Location | OEM |
| Outlet Size (IN) | 1-9/16 Inch |
| Overall Depth (IN) | OEM |
| Overall Height (IN) | OEM |
| Overall Length (IN) | OEM |
| Tank Material | Plastic |
| With Engine Oil Cooler | Yes |
| With Radiator Cap | No |
| With Transmission Cooler | Yes |
1996 Chevrolet Astro
1997 Chevrolet Astro
1998 Chevrolet Astro
1999 Chevrolet Astro
2000 Chevrolet Astro
2001 Chevrolet Astro
2002 Chevrolet Astro
2003 Chevrolet Astro
2004 Chevrolet Astro
2005 Chevrolet Astro
1997 Chevrolet Astro
1998 Chevrolet Astro
1999 Chevrolet Astro
2000 Chevrolet Astro
2001 Chevrolet Astro
2002 Chevrolet Astro
2003 Chevrolet Astro
2004 Chevrolet Astro
2005 Chevrolet Astro
1996 GMC Safari
1997 GMC Safari
1998 GMC Safari
1999 GMC Safari
2000 GMC Safari
2001 GMC Safari
2002 GMC Safari
2003 GMC Safari
2004 GMC Safari
2005 GMC Safari
1997 GMC Safari
1998 GMC Safari
1999 GMC Safari
2000 GMC Safari
2001 GMC Safari
2002 GMC Safari
2003 GMC Safari
2004 GMC Safari
2005 GMC Safari
