Spectra Premium Radiator CU1485
Color
Silver Core With Black Tank
Core Depth (IN)
1-1/4 Inch
Core Height (IN)
24-1/4 Inch
Core Length (IN)
17-1/4 Inch
Core Material
Aluminum
Core Rows
Single
Finish
Natural
Flow Direction
Cross Flow
Includes Fittings
Yes
Includes Mounting Hardware
No
Inlet Hose Location
OEM
Share this page

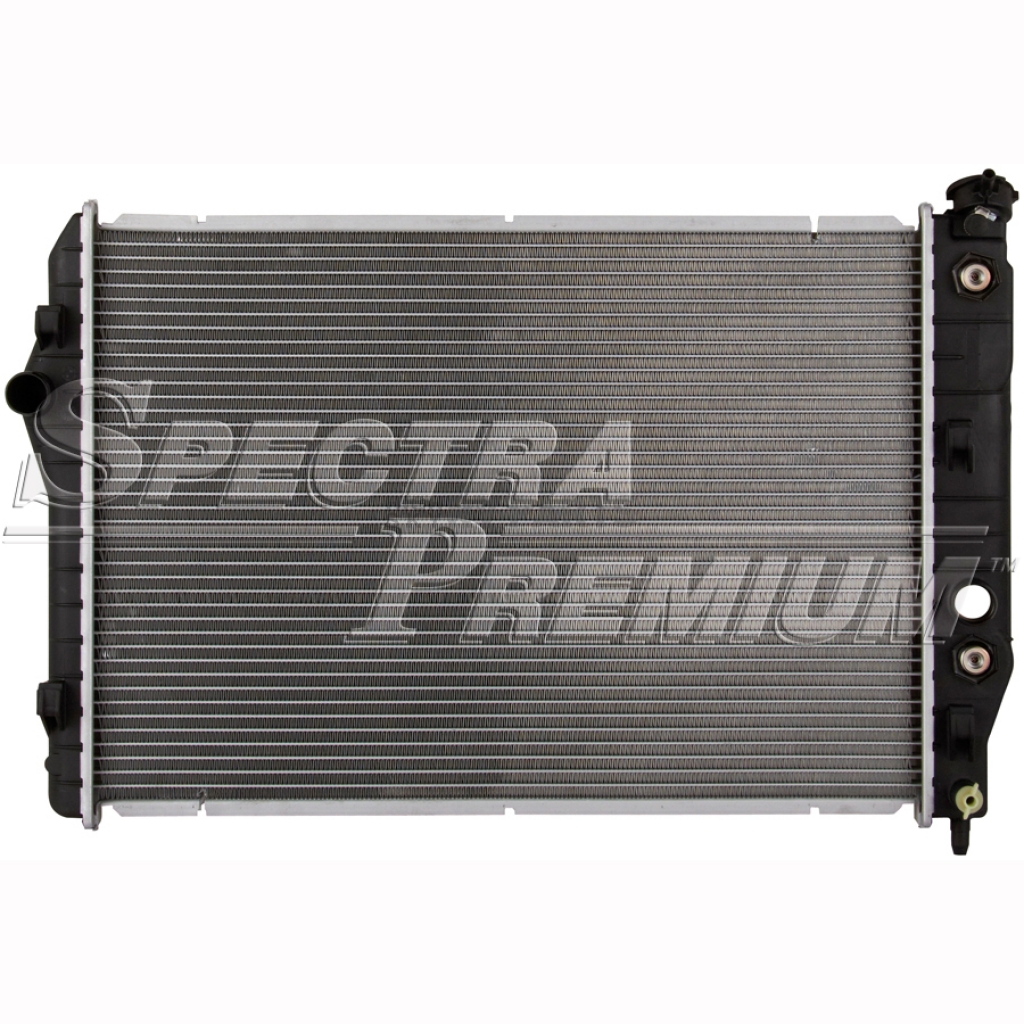

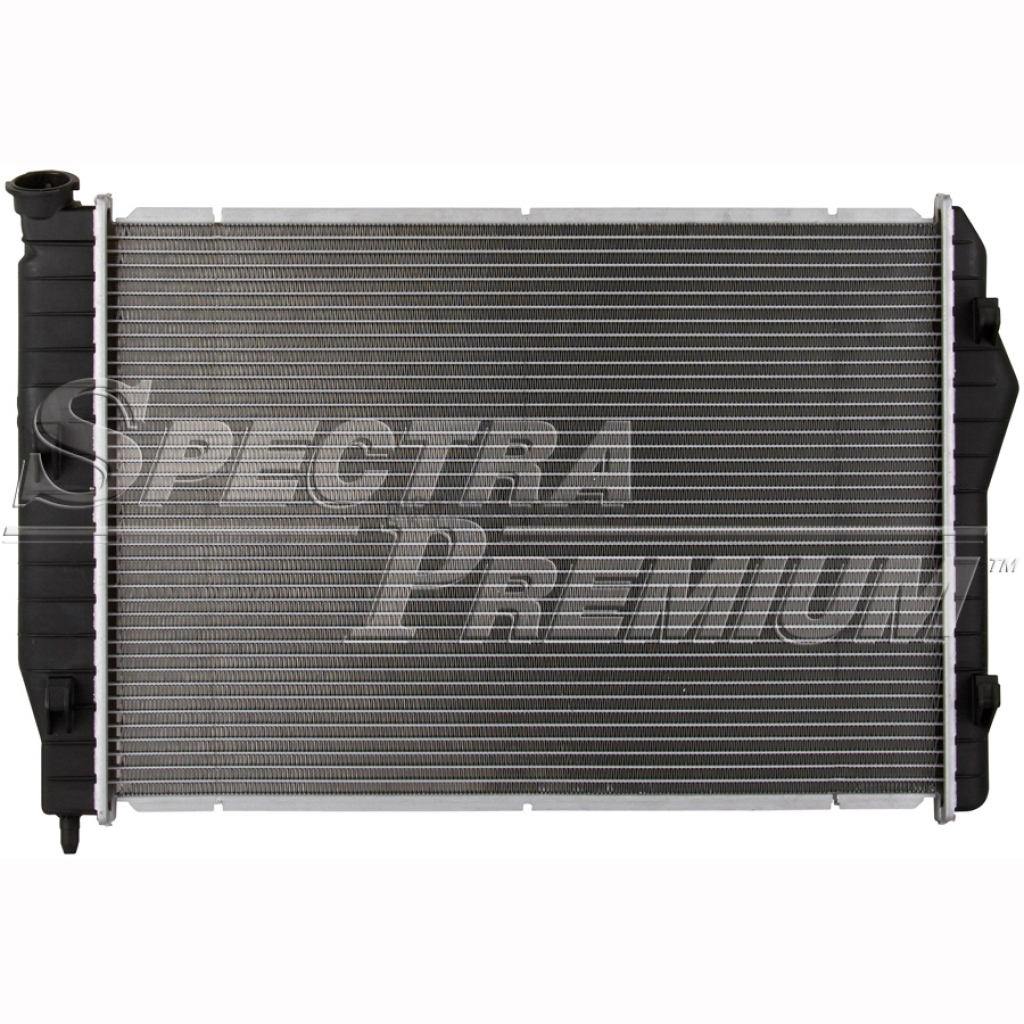

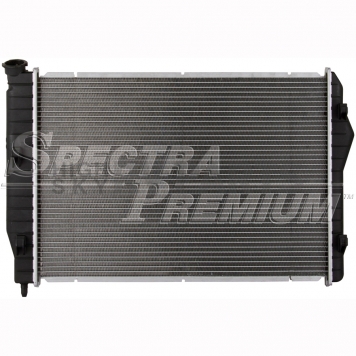

Spectra Premium Radiator
Radiator; 24-1/4 Inch Length x 17-1/4 Inch Height x 1-1/4 Inch Depth Core Dimension; Single Core Row; Cross Flow; Aluminum Core With Plastic Tanks; 1-5/16 Inch Inlet And Outlet; With 11-1/2 Inch 4 Plate Transmission Cooler; Without Engine Oil Cooler
MPN: CU1485
Year after year, spectra premium has been supplying innovative cooling system solutions for the north American automotive aftermarket. Dedicated development for late model applications. Over 75 new models introduced annually. Manufactured under ISO 9001 / TS 16949 quality system. Only the highest grades of materials are used in our production to ensure product longevity. All models are validated for fit, form, and function before released into the market.
Flow Direction: Cross Flow
Overall Length (IN): OEM
Overall Height (IN): OEM
Overall Depth (IN): OEM
Core Rows: Single
Core Length (IN): 17-1/4 Inch
Core Height (IN): 24-1/4 Inch
Core Depth (IN): 1-1/4 Inch
Core Material: Aluminum
Inlet Hose Location: OEM
Inlet Size (IN): 1-5/16 Inch
Outlet Hose Location: OEM
Outlet Size (IN): 1-5/16 Inch
Finish: Natural
Color: Silver Core With Black Tank
Tank Material: Plastic
With Radiator Cap: No
With Transmission Cooler: Yes
With Engine Oil Cooler: No
Includes Fittings: Yes
Includes Mounting Hardware: No
Features
- Premium Quality Heavy-Duty Fittings
- Heavy-Duty Tanks With Reinforcement Ribs To Prevent Flexing And Failure
- High Quality Aluminum Alloy For Optimum Crimp Strength And Performance
- Thermal Approved Gaskets For The Most Extreme Weather Conditions
- Precisely Engineered Tube To Header Fit Design
- Oil Cooler Designed For Maximum Cooling Efficiency
- Radiators Are 100 Percent Leak Tested
- Limited Two Year Warranty
| Specifications of Spectra Premium Radiator CU1485 | |
| Color | Silver Core With Black Tank |
| Core Depth (IN) | 1-1/4 Inch |
| Core Height (IN) | 24-1/4 Inch |
| Core Length (IN) | 17-1/4 Inch |
| Core Material | Aluminum |
| Core Rows | Single |
| Finish | Natural |
| Flow Direction | Cross Flow |
| Includes Fittings | Yes |
| Includes Mounting Hardware | No |
| Inlet Hose Location | OEM |
| Inlet Size (IN) | 1-5/16 Inch |
| Outlet Hose Location | OEM |
| Outlet Size (IN) | 1-5/16 Inch |
| Overall Depth (IN) | OEM |
| Overall Height (IN) | OEM |
| Overall Length (IN) | OEM |
| Tank Material | Plastic |
| With Engine Oil Cooler | No |
| With Radiator Cap | No |
| With Transmission Cooler | Yes |
1993 Chevrolet Camaro
1994 Chevrolet Camaro
1995 Chevrolet Camaro
1996 Chevrolet Camaro
1997 Chevrolet Camaro
1998 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro
1994 Chevrolet Camaro
1995 Chevrolet Camaro
1996 Chevrolet Camaro
1997 Chevrolet Camaro
1998 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro
1993 Pontiac Firebird
1994 Pontiac Firebird
1995 Pontiac Firebird
1996 Pontiac Firebird
1997 Pontiac Firebird
1998 Pontiac Firebird
1999 Pontiac Firebird
2000 Pontiac Firebird
2001 Pontiac Firebird
2002 Pontiac Firebird
1994 Pontiac Firebird
1995 Pontiac Firebird
1996 Pontiac Firebird
1997 Pontiac Firebird
1998 Pontiac Firebird
1999 Pontiac Firebird
2000 Pontiac Firebird
2001 Pontiac Firebird
2002 Pontiac Firebird
