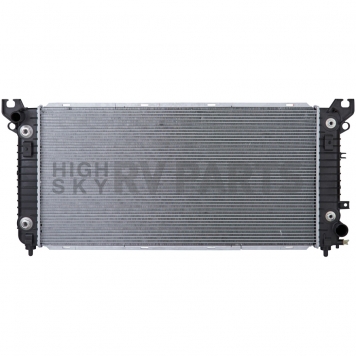

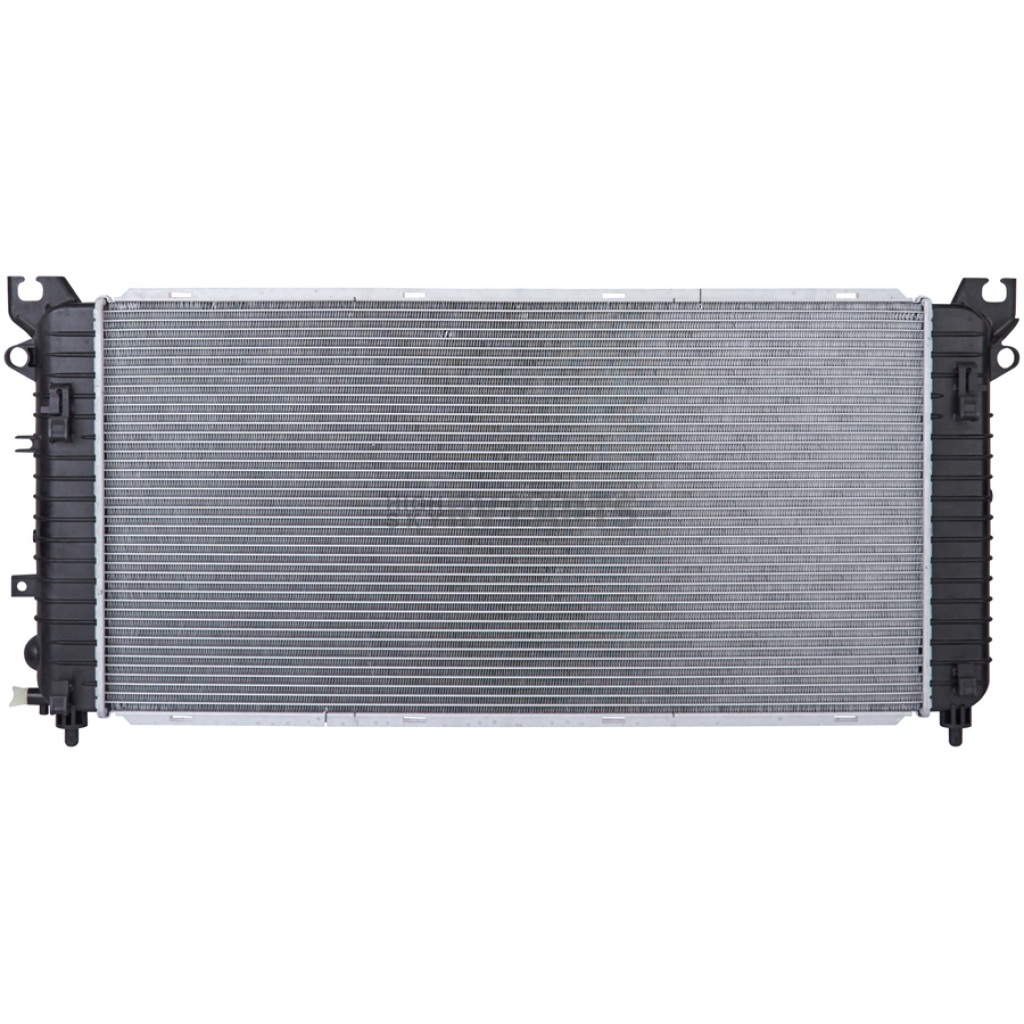

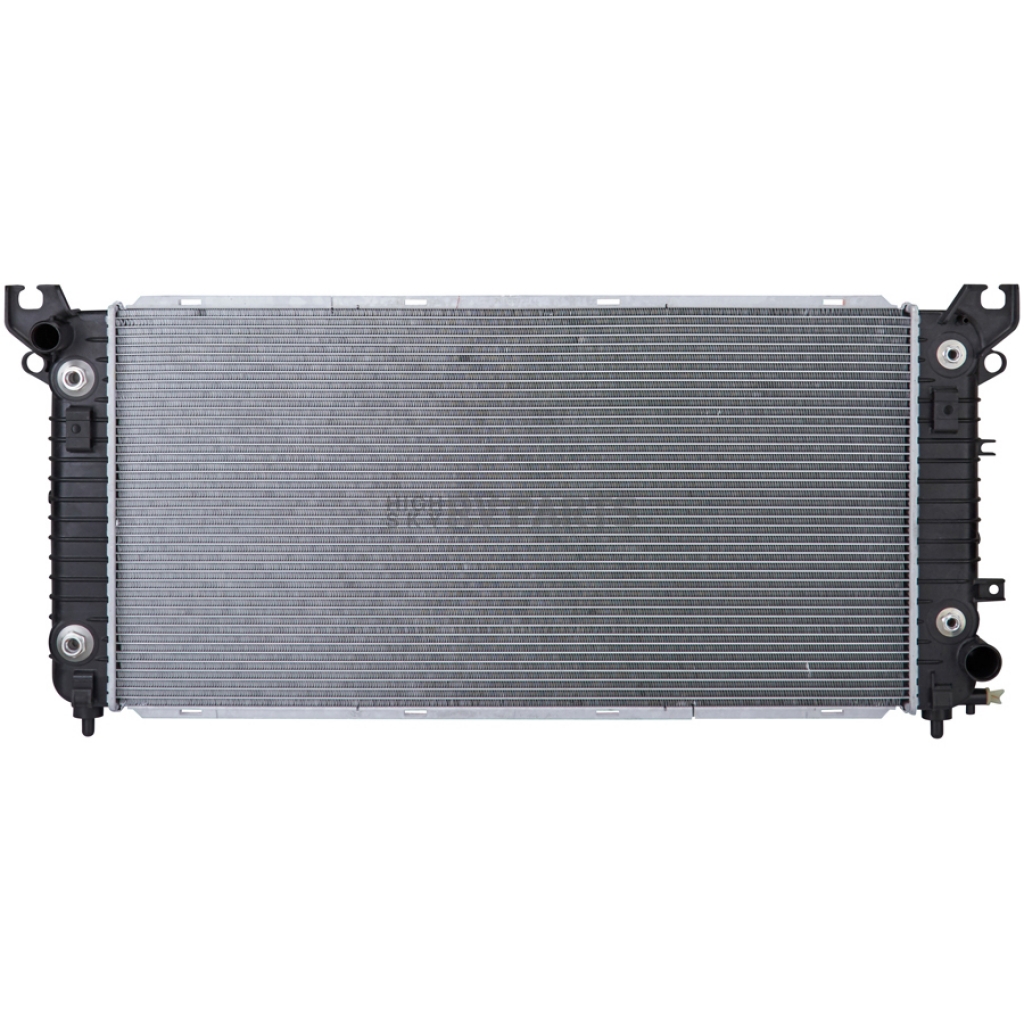

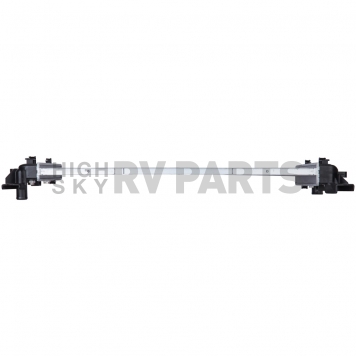

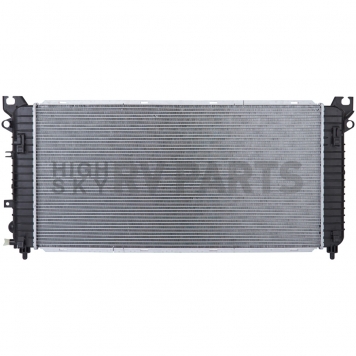

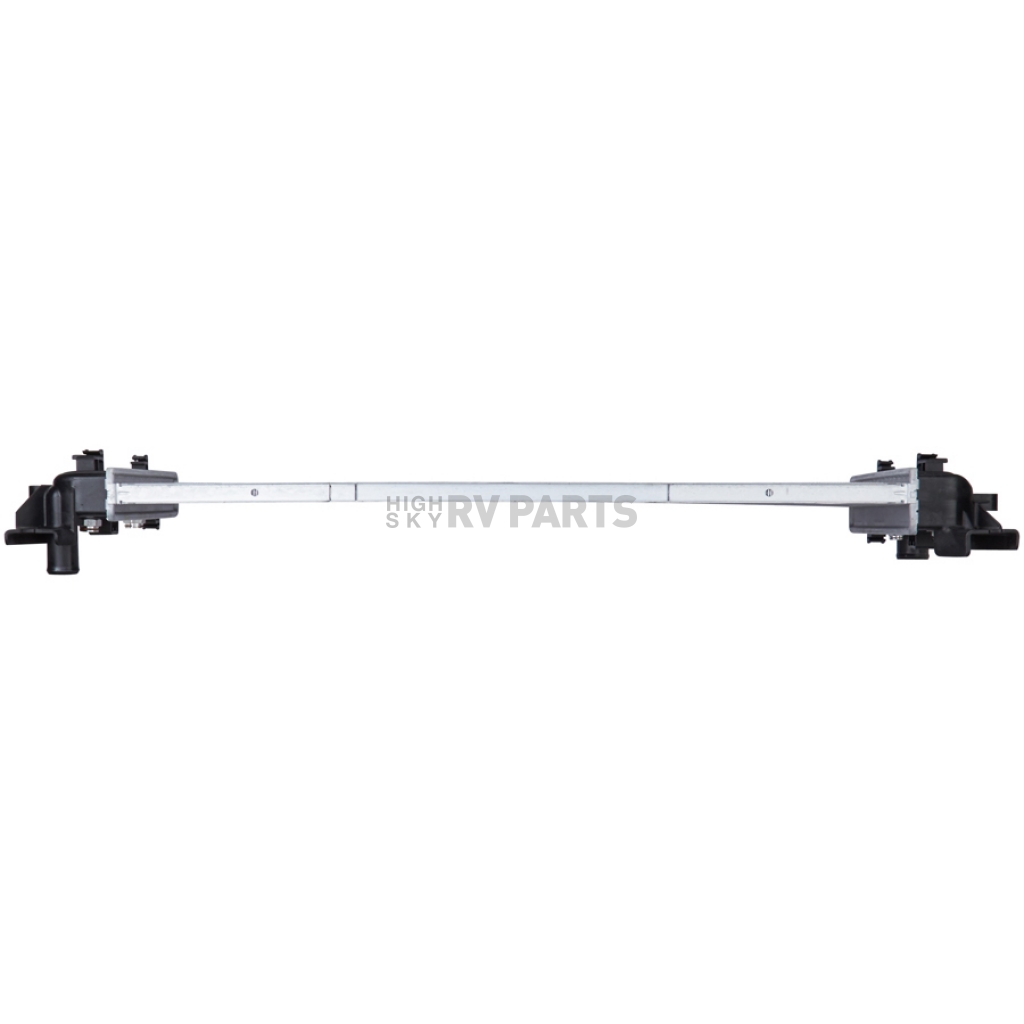

Spectra Premium Radiator CU13396

Brand: Spectra Premium Spectra Premium
0 reviews
  • Have a product question? Ask us
  • Part Number: CU13396
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $550.19
Price: $523.99
You Save: $26.20
Core Depth (IN)
7/8 Inch
Core Height (IN)
34-1/16 Inch
Core Length (IN)
17-5/16 Inch
Core Material
Aluminum
Core Rows
1
Flow Direction
Crossflow
Inlet Hose Location
OEM
Inlet Size (IN)
1-5/16 Inch
Outlet Hose Location
OEM
Outlet Size (IN)
1-9/16 Inch
Overall Depth (IN)
OEM
Share this page

Spectra Premium Radiator

Radiator; OE Replacement; 17-5/16 Inch Width x 34-1/16 Inch Height x 7/8 Inch Core Thickness; 1 Row Core; Aluminum Core With Plastic Tank; 1-5/16 Inch Inlet And 1-9/16 Inch Outlet

MPN: CU13396

The main component of the cooling system, a radiator’s main purpose is to keep an engine at the optimal operating temperature, which it achieves by absorbing excess heat generated by the engine and lowering the coolant temperature with the air passing through the vehicle’s front grille. The Heavy Duty version of the radiator fits light and heavy-duty trucks, and off-highway equipment. They are built to sustain more stress and more heat generated over long periods of time.
Flow Direction: Crossflow
Overall Length (IN): OEM
Overall Height (IN): OEM
Overall Depth (IN): OEM
Core Rows: 1
Core Length (IN): 17-5/16 Inch
Core Height (IN): 34-1/16 Inch
Core Depth (IN): 7/8 Inch
Core Material: Aluminum
Inlet Hose Location: OEM
Inlet Size (IN): 1-5/16 Inch
Outlet Hose Location: OEM
Outlet Size (IN): 1-9/16 Inch
Tank Material: Plastic
With Transmission Cooler: Yes
With Engine Oil Cooler: Yes

Features

  • First And Only CAPA Certified Radiators
  • Radiators Are 100 Percent Leak Tested
  • Meets Or Exceeds OE Specifications For Fit, Form, And Function
  • Drop-In Fit For Easy Installation
  • Limited 2 Year Warranty
Specifications of Spectra Premium Radiator CU13396
Core Depth (IN) 7/8 Inch
Core Height (IN) 34-1/16 Inch
Core Length (IN) 17-5/16 Inch
Core Material Aluminum
Core Rows 1
Flow Direction Crossflow
Inlet Hose Location OEM
Inlet Size (IN) 1-5/16 Inch
Outlet Hose Location OEM
Outlet Size (IN) 1-9/16 Inch
Overall Depth (IN) OEM
Overall Height (IN) OEM
Overall Length (IN) OEM
Tank Material Plastic
With Engine Oil Cooler Yes
With Transmission Cooler Yes

2014 Chevrolet Silverado 1500
2015 Chevrolet Silverado 1500
2016 Chevrolet Silverado 1500
2017 Chevrolet Silverado 1500
2018 Chevrolet Silverado 1500

2014 GMC Sierra 1500
2015 GMC Sierra 1500
2016 GMC Sierra 1500
2017 GMC Sierra 1500
2018 GMC Sierra 1500
