Spectra Premium Radiator CU13022A

Brand: Spectra Premium Spectra Premium
0 reviews
  • Have a product question? Ask us
  • Part Number: CU13022A
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 18
Retail: $2,020.19
Price: $1,923.99
You Save: $96.20
Color
OEM
Core Depth (IN)
2-5/8 Inch
Core Height (IN)
37 Inch
Core Length (IN)
28 Inch
Core Material
Aluminum
Core Rows
Two
Finish
OEM
Flow Direction
OEM
Includes Fittings
No
Includes Mounting Hardware
No
Inlet Hose Location
OEM
Share this page

Spectra Premium Radiator

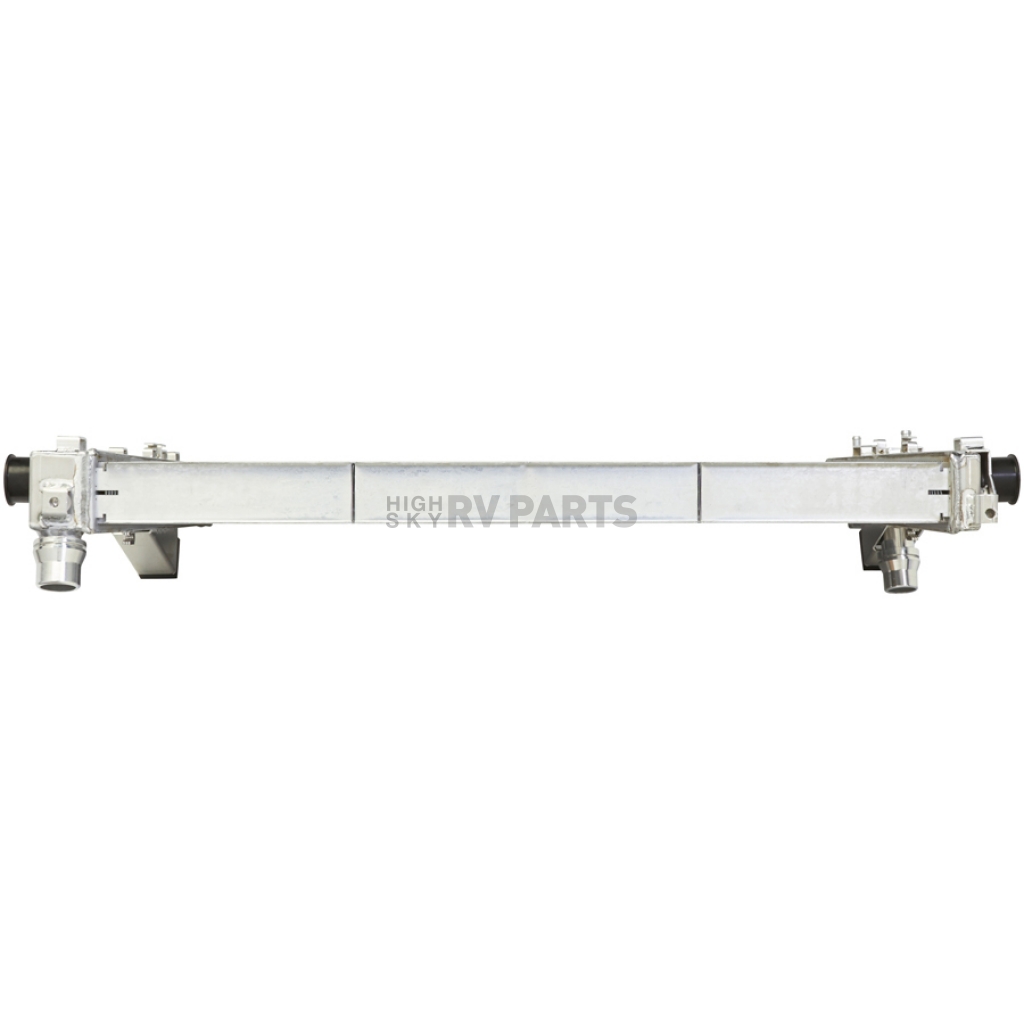

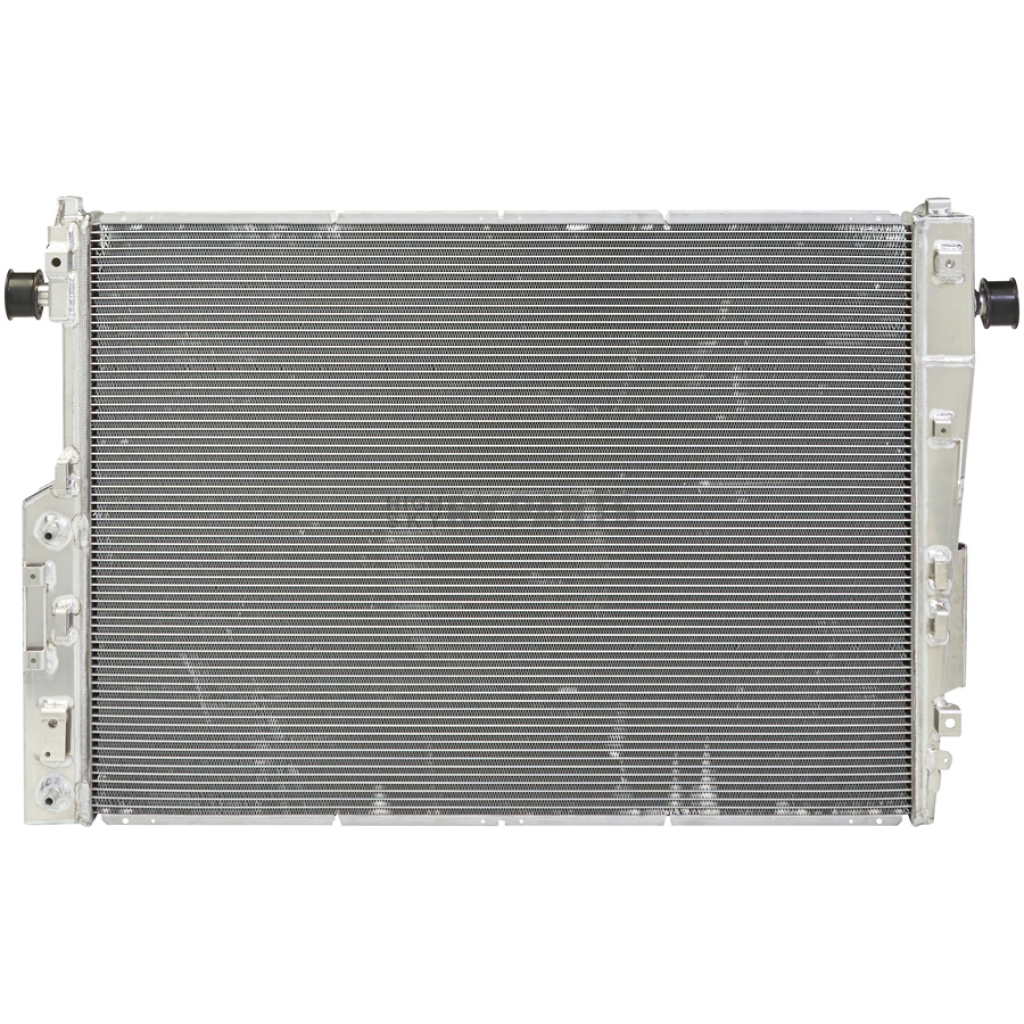

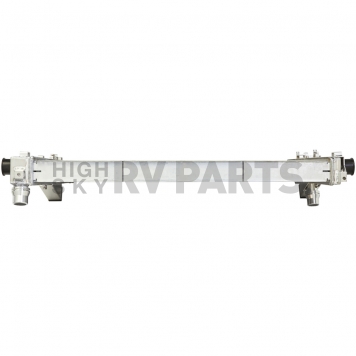

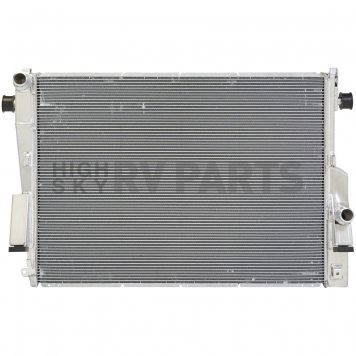

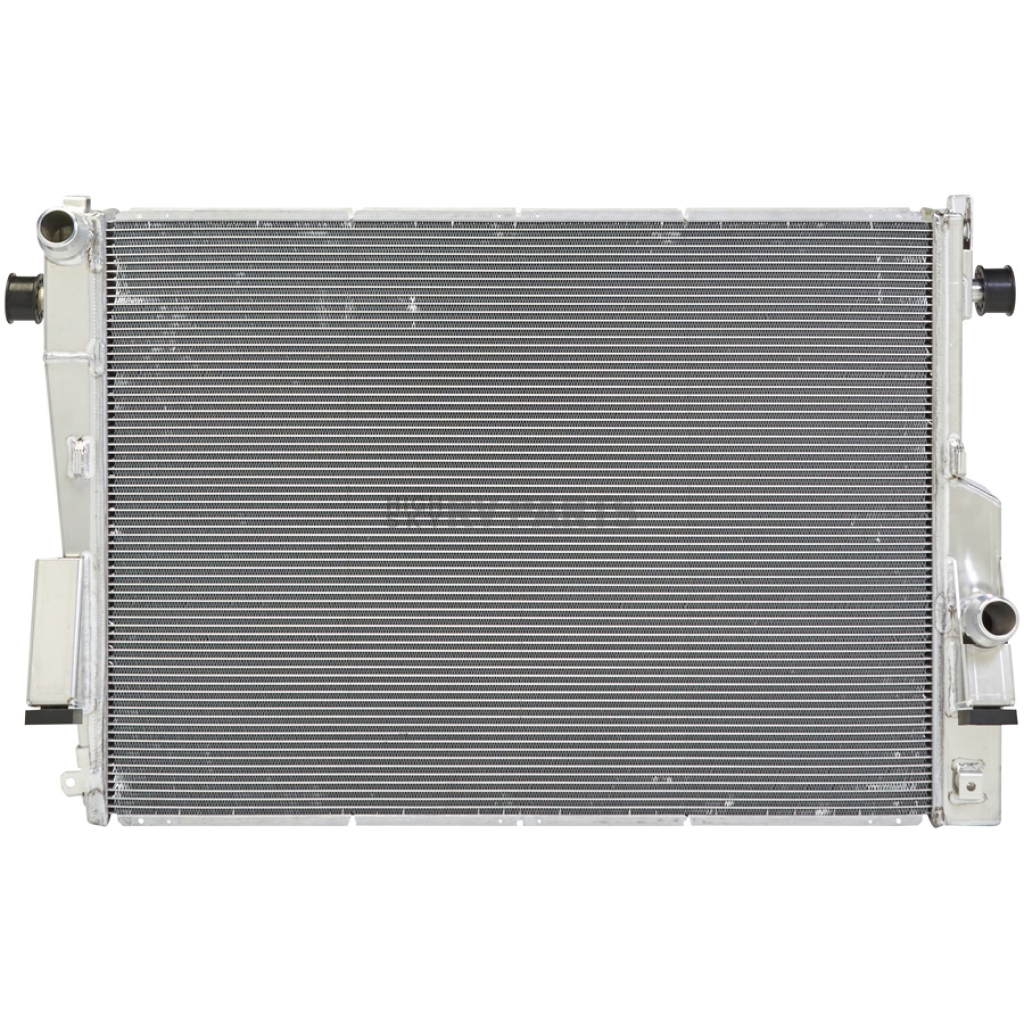

Radiator; OE Replacement; 28 Inch Width x 37 Inch Height x 2-5/8 Inch Core Thickness; Two Row Core; Aluminum Core With Aluminum Tank; 1-7/8 Inch Inlet And 1-7/8 Inch Outlet; All Aluminum Construction

MPN: CU13022A

The main component of the cooling system, a radiator’s main purpose is to keep an engine at the optimal operating temperature, which it achieves by absorbing excess heat generated by the engine and lowering the coolant temperature with the air passing through the vehicle’s front grille. The Heavy Duty version of the radiator fits light and heavy-duty trucks, and off-highway equipment. They are built to sustain more stress and more heat generated over long periods of time.
Flow Direction: OEM
Overall Length (IN): OEM
Overall Height (IN): OEM
Overall Depth (IN): OEM
Core Rows: Two
Core Length (IN): 28 Inch
Core Height (IN): 37 Inch
Core Depth (IN): 2-5/8 Inch
Core Material: Aluminum
Inlet Hose Location: OEM
Inlet Size (IN): 1-7/8 Inch
Outlet Hose Location: OEM
Outlet Size (IN): 1-7/8 Inch
Finish: OEM
Color: OEM
Tank Material: Aluminum
With Radiator Cap: No
With Transmission Cooler: No
With Engine Oil Cooler: No
Includes Fittings: No
Includes Mounting Hardware: No

Features

  • First And Only CAPA Certified Radiators
  • All-Aluminum TIG-Welded Radiator For Extreme Durability
  • Heavy Gauge Tubes To Resist Excessive Friction From Thermal Expansion
  • Radiators Are 100 Percent Leak Tested
  • Meets Or Exceeds OE Specifications For Fit, Form, And Function
  • Drop-In Fit For Easy Installation
  • Limited 2 Year Warranty
Specifications of Spectra Premium Radiator CU13022A
Color OEM
Core Depth (IN) 2-5/8 Inch
Core Height (IN) 37 Inch
Core Length (IN) 28 Inch
Core Material Aluminum
Core Rows Two
Finish OEM
Flow Direction OEM
Includes Fittings No
Includes Mounting Hardware No
Inlet Hose Location OEM
Inlet Size (IN) 1-7/8 Inch
Outlet Hose Location OEM
Outlet Size (IN) 1-7/8 Inch
Overall Depth (IN) OEM
Overall Height (IN) OEM
Overall Length (IN) OEM
Tank Material Aluminum
With Engine Oil Cooler No
With Radiator Cap No
With Transmission Cooler No

2008 Ford F-250 Super Duty
2009 Ford F-250 Super Duty
2010 Ford F-250 Super Duty

2008 Ford F-350 Super Duty
2009 Ford F-350 Super Duty
2010 Ford F-350 Super Duty

2008 Ford F-450 Super Duty
2009 Ford F-450 Super Duty
2010 Ford F-450 Super Duty

2008 Ford F-550 Super Duty
2009 Ford F-550 Super Duty
2010 Ford F-550 Super Duty
