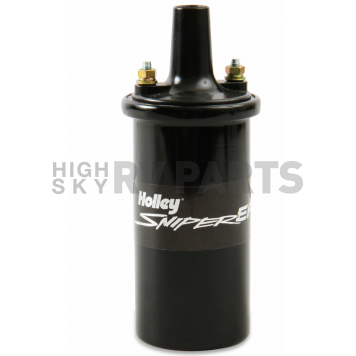

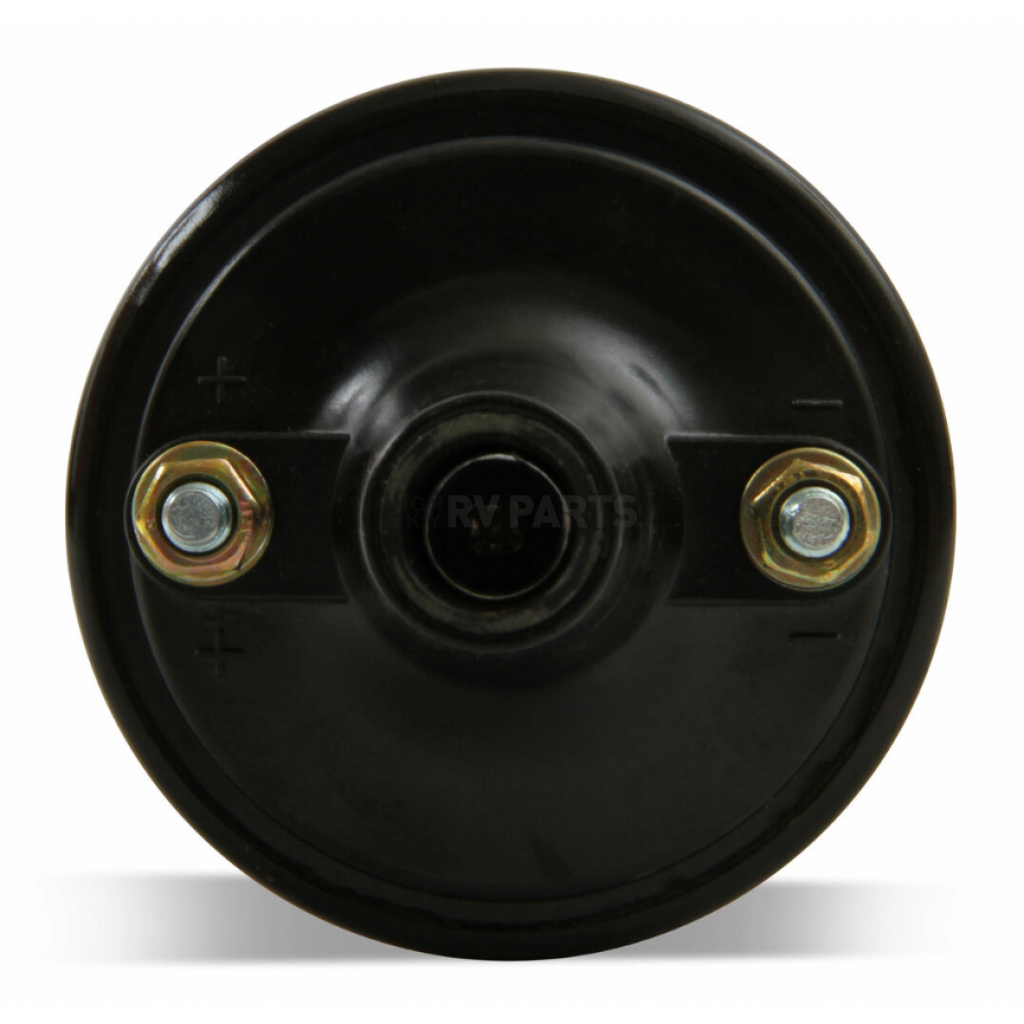

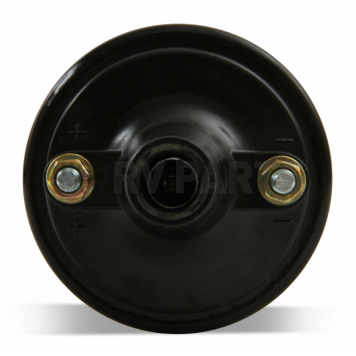

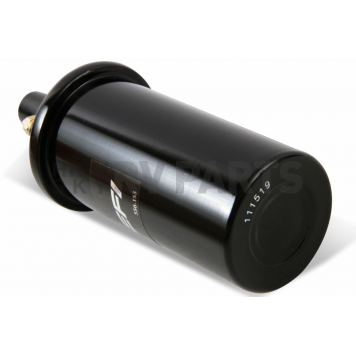

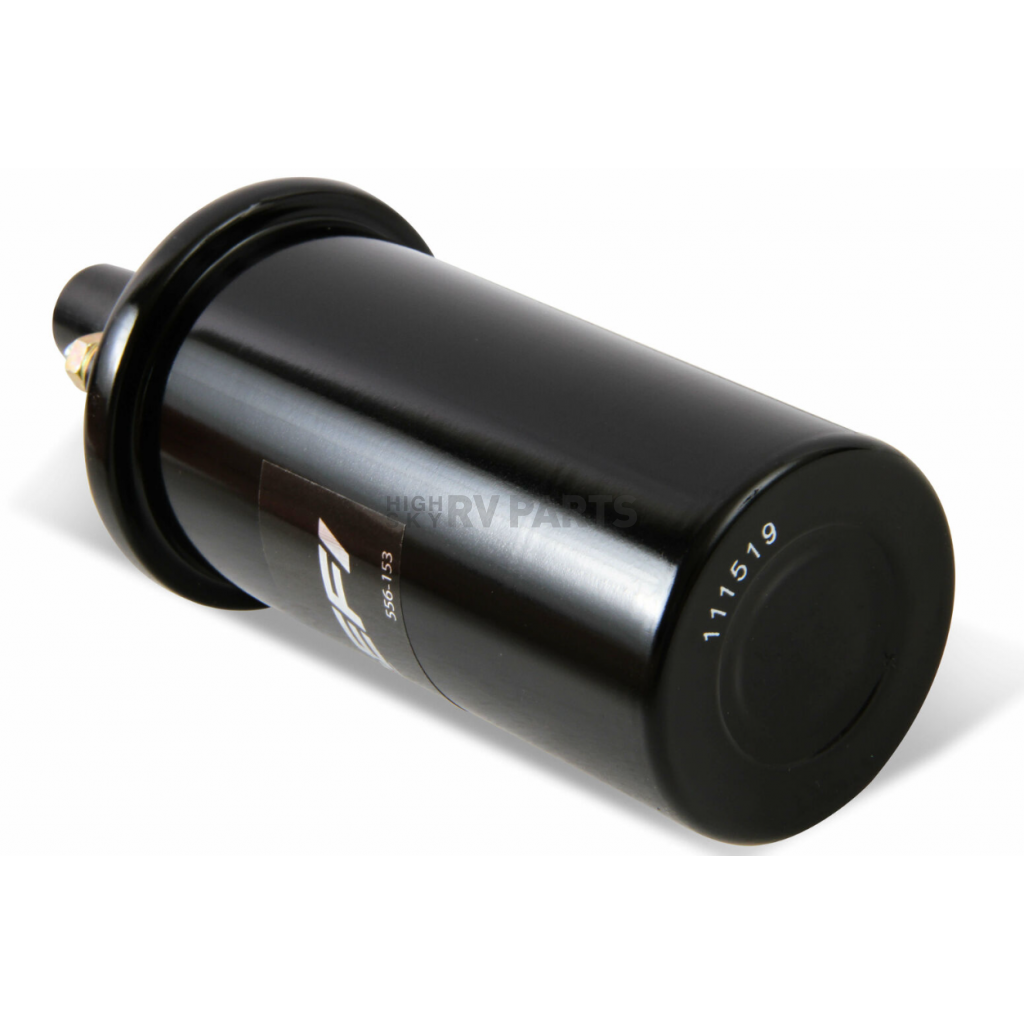

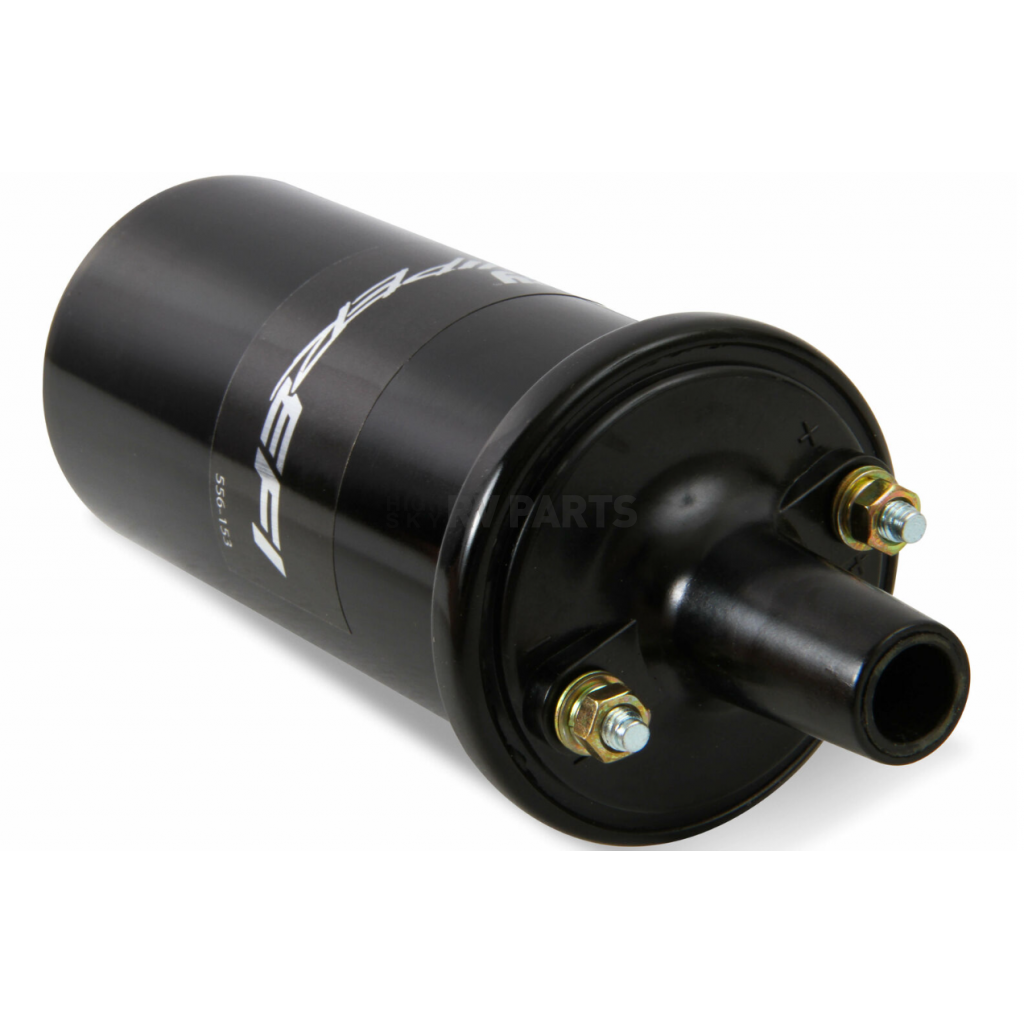

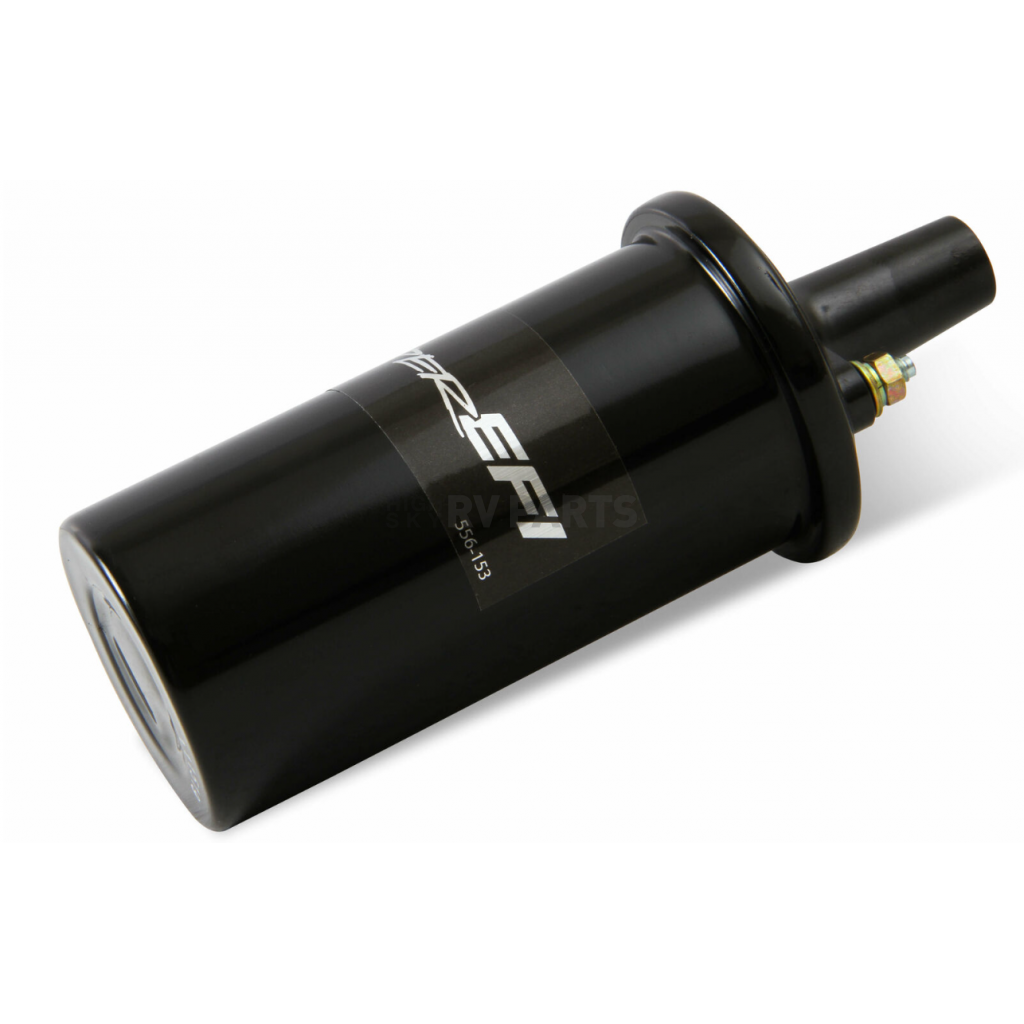

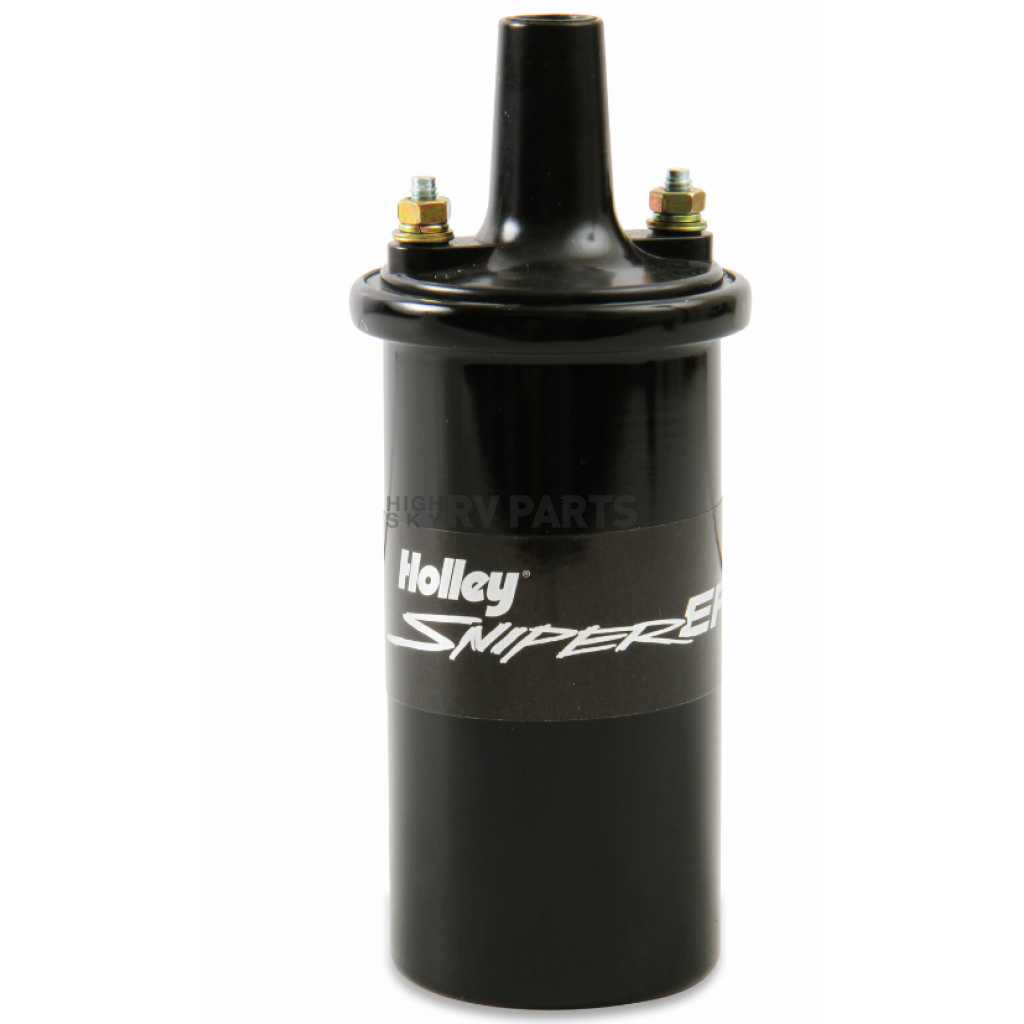

Sniper Motorsports Ignition Coil 556153

Authorized Dealer
Brand: Sniper Motorsports Sniper Motorsports
0 reviews
  • Have a product question? Ask us
  • Part Number: 556153
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $66.14
Price: $62.99
You Save: $3.15
Coil Style
Canister
Coil Wire Attachment Type
Female/ Socket
Color
Black
Diameter (IN)
2-1/8 Inch
Height (IN)
6 Inch
Includes Ballast Resistor
No
Includes Coil Wire
No
Includes Mounting Bracket
No
Maximum Voltage
45000 Volt
Primary Resistance
0.7 Ohm
Secondary Resistance
4.7K Ohms
Share this page

Sniper Motorsports Ignition Coil

Ignition Coil; EFI; Canister; 45000 Volts; 0.7 Ohms Primary Resistance/ 4.5K Ohms Secondary Resistance/ 100:1 Turn Ratio/ 8 mH Inductance/ 140 mA Peak Current/ 350 uS Spark Duration; Black

MPN: 556153

New for the Sniper EFI product line is a factory replacement Sniper EFI canister style ignition coil. This ignition coil is potted with a premium grade epoxy, making it perfect for high vibration environments and can be mounted in any direction (horizontal, vertical, or upside down). No oil fill means no failure for multiple mounting positions. The new Sniper EFI canister coil is perfect for anyone wanting to upgrade their ignition system while maintaining a factory look under the hood.
Coil Style: Canister
Primary Resistance: 0.7 Ohm
Secondary Resistance: 4.7K Ohms
Maximum Voltage: 45000 Volt
Diameter (IN): 2-1/8 Inch
Height (IN): 6 Inch
Coil Wire Attachment Type: Female/ Socket
Color: Black
Includes Ballast Resistor: No
Includes Coil Wire: No
Includes Mounting Bracket: No

Features

  • Metal Canister Is Epoxy Filled To Protect The Internal Coil Windings From High Vibration Applications
  • Improved Output Coil For Electronic Ignitions, And MSD Ignitions (Ballast Resistor Required For Points)
  • 100:1 Turns Ratio And Lower Primary Resistance Produce High Voltage Output
  • Limited 90 Day Supplier Warranty
Specifications of Sniper Motorsports Ignition Coil 556153
Coil Style Canister
Coil Wire Attachment Type Female/ Socket
Color Black
Diameter (IN) 2-1/8 Inch
Height (IN) 6 Inch
Includes Ballast Resistor No
Includes Coil Wire No
Includes Mounting Bracket No
Maximum Voltage 45000 Volt
Primary Resistance 0.7 Ohm
Secondary Resistance 4.7K Ohms
