Smittybilt Winch - 3000 Pound Electric - 98203
Color
Black
Drive Gear Type
Planetary
Drum Material
Steel
Electrical Control Type
Integrated Solenoid
Estimated Install Time (Hours)
2
Fairlead Type
Roller
Free Spooling
Yes
Gear Reduction Ratio
5.6673611111
Includes Mounting Hardware
Yes
Line Diameter (IN)
1/4 Inch
Line Length (FT)
30 Feet
Share this page

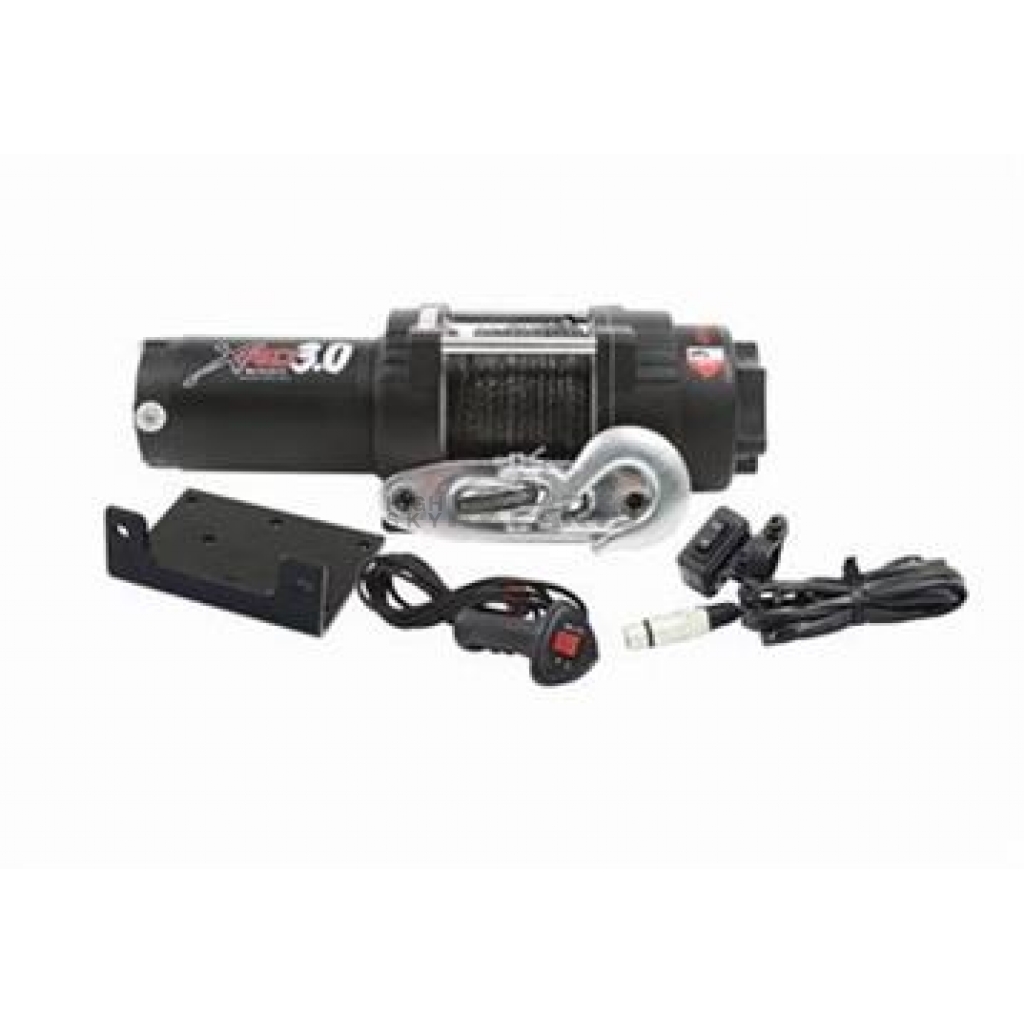

Smittybilt Winch
Winch; XRC Series; Vehicle Mounted; Vehicle Recovery Winch; 12 Volt Electric; 3000 Pound Line Pull Capacity; 30 Foot Synthetic Rope; Aluminum fairlead; Wired Remote; Integrated Solenoid Housing; Planetary Gear Drive
MPN: 98203
The new Smittybilt XRC 3.0 Comp-Series Winch encompasses all the best features you would want in a winch. Every XRC 3.0 winch features a 3.9 Horsepower Permanent Magnet Motor and a Planetary Gear System with 136:1 gear ratio that will deliver power and reliability at a premium price. This is a perfect recovery system for ATV and UTV applications, with the muscle and dependability to bail you out of any situation. The XRC 3.0 has all the heavy duty toughness you're looking for.
Winch Rating: 3000 Pound
Recommended Use: Vehicle Recovery
Type: Electric
Mount Type: Fixed Mount
Voltage: 12 Volt
Motor Horsepower: 3.9 Horsepower
Thermal Shutoff: No
Gear Reduction Ratio: 5.6673611111
Free Spooling: Yes
Operation Type: Power
Line Length (FT): 30 Feet
Line Material: Synthetic
Fairlead Type: Roller
Remote Type: Wired
Includes Mounting Hardware: Yes
Color: Black
Mounting Pattern Size: 4.9 Inch Length X 3 Inch Width
Max Amp Draw: 205 Amp Draw At 3000 Pound
Line Speed At Max Pull: 4.9 Feet Per Minute At 3000 Pound
Electrical Control Type: Integrated Solenoid
Motor Type: Permanent Magnet
Drive Gear Type: Planetary
Line Diameter (IN): 1/4 Inch
Mounting Hole Quantity: 4
Drum Material: Steel
Estimated Install Time (Hours): 2
Features
- Revolutionary Planetary Gear System Boasts An 3000 Pounds Line Rating And 136:1 Gear Ratio
- A Heavy-Duty Winching System With Great Features At An Incredible Overall Value
- Aluminum Fairlead Included
- All Smittybilt Winches Meet SAE-J706 Standard Ratings For Winches
- Intuitive Design Ensures A Simple, Hassle Free Installation
- Limited 2 Year Warranty
| Specifications of Smittybilt Winch - 3000 Pound Electric - 98203 | |
| Color | Black |
| Drive Gear Type | Planetary |
| Drum Material | Steel |
| Electrical Control Type | Integrated Solenoid |
| Estimated Install Time (Hours) | 2 |
| Fairlead Type | Roller |
| Free Spooling | Yes |
| Gear Reduction Ratio | 5.6673611111 |
| Includes Mounting Hardware | Yes |
| Line Diameter (IN) | 1/4 Inch |
| Line Length (FT) | 30 Feet |
| Line Material | Synthetic |
| Line Speed At Max Pull | 4.9 Feet Per Minute At 3000 Pound |
| Max Amp Draw | 205 Amp Draw At 3000 Pound |
| Motor Horsepower | 3.9 Horsepower |
| Motor Type | Permanent Magnet |
| Mount Type | Fixed Mount |
| Mounting Hole Quantity | 4 |
| Mounting Pattern Size | 4.9 Inch Length X 3 Inch Width |
| Operation Type | Power |
| Recommended Use | Vehicle Recovery |
| Remote Type | Wired |
| Thermal Shutoff | No |
| Type | Electric |
| Voltage | 12 Volt |
| Winch Rating | 3000 Pound |
