Smittybilt Winch - 12000 Pound Electric - 97512
Brake Type
Dynamic
Color
Black
Drive Gear Type
Planetary
Drum Material
Steel
Electrical Control Type
Integrated Solenoid
Estimated Install Time (Hours)
2
Fairlead Type
Roller
Free Spooling
Yes
Gear Reduction Ratio
11.042361111
Includes Mounting Hardware
Yes
Line Diameter (IN)
3/8 Inch
Share this page

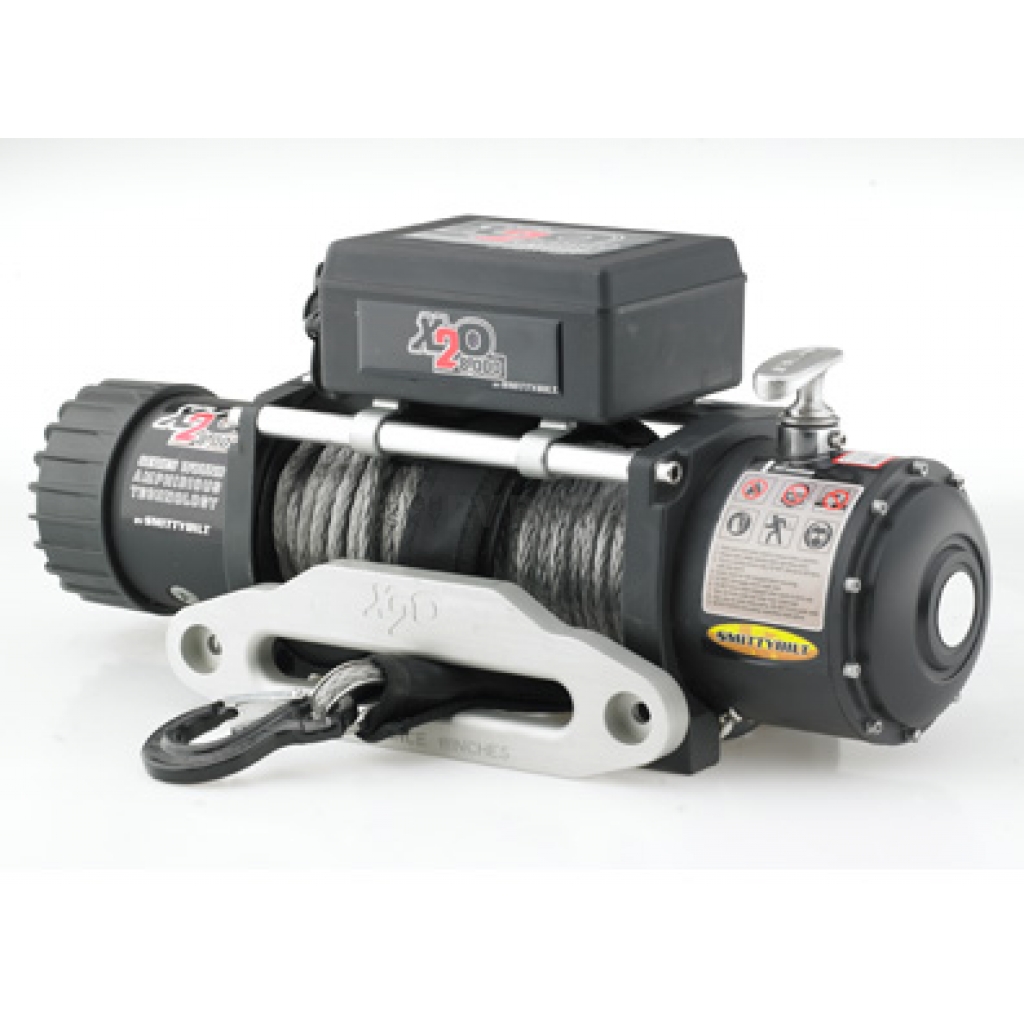

Smittybilt Winch
Winch; X20 Series; Vehicle Mounted; Vehicle Recovery Winch; 12 Volt Electric; 12000 Pound Line Pull Capacity; 98-1/2 Foot Steel Cable; 4-Way Roller Fairlead; Wired Remote; Integrated Solenoid Housing; Planetary Gear Drive
MPN: 97512
Winch Rating: 12000 Pound
Recommended Use: Vehicle Recovery
Type: Electric
Mount Type: Fixed Mount
Voltage: 12 Volt
Motor Horsepower: 6.6 Horsepower
Thermal Shutoff: No
Gear Reduction Ratio: 11.042361111
Free Spooling: Yes
Operation Type: Power
Line Length (FT): 98.5 Feet
Line Material: Steel
Fairlead Type: Roller
Remote Type: Wireless
Brake Type: Dynamic
Includes Mounting Hardware: Yes
Color: Black
Mounting Pattern Size: 10 Inch Length X 4-1/2 Inch Width
Max Amp Draw: 330 Amp Draw At 12000 Pound
Line Speed At Max Pull: 5.58 Feet Per Minute At 12000 Pound
Electrical Control Type: Integrated Solenoid
Motor Type: Series Wound
Drive Gear Type: Planetary
Line Diameter (IN): 3/8 Inch
Mounting Hole Quantity: 4
Drum Material: Steel
Estimated Install Time (Hours): 2
Features
- Features Our Series Wound Amphibious Technology Which Completely Seals The 5.5 To 6.6 Series Wound Motor, As Well As The 3 To 4 Stage Planetary Gear System
- The Impressive Gear Ratios Deliver Lightning Fast Speed
- They Have An Oversized, Completely Waterproof, State-Of-The-Art 500 Ampere Solenoid That Has The Versatility To Be Mounted Over The Winch Motor Or Winch Cable
- Meets SAE J706 Standard
- Limited Lifetime Warranty
| Specifications of Smittybilt Winch - 12000 Pound Electric - 97512 | |
| Brake Type | Dynamic |
| Color | Black |
| Drive Gear Type | Planetary |
| Drum Material | Steel |
| Electrical Control Type | Integrated Solenoid |
| Estimated Install Time (Hours) | 2 |
| Fairlead Type | Roller |
| Free Spooling | Yes |
| Gear Reduction Ratio | 11.042361111 |
| Includes Mounting Hardware | Yes |
| Line Diameter (IN) | 3/8 Inch |
| Line Length (FT) | 98.5 Feet |
| Line Material | Steel |
| Line Speed At Max Pull | 5.58 Feet Per Minute At 12000 Pound |
| Max Amp Draw | 330 Amp Draw At 12000 Pound |
| Motor Horsepower | 6.6 Horsepower |
| Motor Type | Series Wound |
| Mount Type | Fixed Mount |
| Mounting Hole Quantity | 4 |
| Mounting Pattern Size | 10 Inch Length X 4-1/2 Inch Width |
| Operation Type | Power |
| Recommended Use | Vehicle Recovery |
| Remote Type | Wireless |
| Thermal Shutoff | No |
| Type | Electric |
| Voltage | 12 Volt |
| Winch Rating | 12000 Pound |
