Skunk 2 Radiator 349121001
Color
Silver
Core Depth (IN)
1.65 Inch
Core Height (IN)
13.54 Inch
Core Length (IN)
27.24 Inch
Core Material
Aluminum
Includes Mounting Hardware
No
Inlet Hose Location
Right
Inlet Size (IN)
1-1/2 Inch
Outlet Hose Location
Left
Outlet Size (IN)
1-1/2 Inch
Overall Depth (IN)
1.65 Inch
Share this page

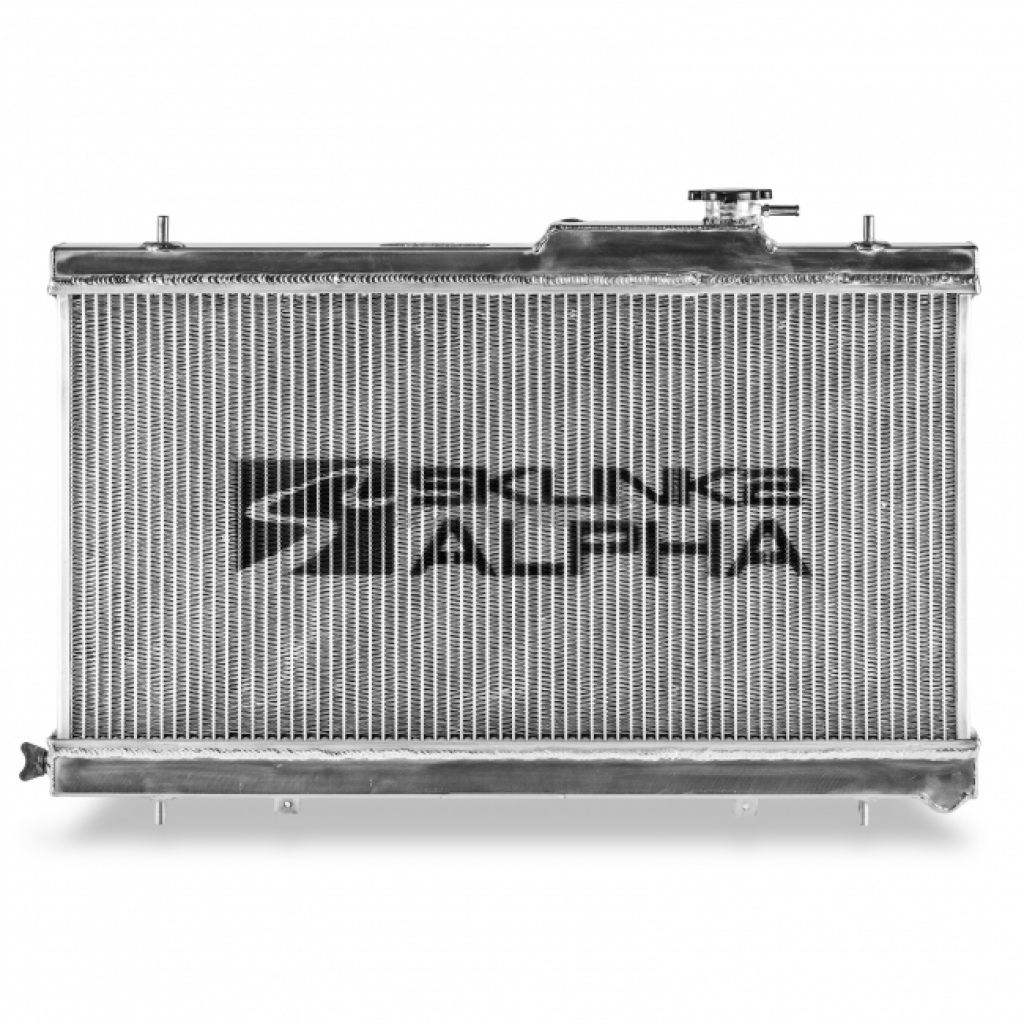

Skunk 2 Radiator
Radiator; Overall Dimensions 28.40 Inch Length X 17.20 Inch Height; Core Dimensions 27.24 Inch Length X 13.54 Inch Height X 1.65 Inch Depth; 1-1/2 Inch Top Right Inlet And 1-1/2 Inch Bottom Left Outlet; With Radiator Cap
MPN: 349121001
Skunk2’s all-aluminum, full-size Alpha Series Radiator for the 2001 to 2007 Subaru WRX and STI is a direct fit, performance upgrade designed to dramatically increase both cooling efficiency and engine performance. This Alpha Series radiator is manufactured from lightweight and durable aluminum, features atmosphere controlled brazed cores, TIG-welded ends, high-efficiency fins, and a dual-core design. The end tanks are polished and embossed with the Skunk2 Racing Alpha Series logo for a refined look to any build.
Overall Length (IN): 28.4 Inch
Overall Height (IN): 17.2 Inch
Overall Depth (IN): 1.65 Inch
Core Length (IN): 27.24 Inch
Core Height (IN): 13.54 Inch
Core Depth (IN): 1.65 Inch
Core Material: Aluminum
Inlet Hose Location: Right
Inlet Size (IN): 1-1/2 Inch
Outlet Hose Location: Left
Outlet Size (IN): 1-1/2 Inch
Color: Silver
Tank Material: Aluminum
With Radiator Cap: Yes
Includes Mounting Hardware: No
Features
- Manufactured From Lightweight And Durable Aluminum
- Atmosphere Controlled Brazed Cores
- TIG-Welded Ends
- High-Efficiency Fins
- A Dual-Core Design
- End Tanks Are Polished And Embossed
- Direct Fit
- Limited 12 Month Warranty
Specifications of Skunk 2 Radiator 349121001 | |
Color | Silver |
Core Depth (IN) | 1.65 Inch |
Core Height (IN) | 13.54 Inch |
Core Length (IN) | 27.24 Inch |
Core Material | Aluminum |
Includes Mounting Hardware | No |
Inlet Hose Location | Right |
Inlet Size (IN) | 1-1/2 Inch |
Outlet Hose Location | Left |
Outlet Size (IN) | 1-1/2 Inch |
Overall Depth (IN) | 1.65 Inch |
Overall Height (IN) | 17.2 Inch |
Overall Length (IN) | 28.4 Inch |
Tank Material | Aluminum |
With Radiator Cap | Yes |
2003 Subaru Baja
2005 Subaru Baja
2006 Subaru Baja
2006 Subaru Baja
1998 Subaru Forester
1999 Subaru Forester
2000 Subaru Forester
2001 Subaru Forester
2002 Subaru Forester
2003 Subaru Forester
2004 Subaru Forester
2005 Subaru Forester
2006 Subaru Forester
2007 Subaru Forester
2008 Subaru Forester
2009 Subaru Forester
2010 Subaru Forester
2011 Subaru Forester
2012 Subaru Forester
2013 Subaru Forester
1999 Subaru Forester
2000 Subaru Forester
2001 Subaru Forester
2002 Subaru Forester
2003 Subaru Forester
2004 Subaru Forester
2005 Subaru Forester
2006 Subaru Forester
2007 Subaru Forester
2008 Subaru Forester
2009 Subaru Forester
2010 Subaru Forester
2011 Subaru Forester
2012 Subaru Forester
2013 Subaru Forester
1998 Subaru Impreza
1999 Subaru Impreza
2000 Subaru Impreza
2001 Subaru Impreza
2002 Subaru Impreza
2003 Subaru Impreza
1999 Subaru Impreza
2000 Subaru Impreza
2001 Subaru Impreza
2002 Subaru Impreza
2003 Subaru Impreza
2005 Subaru Impreza
2006 Subaru Impreza
2007 Subaru Impreza
2008 Subaru Impreza
2009 Subaru Impreza
2010 Subaru Impreza
2011 Subaru Impreza
2012 Subaru Impreza
2013 Subaru Impreza
2014 Subaru Impreza
2006 Subaru Impreza
2007 Subaru Impreza
2008 Subaru Impreza
2009 Subaru Impreza
2010 Subaru Impreza
2011 Subaru Impreza
2012 Subaru Impreza
2013 Subaru Impreza
2014 Subaru Impreza
1999 Subaru Legacy
2000 Subaru Legacy
2001 Subaru Legacy
2002 Subaru Legacy
2003 Subaru Legacy
2004 Subaru Legacy
2005 Subaru Legacy
2006 Subaru Legacy
2007 Subaru Legacy
2008 Subaru Legacy
2009 Subaru Legacy
2010 Subaru Legacy
2011 Subaru Legacy
2012 Subaru Legacy
2000 Subaru Legacy
2001 Subaru Legacy
2002 Subaru Legacy
2003 Subaru Legacy
2004 Subaru Legacy
2005 Subaru Legacy
2006 Subaru Legacy
2007 Subaru Legacy
2008 Subaru Legacy
2009 Subaru Legacy
2010 Subaru Legacy
2011 Subaru Legacy
2012 Subaru Legacy
2000 Subaru Outback
2001 Subaru Outback
2002 Subaru Outback
2003 Subaru Outback
2004 Subaru Outback
2005 Subaru Outback
2006 Subaru Outback
2007 Subaru Outback
2008 Subaru Outback
2009 Subaru Outback
2010 Subaru Outback
2011 Subaru Outback
2012 Subaru Outback
2001 Subaru Outback
2002 Subaru Outback
2003 Subaru Outback
2004 Subaru Outback
2005 Subaru Outback
2006 Subaru Outback
2007 Subaru Outback
2008 Subaru Outback
2009 Subaru Outback
2010 Subaru Outback
2011 Subaru Outback
2012 Subaru Outback
2015 Subaru WRX STI
2016 Subaru WRX STI
2017 Subaru WRX STI
2016 Subaru WRX STI
2017 Subaru WRX STI
