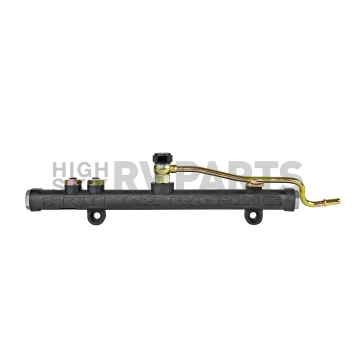

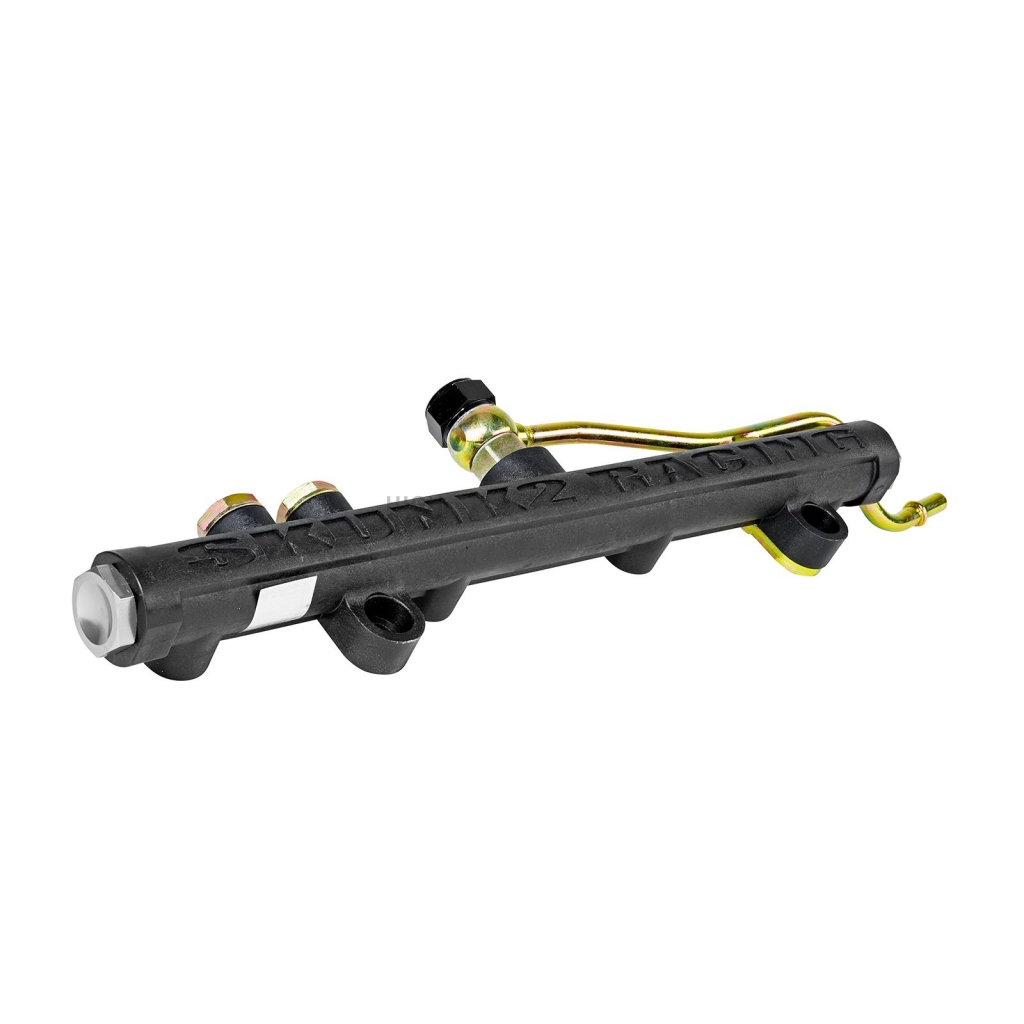

Skunk 2 Fuel Injector Rail - 350-05-5015
Bore Diameter (IN)
5/8 Inch
Material
Thermo-Polymer Composite
Quantity
Single
Rail End Thread Size
8 AN Inlet And 8 AN Outlet
Share this page
Skunk 2 Fuel Injector Rail
Fuel Injector Rail; Aluminum; 0.625 Inch Diameter Bore; 8 AN Inlet And 8 AN Outlet
MPN: 350055015
Skunk2’s cutting-edge Composite Fuel Rail for Honda’s K-series engines (non-Civic Si) is here. Skunk2’s Composite Fuel Rails are made using a proprietary carbon-impregnated, aerospace thermo-polymer composite—a material that’s 33 Percent lighter, 60 Percent stronger, and operates up to 100 Degrees Fahrenheit cooler when compared to aluminum and insulates fuel from both radiant and conductive heat transfer underneath the hood, resulting in increased horsepower and torque. Composite Fuel Rails also feature large 0.625 Inch internal bores for superior fuel injector pulsation dampening, are machined with a smooth interior finish, and feature radius-cut fuel injector outlets for improved flow characteristics. The special design that eliminates the sharp internal angles where the main bore meets the fuel injector bores inherent with conventional extruded- and drilled-aluminum designs can only be achieved with such composite materials. Skunk2’s K-series Composite Fuel Rails are compatible with the factory fuel system, as well as all fuels, including alcohol, and can support up to 1,200 Horsepower, with gains as high as three Percent realized during testing.
Material: Thermo-Polymer Composite
Quantity: Single
Bore Diameter (IN): 5/8 Inch
Rail End Thread Size: 8 AN Inlet And 8 AN Outlet
Features
- Feature A Large 0.625 Inch Internal Bore With Radius Inlets To The Injectors Thus Improving Flow Characteristics
- Limited 1 Year Warranty
Specifications of Skunk 2 Fuel Injector Rail - 350-05-5015 | |
Bore Diameter (IN) | 5/8 Inch |
Material | Thermo-Polymer Composite |
Quantity | Single |
Rail End Thread Size | 8 AN Inlet And 8 AN Outlet |
2006 Honda Civic
2007 Honda Civic
2008 Honda Civic
2009 Honda Civic
2010 Honda Civic
2011 Honda Civic
2007 Honda Civic
2008 Honda Civic
2009 Honda Civic
2010 Honda Civic
2011 Honda Civic
No questions found. Be the first?
Reviews for Skunk 2 Fuel Injector Rail - 350-05-5015(0)
There are no reviews for this product.
