Skunk 2 Connecting Rod Set - 306-05-1180

Brand: Skunk 2
0 reviews
  • Have a product question? Ask us
  • Part Number: 306-05-1180
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by May 22
Retail: $574.34
Price: $546.99
You Save: $27.35
Length (IN)
6.02 Inch
Material
4340 Chromoly Steel
Number In Set
4
Recommended Use
Honda S2000 F20C Engines
Type
H-Beam
Weight (g)
546 Grams
Share this page

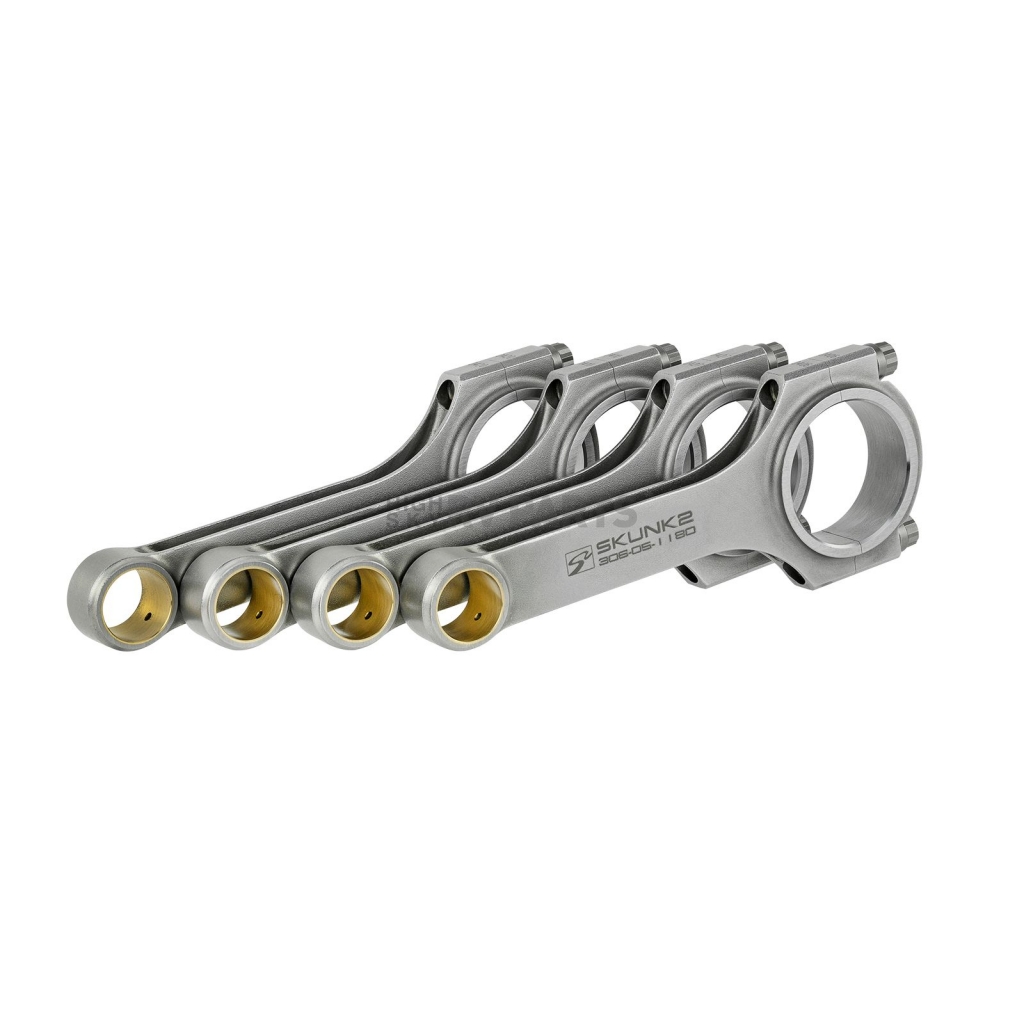

Skunk 2 Connecting Rod Set

Connecting Rod Set; Alpha Series; Drag Race; H-Beam; 4340 Chromoly Steel; 153 Millimeter Length; Set of 4

MPN: 306051180

Skunk2 is proud to introduce its all-new Alpha Series Connecting Rods. Skunk2’s engineers spent nearly three years developing and testing its straight H-beam rod design. The results are one of the strongest beam configurations available. Engineers made use of FEA (Finite Element Analysis) to determine high-stress points and implemented features to reduce wear and increase strength. Alpha Series Rods also feature dual oil passages at their pin ends, providing additional lubrication and cooling, which leads to an even stronger, more durable rod. Unlike other designs, Skunk2’s carefully positioned, offset oil passages help deliver lubrication around the entire wrist pin, during each phase of the engine cycle. Not all forged H-beam rods are the same. Only Skunk2’s Alpha Series Rods feature our unique design, precision machining, all at an economical price.
Recommended Use: Honda S2000 F20C Engines
Type: H-Beam
Material: 4340 Chromoly Steel
Length (IN): 6.02 Inch
Weight (g): 546 Grams
Number In Set: 4

Features

  • Precision Machined And Forged From Select 4340 Chromoly Steel
  • Feature A Straight H-Beam Design
  • Laser-Etched Skunk2 Logo For Authenticity
  • Shot-Peened For Reduced Fatigue
  • Fatter, H-Beam Design Without Drastic Weight Increase
  • Dual-Pin Oil Passages For Increased Lubrication And Strength
  • Heat-Treated And FEA Analyzed
  • Limited 1 Year Warranty
Specifications of Skunk 2 Connecting Rod Set - 306-05-1180
Length (IN) 6.02 Inch
Material 4340 Chromoly Steel
Number In Set 4
Recommended Use Honda S2000 F20C Engines
Type H-Beam
Weight (g) 546 Grams

2000 Honda S2000
2001 Honda S2000
2002 Honda S2000
2003 Honda S2000
2004 Honda S2000
2005 Honda S2000
2006 Honda S2000
2007 Honda S2000
2008 Honda S2000
2009 Honda S2000
