Reese Weight Distributing Hitches, Accessories & Bars

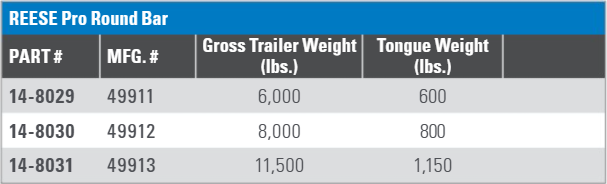

REESE PRO ROUND BAR SYSTEM
Ensure a safe, smooth, level ride wherever you tow
Engineered with improved features that provide superior ride performance. Precisely designed to evenly and effectively distribute weight, while reducing trailer sway.



Features
  • Improved stability for added ride control and security

  • 2 point sway control

  • 2-5/16 in. hitch ball - Pre-installed and torqued to proper specifications

  • 8-1/2 in. deep drop shank for today's taller trucks

  • No-drill, clamp on brackets fit up to 7 in. trailer frames

  • Tapered spring bars providing constant weight distribution over the axles for superior ride comfort

  • Fits bottom and top mount couplers

  • Powder coat finish for durability and corrosion resistance

  • All hardware necessary for an easy install

  • Includes lifting handle

  • Limited lifetime warranty

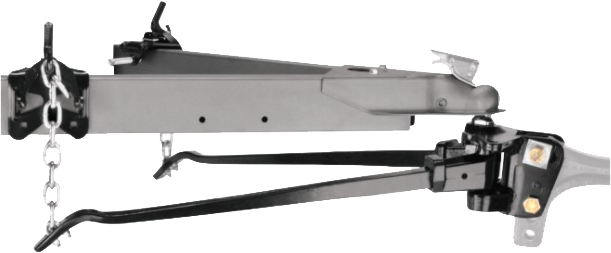

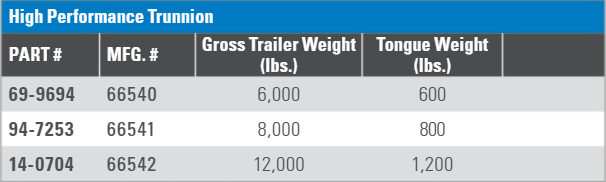

    • HIGH PERFORMANCE TRUNNION SYSTEM
    The best features in its class
    REESE has combined the best of the features from all of our weight distributing kits to create the High-Performance Trunnion Kit.



    Features
  • Head design with superior strength and easy adjustment

  • Raised hitch ball platform eliminates the need for raised hitch balls

  • Includes adjustable shank

  • Easy-to-use serrated washers for head adjustment

  • Highest rated spring bars per class in the industry

  • Integrated cam for easy setup with the optional Dual Cam High Performance sway control

  • 9 link chains for easier setup on larger trailer frames

  • Innovative snap-up brackets designed for superior strength and durability

  • U.S. Patent Nos. 5,375,867 and 5,465,991 (other patents pending)

  • Limited lifetime warranty




    • STEADi-FLEX SYSTEM
    All-in-one sway control and weight distribution system
    Combines the latest technology, superior performance and maximum versatility with a quick and easy installation.
    Designed with tapered spring bars for a softer ride and better performance. Friction sway control material provides for a quiet ride. Wide spring bars, with a simple pin and clip assembly, reduce wear in the head and on the friction pads.



    Features
  • No drill installation

  • Hitch bar included

  • Integrated sway control

  • Will fit 7 in. frames with bottom mount couplers (see coupler chart below)

  • 2 in. deeper drop on drawbar

  • Limited lifetime warranty

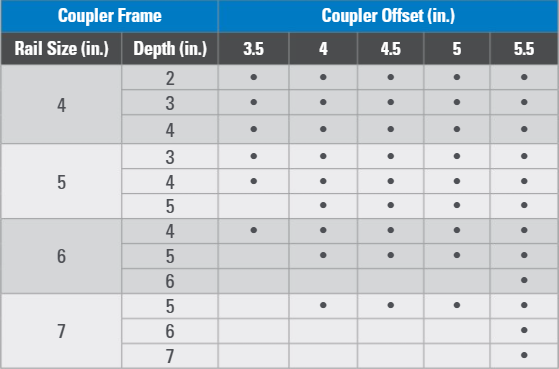

    • NOTE: This pertains to top mount couplers only. Any bottom mount coupler with a 4 in. to 7 in. frame will work without issue. These values are general guidelines for frame sizes and coupler heights assuming straight level installation. Chain loops and other brackets or accessories are included in the Coupler Offset dimension and must be clear of the Coupler Offset area or modified. For intermediate measurement conditions between green and red, ensure at least 3/4 in. clearance between ball mount and trailer frame rail/accessories. For frame rail depth over 5 in., this includes during steering on flat ground.

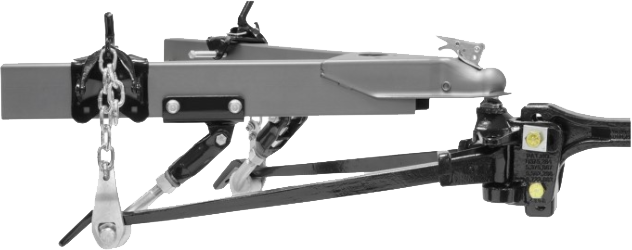

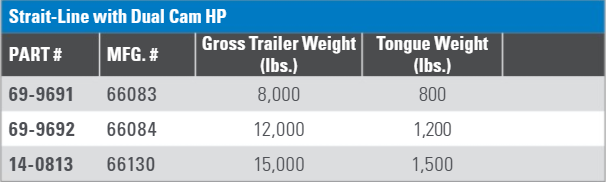

    STRAIT-LINE SYSTEM WITH SWAY CONTROL
    The ultimate hitch in detail and design
    The Strait-Line Hitch was given this name as its pro-active design literally forces the trailer to stay in a straight line behind the tow vehicle. Sway is controlled by the Dual Cam High-Performance System.



    Features
  • Combines weight distributing with the best pro-active sway control system available in a newly-designed, easy-to-install kit

  • Simple installation and adjustment

  • Includes adjustable shank

  • Fully automatic and self-centering

  • Reduced noise

  • Easy adjustment of centerline

  • No need to relocate items on top of A-frame to install Dual Cam HP Sway Control

  • Limited lifetime warranty

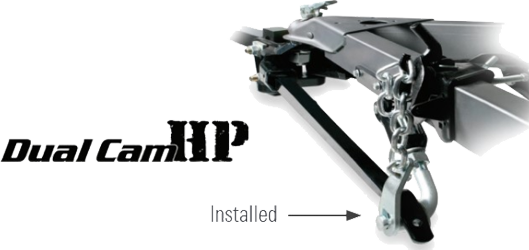

    • INCLUDES DUAL CAM HP SWAY CONTROL

  • Patented technique for controlling trailer sway. Works when needed to control sway from the start rather than just resisting. The Dual Cam System is installed on the trailer and does not normally require adjustment everytime

  • Integrated cams into the spring bars reduce noise

  • No U-bolts to interfere with bottle racks or other A-Frame mounted items

  • Specific attachment reference points provided



    • WEIGHT DISTRIBUTING SYSTEMS
    Add a weight distributing system to provide a more level ride, greater steering and brake control

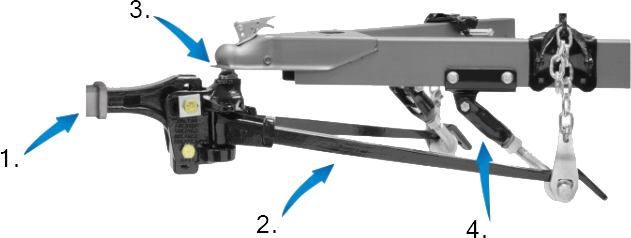

    A weight distribution hitch systems is composed of four major elements:
    1. The hitch receiver
    2. The weight distribution kit
    3. The hitch ball
    4. The sway control


    SELECTING THE CORRECT SYSTEM

    1. Determine the tongue weight of your trailer
    2. Estimate the vehicle cargo load
    3. Match the sum of these weights to the proper REESE weight distributing hitch


    HITCH WEIGHT = TONGUE WEIGHT + VEHICLE CARGO LOAD BEHIND REAR AXLE
    Tongue weight includes the trailer tongue weight with full gas, water and waste systems and everything packed inside the trailer.
    Vehicle cargo includes all materials carried in your tow vehicle, such as boat motors, gas cans, tools, etc.


    EXAMPLE: 500 lbs. Tongue Weight + 200 lbs. Vehicle Load Weight = 700 lbs. Total Hitch Weight

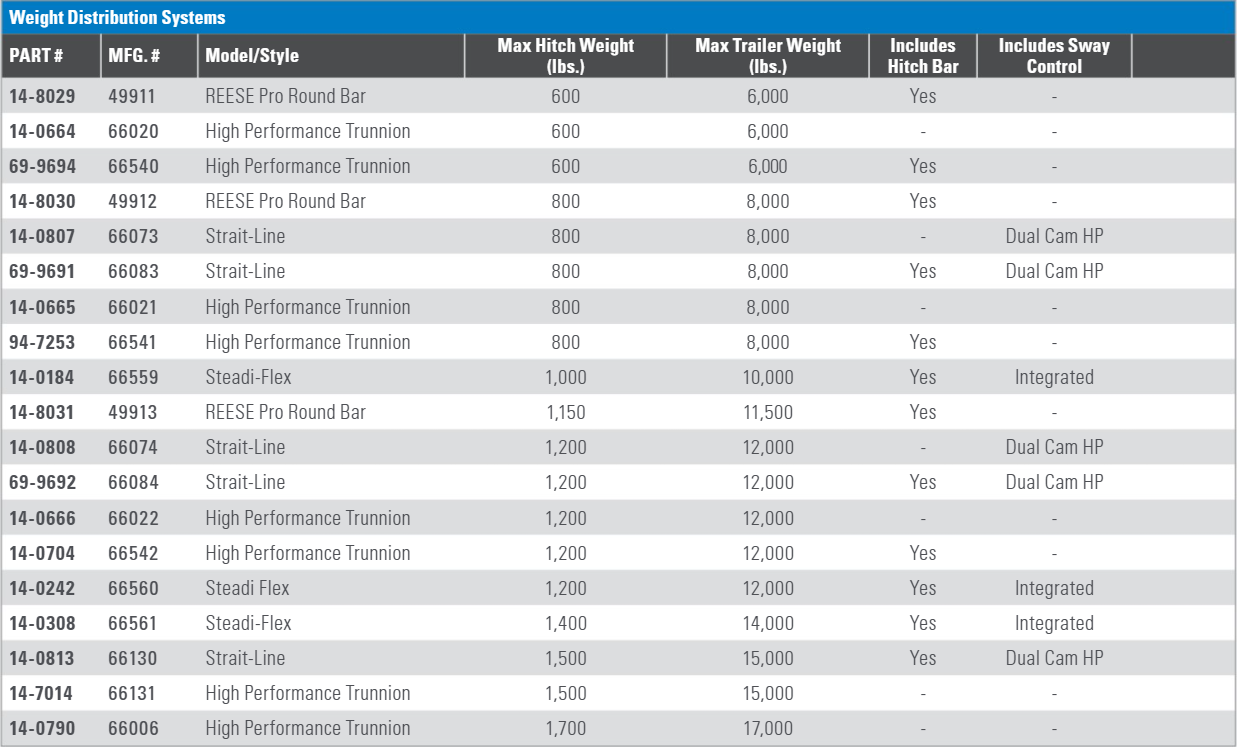

    Using the selector shown below, an 800 lbs. weight distributing hitch is adequate.



    WEIGHT DISTRIBUTION ACCESSORIES
    Proven designs that exceed industry standards
    Evolving to meetthe changing requirements of the towing market, our weight distributing hitch systems and accessories provide a softer ride and distribute load forces more evenly than ever before.


    DUAL CAM HP SWAY CONTROL
    Patented technique for controlling trailer sway. Works when needed to control sway from the start ratherthan just resisting. The Dual Cam is installed on the trailer and does not normally require adjustment every time.


    Features
  • Integrated cams into the spring bars reduce noise

  • No U-bolts to interfere with bottle racks or other A-Frame mounted items

  • Specific attachment reference points provided

  • Fits most applications

    • 14-0903 | 26002 |
    FRICTION SWAY CONTROL
    Friction Sway Control uses friction to resist pivotal movement and thereby works againstthe effects of induced sway. It operates on the principle of "stiffening" the coupling between the tow vehicle and trailer.


    Features
  • Friction brake keeps trailer and tow vehicle stable

  • Removes with two spring locking pins

  • Heavy construction for added reliability

  • Can be used on left and right side of trailer

  • Quick attachment to trailer frame and ball mount

  • Installs and removes easily

    • 114-0907 | 83660 |
    CHAIN HANGERS
    For trailers with tongue interference (gas bottles, batteries, covered frames, etc.) where snap-up brackets won't install easily, we offer two easy-to-install options.


    Features
  • 14,000 lbs. gross trailer weight

  • 1,400 lbs. tongue weight

  • Quick and easy installation

  • All hardware included

  • Black powder coat finish

    • Bolt-On | 14-0632 | 58305 |
    Clamp-On | 14-0633 | 58306 |

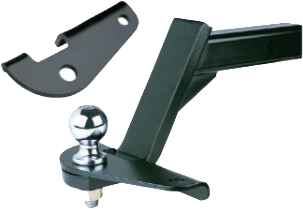

    SWAY CONTROL ADAPTER BRACKETS
    This bolt-on sway control adapter bracket converts any ball mount barto hold a sway control ball. Designed for use with round or trunnion style bars. Engineered for maximum strength and durability.


    Features
  • For use with 1-1/4 in. or 2 in. square ball mounts

  • Quick and easy bolt-on installation

  • Black powder coat finish

    • Class II | 14-2672 | 26005 |
    Class lll/IV | 14-2686 | 26003 |
    SWAY CONTROL ADAPTER PLATE
    Replacement sway control adapter, ball and plate assembly REESE Friction Sway Control. Sway control keeps tow vehicle and trailer stable.


    Features
  • Includes mounting screws

  • Heavy construction for added reliability

  • Quick and easy installation

  • Limited lifetime warranty

    • 14-7309 | 58062 |
    SWAY CONTROL HITCH BALL
    Replacement sway control hitch ball assembly for REESE Friction Sway Control. Sway control keeps tow vehicle and trailer stable


    Features
  • 1-1/4 in. х 5/8 in.

  • Complete with washer and nut

  • Installs and removes easily

  • Bright zinc finish

  • Limited lifetime warranty

    • 14-7298 | 58060 |



    WEIGHT DISTRIBUTION HITCH BARS
    The ultimate hitch in detail and design
    Sold separately from the weight distributing hitch kits, hitch bars offer a full range of style and adjust-ability.


    Features
  • Long hitch bars provide the extra length for bumper clearance

  • Hitch bars can be used with round bar, trunnion bar or high-performance weight distributing systems

  • Angled, extended, "T" and deep drop designs available

  • Designed for use in the rise or drop position

  • Refer to the diagrams to assist in determining the correct Length, Rise and Drop required for your Weight Distributing Hitch

  • Limited lifetime warranty
