Raybestos Brakes Brake Rotor - 982564FZN

Brand: Raybestos Brakes

Have a product question? Ask us
Part Number: 982564FZN
Part Location: U.S.
Availability: Out Of Stock

Retail: $70.34

Price: $66.99

You Save: $3.35

Design

Disc To Hat Bolt Circle (IN)

Disc To Hat Bolt Circle (MM)

Disc Type

Slotted

Finish

Height (IN)

1.29 Inch

Height (MM)

33 Millimeter

Hub Bore Size

Material

Nominal Thickness (IN)

0.787 Inch

Nominal Thickness (MM)

20 Millimeter

Share this page

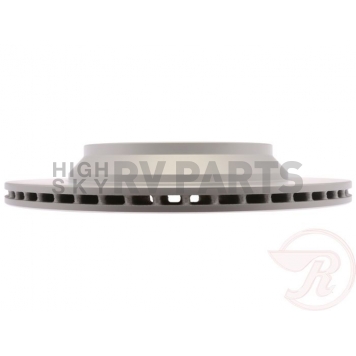

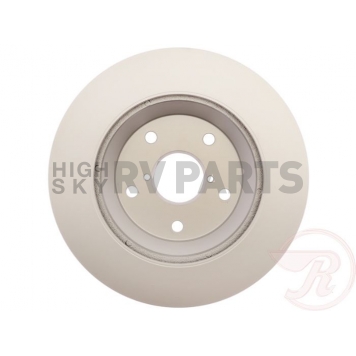

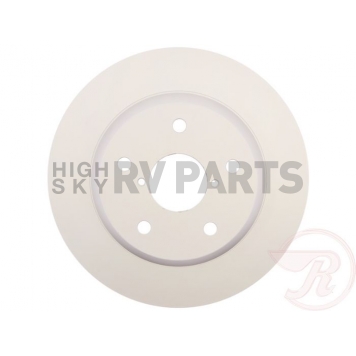

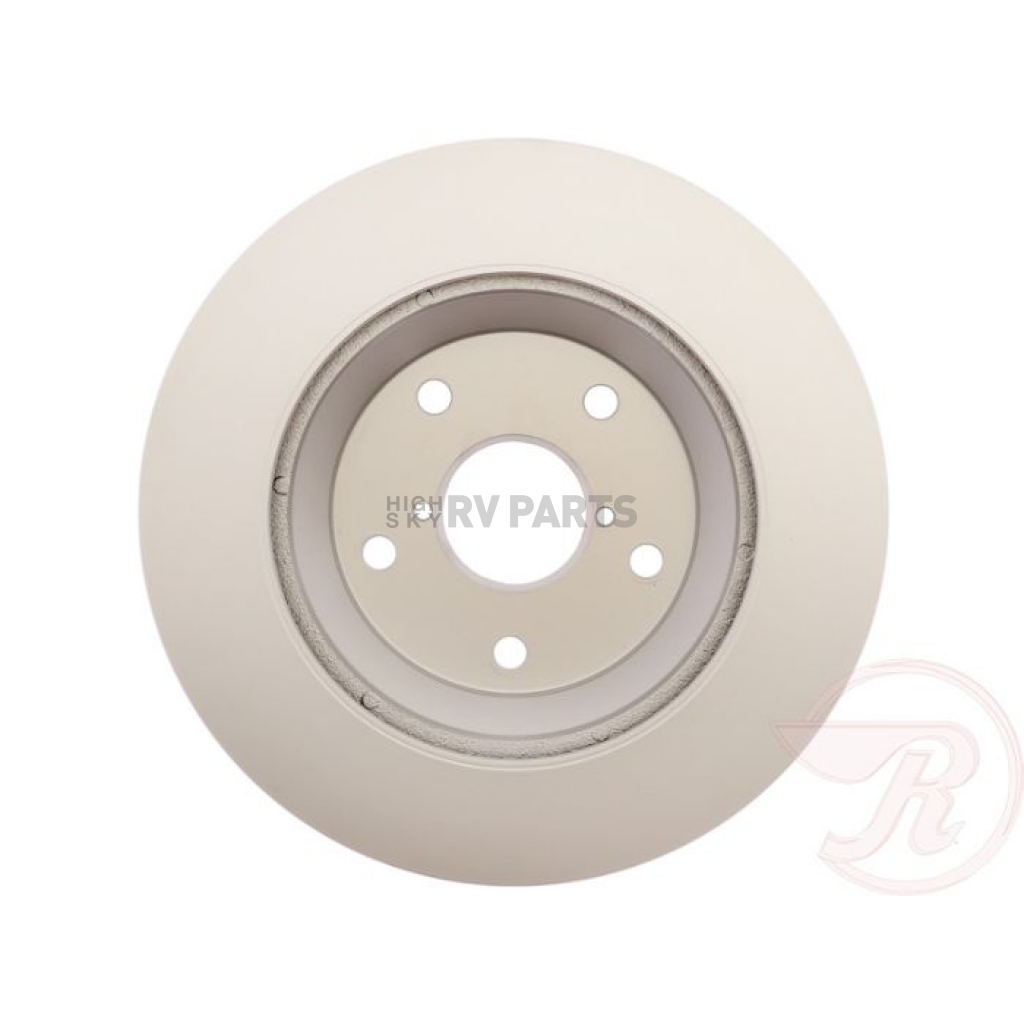

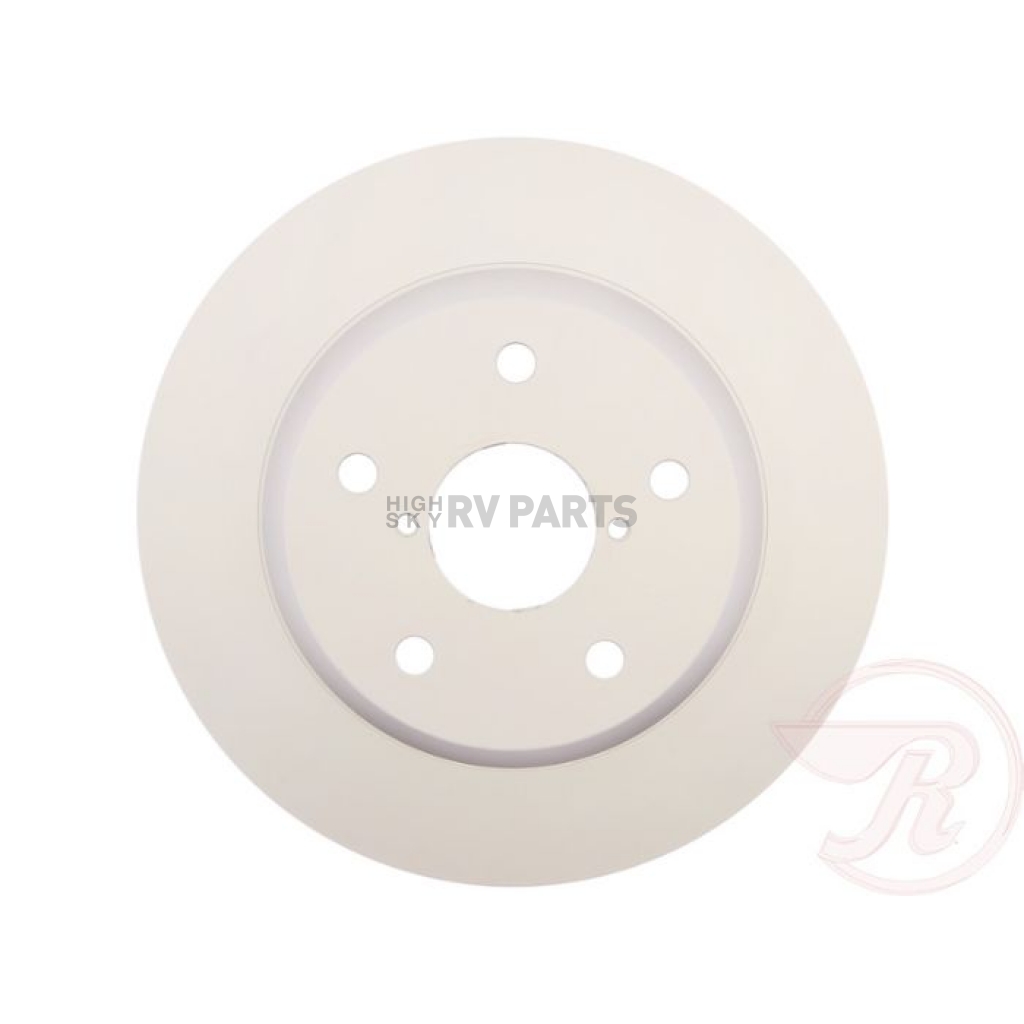

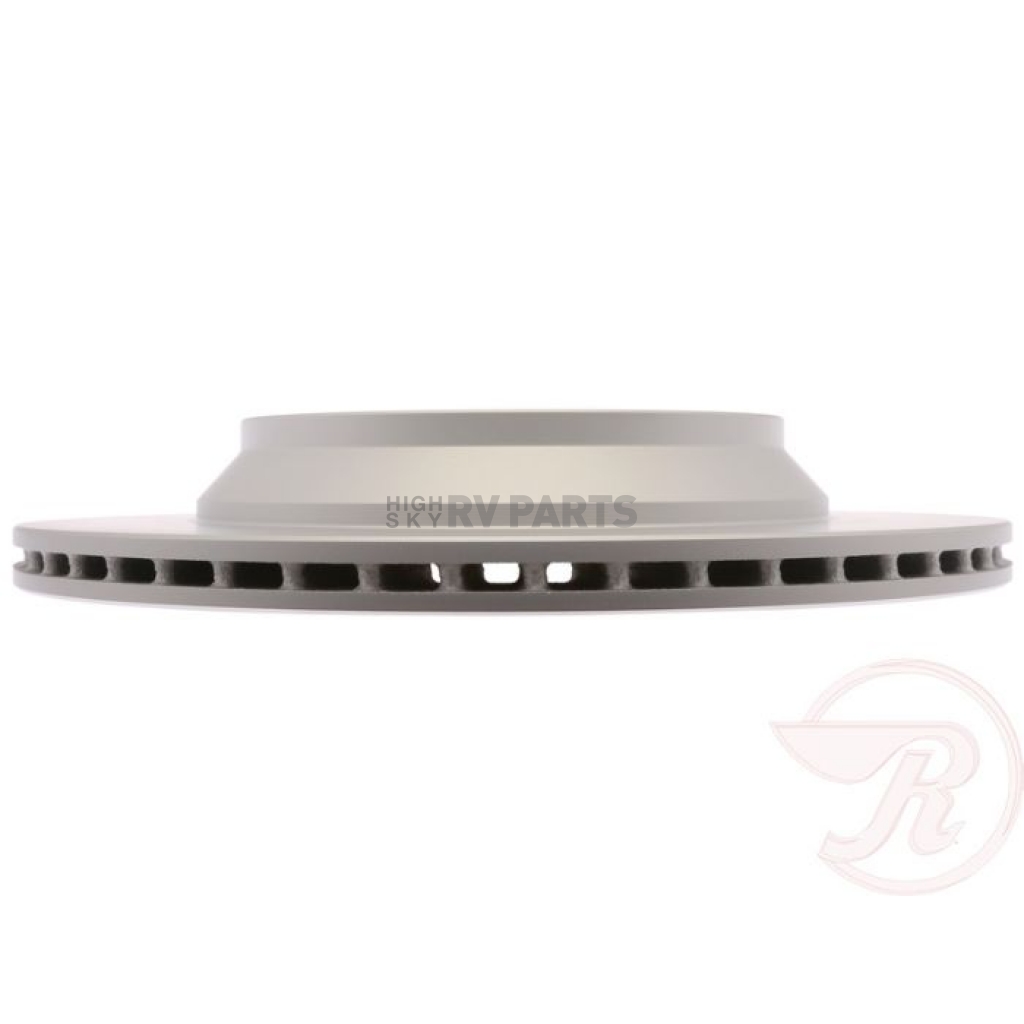

Raybestos Brakes Brake Rotor

Brake Rotor; Element3 ™; OE Replacement; Vented; Coated; 12.362 Inch Outer Diameter; 1.299 Inch Overall Height; Single

MPN: 982564FZN

Open-wheel designs on modern vehicles leave brake parts particularly rotors more exposed to the elements. If a rotor is uncoated corrosion and rust begin to form immediately. Raybestos Element3 Coated Rotors use a propriety finishing technology to coat each rotor’s entire surface including the cooling vanes. The full Grey Fusion 4.0™ coating helps resist corrosion and significantly delays rust-induced performance issues.

Recommended Use: OEM

Design: OEM

Disc Type: Slotted

Finish: OEM

Material: OEM

Outer Diameter (IN): 12.36 Inch

Outer Diameter (MM): 314 Millimeter

Height (IN): 1.29 Inch

Height (MM): 33 Millimeter

Nominal Thickness (IN): 0.787 Inch

Nominal Thickness (MM): 20 Millimeter

Hub Bore Size: OEM

Wheel Bolt Circle (IN): 4-1/2 Inch

Wheel Bolt Circle (MM): 114.3 Millimeter

Disc To Hat Bolt Circle (IN): OEM

Disc To Hat Bolt Circle (MM): OEM

Quantity: Single

Features

Made With G3000-Qualified Material Guaranteeing Form Fit And Function For Dependable Braking
Coated On Their Entire Surface With A Proprietary Full Grey Fusion 4.0 Coating
Exceeds The OE Requirement For Car And Truck Rotors And Certifies The Coating Prevents Rust And Corrosion
Keeps The Vanes Clear Of Rust And Corrosion For Optimal Airflow And Cooling
SAE Standard For Tensile Strength Providing Structural Integrity And Maximum Service Life
Lateral Runout Of 0.004 Inch Or Less And A Thickness Variation Of Less Than 0.0005” By Ensuring Less Pedal Pulsation Less Brake Noise And An Extended Pad Life
Mill Balanced And 100 Percent Validated This Helps In Proper Balance With Minimized Vibration And Quieter And Smoother Stopping
Limited Supplier Warranty

Specifications of Raybestos Brakes Brake Rotor - 982564FZN
Design	OEM
Disc To Hat Bolt Circle (IN)	OEM
Disc To Hat Bolt Circle (MM)	OEM
Disc Type	Slotted
Finish	OEM
Height (IN)	1.29 Inch
Height (MM)	33 Millimeter
Hub Bore Size	OEM
Material	OEM
Nominal Thickness (IN)	0.787 Inch
Nominal Thickness (MM)	20 Millimeter
Outer Diameter (IN)	12.36 Inch
Outer Diameter (MM)	314 Millimeter
Quantity	Single
Recommended Use	OEM
Wheel Bolt Circle (IN)	4-1/2 Inch
Wheel Bolt Circle (MM)	114.3 Millimeter
