Raybestos Brakes Brake Rotor - 96778R
Design
2-Piece
Disc To Hat Bolt Circle (IN)
OEM
Disc To Hat Bolt Circle (MM)
OEM
Disc Type
Plain Face
Finish
Natural
Height (IN)
1.44 Inch
Height (MM)
OEM
Hub Bore Size
No Hub
Material
Iron
Nominal Thickness (IN)
0.865 Inch
Nominal Thickness (MM)
21.97 Millimeter
Share this page

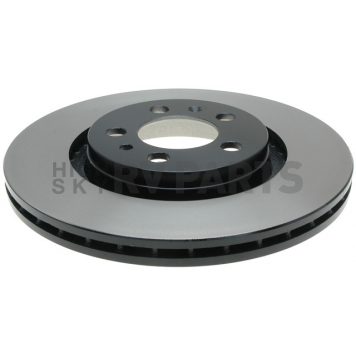

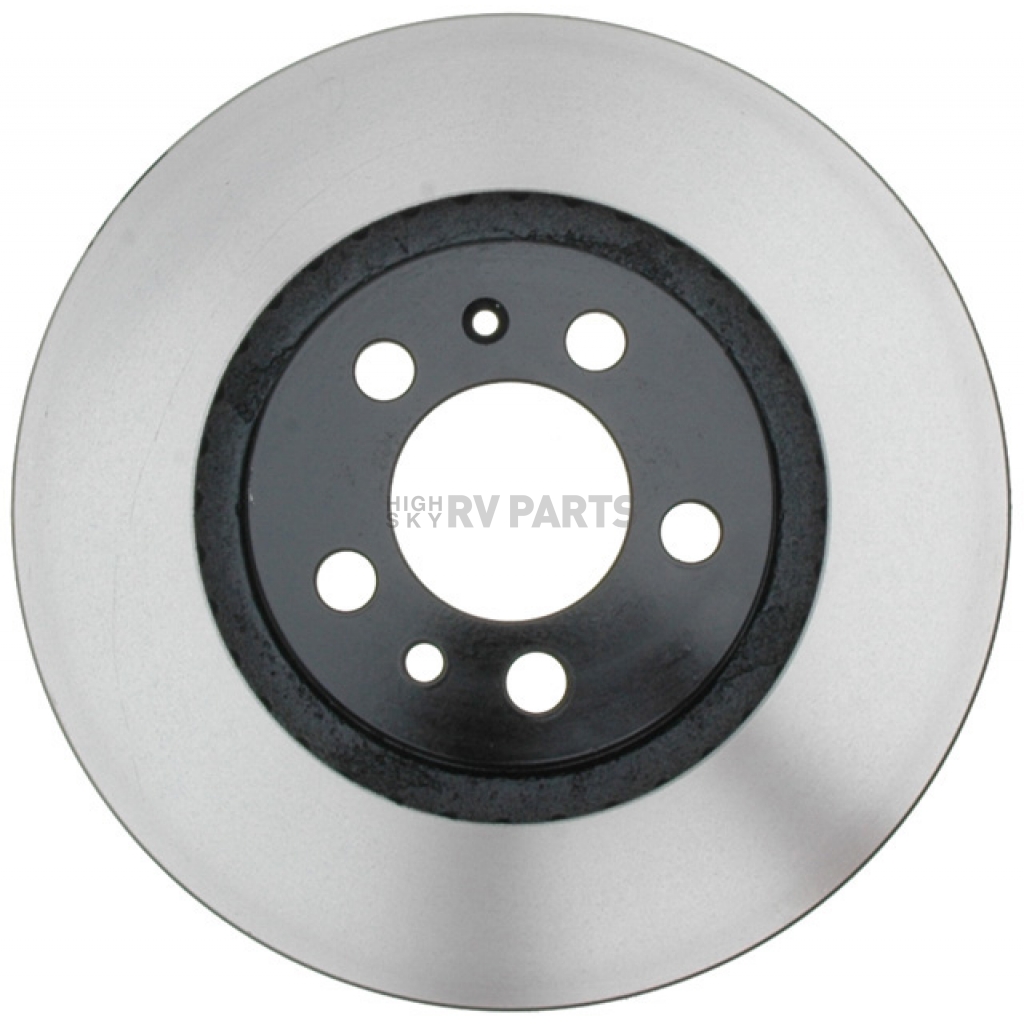

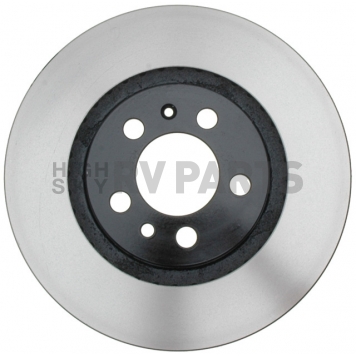

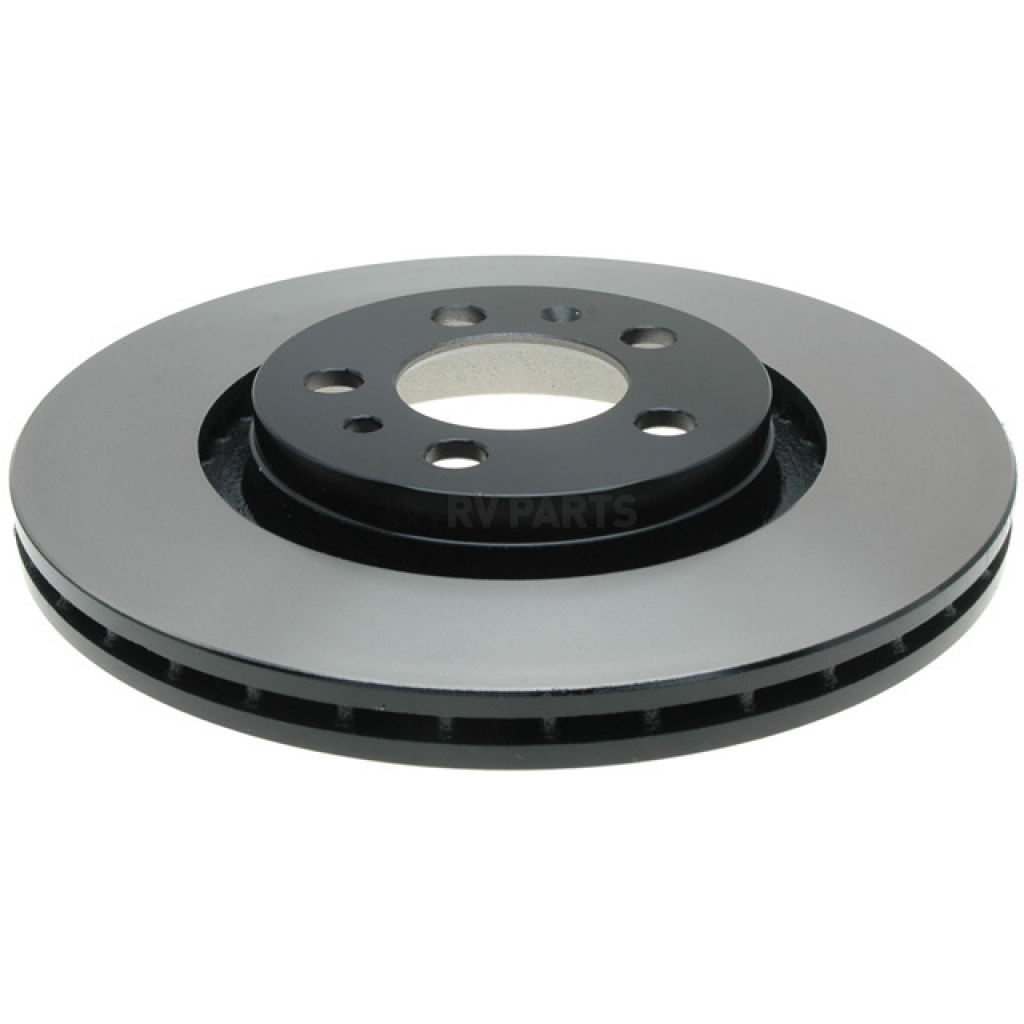

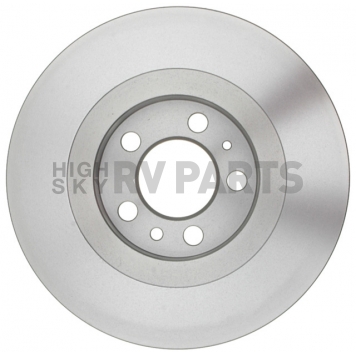

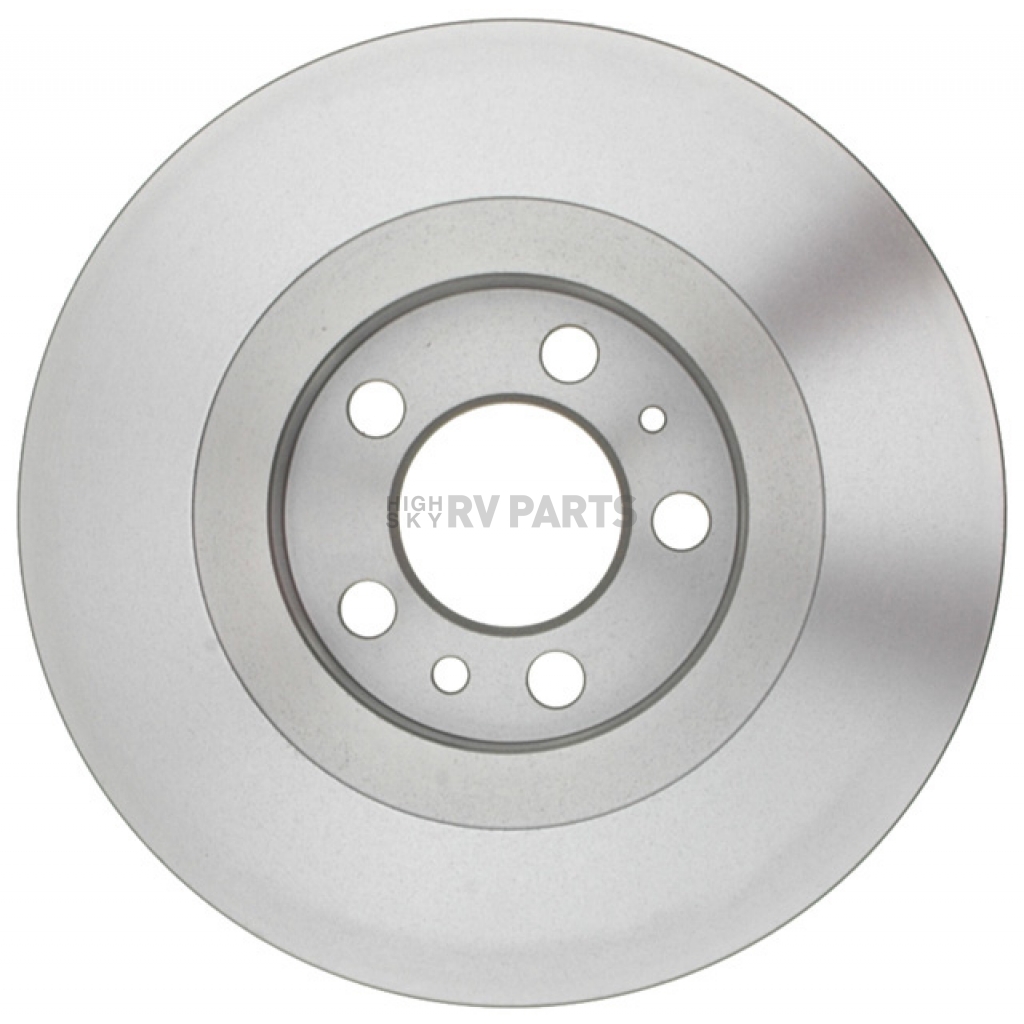

Raybestos Brakes Brake Rotor
Brake Rotor; R-Line; OE Replacement; Single
MPN: 96778R
Raybestos Professional Grade rotors offer full coverage with exclusive access to the Aftermarket’s latest products.
Recommended Use: Import And Domestic Cars, Light Trucks And SUVs
Design: 2-Piece
Disc Type: Plain Face
Finish: Natural
Material: Iron
Outer Diameter (IN): 11.2 Inch
Outer Diameter (MM): 284.48 Millimeter
Height (IN): 1.44 Inch
Height (MM): OEM
Nominal Thickness (IN): 0.865 Inch
Nominal Thickness (MM): 21.97 Millimeter
Hub Bore Size: No Hub
Wheel Bolt Circle (IN): OEM
Wheel Bolt Circle (MM): 5 X 100 Millimeter
Disc To Hat Bolt Circle (IN): OEM
Disc To Hat Bolt Circle (MM): OEM
Quantity: Single
Features
- Developed From Oe Samples, Validated To Meet Ts16949 Quality System Standards
- Meet Sae Standard For Tensile Strength - Oe-Matched, G3000 Qualified Material For Structural Integrity And Maximum Service Life
- Industry Leading Coverage - 99.8 Percent Coverage For Import And Domestic Cars, Light Trucks And Suvs
- Tight Lateral Run Out - 0.004 Inch Or Less For Less Pedal Pulsation And Brake Noise, Extended Pad Life
- Minimal Thickness Variation - Thickness Variation Less Than 0.0005 Inch, Less Pedal Pulsation And Brake Noise
- Mill Balanced Edges - 100 Percent Validation Ensures Proper Balance, Minimizes Vibration
- Non-Directional Ground Finish - Ready To Install Right Out Of The Box
- Limited Supplier Warranty
| Specifications of Raybestos Brakes Brake Rotor - 96778R | |
| Design | 2-Piece |
| Disc To Hat Bolt Circle (IN) | OEM |
| Disc To Hat Bolt Circle (MM) | OEM |
| Disc Type | Plain Face |
| Finish | Natural |
| Height (IN) | 1.44 Inch |
| Height (MM) | OEM |
| Hub Bore Size | No Hub |
| Material | Iron |
| Nominal Thickness (IN) | 0.865 Inch |
| Nominal Thickness (MM) | 21.97 Millimeter |
| Outer Diameter (IN) | 11.2 Inch |
| Outer Diameter (MM) | 284.48 Millimeter |
| Quantity | Single |
| Recommended Use | Import And Domestic Cars, Light Trucks And SUVs |
| Wheel Bolt Circle (IN) | OEM |
| Wheel Bolt Circle (MM) | 5 X 100 Millimeter |
1998 Volkswagen Beetle
1999 Volkswagen Beetle
2000 Volkswagen Beetle
2001 Volkswagen Beetle
2002 Volkswagen Beetle
2003 Volkswagen Beetle
2004 Volkswagen Beetle
2005 Volkswagen Beetle
2006 Volkswagen Beetle
2007 Volkswagen Beetle
2008 Volkswagen Beetle
2009 Volkswagen Beetle
2010 Volkswagen Beetle
1999 Volkswagen Beetle
2000 Volkswagen Beetle
2001 Volkswagen Beetle
2002 Volkswagen Beetle
2003 Volkswagen Beetle
2004 Volkswagen Beetle
2005 Volkswagen Beetle
2006 Volkswagen Beetle
2007 Volkswagen Beetle
2008 Volkswagen Beetle
2009 Volkswagen Beetle
2010 Volkswagen Beetle
1999 Volkswagen Golf
2000 Volkswagen Golf
2001 Volkswagen Golf
2002 Volkswagen Golf
2003 Volkswagen Golf
2004 Volkswagen Golf
2005 Volkswagen Golf
2006 Volkswagen Golf
2000 Volkswagen Golf
2001 Volkswagen Golf
2002 Volkswagen Golf
2003 Volkswagen Golf
2004 Volkswagen Golf
2005 Volkswagen Golf
2006 Volkswagen Golf
1999 Volkswagen Jetta
2000 Volkswagen Jetta
2001 Volkswagen Jetta
2002 Volkswagen Jetta
2003 Volkswagen Jetta
2004 Volkswagen Jetta
2005 Volkswagen Jetta
2006 Volkswagen Jetta
2000 Volkswagen Jetta
2001 Volkswagen Jetta
2002 Volkswagen Jetta
2003 Volkswagen Jetta
2004 Volkswagen Jetta
2005 Volkswagen Jetta
2006 Volkswagen Jetta
