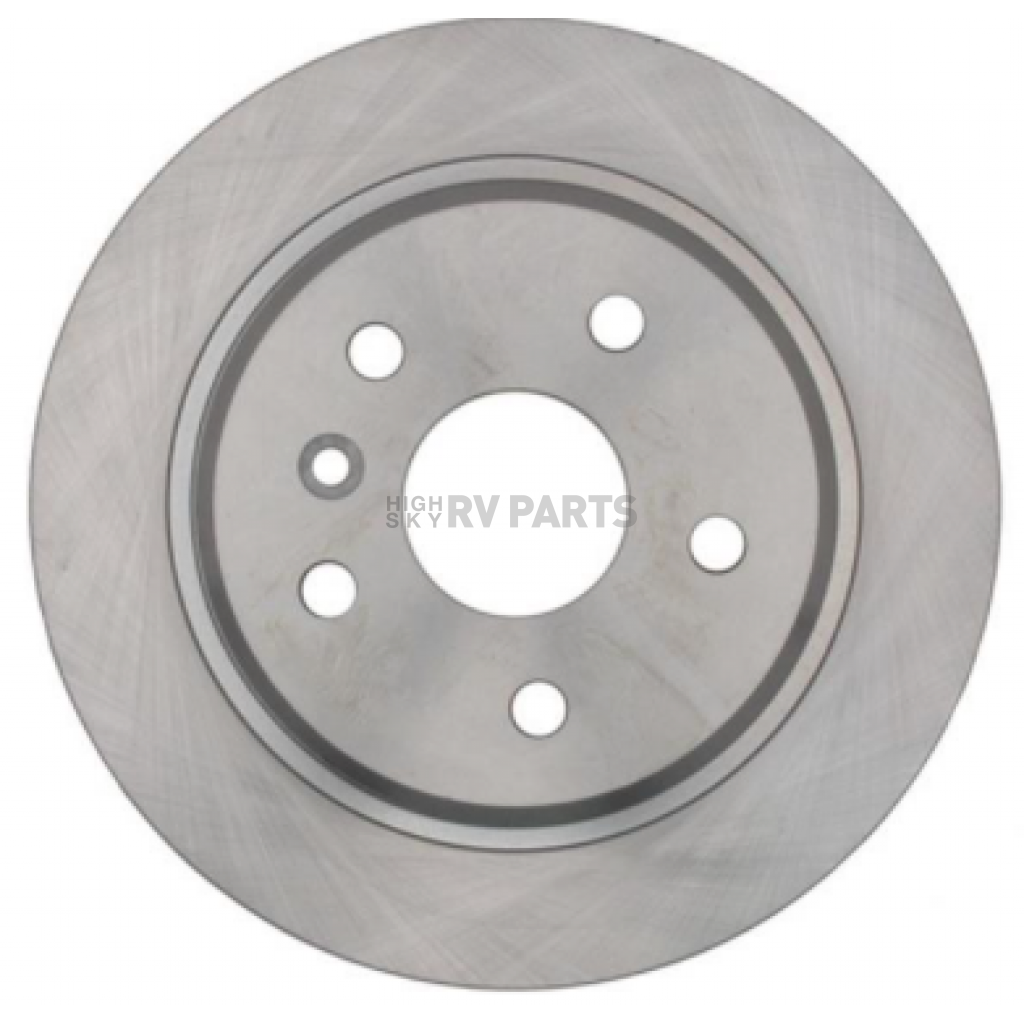

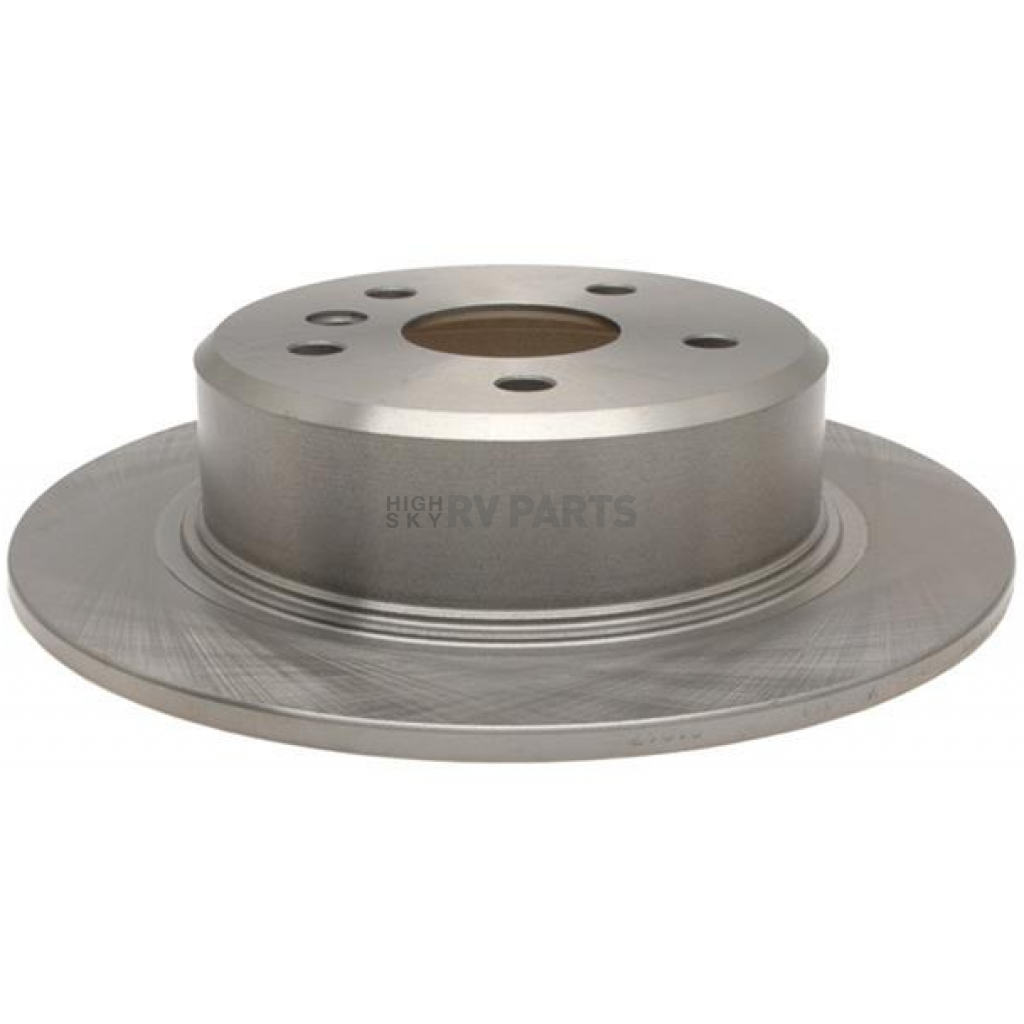

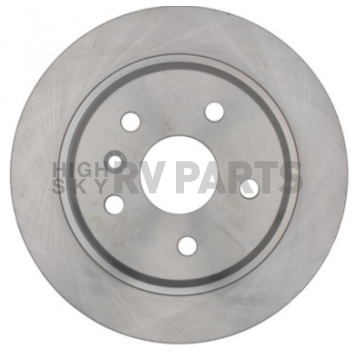

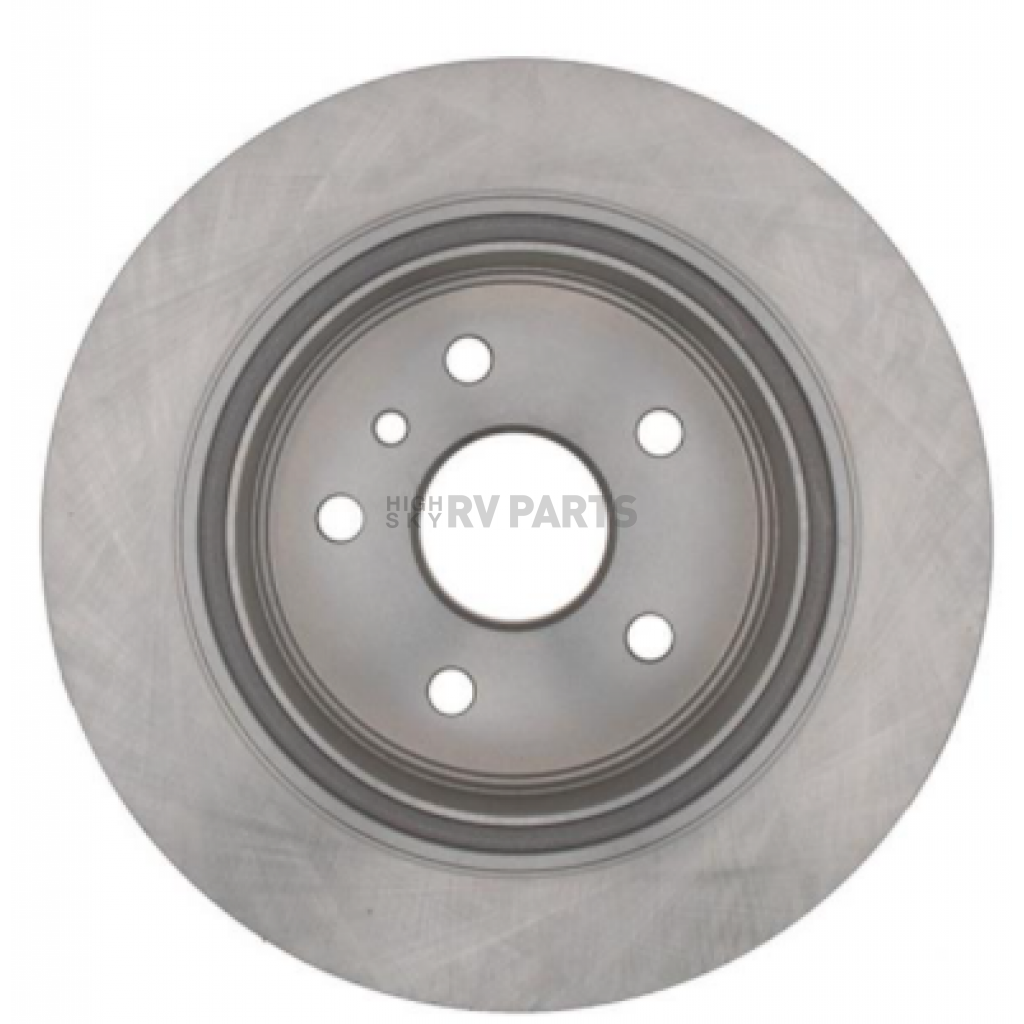

Raybestos Brakes Brake Rotor - 96568R

Brand: Raybestos Brakes
0 reviews
  • Have a product question? Ask us
  • Part Number: 96568R
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 2 - 3 Weeks
Retail: $52.49
Price: $49.99
You Save: $2.50
Design
1-Piece
Disc To Hat Bolt Circle (IN)
Not Applicable
Disc To Hat Bolt Circle (MM)
Not Applicable
Disc Type
Solid
Finish
Natural
Height (IN)
2.55 Inch
Height (MM)
OEM
Hub Bore Size
No Hub
Material
Iron
Nominal Thickness (IN)
0.355 Inch
Nominal Thickness (MM)
9.017 Millimeter
Share this page

Raybestos Brakes Brake Rotor

Brake Rotor; R-Line; OE Replacement; Single

MPN: 96568R

Raybestos Professional Grade rotors offer full coverage with exclusive access to the Aftermarket’s latest products.
Recommended Use: Import And Domestic Cars, Light Trucks And SUVs
Design: 1-Piece
Disc Type: Solid
Finish: Natural
Material: Iron
Outer Diameter (IN): 11.46 Inch
Outer Diameter (MM): 291.084 Millimeter
Height (IN): 2.55 Inch
Height (MM): OEM
Nominal Thickness (IN): 0.355 Inch
Nominal Thickness (MM): 9.017 Millimeter
Hub Bore Size: No Hub
Wheel Bolt Circle (IN): 5 X 4.5 Inch
Wheel Bolt Circle (MM): OEM
Disc To Hat Bolt Circle (IN): Not Applicable
Disc To Hat Bolt Circle (MM): Not Applicable
Quantity: Single

Features

  • Developed From Oe Samples, Validated To Meet Ts16949 Quality System Standards
  • Meet Sae Standard For Tensile Strength - Oe-Matched, G3000 Qualified Material For Structural Integrity And Maximum Service Life
  • Industry Leading Coverage - 99.8 Percent Coverage For Import And Domestic Cars, Light Trucks And Suvs
  • Tight Lateral Run Out - 0.004 Inch Or Less For Less Pedal Pulsation And Brake Noise, Extended Pad Life
  • Minimal Thickness Variation - Thickness Variation Less Than 0.0005 Inch, Less Pedal Pulsation And Brake Noise
  • Mill Balanced Edges - 100 Percent Validation Ensures Proper Balance, Minimizes Vibration
  • Non-Directional Ground Finish - Ready To Install Right Out Of The Box
  • Limited Supplier Warranty
Specifications of Raybestos Brakes Brake Rotor - 96568R
Design 1-Piece
Disc To Hat Bolt Circle (IN) Not Applicable
Disc To Hat Bolt Circle (MM) Not Applicable
Disc Type Solid
Finish Natural
Height (IN) 2.55 Inch
Height (MM) OEM
Hub Bore Size No Hub
Material Iron
Nominal Thickness (IN) 0.355 Inch
Nominal Thickness (MM) 9.017 Millimeter
Outer Diameter (IN) 11.46 Inch
Outer Diameter (MM) 291.084 Millimeter
Quantity Single
Recommended Use Import And Domestic Cars, Light Trucks And SUVs
Wheel Bolt Circle (IN) 5 X 4.5 Inch
Wheel Bolt Circle (MM) OEM

1995 Toyota Avalon
1996 Toyota Avalon
1997 Toyota Avalon
1998 Toyota Avalon
1999 Toyota Avalon
