Raybestos Brakes Brake Rotor - 96308R

Brand: Raybestos Brakes

0 reviews

Have a product question? Ask us
Part Number: 96308R
Part Location: U.S.
Availability: *Special Order
Delivery: 3 - 4 Weeks

Retail: $66.14

Price: $62.99

You Save: $3.15

Design

1-Piece

Disc To Hat Bolt Circle (IN)

Not Applicable

Disc To Hat Bolt Circle (MM)

Not Applicable

Disc Type

Solid

Finish

Natural

Height (IN)

2.4 Inch

Height (MM)

Hub Bore Size

No Hub

Material

Nominal Thickness (IN)

0.39 Inch

Nominal Thickness (MM)

9.906 Millimeter

Share this page

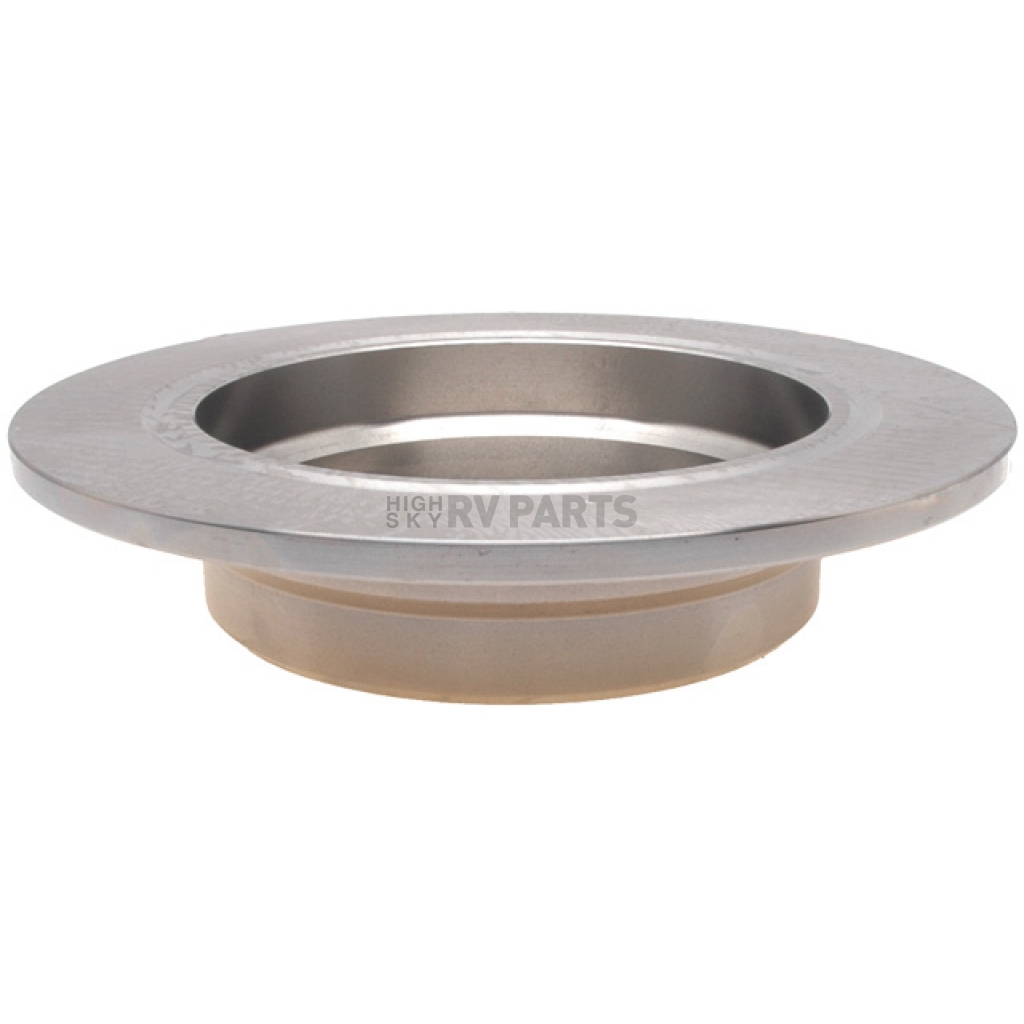

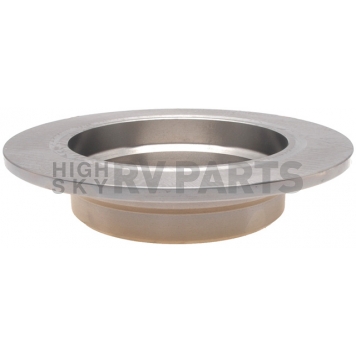

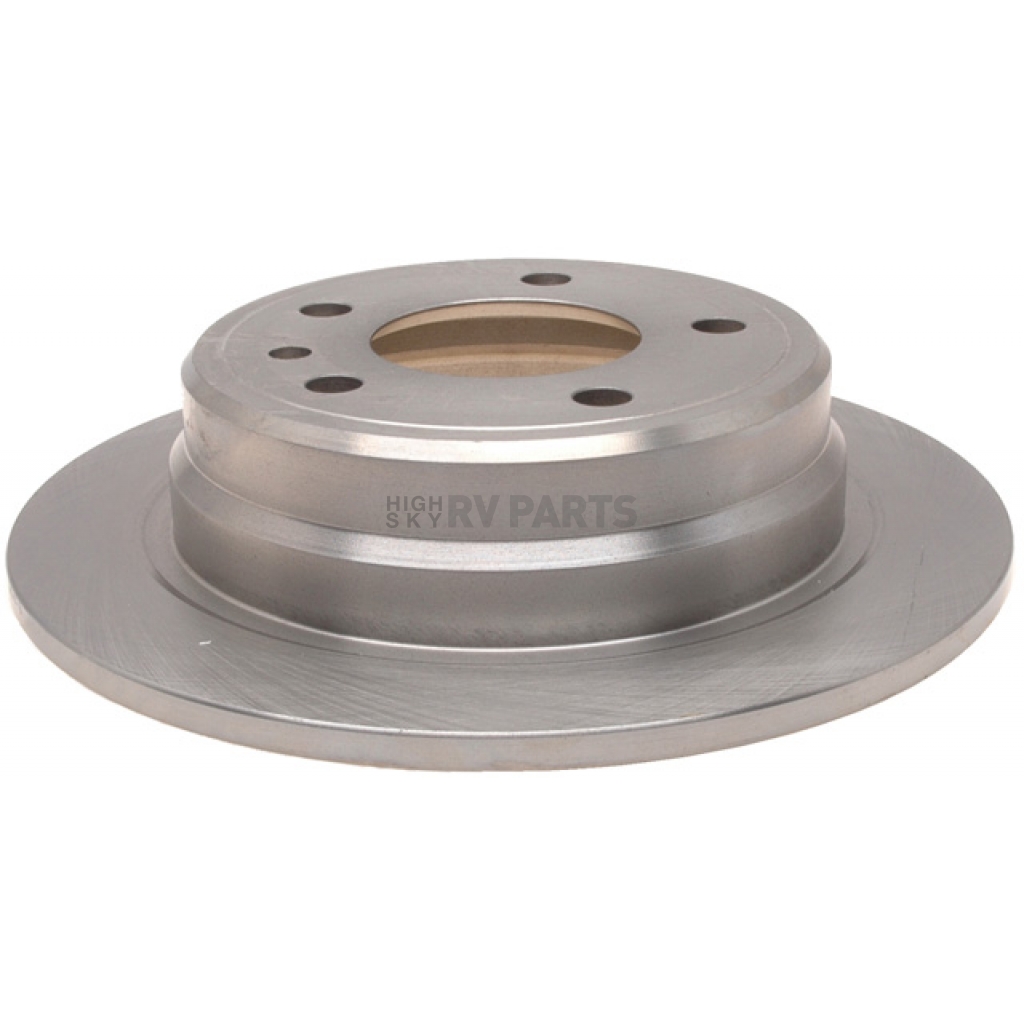

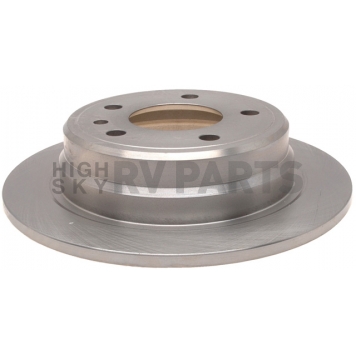

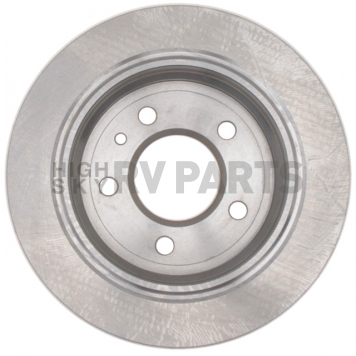

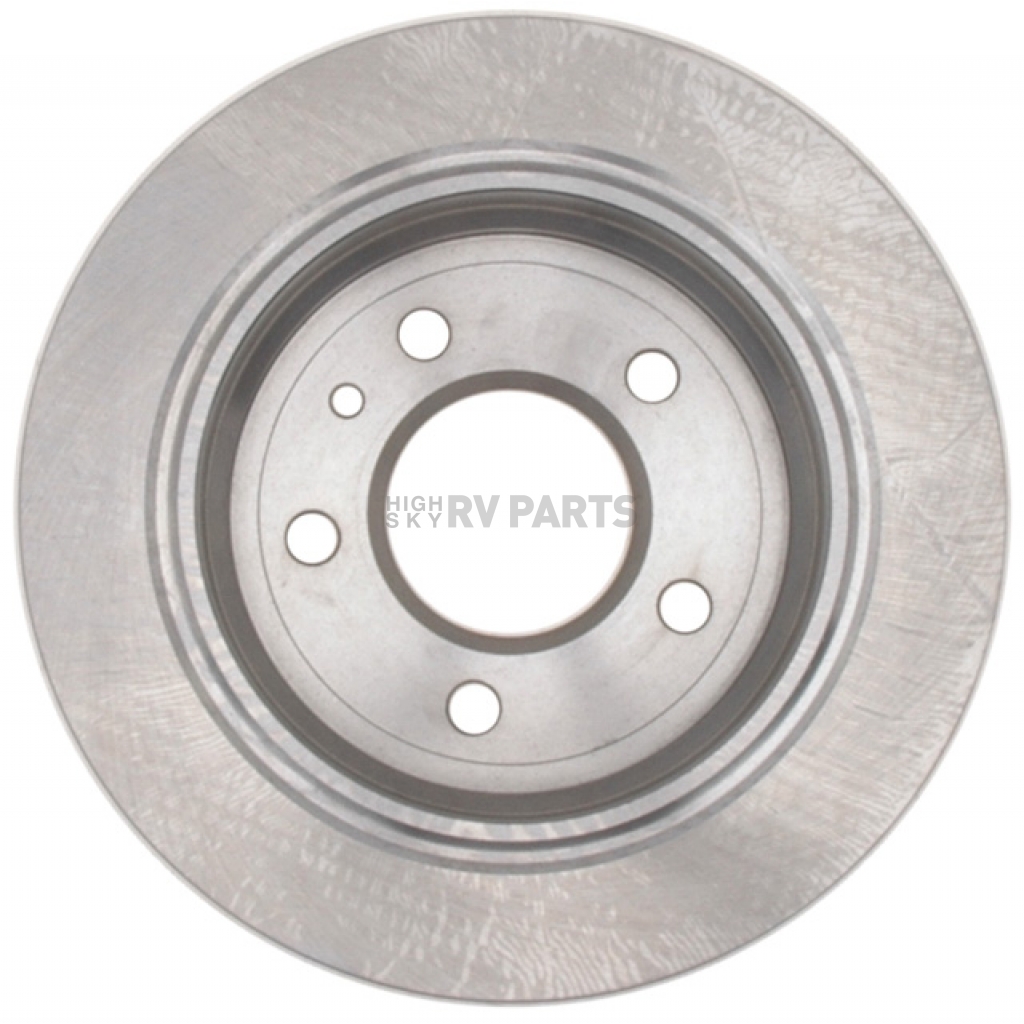

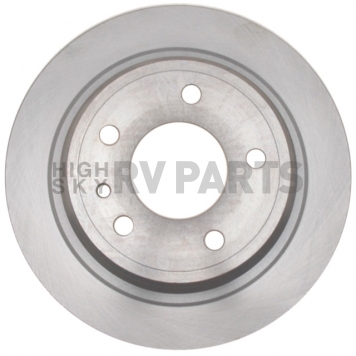

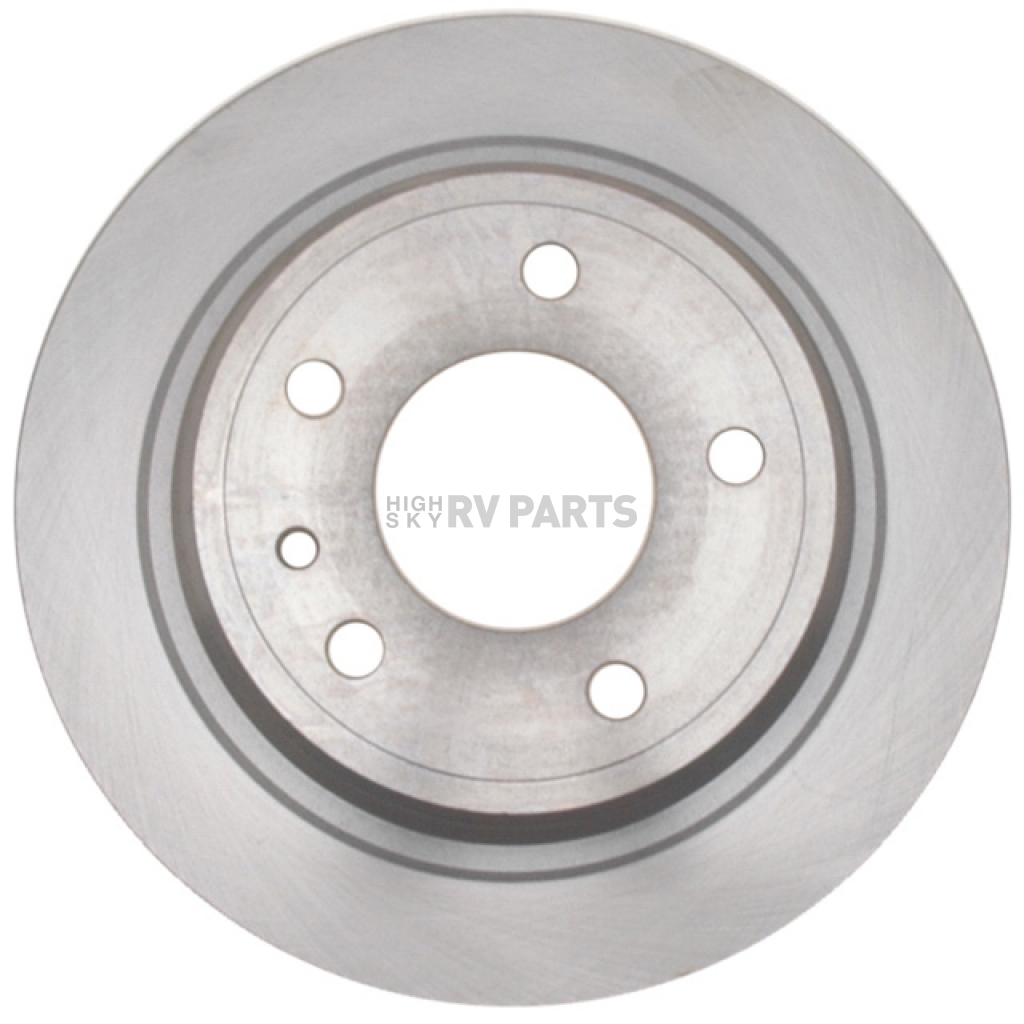

Raybestos Brakes Brake Rotor

Brake Rotor; R-Line; OE Replacement; Single

MPN: 96308R

Raybestos Professional Grade rotors offer full coverage with exclusive access to the Aftermarket’s latest products.

Recommended Use: Import And Domestic Cars, Light Trucks And SUVs

Design: 1-Piece

Disc Type: Solid

Finish: Natural

Material: Iron

Outer Diameter (IN): 11.18 Inch

Outer Diameter (MM): 283.972 Millimeter

Height (IN): 2.4 Inch

Height (MM): OEM

Nominal Thickness (IN): 0.39 Inch

Nominal Thickness (MM): 9.906 Millimeter

Hub Bore Size: No Hub

Wheel Bolt Circle (IN): OEM

Wheel Bolt Circle (MM): 5 X 120 Millimeter

Disc To Hat Bolt Circle (IN): Not Applicable

Disc To Hat Bolt Circle (MM): Not Applicable

Quantity: Single

Features

Developed From Oe Samples, Validated To Meet Ts16949 Quality System Standards
Meet Sae Standard For Tensile Strength - Oe-Matched, G3000 Qualified Material For Structural Integrity And Maximum Service Life
Industry Leading Coverage - 99.8 Percent Coverage For Import And Domestic Cars, Light Trucks And Suvs
Tight Lateral Run Out - 0.004 Inch Or Less For Less Pedal Pulsation And Brake Noise, Extended Pad Life
Minimal Thickness Variation - Thickness Variation Less Than 0.0005 Inch, Less Pedal Pulsation And Brake Noise
Mill Balanced Edges - 100 Percent Validation Ensures Proper Balance, Minimizes Vibration
Non-Directional Ground Finish - Ready To Install Right Out Of The Box
Limited Supplier Warranty

Specifications of Raybestos Brakes Brake Rotor - 96308R
Design	1-Piece
Disc To Hat Bolt Circle (IN)	Not Applicable
Disc To Hat Bolt Circle (MM)	Not Applicable
Disc Type	Solid
Finish	Natural
Height (IN)	2.4 Inch
Height (MM)	OEM
Hub Bore Size	No Hub
Material	Iron
Nominal Thickness (IN)	0.39 Inch
Nominal Thickness (MM)	9.906 Millimeter
Outer Diameter (IN)	11.18 Inch
Outer Diameter (MM)	283.972 Millimeter
Quantity	Single
Recommended Use	Import And Domestic Cars, Light Trucks And SUVs
Wheel Bolt Circle (IN)	OEM
Wheel Bolt Circle (MM)	5 X 120 Millimeter
