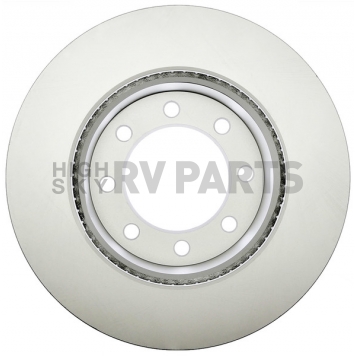

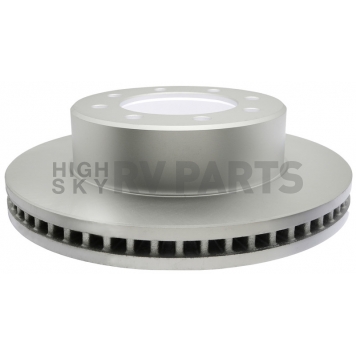

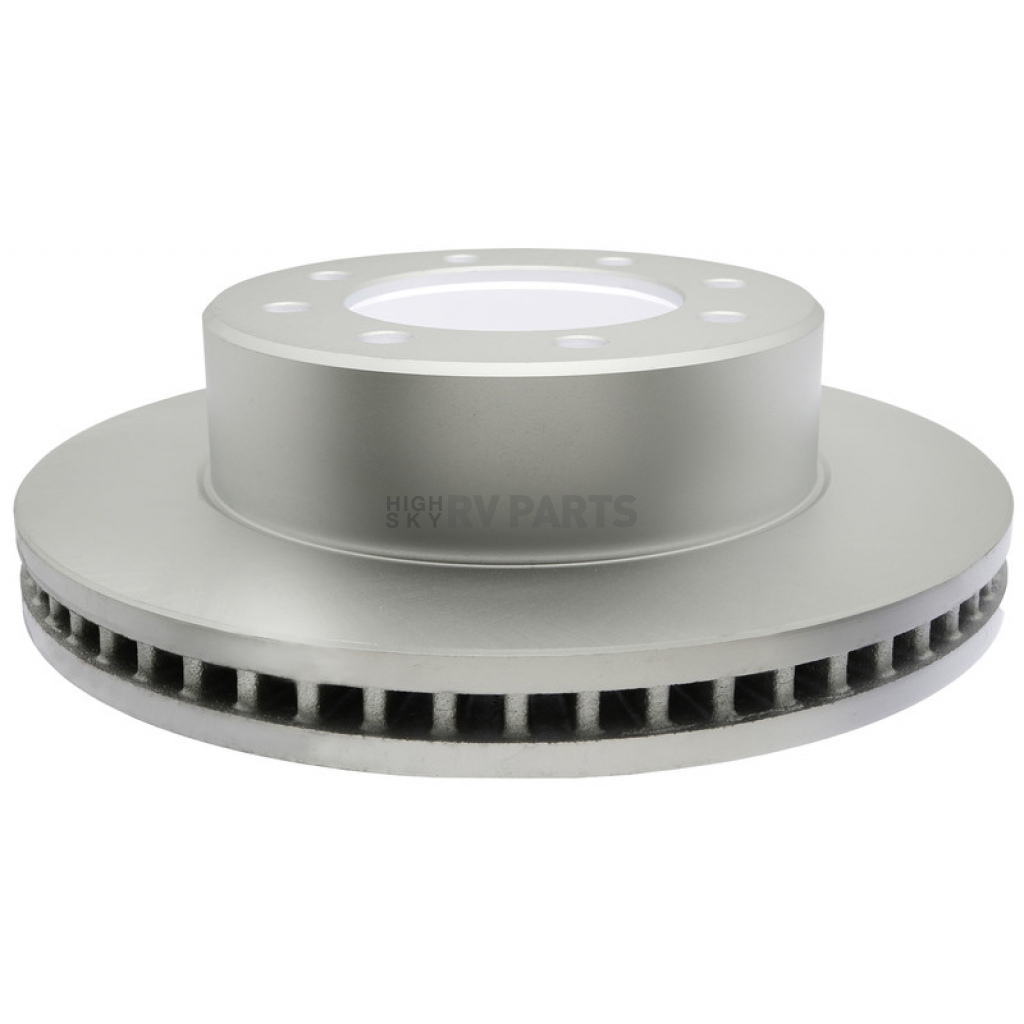

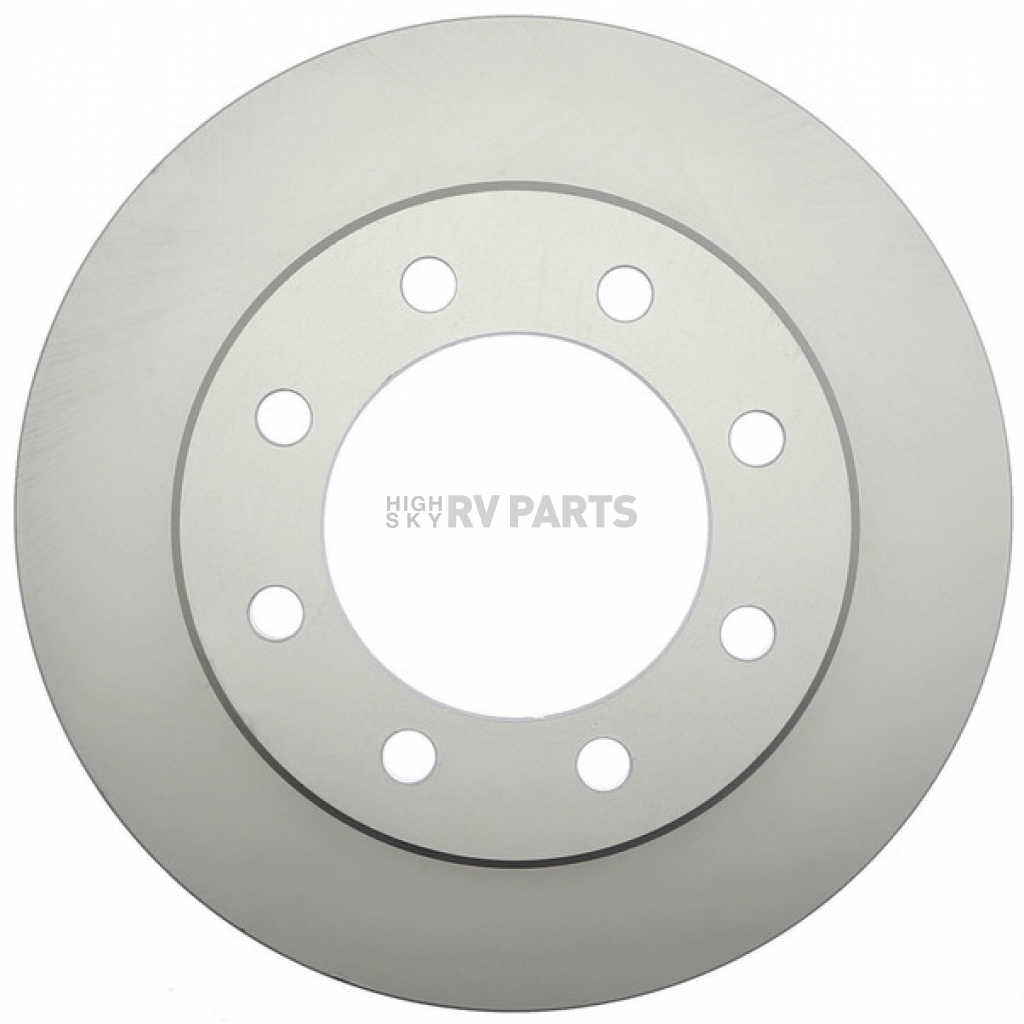

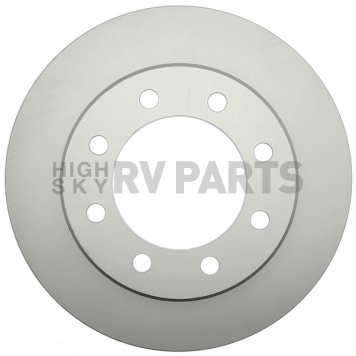

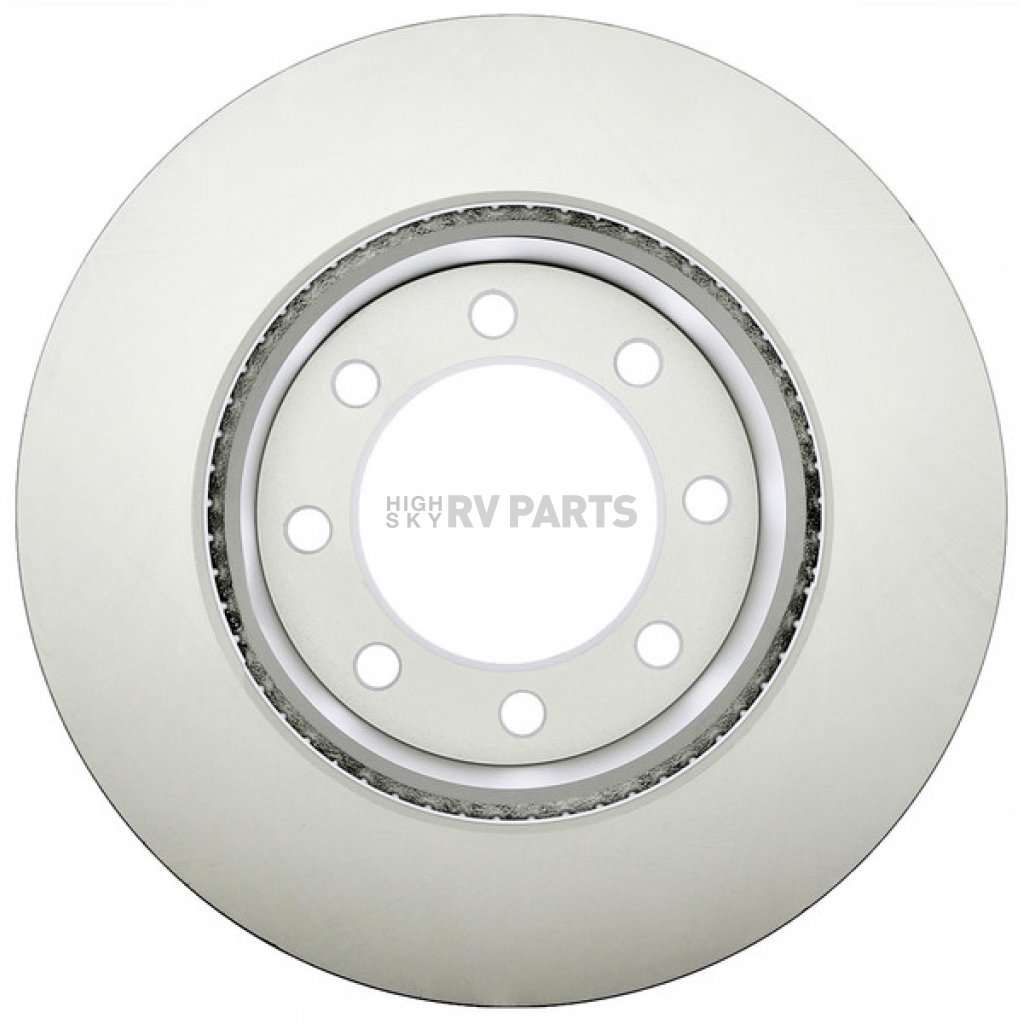

Raybestos Brakes Brake Rotor 780736FZN

Brand: Raybestos Brakes
  • Have a product question? Ask us
  • Part Number: 780736FZN
  • Part Location: U.S.
  • Availability: Special Order
Retail: $227.84
Price: $216.99
You Save: $10.85
Design
 1 Piece
Disc To Hat Bolt Circle (IN)
 OEM
Disc To Hat Bolt Circle (MM)
 OEM
Disc Type
 Vented
Finish
 Powder Coated
Height (IN)
 4.021 Inch
Height (MM)
 102.1 Millimeter
Hub Bore Size
 OEM
Material
 Cast Iron
Nominal Thickness (IN)
 1.541 Inch
Nominal Thickness (MM)
 39.1 Millimeter
Share this page

Brake Rotor; Element3 ™; OE Replacement; Single

MPN: 780736FZN

Raybestos(R) RPT Rust Prevention Technology™ coated rotors use a propriety finishing technology to coat each rotor’s entire surface, including the cooling vanes. The full Grey Fusion 4.0™ coating helps resist corrosion and significantly delays rust-induced performance issues.

Position On Vehicle: Front
Disc Type: Vented
Finish: Powder Coated
Quantity: Single
Recommended Use: Performance
Design: 1 Piece
Material: Cast Iron
Hub Bore Size: OEM
Wheel Bolt Circle (IN): OEM
Wheel Bolt Circle (MM): 8 X 165 Millimeter
Disc To Hat Bolt Circle (IN): OEM
Disc To Hat Bolt Circle (MM): OEM
Outer Diameter (IN): 14.175 Inch
Outer Diameter (MM): 360 Millimeter
Height (IN): 4.021 Inch
Height (MM): 102.1 Millimeter
Nominal Thickness (IN): 1.541 Inch
Nominal Thickness (MM): 39.1 Millimeter

Features

  • Developed From Oe Samples And Made With G3000-Qualified Material, Guaranteeing Form, Fit And Function For A Dependable Performance
  • Coated Rotors Use A Propriety Finishing Technology To Coat Each Rotor’s Entire Surface
  • Coating Helps Resist Corrosion And Significantly Delays Rust-Induced Performance Issues
  • Built To Endure The Harshest Of Weather Conditions And Deliver: Best-In-Class Performance, Ultra-Smooth Braking, Maximized Friction Life
  • Cooling Vanes: By Coating The Cooling Vanes On Rpt Rust Prevention Technology™ Rotors, It Keeps The Vanes Clear Of Rust And Corrosion For Optimal Airflow And Cooling
  • Sae Standard For Tensile Strength: Provides Structural Integrity And A Maximum Service Life
  • Comes With A Lateral Runout Of 0.004 Inch Or Less And A Thickness Variation Of Less Than 0.0005 Inch Ensuring Less Pedal Pulsation; Less Brake Noise; An Extended Pad Life
  • Mill Balanced Edges Helps Minimize The Thickness Variation On The Rotor, Guaranteeing: Proper Balance, Minimized Vibration, Quieter And Smoother Stopping
  • Limited Supplier Warranty
Specifications of Raybestos Brakes Brake Rotor 780736FZN
Design  1 Piece
Disc To Hat Bolt Circle (IN)  OEM
Disc To Hat Bolt Circle (MM)  OEM
Disc Type  Vented
Finish  Powder Coated
Height (IN)  4.021 Inch
Height (MM)  102.1 Millimeter
Hub Bore Size  OEM
Material  Cast Iron
Nominal Thickness (IN)  1.541 Inch
Nominal Thickness (MM)  39.1 Millimeter
Outer Diameter (IN)  14.175 Inch
Outer Diameter (MM)  360 Millimeter
Position On Vehicle  Front
Quantity  Single
Recommended Use  Performance
Wheel Bolt Circle (IN)  OEM
Wheel Bolt Circle (MM)  8 X 165 Millimeter

2009 Dodge Ram 2500
2010 Dodge Ram 2500

2009 Dodge Ram 3500
2010 Dodge Ram 3500

2012 Ram 1500

2011 Ram 2500
2012 Ram 2500
2013 Ram 2500
2014 Ram 2500
2015 Ram 2500
2016 Ram 2500
2017 Ram 2500
2018 Ram 2500
2019 Ram 2500
2020 Ram 2500
2021 Ram 2500
2022 Ram 2500
2023 Ram 2500

2011 Ram 3500
2012 Ram 3500
2013 Ram 3500
2014 Ram 3500
2015 Ram 3500
2016 Ram 3500
2017 Ram 3500
2018 Ram 3500
2019 Ram 3500
2020 Ram 3500
2021 Ram 3500
2022 Ram 3500
2023 Ram 3500
