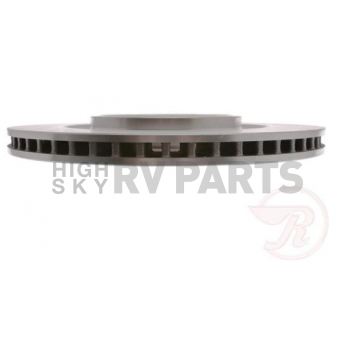

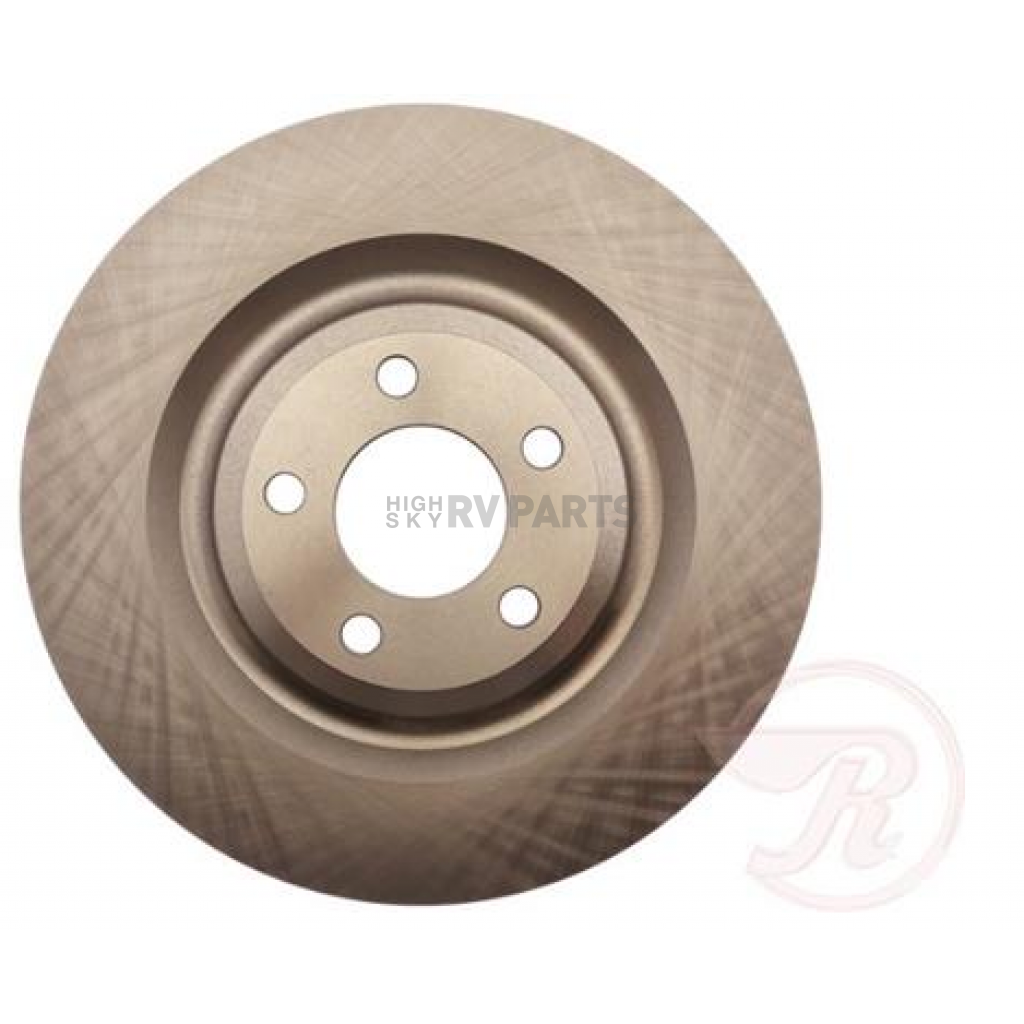

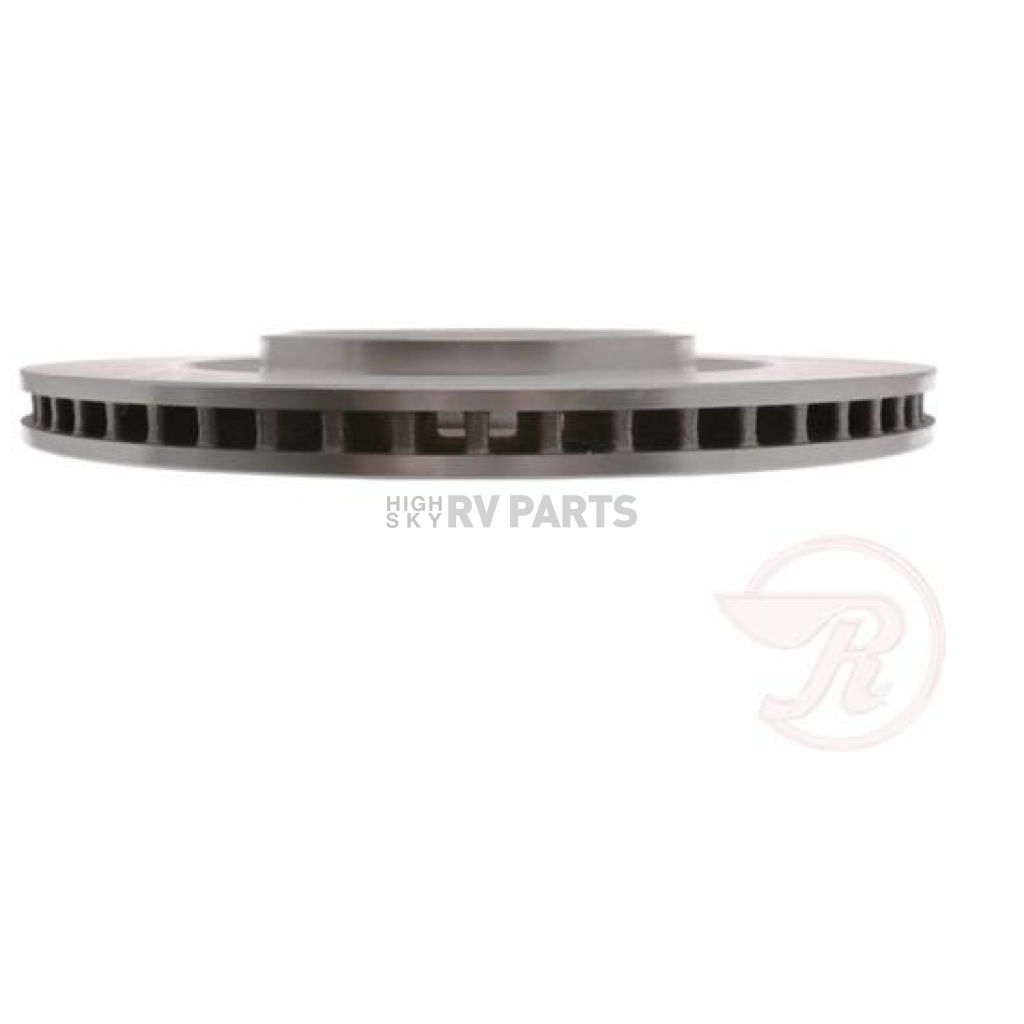

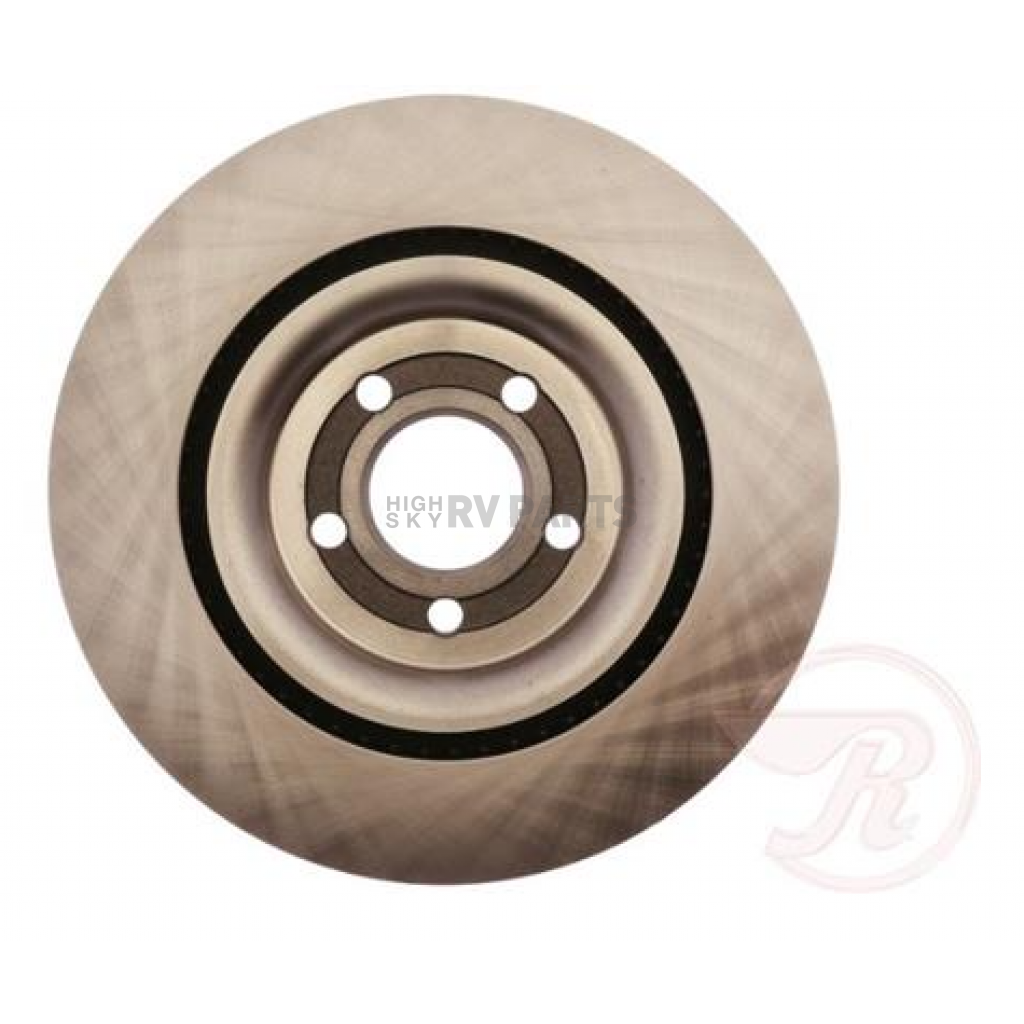

Raybestos Brakes Brake Rotor - 682614R

Brand: Raybestos Brakes

0 reviews

Have a product question? Ask us
Part Number: 682614R
Part Location: U.S.
Availability: *Special Order
Delivery: 2 - 3 Weeks

Retail: $91.34

Price: $86.99

You Save: $4.35

Design

1 Piece

Disc To Hat Bolt Circle (IN)

Disc To Hat Bolt Circle (MM)

Disc Type

Slotted

Finish

Height (IN)

1.543 Inch

Height (MM)

39.2 Millimeter

Hub Bore Size

Material

Nominal Thickness (IN)

1.024 Inch

Nominal Thickness (MM)

26 Millimeter

Share this page

Raybestos Brakes Brake Rotor

Brake Rotor; R-Line; OE Replacement; Vented; Plain; Single

MPN: 682614R

Raybestos ® R-Line Rotors are engineered for everyday driving conditions. Offering an industry-leading, 99.8 percent coverage for import and domestic cars, light trucks and SUVs, our R-Line rotors provide the highest level of: Dependability, Safety, Performance

Recommended Use: OEM

Design: 1 Piece

Disc Type: Slotted

Finish: OEM

Material: OEM

Outer Diameter (IN): 13.78 Inch

Outer Diameter (MM): 350 Millimeter

Height (IN): 1.543 Inch

Height (MM): 39.2 Millimeter

Nominal Thickness (IN): 1.024 Inch

Nominal Thickness (MM): 26 Millimeter

Hub Bore Size: OEM

Wheel Bolt Circle (IN): 4-1/2 Inch

Wheel Bolt Circle (MM): 114.3 Millimeter

Disc To Hat Bolt Circle (IN): OEM

Disc To Hat Bolt Circle (MM): OEM

Quantity: Single

Features

Original Equipment Designs - Developed From OE Samples, Validated To Meet TS16949 Quality System Standards
Meet SAE Standard For Tensile Strength - OE-Matched, G3000 Qualified Material For Structural Integrity And Maximum Service Life
Industry Leading Coverage - 99.8 Percent Coverage For Import And Domestic Cars, Light Trucks And SUVs
Tight Lateral Runout - 0.004 Inch Or Less For Less Pedal Pulsation And Brake Noise, Extended Pad Life
Minimal Thickness Variation - Thickness Variation Less Than 0.0005 Inch, Less Pedal Pulsation And Brake Noise
Mill Balanced Edges - 100 Percent Validation Ensures Proper Balance, Minimizes Vibration
Non-Directional Ground Finish - Ready To Install Right Out Of The Box
Limited Supplier Warranty

Specifications of Raybestos Brakes Brake Rotor - 682614R
Design	1 Piece
Disc To Hat Bolt Circle (IN)	OEM
Disc To Hat Bolt Circle (MM)	OEM
Disc Type	Slotted
Finish	OEM
Height (IN)	1.543 Inch
Height (MM)	39.2 Millimeter
Hub Bore Size	OEM
Material	OEM
Nominal Thickness (IN)	1.024 Inch
Nominal Thickness (MM)	26 Millimeter
Outer Diameter (IN)	13.78 Inch
Outer Diameter (MM)	350 Millimeter
Quantity	Single
Recommended Use	OEM
Wheel Bolt Circle (IN)	4-1/2 Inch
Wheel Bolt Circle (MM)	114.3 Millimeter
