Raybestos Brakes Brake Rotor - 682502FZN

Brand: Raybestos Brakes

0 reviews

Have a product question? Ask us
Part Number: 682502FZN
Part Location: U.S.
Availability: 2 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by July 07

Retail: $64.04

Price: $60.99

You Save: $3.05

Design

1 Piece

Disc To Hat Bolt Circle (IN)

Disc To Hat Bolt Circle (MM)

Disc Type

Solid

Finish

Height (IN)

2 Inch

Height (MM)

50.8 Millimeter

Hub Bore Size

Material

Nominal Thickness (IN)

0.433 Inch

Nominal Thickness (MM)

11 Millimeter

Share this page

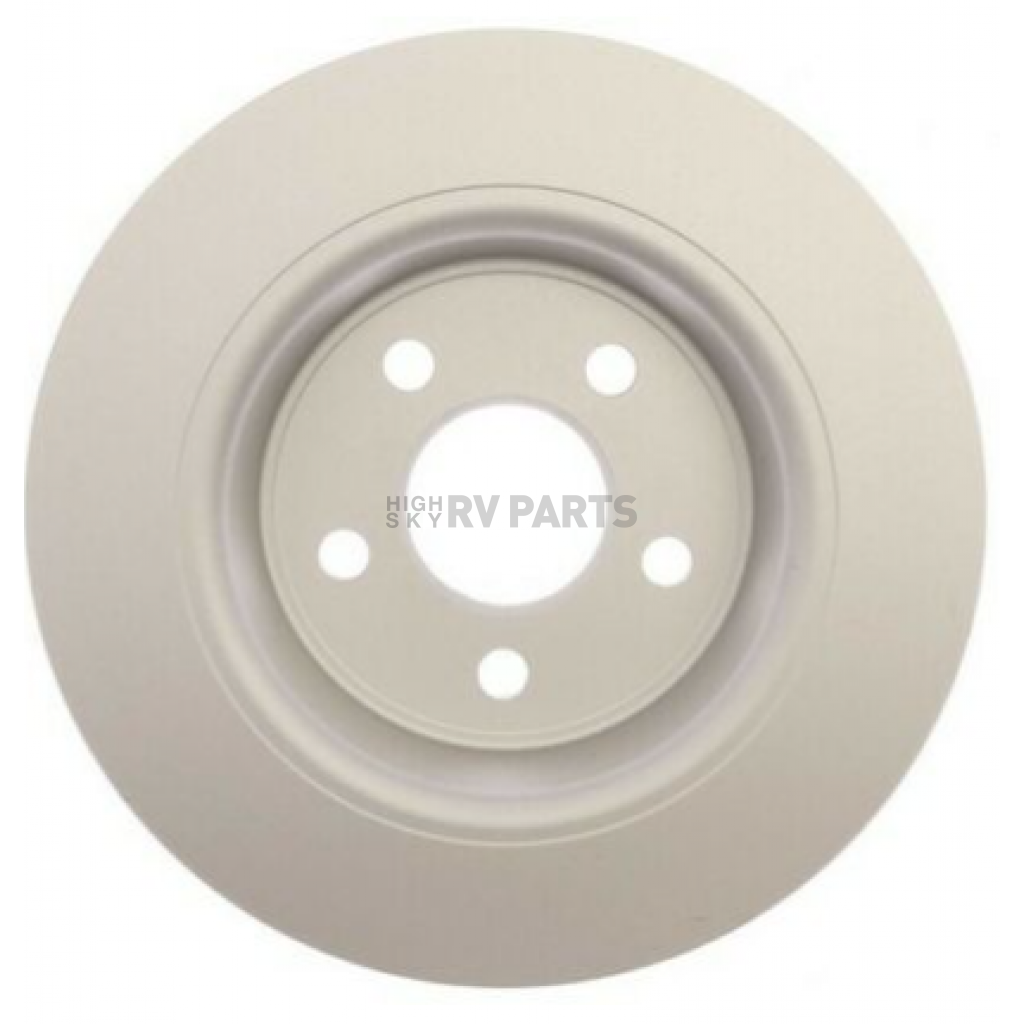

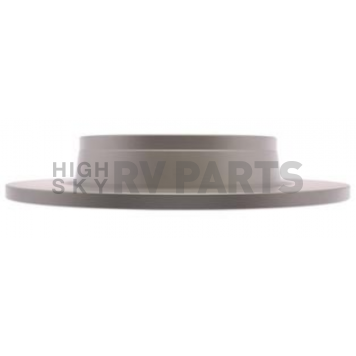

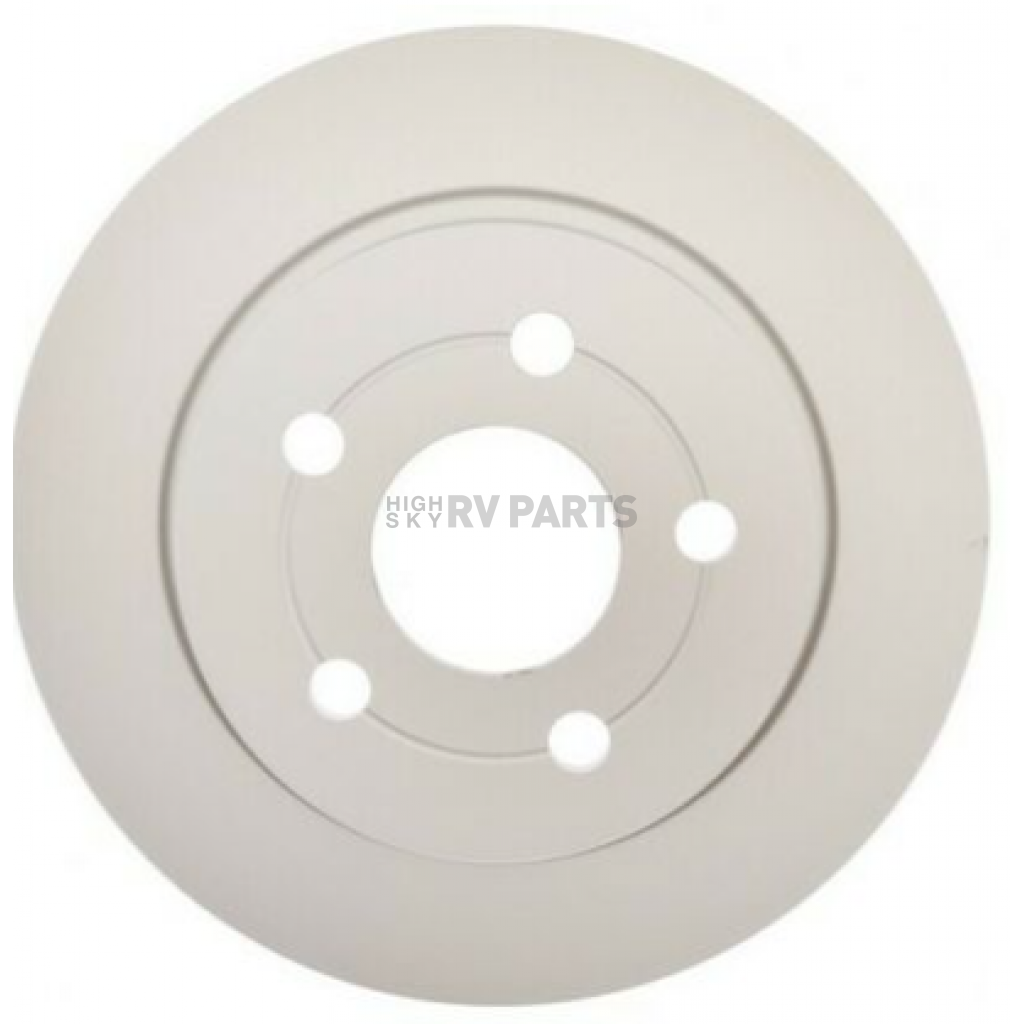

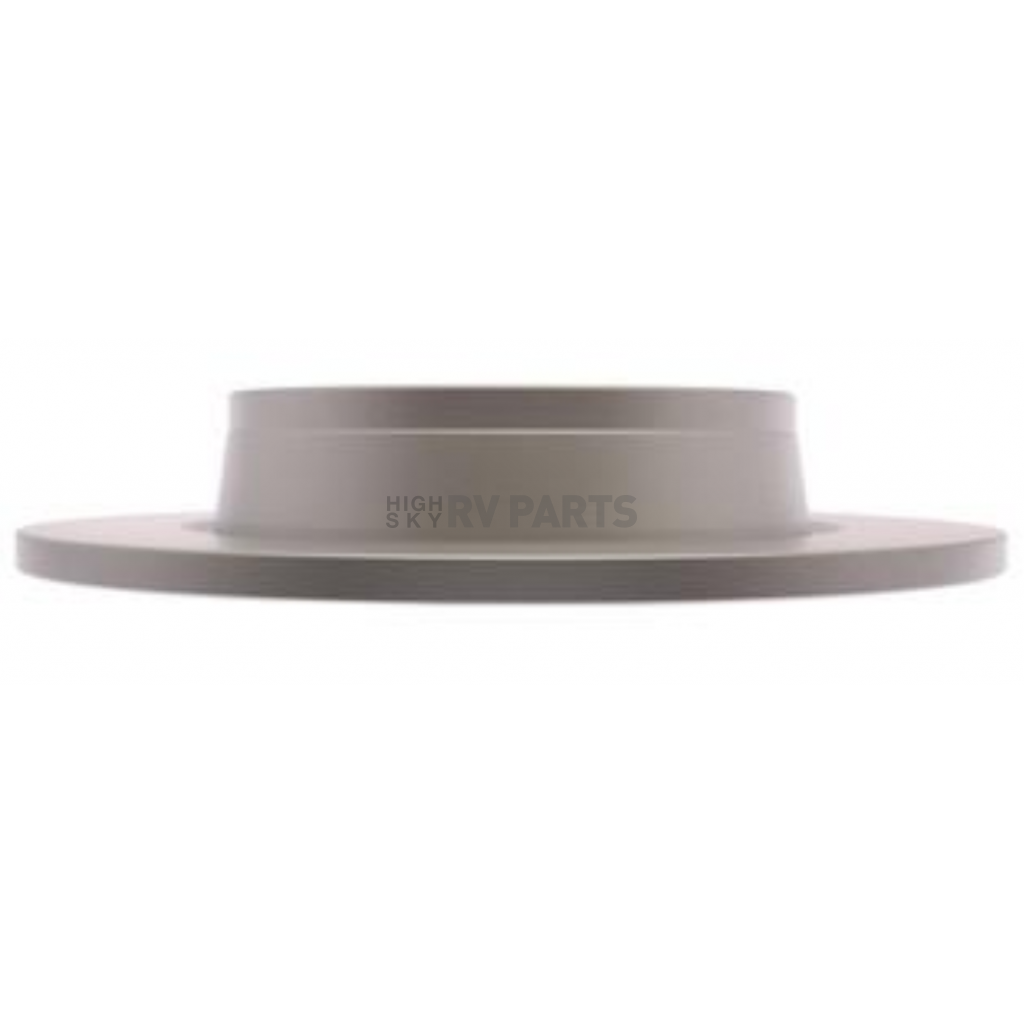

Raybestos Brakes Brake Rotor

Brake Rotor; Element3 ™; OE Replacement; 11.008 Inch Outer Diameter; 2 Inch Overall Height; Single

MPN: 682502FZN

Open-wheel designs on modern vehicles leave brake parts particularly rotors more exposed to the elements. If a rotor is uncoated corrosion and rust begin to form immediately. Raybestos Element3 Coated Rotors use a propriety finishing technology to coat each rotor’s entire surface including the cooling vanes. The full Grey Fusion 4.0™ coating helps resist corrosion and significantly delays rust-induced performance issues.

Recommended Use: OEM

Design: 1 Piece

Disc Type: Solid

Finish: OEM

Material: OEM

Outer Diameter (IN): 11.008 Inch

Outer Diameter (MM): 279.6 Millimeter

Height (IN): 2 Inch

Height (MM): 50.8 Millimeter

Nominal Thickness (IN): 0.433 Inch

Nominal Thickness (MM): 11 Millimeter

Hub Bore Size: OEM

Wheel Bolt Circle (IN): 4.252 Inch

Wheel Bolt Circle (MM): 108 Millimeter

Disc To Hat Bolt Circle (IN): OEM

Disc To Hat Bolt Circle (MM): OEM

Quantity: Single

Features

Made With G3000-Qualified Material Guaranteeing Form Fit And Function For Dependable Braking
Coated On Their Entire Surface With A Proprietary Full Grey Fusion 4.0 Coating
Exceeds The OE Requirement For Car And Truck Rotors And Certifies The Coating Prevents Rust And Corrosion
Keeps The Vanes Clear Of Rust And Corrosion For Optimal Airflow And Cooling
SAE Standard For Tensile Strength Providing Structural Integrity And Maximum Service Life
Lateral Runout Of 0.004? Or Less And A Thickness Variation Of Less Than 0.0005” By Ensuring Less Pedal Pulsation Less Brake Noise And An Extended Pad Life
Mill Balanced And 100 Percent Validated This Helps In Proper Balance With Minimized Vibration And Quieter And Smoother Stopping
Limited Supplier Warranty

Specifications of Raybestos Brakes Brake Rotor - 682502FZN
Design	1 Piece
Disc To Hat Bolt Circle (IN)	OEM
Disc To Hat Bolt Circle (MM)	OEM
Disc Type	Solid
Finish	OEM
Height (IN)	2 Inch
Height (MM)	50.8 Millimeter
Hub Bore Size	OEM
Material	OEM
Nominal Thickness (IN)	0.433 Inch
Nominal Thickness (MM)	11 Millimeter
Outer Diameter (IN)	11.008 Inch
Outer Diameter (MM)	279.6 Millimeter
Quantity	Single
Recommended Use	OEM
Wheel Bolt Circle (IN)	4.252 Inch
Wheel Bolt Circle (MM)	108 Millimeter
