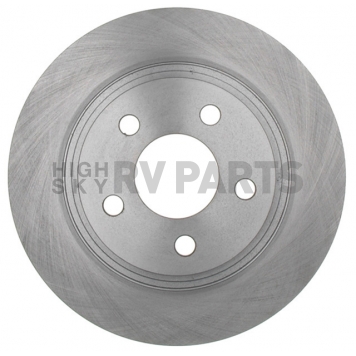

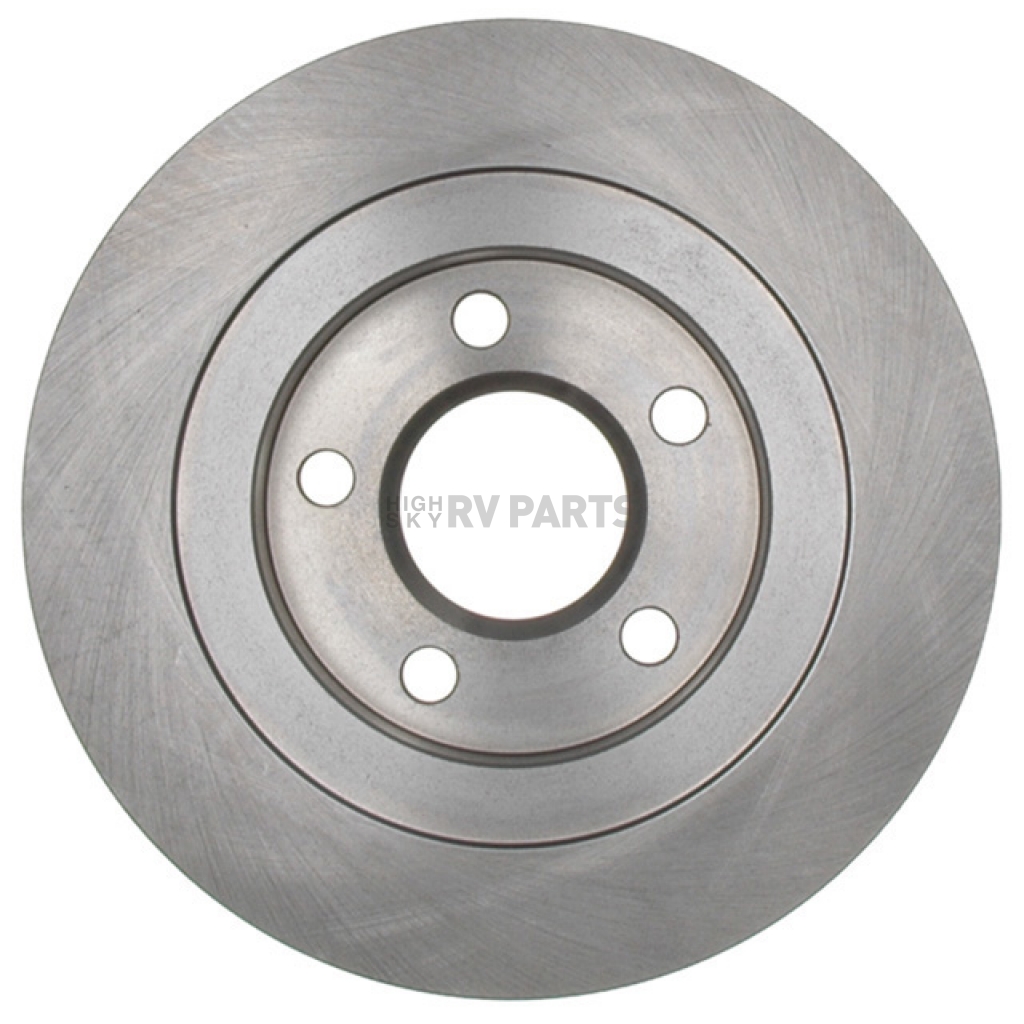

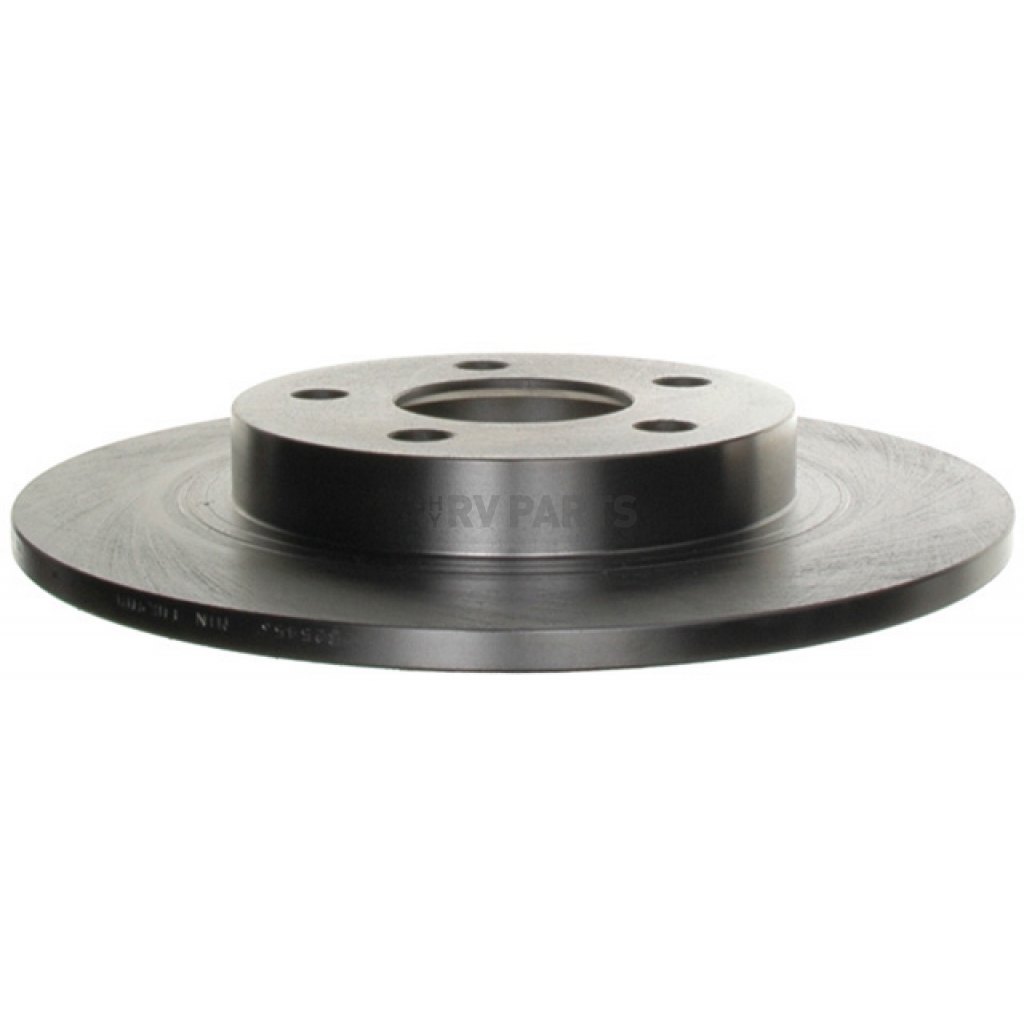

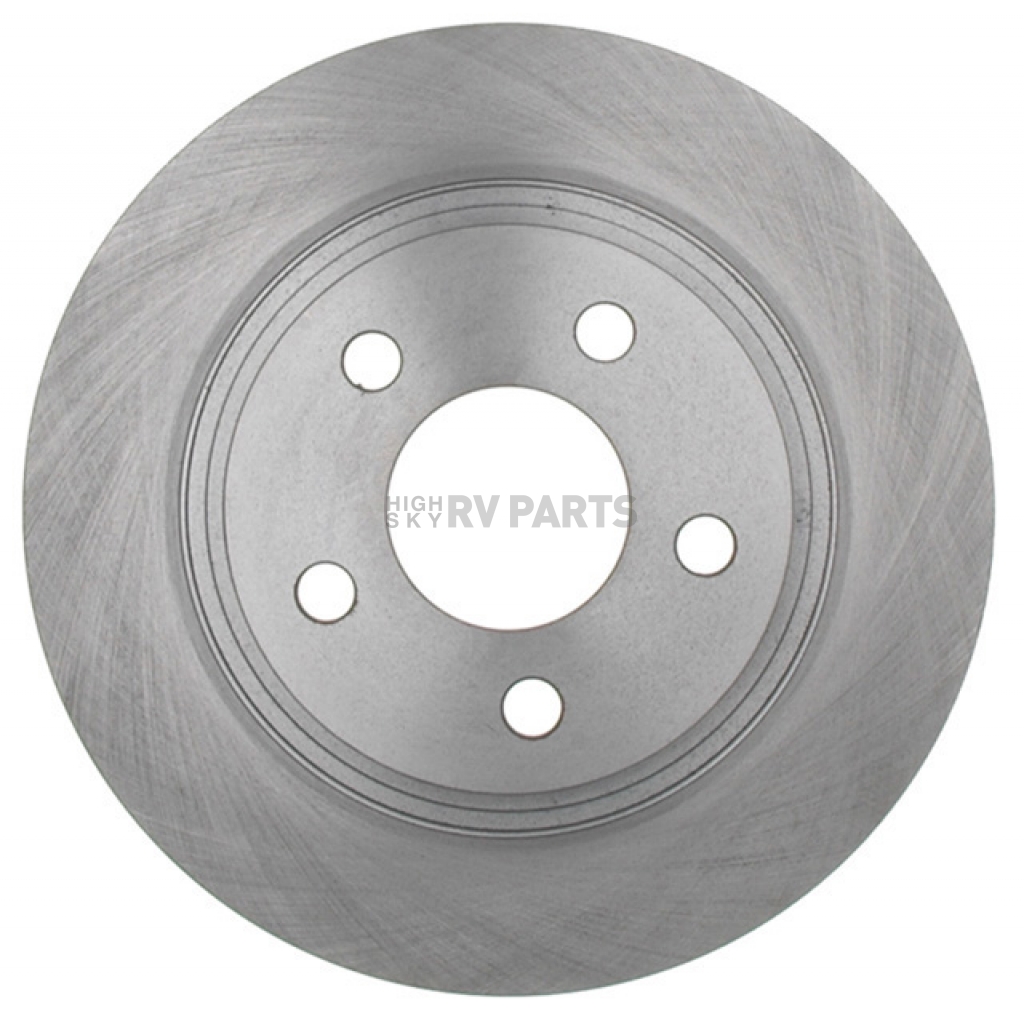

Raybestos Brakes Brake Rotor - 56698R

Brand: Raybestos Brakes
0 reviews
  • Have a product question? Ask us
  • Part Number: 56698R
  • Part Location: U.S.
  • Availability: 5 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 07
Retail: $54.59
Price: $51.99
You Save: $2.60
Design
1-Piece
Disc To Hat Bolt Circle (IN)
Not Applicable
Disc To Hat Bolt Circle (MM)
Not Applicable
Disc Type
Solid
Finish
Natural
Height (IN)
1.52 Inch
Height (MM)
OEM
Hub Bore Size
No Hub
Material
Iron
Nominal Thickness (IN)
0.435 Inch
Nominal Thickness (MM)
11.04 Millimeter
Share this page

Raybestos Brakes Brake Rotor

Brake Rotor; R-Line; OE Replacement; Single

MPN: 56698R

Raybestos Professional Grade rotors offer full coverage with exclusive access to the Aftermarket’s latest products.
Recommended Use: Import And Domestic Cars, Light Trucks And SUVs
Design: 1-Piece
Disc Type: Solid
Finish: Natural
Material: Iron
Outer Diameter (IN): 11.72 Inch
Outer Diameter (MM): 297.688 Millimeter
Height (IN): 1.52 Inch
Height (MM): OEM
Nominal Thickness (IN): 0.435 Inch
Nominal Thickness (MM): 11.04 Millimeter
Hub Bore Size: No Hub
Wheel Bolt Circle (IN): OEM
Wheel Bolt Circle (MM): 5 X 118 Millimeter
Disc To Hat Bolt Circle (IN): Not Applicable
Disc To Hat Bolt Circle (MM): Not Applicable
Quantity: Single

Features

  • Developed From Oe Samples, Validated To Meet Ts16949 Quality System Standards
  • Meet Sae Standard For Tensile Strength - Oe-Matched, G3000 Qualified Material For Structural Integrity And Maximum Service Life
  • Industry Leading Coverage - 99.8 Percent Coverage For Import And Domestic Cars, Light Trucks And Suvs
  • Tight Lateral Run Out - 0.004 Inch Or Less For Less Pedal Pulsation And Brake Noise, Extended Pad Life
  • Minimal Thickness Variation - Thickness Variation Less Than 0.0005 Inch, Less Pedal Pulsation And Brake Noise
  • Mill Balanced Edges - 100 Percent Validation Ensures Proper Balance, Minimizes Vibration
  • Non-Directional Ground Finish - Ready To Install Right Out Of The Box
  • Limited Supplier Warranty
Specifications of Raybestos Brakes Brake Rotor - 56698R
Design 1-Piece
Disc To Hat Bolt Circle (IN) Not Applicable
Disc To Hat Bolt Circle (MM) Not Applicable
Disc Type Solid
Finish Natural
Height (IN) 1.52 Inch
Height (MM) OEM
Hub Bore Size No Hub
Material Iron
Nominal Thickness (IN) 0.435 Inch
Nominal Thickness (MM) 11.04 Millimeter
Outer Diameter (IN) 11.72 Inch
Outer Diameter (MM) 297.688 Millimeter
Quantity Single
Recommended Use Import And Domestic Cars, Light Trucks And SUVs
Wheel Bolt Circle (IN) OEM
Wheel Bolt Circle (MM) 5 X 118 Millimeter

2003 Buick Park Avenue
2004 Buick Park Avenue
2005 Buick Park Avenue

2000 Cadillac DeVille
2001 Cadillac DeVille
2002 Cadillac DeVille
2003 Cadillac DeVille
2004 Cadillac DeVille
2005 Cadillac DeVille

1998 Cadillac Seville
1999 Cadillac Seville
2000 Cadillac Seville
2001 Cadillac Seville
2002 Cadillac Seville
2003 Cadillac Seville
2004 Cadillac Seville

2004 Pontiac Bonneville
2005 Pontiac Bonneville
