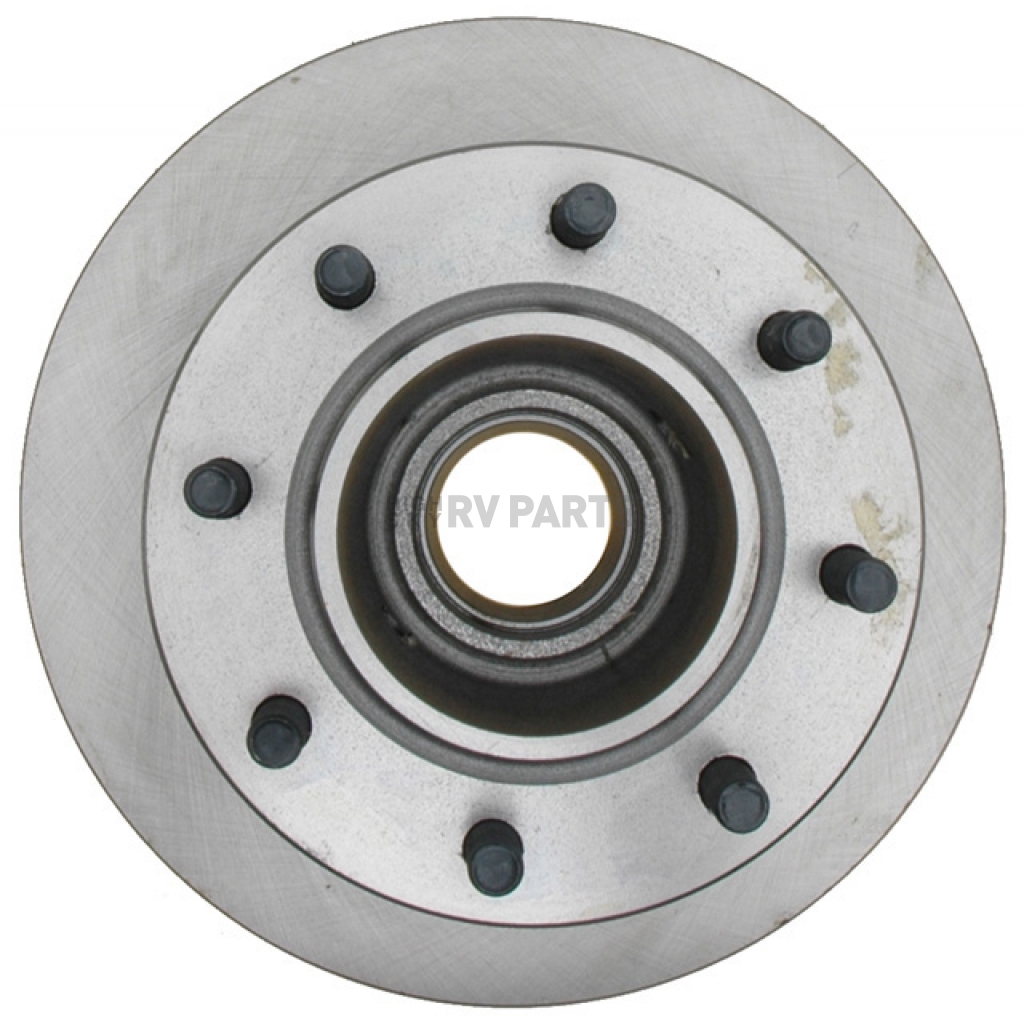

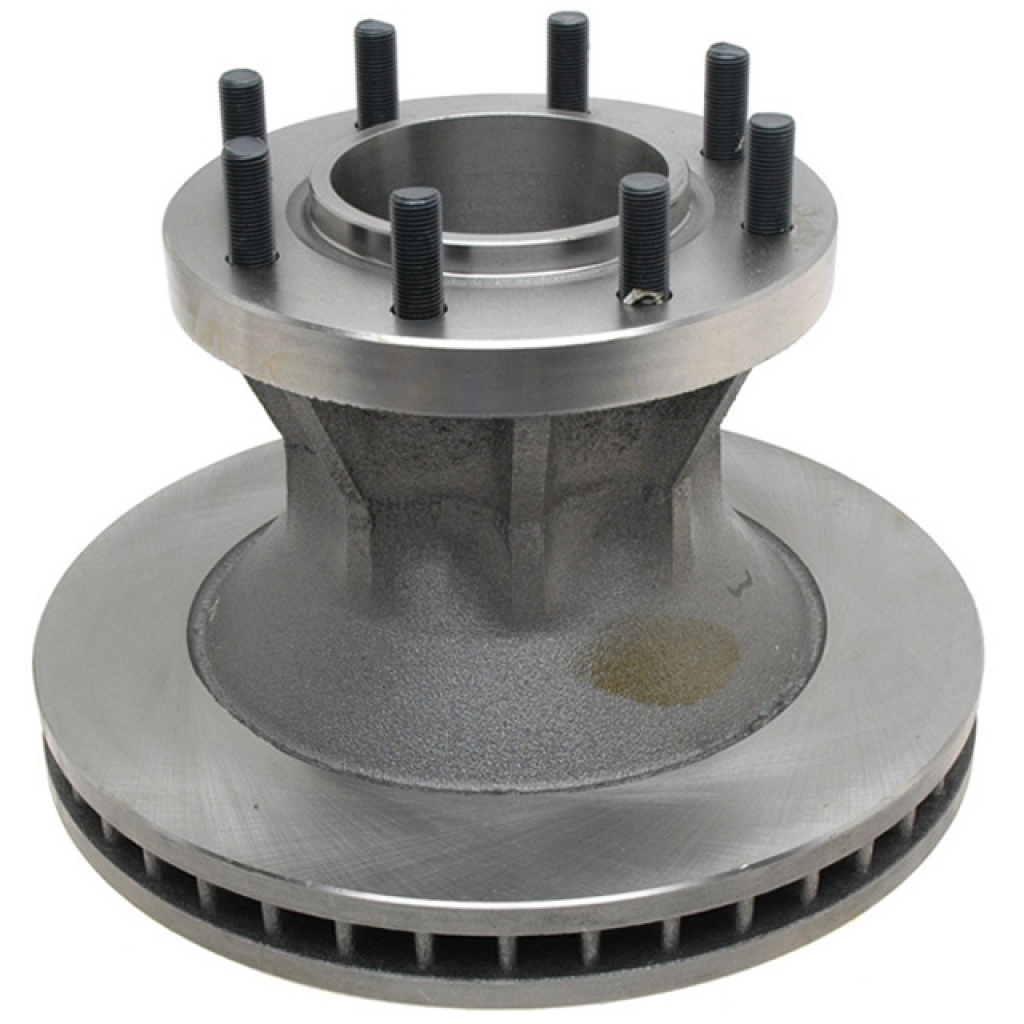

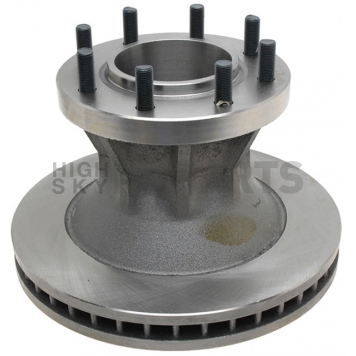

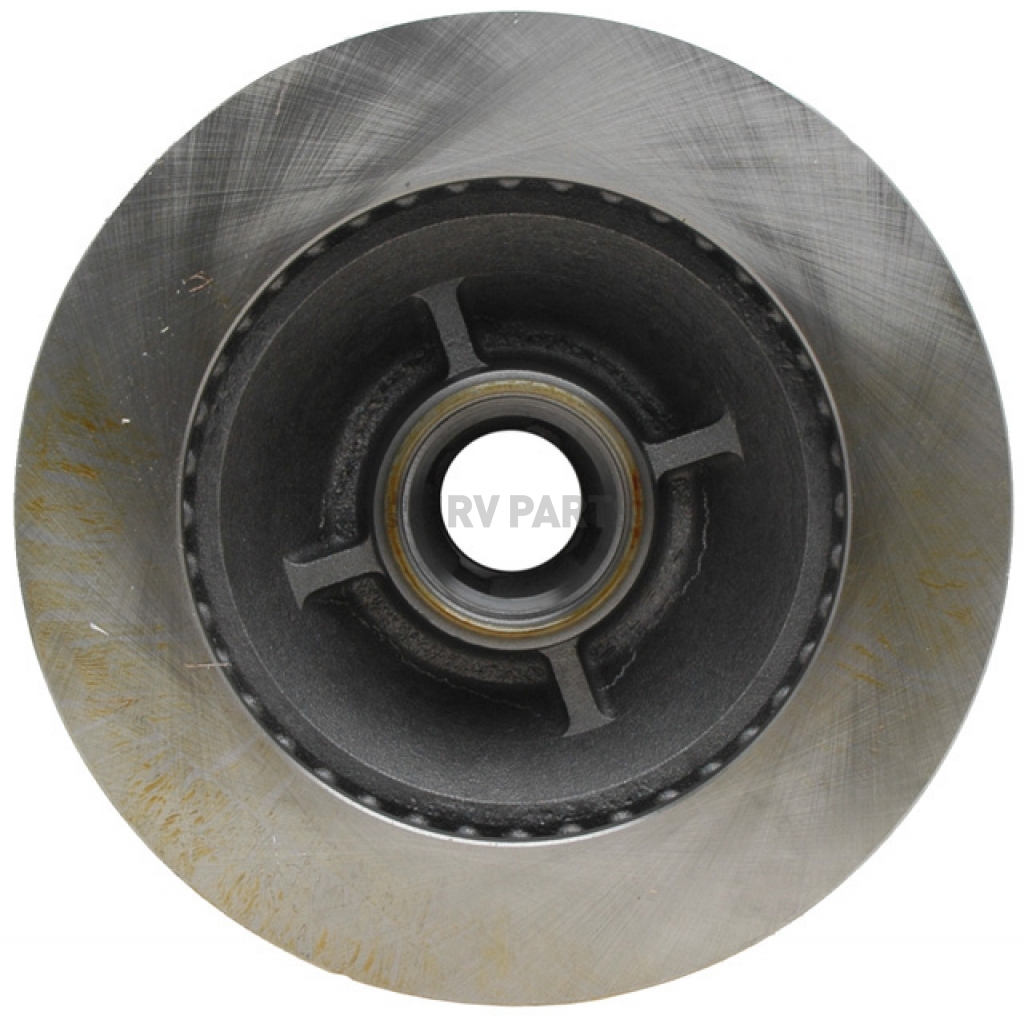

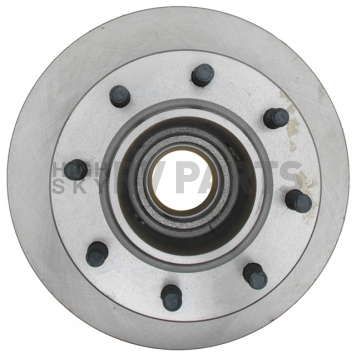

Raybestos Brakes Brake Rotor - 5022R

Brand: Raybestos Brakes
0 reviews
  • Have a product question? Ask us
  • Part Number: 5022R
  • Part Location: U.S.
  • Availability: 2 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 08
Retail: $277.19
Price: $263.99
You Save: $13.20
Design
2-Piece
Disc To Hat Bolt Circle (IN)
No Hat
Disc To Hat Bolt Circle (MM)
No Hat
Disc Type
Plain Face
Finish
Natural
Height (IN)
7.68 Inch
Height (MM)
OEM
Hub Bore Size
OEM
Material
Iron
Nominal Thickness (IN)
1.535 Inch
Nominal Thickness (MM)
38.98 Millimeter
Share this page

Raybestos Brakes Brake Rotor

Brake Rotor; R-Line; OE Replacement; Single

MPN: 5022R

Being first to market creates a competitive advantage. Raybestos Professional Grade rotors offer full coverage with exclusive access to the Aftermarket’s latest products.
Recommended Use: Import And Domestic Cars, Light Trucks And SUVs
Design: 2-Piece
Disc Type: Plain Face
Finish: Natural
Material: Iron
Outer Diameter (IN): 12-1/2 Inch
Outer Diameter (MM): 317.5 Millimeter
Height (IN): 7.68 Inch
Height (MM): OEM
Nominal Thickness (IN): 1.535 Inch
Nominal Thickness (MM): 38.98 Millimeter
Hub Bore Size: OEM
Wheel Bolt Circle (IN): 8 X 6.5 Inch
Wheel Bolt Circle (MM): OEM
Disc To Hat Bolt Circle (IN): No Hat
Disc To Hat Bolt Circle (MM): No Hat
Quantity: Single

Features

  • Original Equipment Designs - Developed From Oe Samples, Validated To Meet Ts16949 Quality System Standards
  • Meet Sae Standard For Tensile Strength - Oe-Matched, G3000 Qualified Material For Structural Integrity And Maximum Service Life
  • Industry Leading Coverage - 99.8 Percent Coverage For Import And Domestic Cars, Light Trucks And Suvs
  • Tight Lateral Runout - 0.004 Inch Or Less For Less Pedal Pulsation And Brake Noise, Extended Pad Life
  • Minimal Thickness Variation - Thickness Variation Less Than 0.0005 Inch, Less Pedal Pulsation And Brake Noise
  • Mill Balanced Edges - 100 Percent Validation Ensures Proper Balance, Minimizes Vibration
  • Non-Directional Ground Finish - Ready To Install Right Out Of The Box
  • Limited Supplier Warranty
Specifications of Raybestos Brakes Brake Rotor - 5022R
Design 2-Piece
Disc To Hat Bolt Circle (IN) No Hat
Disc To Hat Bolt Circle (MM) No Hat
Disc Type Plain Face
Finish Natural
Height (IN) 7.68 Inch
Height (MM) OEM
Hub Bore Size OEM
Material Iron
Nominal Thickness (IN) 1.535 Inch
Nominal Thickness (MM) 38.98 Millimeter
Outer Diameter (IN) 12-1/2 Inch
Outer Diameter (MM) 317.5 Millimeter
Quantity Single
Recommended Use Import And Domestic Cars, Light Trucks And SUVs
Wheel Bolt Circle (IN) 8 X 6.5 Inch
Wheel Bolt Circle (MM) OEM

1975 Chevrolet C30
1976 Chevrolet C30
1977 Chevrolet C30
1978 Chevrolet C30
1979 Chevrolet C30
1980 Chevrolet C30
1981 Chevrolet C30
1982 Chevrolet C30
1983 Chevrolet C30
1984 Chevrolet C30
1985 Chevrolet C30
1986 Chevrolet C30

1974 Chevrolet C30 Pickup

1975 Chevrolet G30
1976 Chevrolet G30
1977 Chevrolet G30
1978 Chevrolet G30
1979 Chevrolet G30
1980 Chevrolet G30
1981 Chevrolet G30
1982 Chevrolet G30
1983 Chevrolet G30
1984 Chevrolet G30
1985 Chevrolet G30
1986 Chevrolet G30
1987 Chevrolet G30
1988 Chevrolet G30
1989 Chevrolet G30
1990 Chevrolet G30
1991 Chevrolet G30
1992 Chevrolet G30

1974 Chevrolet G30 Van

1975 Chevrolet P30
1976 Chevrolet P30
1977 Chevrolet P30
1978 Chevrolet P30
1979 Chevrolet P30
1980 Chevrolet P30
1981 Chevrolet P30
1982 Chevrolet P30
1983 Chevrolet P30
1984 Chevrolet P30
1985 Chevrolet P30
1986 Chevrolet P30
1987 Chevrolet P30
1988 Chevrolet P30
1989 Chevrolet P30
1990 Chevrolet P30
1991 Chevrolet P30
1992 Chevrolet P30
1993 Chevrolet P30
1994 Chevrolet P30
1995 Chevrolet P30
1996 Chevrolet P30

1974 Chevrolet P30 Van

1987 Chevrolet R30
1988 Chevrolet R30

1989 Chevrolet R3500
1990 Chevrolet R3500
1991 Chevrolet R3500

1975 GMC C35
1976 GMC C35
1977 GMC C35
1978 GMC C35

1974 GMC C35/C3500 Pickup

1979 GMC C3500
1980 GMC C3500
1981 GMC C3500
1982 GMC C3500
1983 GMC C3500
1984 GMC C3500
1985 GMC C3500
1986 GMC C3500

1975 GMC G35
1976 GMC G35
1977 GMC G35
1978 GMC G35

1974 GMC G35/G3500 Van

1979 GMC G3500
1980 GMC G3500
1981 GMC G3500
1982 GMC G3500
1983 GMC G3500
1984 GMC G3500
1985 GMC G3500
1986 GMC G3500
1987 GMC G3500
1988 GMC G3500
1989 GMC G3500
1990 GMC G3500
1991 GMC G3500
1992 GMC G3500

1974 GMC P35/P3500 Van

1987 GMC R3500
1988 GMC R3500
1989 GMC R3500
1990 GMC R3500
1991 GMC R3500

2000 Workhorse P30
2001 Workhorse P30
2002 Workhorse P30
2003 Workhorse P30
