Rancho Shock Absorber - RS55804
Adjustable
No
Body Color
White
Compressed Length (IN)
17-1/8 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
21-5/8 Inch
Includes Boot
Yes
Includes Dust Shield
No
Includes Hardware
Yes
Internal Design
Twin Tube
Lower Mounting Style
Eyelet
Quantity
Single
Share this page

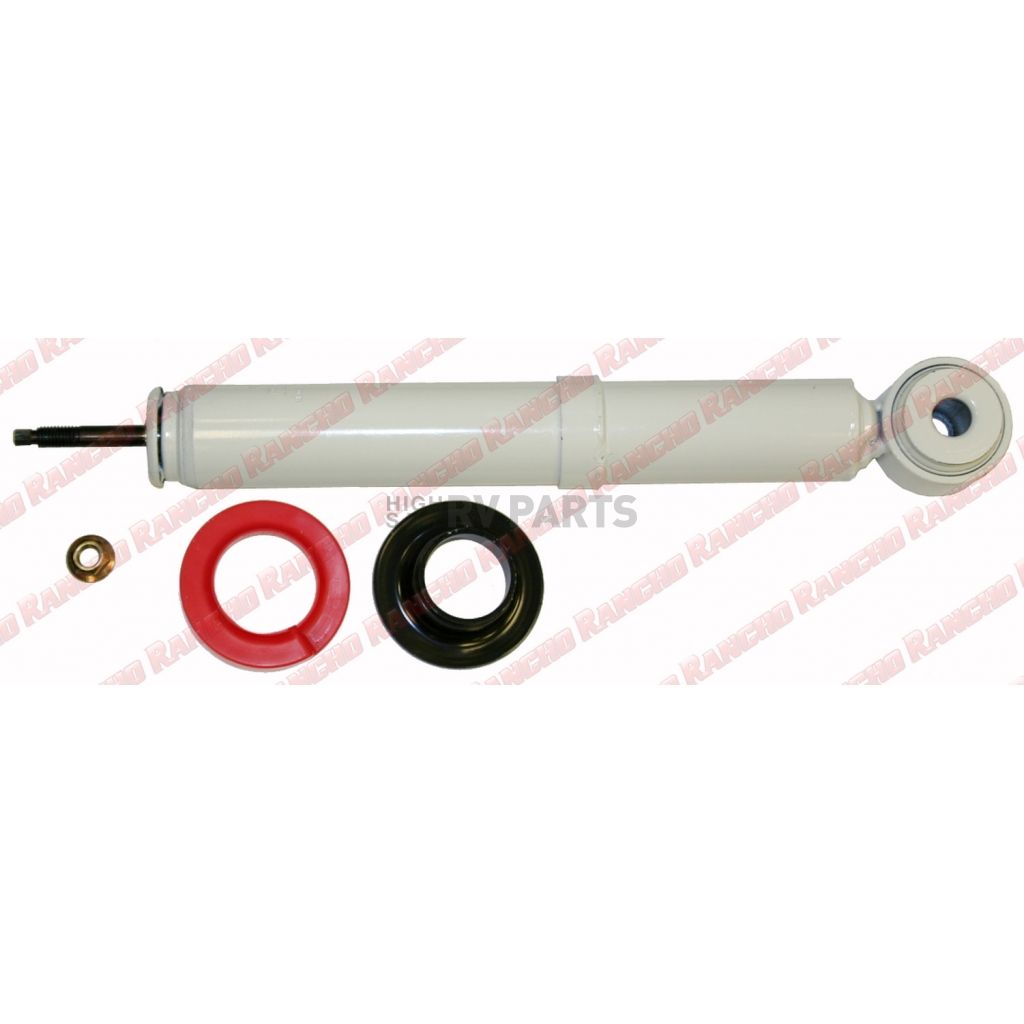

Rancho Shock Absorber
Shock Absorber; RS5000X; Nitrogen Gas Charged; Limited Lifetime Warranty; Non Adjustable Valving; With Shock Boots; White Shock Body With Red Shock Boots; Single
MPN: RS55804
Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Twin Tube
Adjustable: No
Extended Length (IN): 21-5/8 Inch
Compressed Length (IN): 17-1/8 Inch
Upper Mounting Style: Stud
Lower Mounting Style: Eyelet
Body Color: White
Quantity: Single
Rod Diameter (IN): 5/8 Inch
Valving Type: Application Specific Valving
Rod Finish: Nitrocarburized
Rod Material: Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: Yes
Includes Boot: Yes
Estimated Install Time (Hours): 0.5
Features
- Progressive Engagement Valving Will Further Engage To Maintain Control And Stability
- Tuned Compression Control Valve: The Precision-Tuned Shim Stacked Valving Allows The Motion Of The Shock To Work In Harmony With The Vehicle During On- And Off-road Driving
- Enlarged 2-1/4 Inch Twin Tube Body: A Larger Shock Body Allows For Increased Fluid Capacity To Operate Cooler And To Increase Vehicle Control And Performance At Varying Speeds And Terrains
- Gas Pressurization Of Shock: Has A Variety Of Advantages Including Minimizing Air-To-Oil Mixture That Can Cause Foaming And Shock Fade; Gas Pressurization Also Provides A Mild Boost Of Spring Rate To
- 16 Millimeter Nitro-Carburized Rod: From Increased Scuffing Resistance To Additional Protection Against Corrosion, The Process Enhances The Shock’s Overall Durability
- Full-Displaced 35 Millimeter Bore: Helps To Provide Heightened Control Of Shock Motion Due Largely To The Expanded Piston Area
- 1-3/8 Inch Diameter Sintered Iron Piston: Brings Increased Structural Conformity To Each Piston
- Rebound Bumper: Greatly Reduces Wear And Tear During On And Off Road Driving
- Glass-Filled, Fluon Banded Piston: Provides Smoother Piston Travel And Greater Responsiveness To Changing Road Conditions
- Limited Lifetime Warranty
| Specifications of Rancho Shock Absorber - RS55804 | |
| Adjustable | No |
| Body Color | White |
| Compressed Length (IN) | 17-1/8 Inch |
| Estimated Install Time (Hours) | 0.5 |
| Extended Length (IN) | 21-5/8 Inch |
| Includes Boot | Yes |
| Includes Dust Shield | No |
| Includes Hardware | Yes |
| Internal Design | Twin Tube |
| Lower Mounting Style | Eyelet |
| Quantity | Single |
| Rod Diameter (IN) | 5/8 Inch |
| Rod Finish | Nitrocarburized |
| Rod Material | Steel |
| Type | Nitrogen Gas Charged |
| Upper Mounting Style | Stud |
| Valving Type | Application Specific Valving |
| With Coil Spring | No |
| With Reservoir | No |
2009 Ford F-150
2010 Ford F-150
2011 Ford F-150
2012 Ford F-150
2013 Ford F-150
2010 Ford F-150
2011 Ford F-150
2012 Ford F-150
2013 Ford F-150
