Rancho Shock Absorber - RS55239
Adjustable
No
Body Color
White
Body Material
Steel
Compressed Length (IN)
14.438 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
23-7/8 Inch
Includes Boot
Yes
Includes Dust Shield
No
Includes Hardware
Yes
Internal Design
Twin Tube
Lower Mounting Style
Cross Pin
Share this page

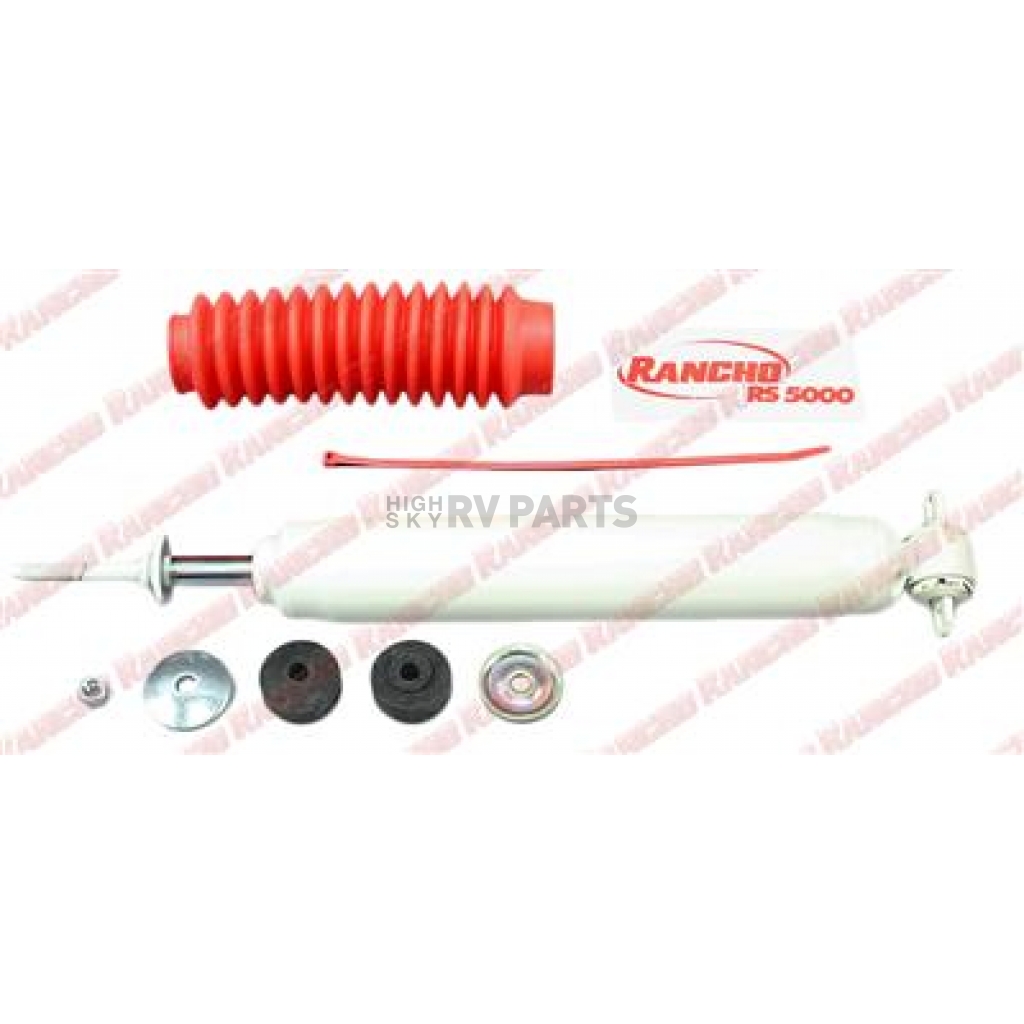

Rancho Shock Absorber
Shock Absorber; RS5000X; Nitrogen Gas Charged; Limited Lifetime Warranty; Non Adjustable Valving; With Shock Boots; White Shock Body With Red Shock Boots; Single
MPN: RS55239
The core of this new and innovative shock from Rancho® is the unique and patented rebound valving system and an advanced compression phase of the shock absorber. This proprietary process developed by the ride engineers at Rancho will elevate the overall handling and performance of your vehicle on and off-road.
Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Twin Tube
Adjustable: No
Extended Length (IN): 23-7/8 Inch
Compressed Length (IN): 14.438 Inch
Upper Mounting Style: Stud
Lower Mounting Style: Cross Pin
Body Color: White
Quantity: Single
Rod Diameter (IN): 5/8 Inch
Valving Type: Application Specific Valving
Rod Finish: Nitrocarburized
Rod Material: Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: Yes
Includes Boot: Yes
Estimated Install Time (Hours): 0.5
Features
- Progressive Engagement Valving Will Further Engage To Maintain Control And Stability
- Tuned Compression Control Valve: The Precision-Tuned Shim Stacked Valving Allows The Motion Of The Shock To Work In Harmony With The Vehicle During On- And Off-road Driving
- Enlarged 2-1/4 Inch Twin Tube Body: A Larger Shock Body Allows For Increased Fluid Capacity To Operate Cooler And To Increase Vehicle Control And Performance At Varying Speeds And Terrains
- Gas Pressurization Of Shock: Has A Variety Of Advantages Including Minimizing Air-To-Oil Mixture That Can Cause Foaming And Shock Fade; Gas Pressurization Also Provides A Mild Boost Of Spring Rate To
- 16 Millimeter Nitro-Carburized Rod: From Increased Scuffing Resistance To Additional Protection Against Corrosion, The Process Enhances The Shock’s Overall Durability
- Full-Displaced 35 Millimeter Bore: Helps To Provide Heightened Control Of Shock Motion Due Largely To The Expanded Piston Area
- 1-3/8 Inch Diameter Sintered Iron Piston: Brings Increased Structural Conformity To Each Piston
- Rebound Bumper: Greatly Reduces Wear And Tear During On And Off Road Driving
- Glass-Filled, Fluon Banded Piston: Provides Smoother Piston Travel And Greater Responsiveness To Changing Road Conditions
- Limited Lifetime Warranty
| Specifications of Rancho Shock Absorber - RS55239 | |
| Adjustable | No |
| Body Color | White |
| Body Material | Steel |
| Compressed Length (IN) | 14.438 Inch |
| Estimated Install Time (Hours) | 0.5 |
| Extended Length (IN) | 23-7/8 Inch |
| Includes Boot | Yes |
| Includes Dust Shield | No |
| Includes Hardware | Yes |
| Internal Design | Twin Tube |
| Lower Mounting Style | Cross Pin |
| Quantity | Single |
| Rod Diameter (IN) | 5/8 Inch |
| Rod Finish | Nitrocarburized |
| Rod Material | Steel |
| Type | Nitrogen Gas Charged |
| Upper Mounting Style | Stud |
| Valving Type | Application Specific Valving |
| With Coil Spring | No |
| With Reservoir | No |
1984 Jeep Cherokee
1985 Jeep Cherokee
1986 Jeep Cherokee
1987 Jeep Cherokee
1988 Jeep Cherokee
1989 Jeep Cherokee
1990 Jeep Cherokee
1991 Jeep Cherokee
1992 Jeep Cherokee
1993 Jeep Cherokee
1994 Jeep Cherokee
1995 Jeep Cherokee
1996 Jeep Cherokee
1997 Jeep Cherokee
1985 Jeep Cherokee
1986 Jeep Cherokee
1987 Jeep Cherokee
1988 Jeep Cherokee
1989 Jeep Cherokee
1990 Jeep Cherokee
1991 Jeep Cherokee
1992 Jeep Cherokee
1993 Jeep Cherokee
1994 Jeep Cherokee
1995 Jeep Cherokee
1996 Jeep Cherokee
1997 Jeep Cherokee
1986 Jeep Comanche
1987 Jeep Comanche
1988 Jeep Comanche
1989 Jeep Comanche
1990 Jeep Comanche
1991 Jeep Comanche
1992 Jeep Comanche
1987 Jeep Comanche
1988 Jeep Comanche
1989 Jeep Comanche
1990 Jeep Comanche
1991 Jeep Comanche
1992 Jeep Comanche
1993 Jeep Grand Cherokee
1994 Jeep Grand Cherokee
1995 Jeep Grand Cherokee
1996 Jeep Grand Cherokee
1997 Jeep Grand Cherokee
1998 Jeep Grand Cherokee
1999 Jeep Grand Cherokee
2000 Jeep Grand Cherokee
2001 Jeep Grand Cherokee
1994 Jeep Grand Cherokee
1995 Jeep Grand Cherokee
1996 Jeep Grand Cherokee
1997 Jeep Grand Cherokee
1998 Jeep Grand Cherokee
1999 Jeep Grand Cherokee
2000 Jeep Grand Cherokee
2001 Jeep Grand Cherokee
1997 Jeep Wrangler TJ
1998 Jeep Wrangler TJ
1999 Jeep Wrangler TJ
2000 Jeep Wrangler TJ
2001 Jeep Wrangler TJ
2002 Jeep Wrangler TJ
2003 Jeep Wrangler TJ
2004 Jeep Wrangler TJ
2005 Jeep Wrangler TJ
2006 Jeep Wrangler TJ
1998 Jeep Wrangler TJ
1999 Jeep Wrangler TJ
2000 Jeep Wrangler TJ
2001 Jeep Wrangler TJ
2002 Jeep Wrangler TJ
2003 Jeep Wrangler TJ
2004 Jeep Wrangler TJ
2005 Jeep Wrangler TJ
2006 Jeep Wrangler TJ
