Rancho Shock Absorber - RS55165
Adjustable
No
Body Color
White
Body Material
Steel
Compressed Length (IN)
14 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
22.313 Inch
Includes Boot
Yes
Includes Dust Shield
No
Includes Hardware
No
Internal Design
Twin Tube
Lower Mounting Style
Eyelet
Share this page

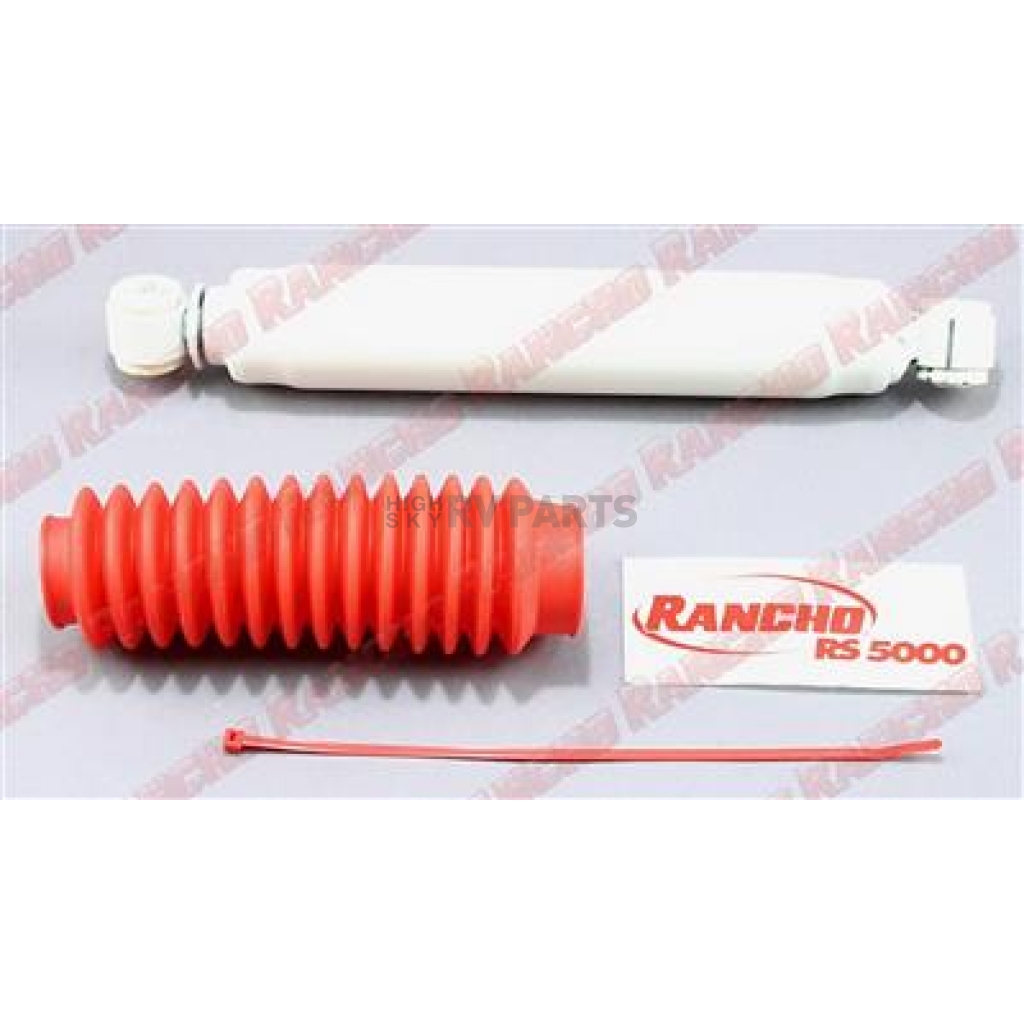

Rancho Shock Absorber
Shock Absorber; RS5000X; Nitrogen Gas Charged; Limited Lifetime Warranty; Non Adjustable Valving; With Shock Boots; White Shock Body With Red Shock Boots; Single
MPN: RS55165
The core of this new and innovative shock from Rancho® is the unique and patented rebound valving system and an advanced compression phase of the shock absorber. This proprietary process developed by the ride engineers at Rancho will elevate the overall handling and performance of your vehicle on and off-road.
Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Twin Tube
Adjustable: No
Extended Length (IN): 22.313 Inch
Compressed Length (IN): 14 Inch
Upper Mounting Style: Eyelet
Lower Mounting Style: Eyelet
Body Color: White
Quantity: Single
Rod Diameter (IN): 5/8 Inch
Valving Type: Application Specific Valving
Rod Finish: Nitrocarburized
Rod Material: Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: Yes
Estimated Install Time (Hours): 0.5
Features
- Progressive Engagement Valving Will Further Engage To Maintain Control And Stability
- Tuned Compression Control Valve: The Precision-Tuned Shim Stacked Valving Allows The Motion Of The Shock To Work In Harmony With The Vehicle During On- And Off-road Driving
- Enlarged 2-1/4 Inch Twin Tube Body: A Larger Shock Body Allows For Increased Fluid Capacity To Operate Cooler And To Increase Vehicle Control And Performance At Varying Speeds And Terrains
- Gas Pressurization Of Shock: Has A Variety Of Advantages Including Minimizing Air-To-Oil Mixture That Can Cause Foaming And Shock Fade; Gas Pressurization Also Provides A Mild Boost Of Spring Rate To
- 16 Millimeter Nitro-Carburized Rod: From Increased Scuffing Resistance To Additional Protection Against Corrosion, The Process Enhances The Shock’s Overall Durability
- Full-Displaced 35 Millimeter Bore: Helps To Provide Heightened Control Of Shock Motion Due Largely To The Expanded Piston Area
- 1-3/8 Inch Diameter Sintered Iron Piston: Brings Increased Structural Conformity To Each Piston
- Rebound Bumper: Greatly Reduces Wear And Tear During On And Off Road Driving
- Glass-Filled, Fluon Banded Piston: Provides Smoother Piston Travel And Greater Responsiveness To Changing Road Conditions
- Limited Lifetime Warranty
| Specifications of Rancho Shock Absorber - RS55165 | |
| Adjustable | No |
| Body Color | White |
| Body Material | Steel |
| Compressed Length (IN) | 14 Inch |
| Estimated Install Time (Hours) | 0.5 |
| Extended Length (IN) | 22.313 Inch |
| Includes Boot | Yes |
| Includes Dust Shield | No |
| Includes Hardware | No |
| Internal Design | Twin Tube |
| Lower Mounting Style | Eyelet |
| Quantity | Single |
| Rod Diameter (IN) | 5/8 Inch |
| Rod Finish | Nitrocarburized |
| Rod Material | Steel |
| Type | Nitrogen Gas Charged |
| Upper Mounting Style | Eyelet |
| Valving Type | Application Specific Valving |
| With Coil Spring | No |
| With Reservoir | No |
1987 Ford F-250
1988 Ford F-250
1989 Ford F-250
1990 Ford F-250
1991 Ford F-250
1992 Ford F-250
1993 Ford F-250
1994 Ford F-250
1995 Ford F-250
1996 Ford F-250
1988 Ford F-250
1989 Ford F-250
1990 Ford F-250
1991 Ford F-250
1992 Ford F-250
1993 Ford F-250
1994 Ford F-250
1995 Ford F-250
1996 Ford F-250
1998 Ford F-250
1999 Ford F-250
1999 Ford F-250
1987 Ford F-350
1988 Ford F-350
1989 Ford F-350
1990 Ford F-350
1991 Ford F-350
1992 Ford F-350
1993 Ford F-350
1994 Ford F-350
1995 Ford F-350
1996 Ford F-350
1997 Ford F-350
1988 Ford F-350
1989 Ford F-350
1990 Ford F-350
1991 Ford F-350
1992 Ford F-350
1993 Ford F-350
1994 Ford F-350
1995 Ford F-350
1996 Ford F-350
1997 Ford F-350
