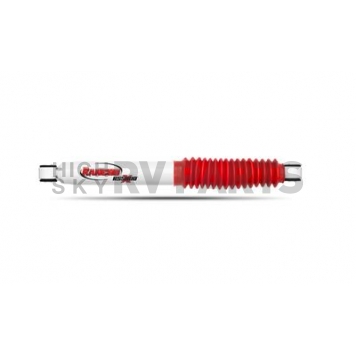

Rancho Shock Absorber - RS55100
Adjustable
No
Body Color
White
Body Material
Steel
Compressed Length (IN)
15.69 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
25.21 Inch
Includes Boot
Yes
Includes Dust Shield
Yes
Includes Hardware
No
Internal Design
Twin Tube
Lower Mounting Style
Eyelet
Share this page
Rancho Shock Absorber
Shock Absorber; RS5000X; Nitrogen Gas Charged; Limited Lifetime Warranty; Non Adjustable Valving; With Shock Boots; White Shock Body With Red Shock Boots; Single
MPN: RS55100
Dynamic rebound spring (DRS) technology, provides additional control, reduce body roll and prevent rod overextension inside the shock. Cross tuned technology. The core of this new and innovative shock from Rancho ® is the unique and patented rebound valving system and an advanced compression phase of the shock absorber. This proprietary process developed by the ride engineers at Rancho will elevate the overall handling and performance of your vehicle on and off-road.
Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Twin Tube
Adjustable: No
Extended Length (IN): 25.21 Inch
Compressed Length (IN): 15.69 Inch
Upper Mounting Style: Eyelet
Lower Mounting Style: Eyelet
Body Color: White
Quantity: Single
Rod Diameter (IN): 0.63 Inch
Valving Type: Non Adjustable Valving
Rod Finish: Nitrocarburized
Rod Material: Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: Yes
Includes Hardware: No
Includes Boot: Yes
Estimated Install Time (Hours): 0.5
Features
- Progressive Engagement Valving: At Lower Speeds Or In The Earlier Stages Of The Shock’s Travel, An Eccentric Disc In The Valve Shim Stacks Will Engage The Valving At Lower Frequencies
- Dynamic Rebound Spring (DRS) Technology: New DRS Technology Is A Unique Internal System
- Tuned Compression Control Valve: Precision Tuned Shim Stacked Valving Allows The Motion Of The Shock To Work In Harmony With The Vehicle During On And Off Road Driving
- Enlarged Twin Tube Body: A Larger Shock Body Allows For Increased Fluid Capacity To Operate Cooler And To Increase Vehicle Control And Performance At Varying Speeds And Terrains
- Gas Pressurization Of Shock: Each Shock Absorbed Is Gas Pressurized To 150 PSI; Gas Pressurization Also Provides A Mild Boost Of Spring Rate To The Vehicle
- 16 Millimeter Nitro Carburized Rod: From Increased Scuffing Resistance To Additional Protection Against Corrosion, The Process Enhances The Shock’s Overall Durability
- Rebound Bumper: Polyurethane Bumper That Helps Control The Rebound Motion During Harsh Driving Conditions
- Black, Natural Rubber Bushings: Provides Additional Ride Harshness Absorption And Reduce Transmitted Road Noise And Suspension Vibration
- Low Friction, Self Lubricating Seal: This Seals Provides An Extra Layer Of Defense Against Dirt And Debris
- Limited Lifetime Warranty
Specifications of Rancho Shock Absorber - RS55100 | |
Adjustable | No |
Body Color | White |
Body Material | Steel |
Compressed Length (IN) | 15.69 Inch |
Estimated Install Time (Hours) | 0.5 |
Extended Length (IN) | 25.21 Inch |
Includes Boot | Yes |
Includes Dust Shield | Yes |
Includes Hardware | No |
Internal Design | Twin Tube |
Lower Mounting Style | Eyelet |
Quantity | Single |
Rod Diameter (IN) | 0.63 Inch |
Rod Finish | Nitrocarburized |
Rod Material | Steel |
Type | Nitrogen Gas Charged |
Upper Mounting Style | Eyelet |
Valving Type | Non Adjustable Valving |
With Coil Spring | No |
With Reservoir | No |
2020-2020 Chevrolet Silverado 1500
2020 Chevrolet Silverado 1500
2019-2019 Chevrolet Silverado 1500- New Model
2019 Chevrolet Silverado 1500- New Model
2020 GMC Sierra 1500
2019-2019 GMC Sierra 1500- New Model
2019 GMC Sierra 1500- New Model
