Rancho Shock Absorber - RS55067
Adjustable
No
Body Color
White
Body Material
Steel
Compressed Length (IN)
18.49 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
27.14 Inch
Includes Boot
Yes
Includes Dust Shield
No
Includes Hardware
No
Internal Design
Twin Tube
Lower Mounting Style
Eyelet
Share this page

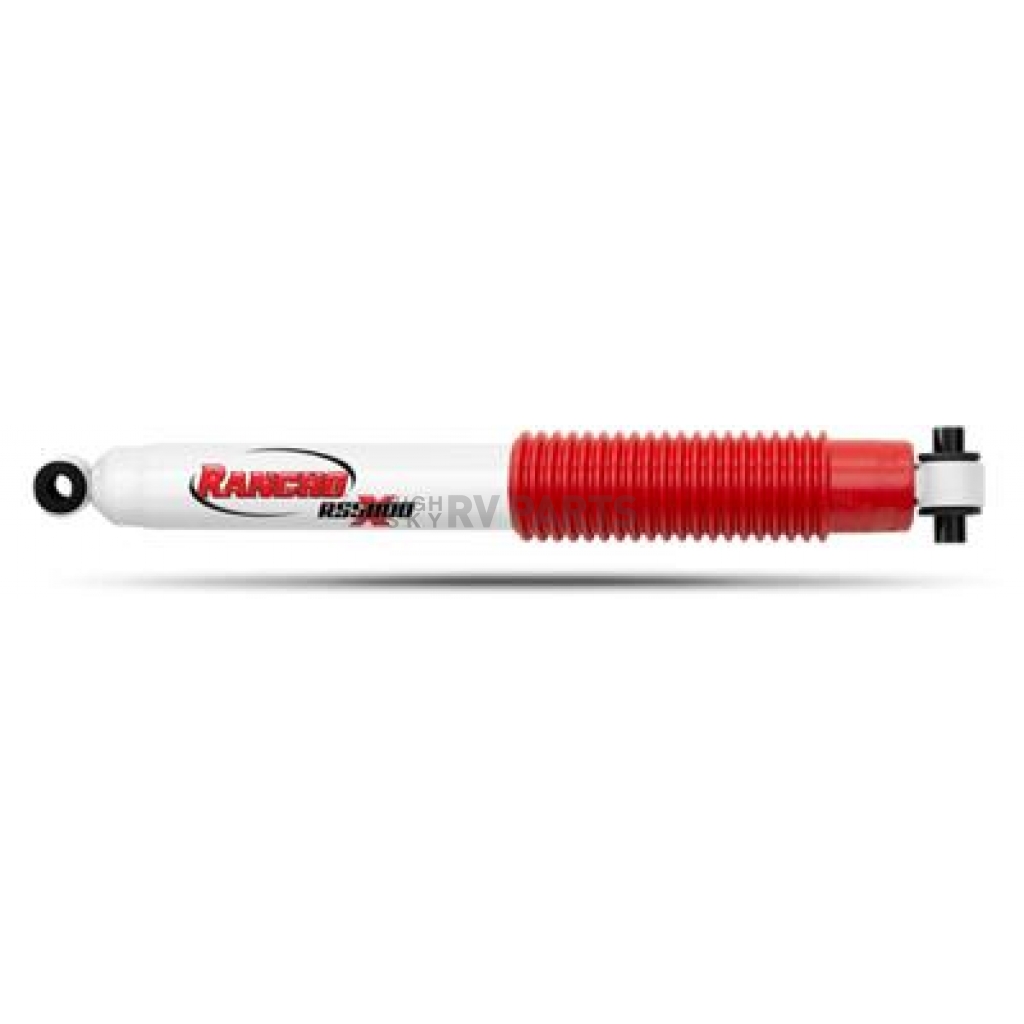

Rancho Shock Absorber
Shock Absorber; RS5000X; Nitrogen Gas Charged; Limited Lifetime Warranty; Extended Travel; Non Adjustable Valving; With Shock Boots; White Shock Body With Red Shock Boots; Single
MPN: RS55067
The core of this new and innovative shock from Rancho® is the unique and patented rebound valving system and an advanced compression phase of the shock absorber. This proprietary process developed by the ride engineers at Rancho will elevate the overall handling and performance of your vehicle on and off-road.
Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Twin Tube
Adjustable: No
Extended Length (IN): 27.14 Inch
Compressed Length (IN): 18.49 Inch
Upper Mounting Style: Eyelet
Lower Mounting Style: Eyelet
Body Color: White
Quantity: Single
Rod Diameter (IN): OEM
Valving Type: Progressive Engagement Valving
Rod Finish: Nitrocarburized
Rod Material: Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: No
Includes Boot: Yes
Estimated Install Time (Hours): 0.5
Features
- Features Patented Progressive Rebound And Compression Discs; 35 Millimeter Bore Helps To Provide Heightened Control Of Shock Motion Due Largely To The Expanded Piston Area
- DRS Technology: Precisely Tuned Metal Spring And Fortified Interior Construction To Provide Additional Control, Reduce Body Roll And Prevent Rod Overextension Inside The Shock
- The Tuned Compression Control Valve Is A Custom-Tuned, Clamped Disc Base Valve That Regulates Fluid Transfer During The Shock’s Compression Cycle To Help Absorb Impacts Without Disc Flutter
- Features A 2-1/4 Inch Diameter Shock Body, A Larger Shock Body Allows For Increased Fluid Capacity To Operate Cooler And To Increase Vehicle Control And Performance At Varying Speeds And Terrains
- The Twin Tube, Gas Pressurized Shock Has A Variety Of Advantages Including Minimizing Air-To-Oil Mixture That Can Cause Foaming And Shock Fade
- Every RS5000X Shock Piston Rod Is Strengthened Through A Nitro-Carburizing Process; The Sintering Process Forms Objects From Powders Using Atomic Diffusion
- Has A High-Strength, Polyurethane Bumper That Helps Control The Rebound Motion During Harsh Driving Conditions
- The Low-Friction, Self-Lubricating Seal Provides An Extra Layer Of Defense Against Dirt And Debris
- Glass-Filled Band Offers Incredibly Smooth Operation Within The Shock Absorber Cylinder Due To Fluon, A Slippery Glass And Plastic Material
- Limited Lifetime Warranty
Specifications of Rancho Shock Absorber - RS55067 | |
Adjustable | No |
Body Color | White |
Body Material | Steel |
Compressed Length (IN) | 18.49 Inch |
Estimated Install Time (Hours) | 0.5 |
Extended Length (IN) | 27.14 Inch |
Includes Boot | Yes |
Includes Dust Shield | No |
Includes Hardware | No |
Internal Design | Twin Tube |
Lower Mounting Style | Eyelet |
Quantity | Single |
Rod Diameter (IN) | OEM |
Rod Finish | Nitrocarburized |
Rod Material | Steel |
Type | Nitrogen Gas Charged |
Upper Mounting Style | Eyelet |
Valving Type | Progressive Engagement Valving |
With Coil Spring | No |
With Reservoir | No |
2018 Jeep Wrangler JL
2019 Jeep Wrangler JL
2019 Jeep Wrangler JL
