Rancho Shock Absorber - RS55014

Brand: Rancho
  • Have a product question? Ask us
  • Part Number: RS55014
  • Part Location: U.S.
  • Availability: 2 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by May 29
Retail: $67.19
Price: $63.99
You Save: $3.20
Adjustable
No
Body Color
White
Body Material
Steel
Compressed Length (IN)
14.69 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
24.89 Inch
Includes Boot
Yes
Includes Dust Shield
No
Includes Hardware
Yes
Internal Design
Twin Tube
Lower Mounting Style
Stud
Share this page

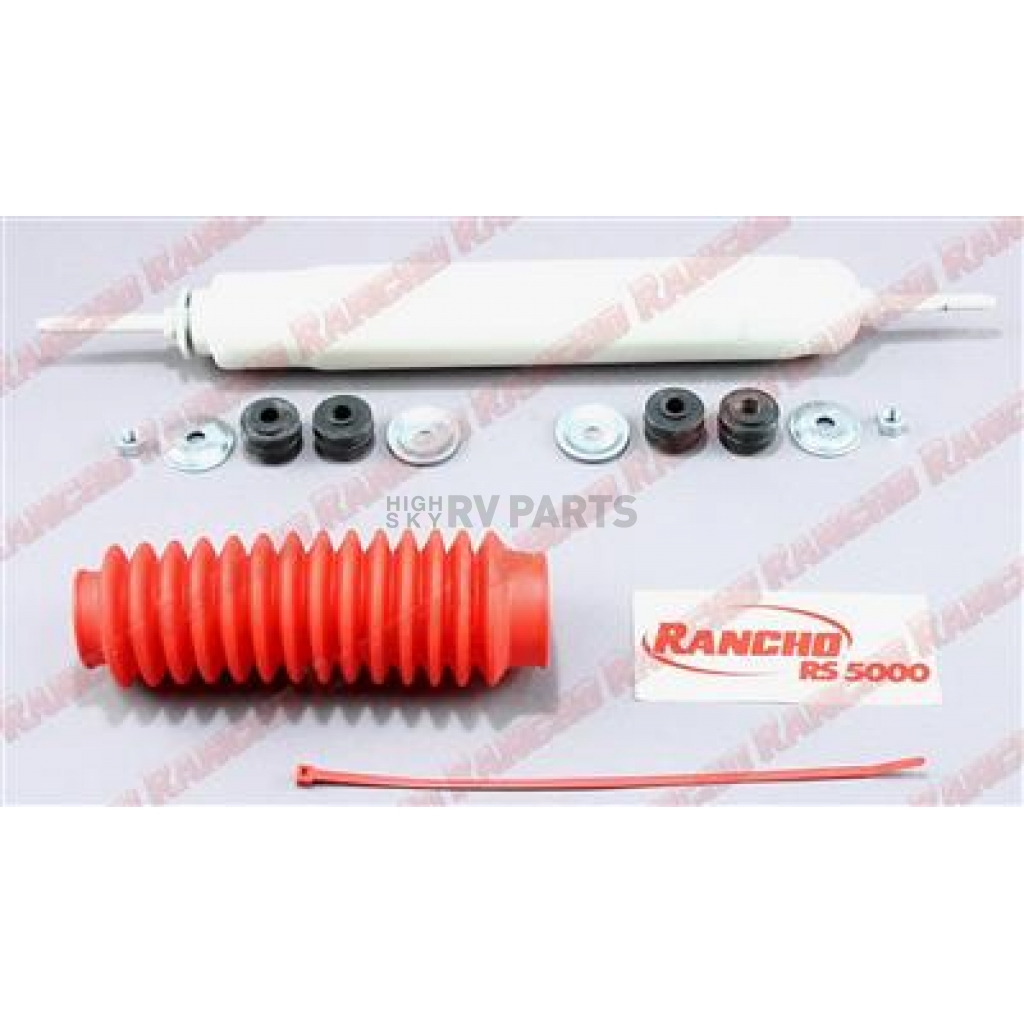

Rancho Shock Absorber

Shock Absorber; RS5000X; Nitrogen Gas Charged; Limited Lifetime Warranty; Non Adjustable Valving; With Shock Boots; White Shock Body With Red Shock Boots; Single; Also Use RS5014

MPN: RS55014

The core of this new and innovative shock from Rancho® is the unique and patented rebound valving system and an advanced compression phase of the shock absorber. This proprietary process developed by the ride engineers at Rancho will elevate the overall handling and performance of your vehicle on and off-road.
Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Twin Tube
Adjustable: No
Extended Length (IN): 24.89 Inch
Compressed Length (IN): 14.69 Inch
Upper Mounting Style: Stud
Lower Mounting Style: Stud
Body Color: White
Quantity: Single
Rod Diameter (IN): 5/8 Inch
Valving Type: Application Specific Valving
Rod Finish: Nitrocarburized
Rod Material: Steel
Body Material: Steel
With Reservoir: No
Includes Dust Shield: No
Includes Hardware: Yes
Includes Boot: Yes
Estimated Install Time (Hours): 0.5

Features

  • Progressive Engagement Valving Will Further Engage To Maintain Control And Stability
  • Tuned Compression Control Valve: The Precision-Tuned Shim Stacked Valving Allows The Motion Of The Shock To Work In Harmony With The Vehicle During On- And Off-road Driving
  • Enlarged 2-1/4 Inch Twin Tube Body: A Larger Shock Body Allows For Increased Fluid Capacity To Operate Cooler And To Increase Vehicle Control And Performance At Varying Speeds And Terrains
  • Gas Pressurization Of Shock: Has A Variety Of Advantages Including Minimizing Air-To-Oil Mixture That Can Cause Foaming And Shock Fade; Gas Pressurization Also Provides A Mild Boost Of Spring Rate To
  • 16 Millimeter Nitro-Carburized Rod: From Increased Scuffing Resistance To Additional Protection Against Corrosion, The Process Enhances The Shock’s Overall Durability
  • Full-Displaced 35 Millimeter Bore: Helps To Provide Heightened Control Of Shock Motion Due Largely To The Expanded Piston Area
  • 1-3/8 Inch Diameter Sintered Iron Piston: Brings Increased Structural Conformity To Each Piston
  • Rebound Bumper: Greatly Reduces Wear And Tear During On And Off Road Driving
  • Glass-Filled, Fluon Banded Piston: Provides Smoother Piston Travel And Greater Responsiveness To Changing Road Conditions
  • Limited Lifetime Warranty
Specifications of Rancho Shock Absorber - RS55014
Adjustable No
Body Color White
Body Material Steel
Compressed Length (IN) 14.69 Inch
Estimated Install Time (Hours) 0.5
Extended Length (IN) 24.89 Inch
Includes Boot Yes
Includes Dust Shield No
Includes Hardware Yes
Internal Design Twin Tube
Lower Mounting Style Stud
Quantity Single
Rod Diameter (IN) 5/8 Inch
Rod Finish Nitrocarburized
Rod Material Steel
Type Nitrogen Gas Charged
Upper Mounting Style Stud
Valving Type Application Specific Valving
With Coil Spring No
With Reservoir No

1961 Ford F-100
1962 Ford F-100
1963 Ford F-100

1976 Ford F-150
1977 Ford F-150
1978 Ford F-150
1979 Ford F-150

1961 Ford F-250
1962 Ford F-250
1963 Ford F-250
1964 Ford F-250
1965 Ford F-250
1966 Ford F-250
1967 Ford F-250
1968 Ford F-250
1969 Ford F-250
1970 Ford F-250
1971 Ford F-250
1972 Ford F-250
1973 Ford F-250
1974 Ford F-250
1975 Ford F-250
