Rancho Leveling Kit Suspension - RS66403R9
Amount Raised Or Lowered
1-3/4 Inch Lift
Estimated Install Time (Hours)
2
Includes Shock/Struts
Yes
Maximum Tire Size
265/70
Minimum Wheel Diameter
17
Series
RS9000
Type
Strut Assembly
Wheel Backspacing (IN)
5.7
Share this page

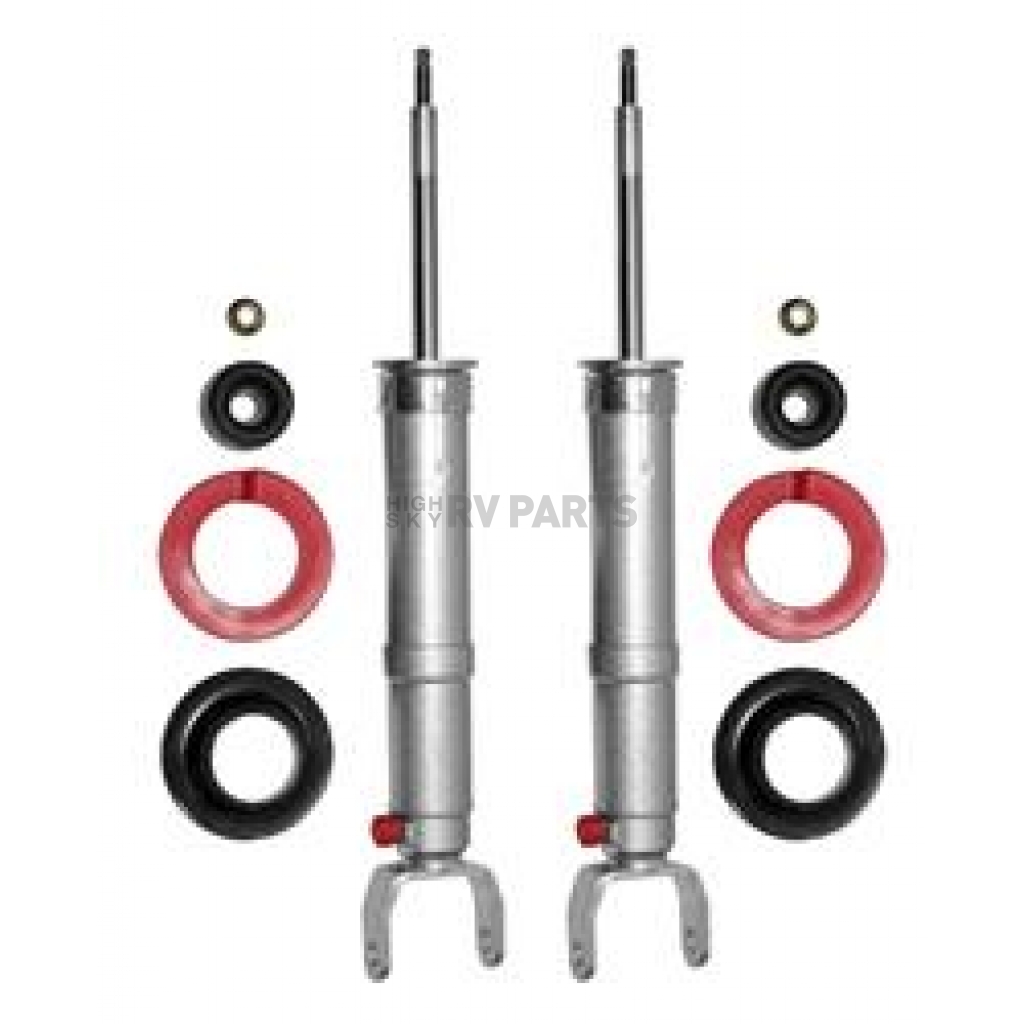

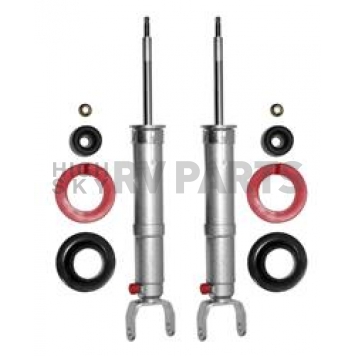

Rancho Leveling Kit Suspension
Leveling Kit Suspension; RS 9000XL ™; 1-3/4 Inch Lift; Replacement Strut; With 2 RS9000 Struts/ Installation Hardware
MPN: RS66403R9
The Rancho ® 9-position adjustable series delivers nine levels of performance to on- and off-road trucks, SUVs and Jeeps. Globally recognized as the first 9-position manually adjustable ride control series in the off-road market, the advanced series is ideal for on- and off-road use, towing and more. The adjustable damping enhances ride characteristics by counteracting the additional unspring mass inherent in larger tire and wheel combinations.
Amount Raised Or Lowered: 1-3/4 Inch Lift
Includes Shock/Struts: Yes
Estimated Install Time (Hours): 2
Features
- Large, 2.75 Inch Tri-Tube Body: Increased Fluid Capacity To Operate Cooler
- Large, Heavy-Duty 18 Millimeter Nitro-Carb Rod: Increases Scuffing Resistance And Corrosion Protection
- 9-Position Tuning Technology: Allows For Optimal Performance In Any Environment
- 9-Position Adjustment Knob: Provides A Clear Understanding Of Tuning Level; Liquid Metallic Finish: Premium Long Lasting Finish
- Gas Pressurization Of Shock: Minimizes Air-To-Oil Mixture; Protective Boot: Added Protection For The Shock Rod And Oil Seal
- Graphite-Filled, Fluon Banded Piston: Provides Smoother Piston Travel And Greater Responsiveness
- 1-1/4 Inch Diameter Sintered Iron Piston: Brings Increased Structural Conformity; Double-Welded Loops: Added Strength And Durability
- Rebound Bumper: Helps Control The Rebound Motion During Harsh Driving Conditions
- Low-Friction, Self-Lubricating Seal: Provides An Extra Layer Of Defense Against Dirt And Debris
- Limited Lifetime Warranty
Specifications of Rancho Leveling Kit Suspension - RS66403R9 | |
Amount Raised Or Lowered | 1-3/4 Inch Lift |
Estimated Install Time (Hours) | 2 |
Includes Shock/Struts | Yes |
Maximum Tire Size | 265/70 |
Minimum Wheel Diameter | 17 |
Series | RS9000 |
Type | Strut Assembly |
Wheel Backspacing (IN) | 5.7 |
2019 Ram 1500- New Model
2020 Ram 1500- New Model
2021 Ram 1500- New Model
2020 Ram 1500- New Model
2021 Ram 1500- New Model
