Quick Fuel Technology Fuel Pump Electric - 30-200QFT
Estimated Install Time (Hours)
2
Fuel Type
Diesel/ E85/ Gasoline
Inlet Size
-10 AN O-Ring
Maximum Pressure (PSI)
80 Pounds Per Square Inch
Mounting Style
In-Tank
Outlet Size
-10 AN O-Ring
Voltage Rating
12 To 18.5 Volt
Share this page

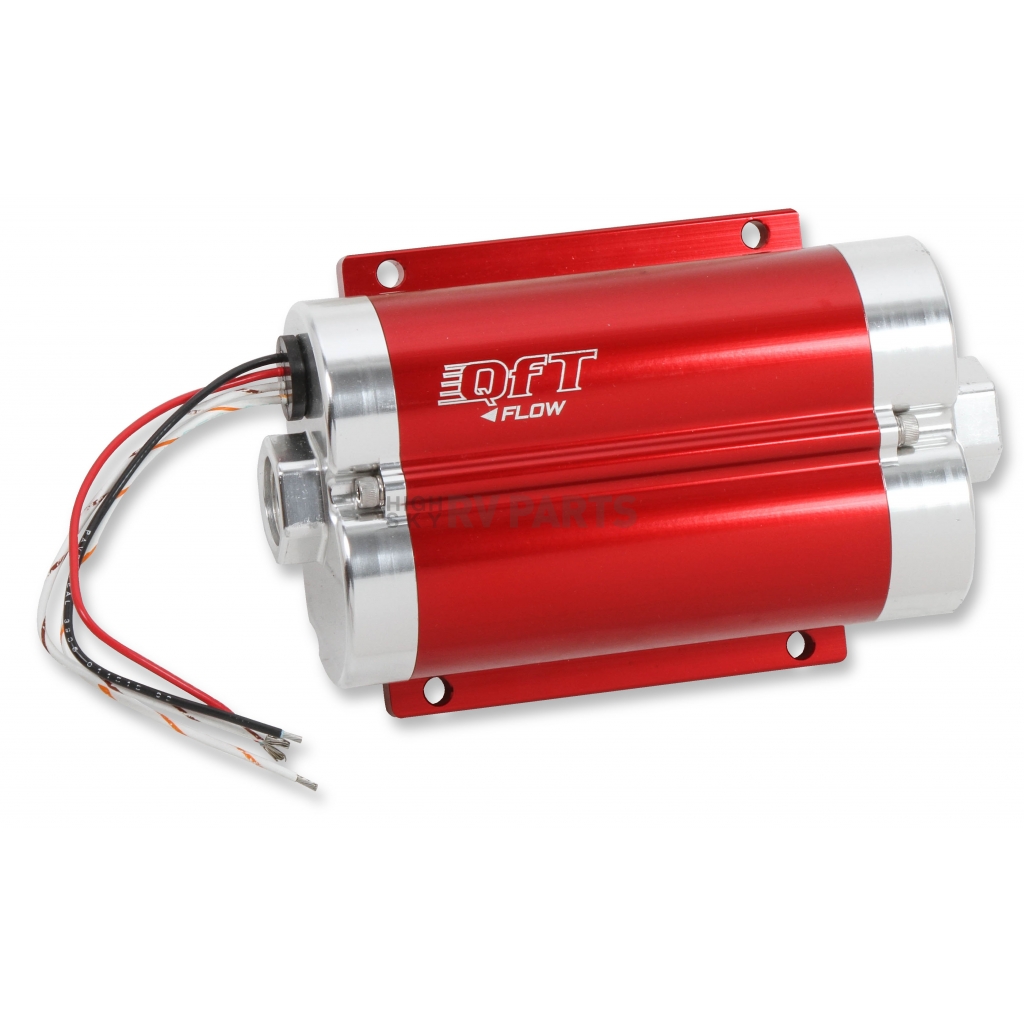

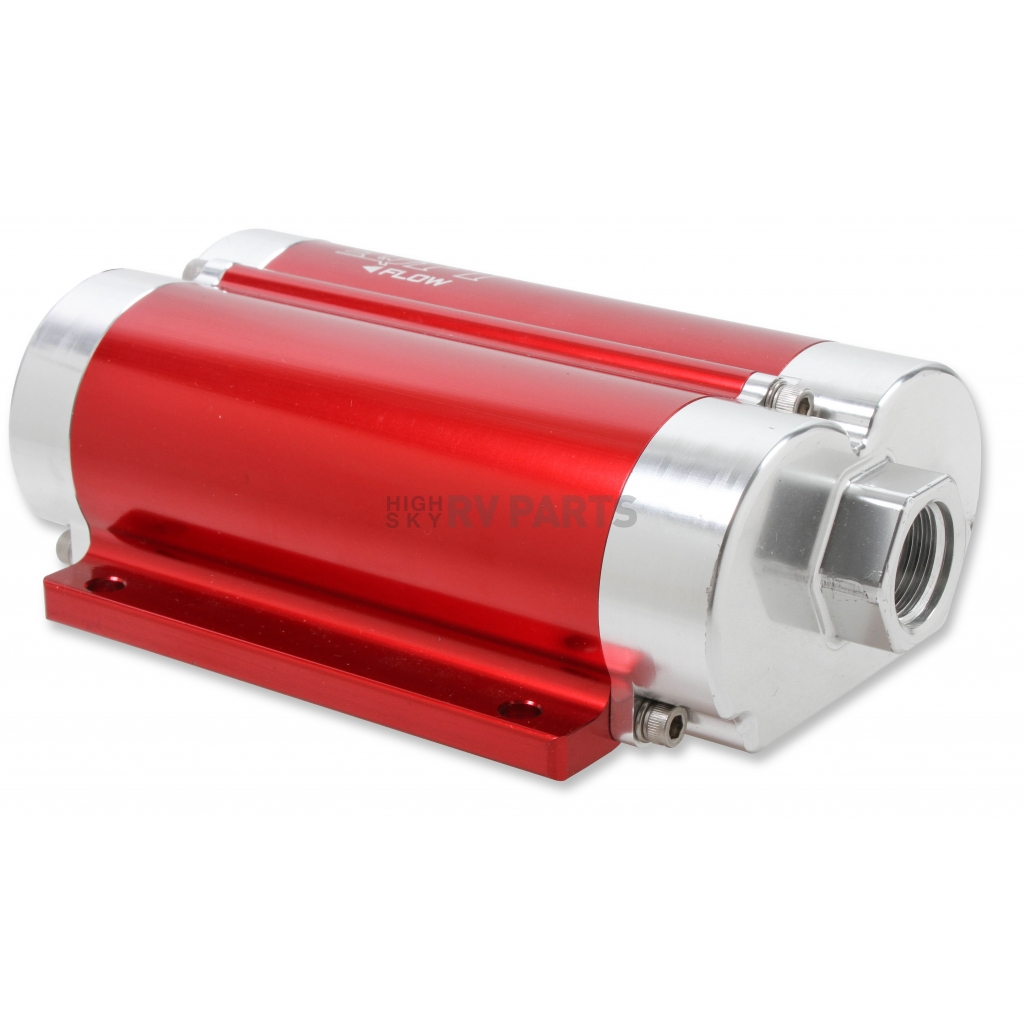

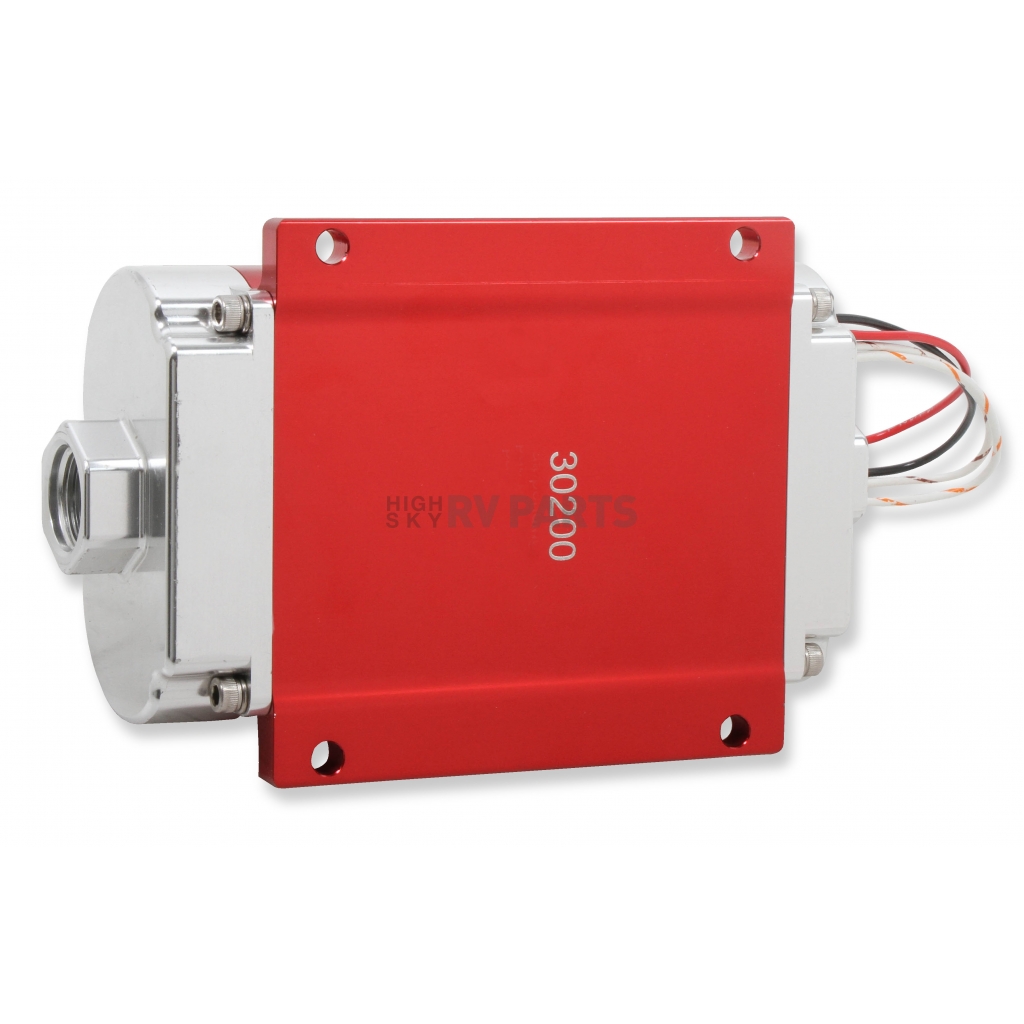

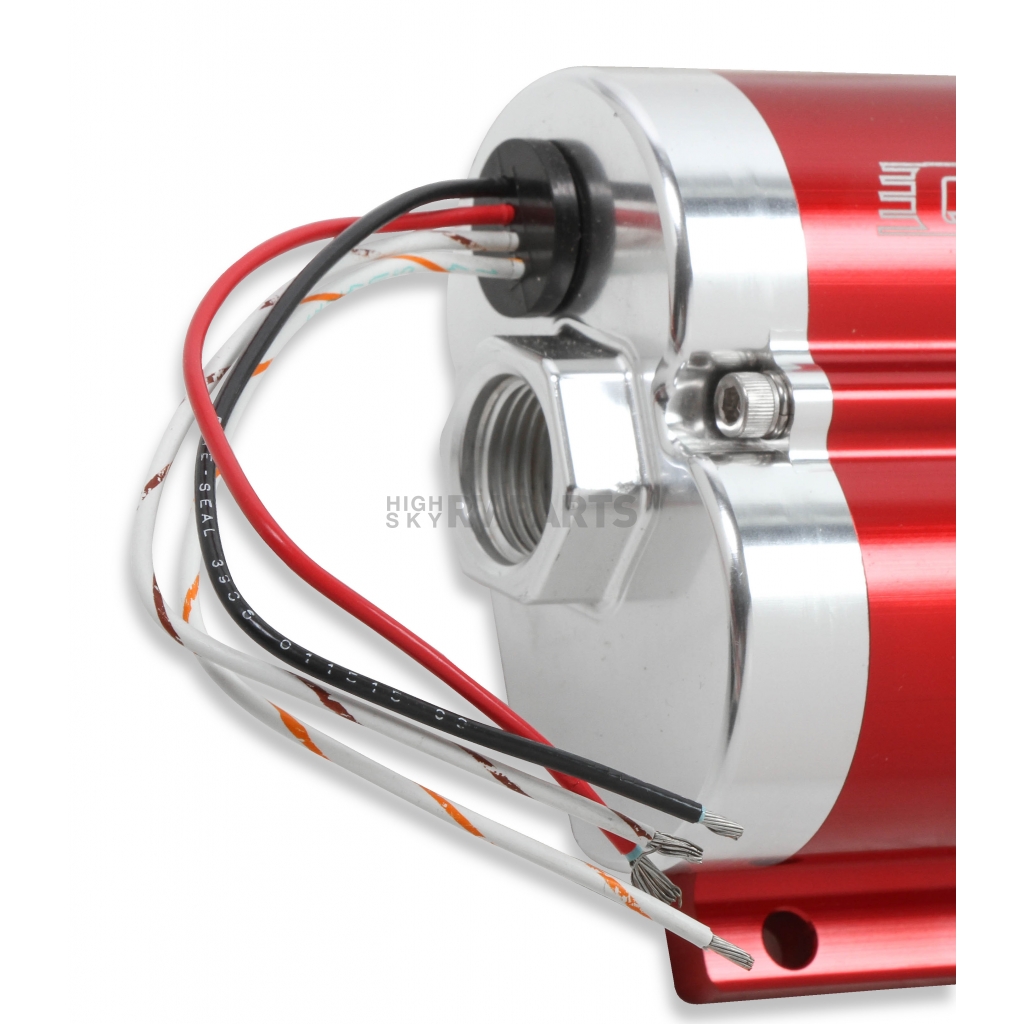

Quick Fuel Technology Fuel Pump Electric
Fuel Pump Electric; Up To 1600 Horsepower EFI/ 1800 Horsepower Carburetor; 80 PSI Maximum Pressure; Without Regulator; 10AN O-Ring Inlet/Outlet; 12-18.5 Volts
MPN: 30200
Need to fuel some serious horsepower? Have a nitrous or forced induction power plant that also sees street duty? Quick Fuel’s in-line fuel pump is the answer! The twin pump design allows you to use one pump for cruising and both pumps when you activate the nitrous switch or start building boost! By staging the second pump, you eliminate the unnecessary recirculating and heating of extra fuel which can lead to poor performance and hot fuel issues. As an added benefit for the hard core enthusiasts that run events like Hot Rod Power Tour and the Baja 1000, the extra pump offers the peace of mind that you will always finish what you start! For hard core race vehicles, both pumps can be wired for full time duty to get maximum performance and are proven with 18.5 volt compatibility at pressures up to 80 PSI. It was designed to greatly reduce the negative effects of heated fuel now common with many of today’s pump gas blends. It is available for use with pump gas or race gas. At only 5.1 Pound., they weigh half a pound less than competitive 1000+ horsepower pumps yet have twice the features.
Mounting Style: In-Tank
Fuel Type: Diesel/ E85/ Gasoline
Voltage Rating: 12 To 18.5 Volt
Maximum Pressure (PSI): 80 Pounds Per Square Inch
Inlet Size: -10 AN O-Ring
Outlet Size: -10 AN O-Ring
Estimated Install Time (Hours): 2
Features
- Improved Hot Fuel Handling
- Billet Aluminum Construction For Durability And Good Looks
- 10 AN O-Ring Inlet-Outlet For High Flow And Superior Sealing
- Excellent For Use With Carbureted Or EFI Applications
- Fully Submersible In-Tank For Custom Applications, Space Savings And Less Plumbing
- Compatible With 12 Volt To 18.5 Volt Systems For Street Or Race Use
- Twin Pump Design Allows The Use Of Both Pumps Simultaneously Or Independently - Second Pump Can Be Activated On Demand For Power Adders Such As Nitrous Or Boost
- Proven Durability Beyond 3,000 Hours In Gasoline
- Compact (7.66 Inch Long X 5 Inch Wide X 2.5 Inch Tall) For Easy Installation On Frame Rails Or Other Tight Areas
- Limited 90 Day Warranty
| Specifications of Quick Fuel Technology Fuel Pump Electric - 30-200QFT | |
| Estimated Install Time (Hours) | 2 |
| Fuel Type | Diesel/ E85/ Gasoline |
| Inlet Size | -10 AN O-Ring |
| Maximum Pressure (PSI) | 80 Pounds Per Square Inch |
| Mounting Style | In-Tank |
| Outlet Size | -10 AN O-Ring |
| Voltage Rating | 12 To 18.5 Volt |
