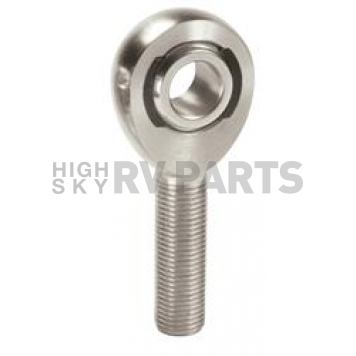

QA1 XM Series Rod End - XML1214

Brand: QA1
0 reviews
  • Have a product question? Ask us
  • Part Number: XML1214
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $69.29
Price: $65.99
You Save: $3.30
Ball Diameter
1.312 Inch
Bore Size
3/4 Inch
Color
Silver
Design
2-Piece
Finish
Chrome Plated Ball
Load Capacity
43486 Pound
Material
Chromoly Steel
Thread
7/8 Inch-14 Male Left Hand
Type
Rod Eye
Share this page

QA1 Rod End

Rod End; XM Series; Rod Eye; 7/8 Inch-14 Male Left Hand Thread; 3/4 Inch Bore Size; 1.312 Inch Diameter Ball; 43486 Pounds Load Capacity; Chromoly Steel

MPN: XML1214

For the ultimate in performance rod ends, look no further than QA1’s XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out. The QA1 Endura Racing Series is a loaded slot style of rod end that was introduced in the U.S. by QA1 in 1995. The body is machined with a significant groove going all the way around the interior of the body. The ball is then inserted into the machined slot, and a PTFE/Nylon material is injected. Serving as a liner to keep dirt and debris out, while also lubricating the rod end. In addition to providing added strength, the injection molded race also won't pound out like traditional PTFE liners, increasing the longevity of your rod ends. This is simply the best rod end design for most motorsports applications.
Type: Rod Eye
Design: 2-Piece
Thread: 7/8 Inch-14 Male Left Hand
Bore Size: 3/4 Inch
Ball Diameter: 1.312 Inch
Load Capacity: 43486 Pound
Finish: Chrome Plated Ball
Color: Silver
Material: Chromoly Steel

Features

  • Heavy Duty Rod Ends Are Commonly Used On 4-Link And Ladder Bars For Their Strength And Durability
  • Completely Self-Sealing And Self-Lubricating Because Of Their Nylon/PTFE Injection Molded Race That Keeps Dirt And Debris Out
  • Metal To Metal Support For Heavy Shock Loads
  • Increased Cross-Sectional Thickness For Greater Tensile Strength
  • Limited 1 Year Warranty
Specifications of QA1 XM Series Rod End - XML1214
Ball Diameter 1.312 Inch
Bore Size 3/4 Inch
Color Silver
Design 2-Piece
Finish Chrome Plated Ball
Load Capacity 43486 Pound
Material Chromoly Steel
Thread 7/8 Inch-14 Male Left Hand
Type Rod Eye
