QA1 MIB-T Series Rod End Service Kit - MIB3T

Brand: QA1

0 reviews

Have a product question? Ask us
Part Number: MIB3T
Part Location: U.S.
Availability: *Special Order
Delivery: 3 - 4 Weeks

Retail: $27.29

Price: $25.99

You Save: $1.30

Bearing Inside Diameter (IN)

0.19 Inch

Bearing Outside Diameter (IN)

0.5312 Inch

Includes Snap Rings

Incudes Washers

Load Capacity (LB)

4370 Pounds

Material

Carbon Steel

Quantity

Single

Share this page

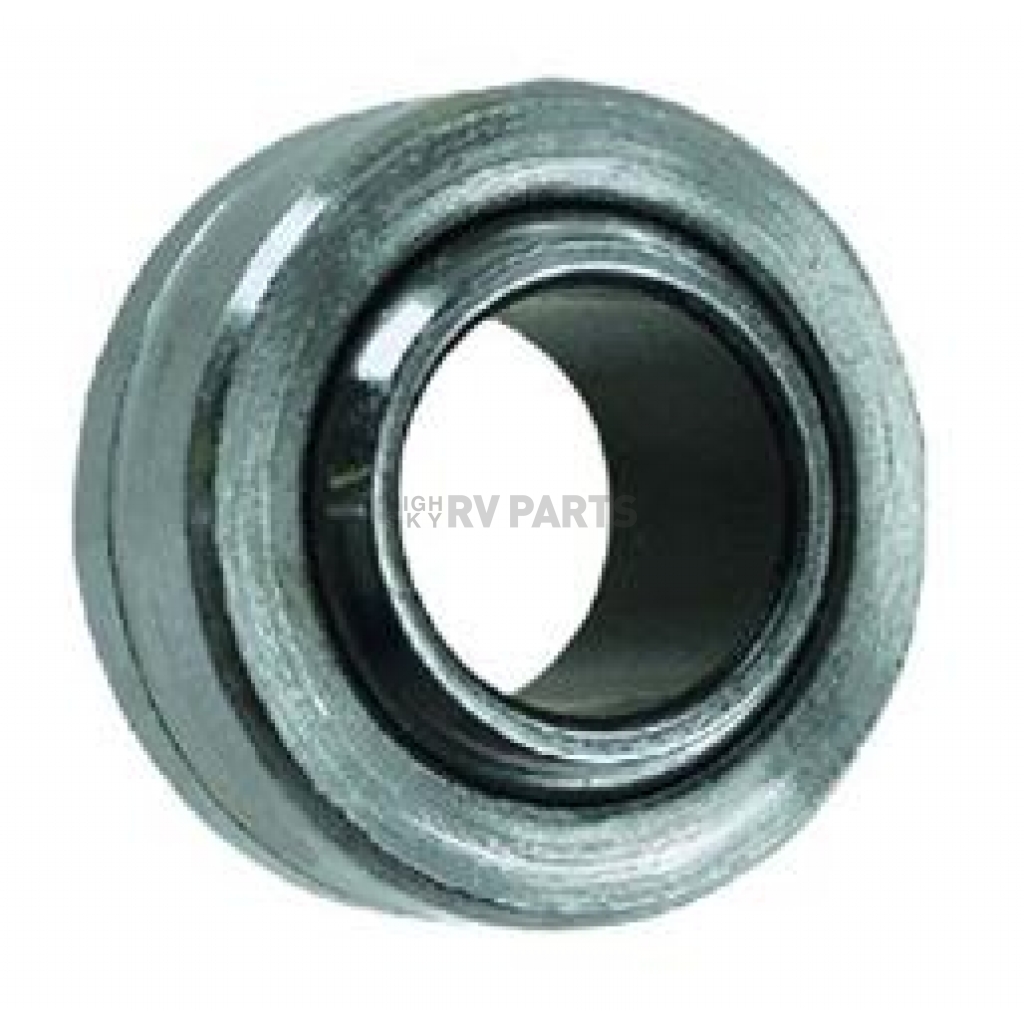

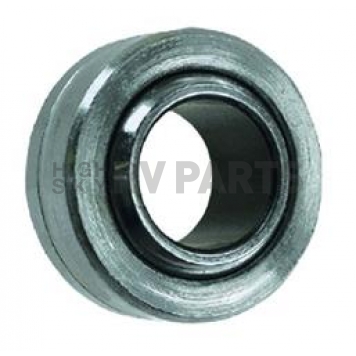

QA1 Rod End Service Kit

Rod End Service Kit; MIB-T Series; 0.5312 Inch Outside Diameter x 0.19 Inch Inside Diameter; 7/16 Inch Diameter Ball; 4370 Pounds Load Capacity; Teflon Lined; Chrome Plated Ball Bearing; Carbon Steel; Single

MPN: MIB3T

QA1’s MIB and MIB-T Low Carbon Steel Series spherical bearings offer more wear surface than a traditional COM bearing, extending the life due to the increased race width and diameter. An optional self lubricating PTFE liner is also available with these spherical bearings.

Bearing Inside Diameter (IN): 0.19 Inch

Bearing Outside Diameter (IN): 0.5312 Inch

Load Capacity (LB): 4370 Pounds

Material: Carbon Steel

Incudes Washers: No

Includes Snap Rings: No

Quantity: Single

Features

Ball Construction: 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground
Liner - PTFE, Self-Lubricating
Race - Low Carbon Steel, I.D. Protective Coated For Corrosion Resistance, Oil Coated
Limited 1 Year Warranty

Specifications of QA1 MIB-T Series Rod End Service Kit - MIB3T
Bearing Inside Diameter (IN)	0.19 Inch
Bearing Outside Diameter (IN)	0.5312 Inch
Includes Snap Rings	No
Incudes Washers	No
Load Capacity (LB)	4370 Pounds
Material	Carbon Steel
Quantity	Single
