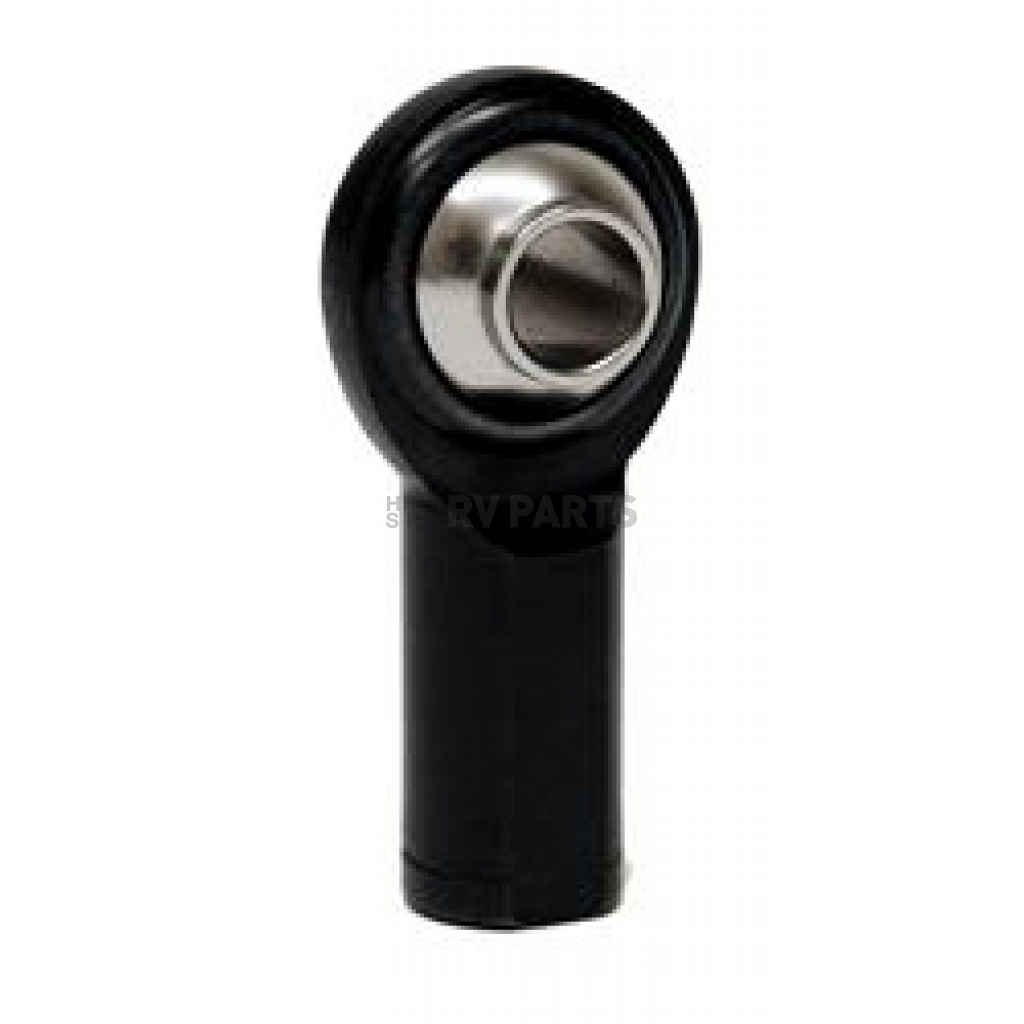

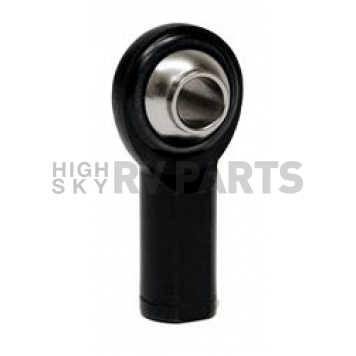

QA1 PCYF-T Series Rod End - PCYFL12T

Brand: QA1
0 reviews
  • Have a product question? Ask us
  • Part Number: PCYFL12T
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $53.54
Price: $50.99
You Save: $2.55
Ball Diameter
1-1/2 Inch
Bore Size
3/4 Inch
Color
Black
Design
2-Piece
Finish
Black Oxide
Load Capacity
27010 Pound
Material
Chromoly Steel
Thread
3/4 Inch-16 Female Left Hand
Type
Teflon Lined Rod Eye
Share this page

QA1 Rod End

Rod End; PCYF-T Series; Teflon Lined Rod Eye; 2 Piece Design; 3/4 Inch-16 Female Left Hand Thread; 3/4 Inch Bore Size; 1-1/2 Inch Diameter Ball; 27010 Pounds Load Capacity; Black Oxide; Black; Chromalloy Steel

MPN: PCYFL12T

QA1 offers its 2 piece PCYF-T Chromoly Steel Series rod ends for applications requiring high misalignment. These black oxide coated rod ends offer superior load ratings over carbon steel two piece rod ends and have a PTFE liner. The PCYF-T is an ideal choice for high misalignment applications with the highest misalignment available in the industry. QA1’s 2 piece economy style rod end, commonly referred to as a mohawk design, has only two components: the ball and the body. The body is swaged around the ball on each side to lock it in, and then loosened. This style is generally very economical and is commonly used in light duty applications.
Type: Teflon Lined Rod Eye
Design: 2-Piece
Thread: 3/4 Inch-16 Female Left Hand
Bore Size: 3/4 Inch
Ball Diameter: 1-1/2 Inch
Load Capacity: 27010 Pound
Finish: Black Oxide
Color: Black
Material: Chromoly Steel

Features

  • Ball Construction: 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, High Misalignment
  • Body - Chromoly Steel, Heat Treated, Black Oxide Coated, PTFE Lined
  • Limited 1 Year Warranty
Specifications of QA1 PCYF-T Series Rod End - PCYFL12T
Ball Diameter 1-1/2 Inch
Bore Size 3/4 Inch
Color Black
Design 2-Piece
Finish Black Oxide
Load Capacity 27010 Pound
Material Chromoly Steel
Thread 3/4 Inch-16 Female Left Hand
Type Teflon Lined Rod Eye
