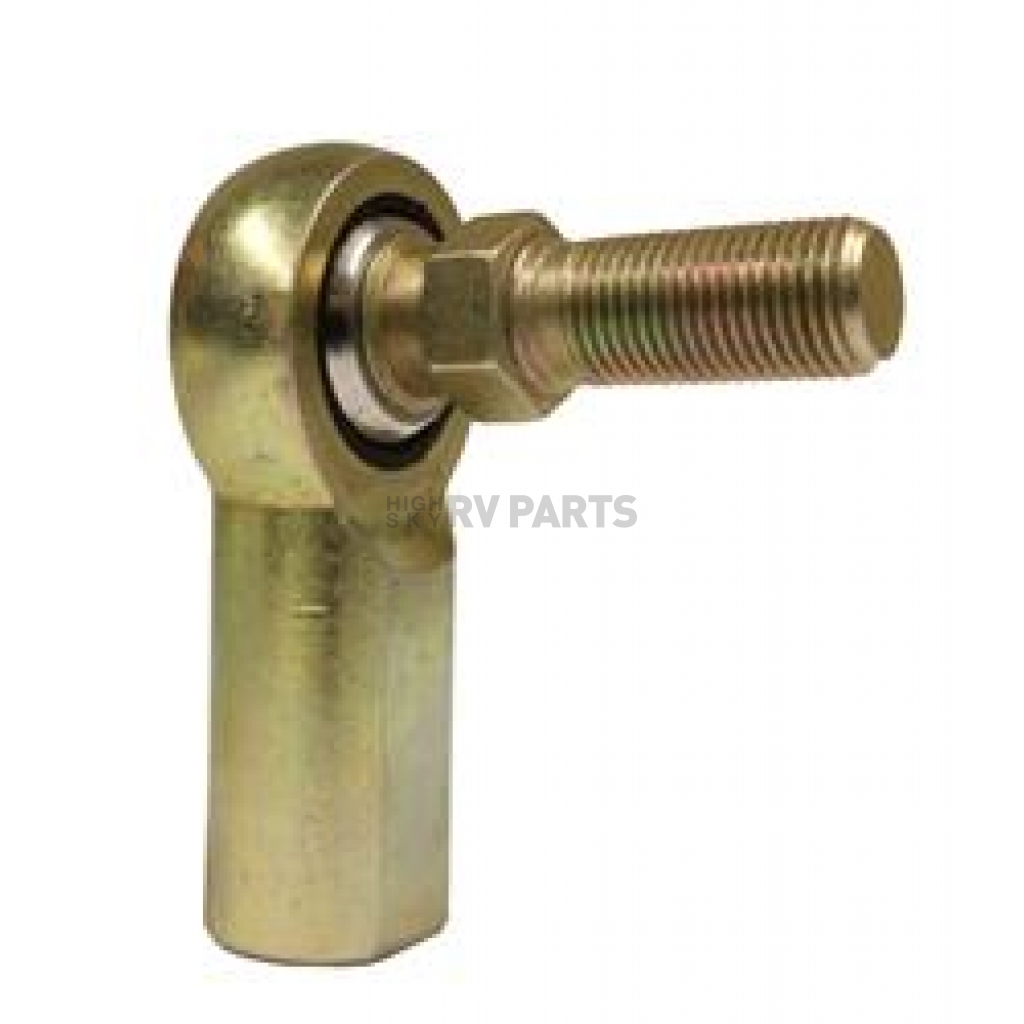

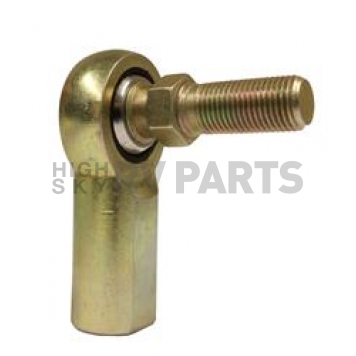

QA1 NF Series Rod End - NFR3S
Ball Diameter
0.437 Inch
Bore Size
0.19 Inch
Color
Gold/ Silver Ball
Design
1-Piece
Finish
Chrome Plated Ball
Load Capacity
1210 Pound
Material
Carbon Steel
Thread
10-32 Female Right Hand
Type
Studded Rod Eye
Share this page
QA1 Rod End
Rod End; NF Series; Studded Rod Eye; 10-32 Female Right Hand Thread; 0.19 Inch Bore Size; 0.437 Inch Diameter Ball; 1210 Pounds Load Capacity; Carbon Steel
MPN: NFR3S
QA1's Injection Molded Carbon Steel rod ends are generally appropriate for low load, moderate oscillation applications. These PTFE Nylon 12 reinforced rod ends are protective coated for corrosion resistance and are available with left and right hand threads. This series features a molded race compound designed to provide low friction, low moisture absorbing properties, and high wear resistance. QA1's Injection Molded Series design is unique in the industry since no holes need to be drilled in the rod end body, thereby allowing the rod end to maintain its full strength and integrity.
Type: Studded Rod Eye
Design: 1-Piece
Thread: 10-32 Female Right Hand
Bore Size: 0.19 Inch
Ball Diameter: 0.437 Inch
Load Capacity: 1210 Pound
Finish: Chrome Plated Ball
Color: Gold/ Silver Ball
Material: Carbon Steel
Features
- Ball Construction: 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground
- PTFE Nylon 12 Reinforced Rod Ends Are Protective Coated For Corrosion Resistance And Are Available With Left And Right Hand Threads
- Body - Carbon Steel, Protective Coated
- Features A Molded Race Compound Designed To Provide Low Friction, Low Moisture Absorbing Properties, And High Wear Resistance
- Limited 1 Year Warranty
Specifications of QA1 NF Series Rod End - NFR3S | |
Ball Diameter | 0.437 Inch |
Bore Size | 0.19 Inch |
Color | Gold/ Silver Ball |
Design | 1-Piece |
Finish | Chrome Plated Ball |
Load Capacity | 1210 Pound |
Material | Carbon Steel |
Thread | 10-32 Female Right Hand |
Type | Studded Rod Eye |
