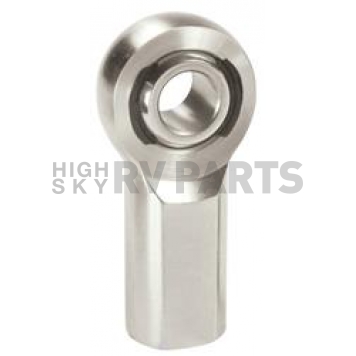

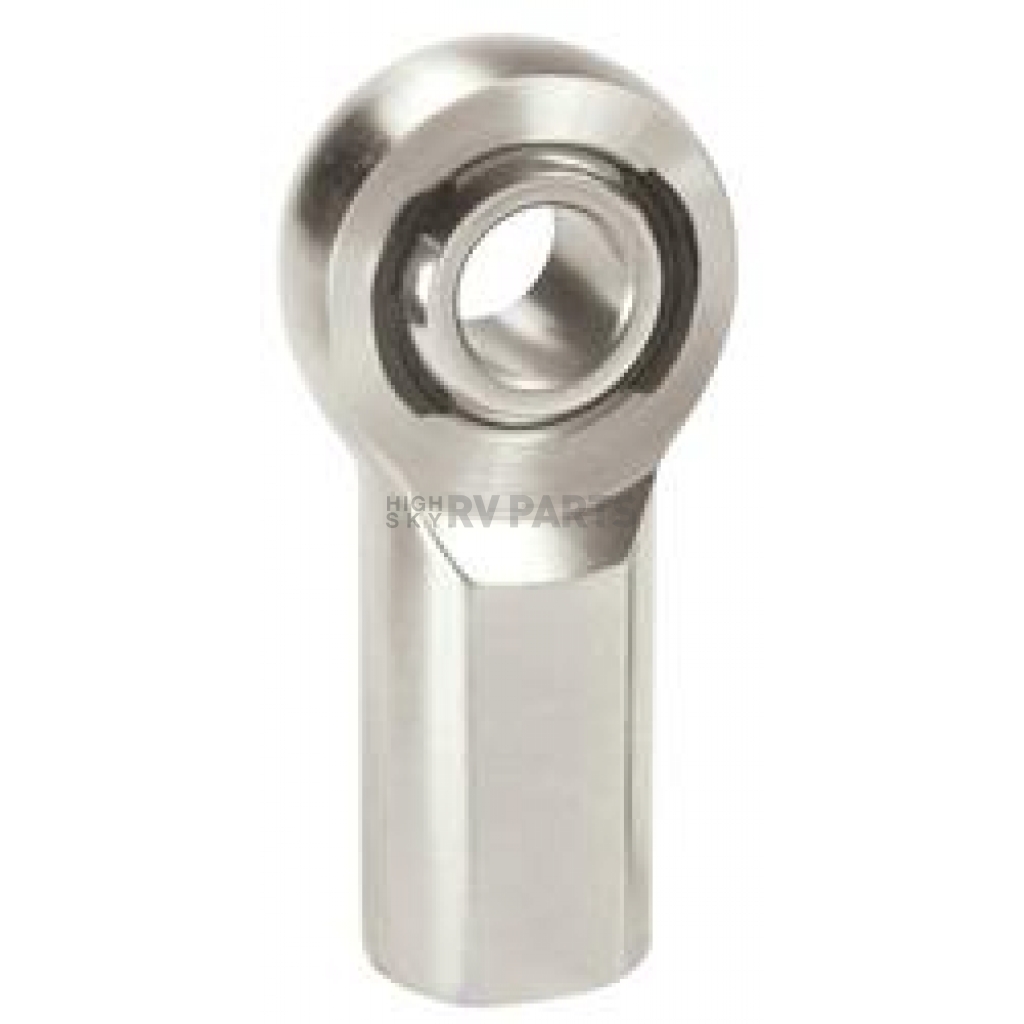

QA1 XF Series Rod End - MXFR10

Brand: QA1
0 reviews
  • Have a product question? Ask us
  • Part Number: MXFR10
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $37.79
Price: $35.99
You Save: $1.80
Ball Diameter
19.05 Millimeter
Bore Size
10 Millimeter
Color
Silver
Design
1-Piece
Finish
Chrome Plated Ball
Load Capacity
17955 Pound
Material
Chromoly Steel
Thread
M10 X 1.5 Female Right Hand
Type
Rod Eye
Share this page

QA1 Rod End

Rod End; XF Series; Rod Eye; M10 X 1.5 Female Right Hand Thread; 10 Millimeter Bore Size; 19.05 Millimeter Diameter Ball; Chromoly Steel

MPN: MXFR10

For the ultimate in performance rod ends, look no further than QA1’s XF Chromoly Steel Series female rod ends. These heavy duty rod ends are commonly used on 4 link and ladder bars for their strength and durability. XF Series rod ends are completely self sealing and self lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out. The QA1 Endura Loaded Slot Series is a loaded slot style of rod end that was introduced in the U.S. by QA1 in 1995. The body is machined with a significant groove going all the way around the interior of the body. The ball is then inserted into the machined slot, and a PTFE/Nylon material is injected. Serving as a liner to keep dirt and debris out, while also lubricating the rod end. In addition to providing added strength, the injection molded race also won’t pound out like traditional PTFE liners, increasing the longevity of your rod ends.
Type: Rod Eye
Design: 1-Piece
Thread: M10 X 1.5 Female Right Hand
Bore Size: 10 Millimeter
Ball Diameter: 19.05 Millimeter
Load Capacity: 17955 Pound
Finish: Chrome Plated Ball
Color: Silver
Material: Chromoly Steel

Features

  • Ball Construction: 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground
  • Race - Nylon/PTFE, Self-Lubricating, Self-Sealing
  • Body - Chromoly Steel, Heat Treated, Protective Coated For Corrosion Resistance
  • Metal To Metal Support For Heavy Shock Loads
  • Increased Cross-Sectional Thickness For Greater Tensile Strength
  • Limited 1 Year Warranty
Specifications of QA1 XF Series Rod End - MXFR10
Ball Diameter 19.05 Millimeter
Bore Size 10 Millimeter
Color Silver
Design 1-Piece
Finish Chrome Plated Ball
Load Capacity 17955 Pound
Material Chromoly Steel
Thread M10 X 1.5 Female Right Hand
Type Rod Eye
