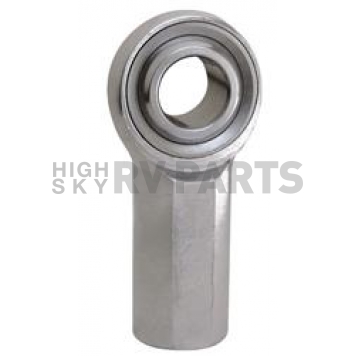

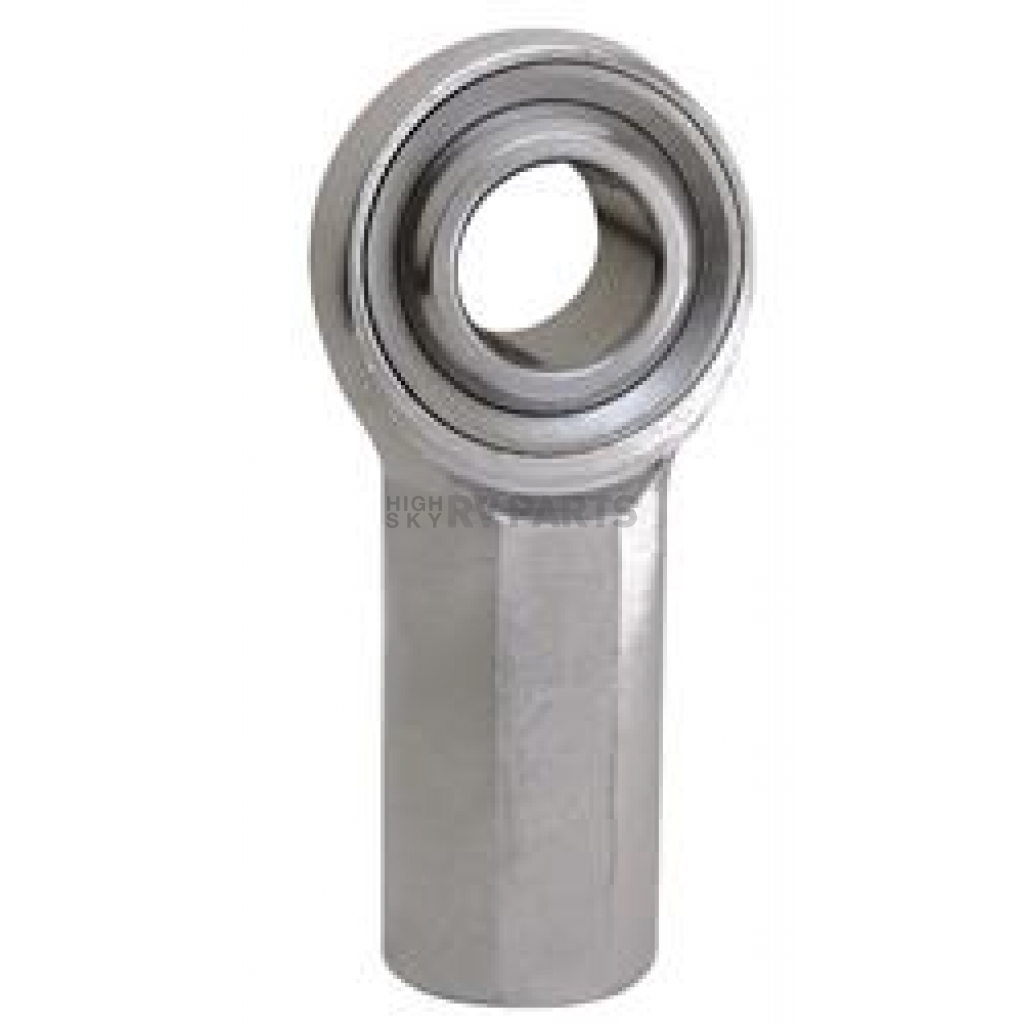

QA1 MHF Series Rod End - MHFR12T1

Brand: QA1
0 reviews
  • Have a product question? Ask us
  • Part Number: MHFR12T1
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $49.34
Price: $46.99
You Save: $2.35
Ball Diameter
22.23 Millimeter
Bore Size
12 Millimeter
Color
Silver
Design
3-Piece
Finish
Chrome Plated Ball
Load Capacity
10002 Pound
Material
Chromoly Steel
Thread
M12 X 1.25 Female Right Hand
Type
Teflon Lined Rod Eye
Share this page

QA1 Rod End

Rod End; MHF Series; Teflon Lined Rod Eye; 3 Piece Design; M12 X 1.25 Female Right Hand Thread; 12 Millimeter Bore Size; 22.23 Millimeter Diameter Ball; 10002 Pound Load Capacity; Chromoly Steel

MPN: MHFR12T1

QA1's MHF Series female rod ends are a traditional three piece chromoly steel rod end. These metric precision rod ends are heat treated and are available in right and left hand threads. In QA1’s 3-Piece rod end, the ball is pressed into a sleeve that is swaged around the ball. After swaging, the unit is called the insert. The O.D. of the insert is then turned down and faced off to square up the sides for staking into a rod end body. This unit offers better ball-to-race conformity for tighter tolerances.
Type: Teflon Lined Rod Eye
Design: 3-Piece
Thread: M12 X 1.25 Female Right Hand
Bore Size: 12 Millimeter
Ball Diameter: 22.23 Millimeter
Load Capacity: 10002 Pound
Finish: Chrome Plated Ball
Color: Silver
Material: Chromoly Steel

Features

  • Heat Treated 52100 Steel Ball Bearing
  • Precision Ground, Hard Chrome Plated Ball
  • Body Is Constructed With Heat Treated Chromoly Steel
  • Protective Coated For Corrosion Resistance
  • Limited 1 Year Warranty
Specifications of QA1 MHF Series Rod End - MHFR12T1
Ball Diameter 22.23 Millimeter
Bore Size 12 Millimeter
Color Silver
Design 3-Piece
Finish Chrome Plated Ball
Load Capacity 10002 Pound
Material Chromoly Steel
Thread M12 X 1.25 Female Right Hand
Type Teflon Lined Rod Eye
