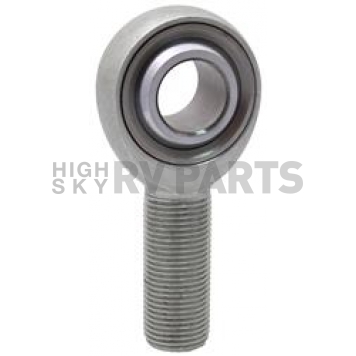

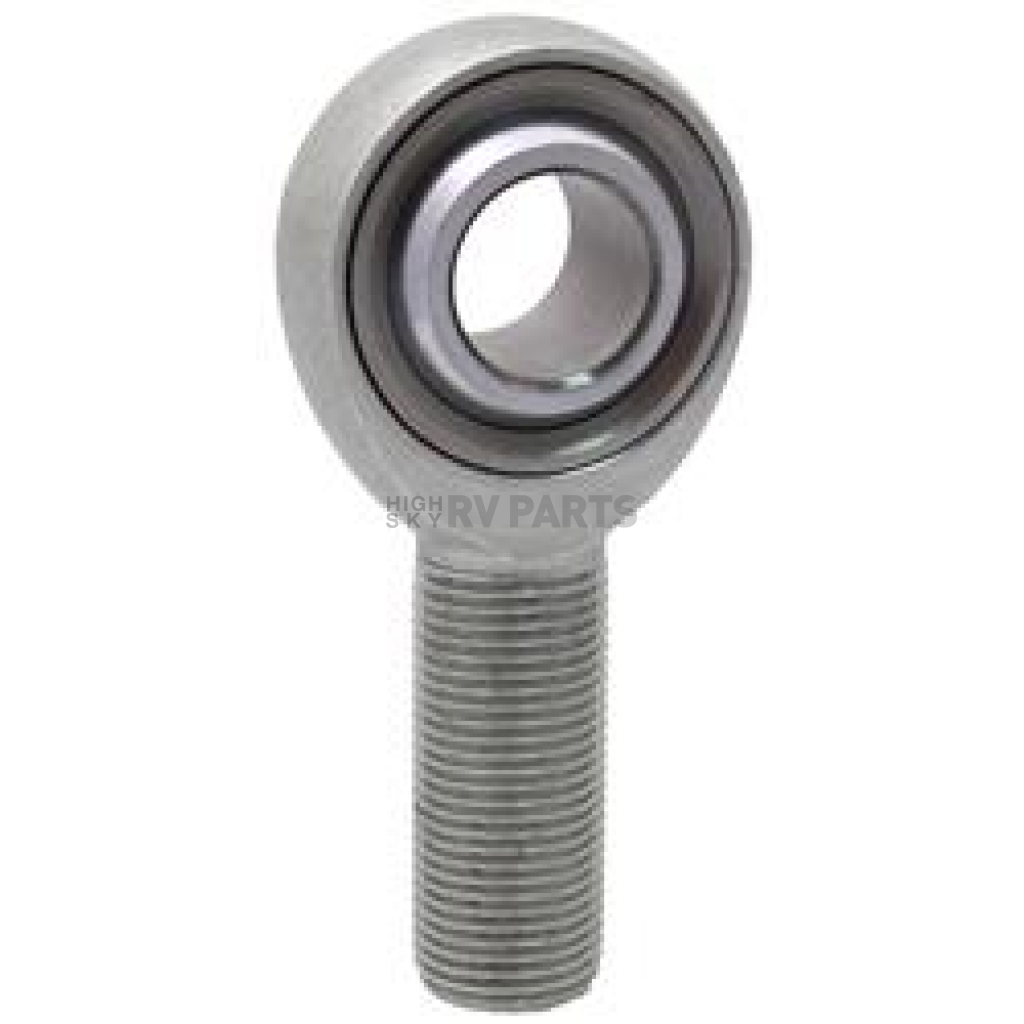

QA1 KM Series Rod End - KMR8

Brand: QA1
0 reviews
  • Have a product question? Ask us
  • Part Number: KMR8
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $29.39
Price: $27.99
You Save: $1.40
Ball Diameter
0.937 Inch
Bore Size
1/2 Inch
Color
Silver
Design
3-Piece
Finish
Chrome Plated Ball
Load Capacity
6660 Pound
Material
Carbon Steel
Thread
1/2 Inch-20 Male Right Hand
Type
Rod Eye
Share this page

QA1 Rod End

Rod End; KM Series; Rod Eye; 3 Piece Design; 1/2 Inch-20 Male Right Hand Thread; 1/2 Inch Bore Size; 0.937 Inch Diameter Ball; 6660 Pounds Load Capacity; Carbon Steel

MPN: KMR8

The traditional three-piece carbon steel rod end is defined as QA1’s KM Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends. In QA1’s 3-Piece rod end, the ball is pressed into a sleeve that is swaged around the ball. After swaging, the unit is called the insert. The Outer Diameter of the insert is then turned down and faced off to square up the sides for staking into a rod end body. This unit offers better ball to race conformity for together tolerances.
Type: Rod Eye
Design: 3-Piece
Thread: 1/2 Inch-20 Male Right Hand
Bore Size: 1/2 Inch
Ball Diameter: 0.937 Inch
Load Capacity: 6660 Pound
Finish: Chrome Plated Ball
Color: Silver
Material: Carbon Steel

Features

  • Available In Right And Left Hand Threads And Inch Dimensions, These Truly Are Precision Rod Ends
  • Limited 1 Year Warranty
Specifications of QA1 KM Series Rod End - KMR8
Ball Diameter 0.937 Inch
Bore Size 1/2 Inch
Color Silver
Design 3-Piece
Finish Chrome Plated Ball
Load Capacity 6660 Pound
Material Carbon Steel
Thread 1/2 Inch-20 Male Right Hand
Type Rod Eye
