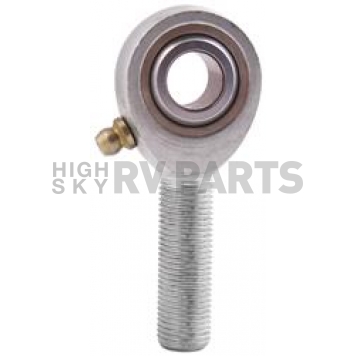

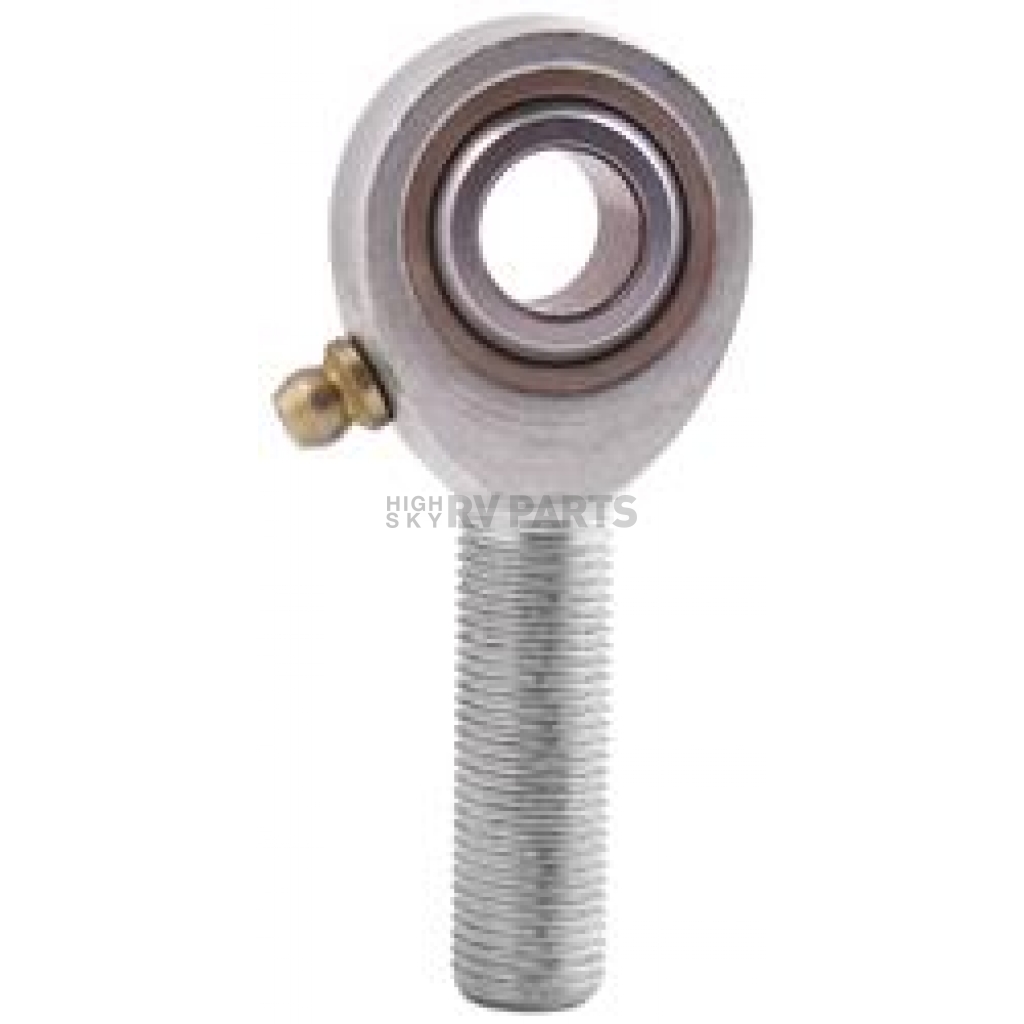

QA1 HM Series Rod End - HMR10Z

Brand: QA1
0 reviews
  • Have a product question? Ask us
  • Part Number: HMR10Z
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $54.59
Price: $51.99
You Save: $2.60
Ball Diameter
1-1/8 Inch
Bore Size
5/8 Inch
Color
Silver
Design
3-Piece
Finish
Chrome Plated Ball
Load Capacity
17995 Pound
Material
Chromoly Steel
Thread
5/8 Inch-18 Male Right Hand
Type
Grease Zerk Rod Eye
Share this page

QA1 Rod End

Rod End; HM Series; Grease Zerk Rod Eye; 3 Piece Design; 5/8 Inch-18 Male Right Hand Thread; 5/8 Inch Bore Size; 1-1/8 Inch Diameter Ball; 17995 Pounds Load Capacity; Chromoly Steel

MPN: HMR10Z

HM Series male rod ends are a traditional three-piece chromoly steel rod end. These precision rod ends are heat treated, are available in right and left hand threads and in metric and inch dimensions. In QA1’s 3-Piece rod end, the ball is pressed into a sleeve that is swaged around the ball. After swaging, the unit is called the insert. The Outer Diameter of the insert is then turned down and faced off to square up the sides for staking into a rod end body. This unit offers better ball to race conformity for together tolerances.
Type: Grease Zerk Rod Eye
Design: 3-Piece
Thread: 5/8 Inch-18 Male Right Hand
Bore Size: 5/8 Inch
Ball Diameter: 1-1/8 Inch
Load Capacity: 17995 Pound
Finish: Chrome Plated Ball
Color: Silver
Material: Chromoly Steel

Features

  • HM Series Male Rod Ends Are A Traditional Three-Piece Chromoly Steel Rod End
  • These Precision Rod Ends Are Heat Treated, Are Available In Right And Left Hand Threads And In Metric And Inch Dimensions
  • Limited 1 Year Warranty
Specifications of QA1 HM Series Rod End - HMR10Z
Ball Diameter 1-1/8 Inch
Bore Size 5/8 Inch
Color Silver
Design 3-Piece
Finish Chrome Plated Ball
Load Capacity 17995 Pound
Material Chromoly Steel
Thread 5/8 Inch-18 Male Right Hand
Type Grease Zerk Rod Eye
