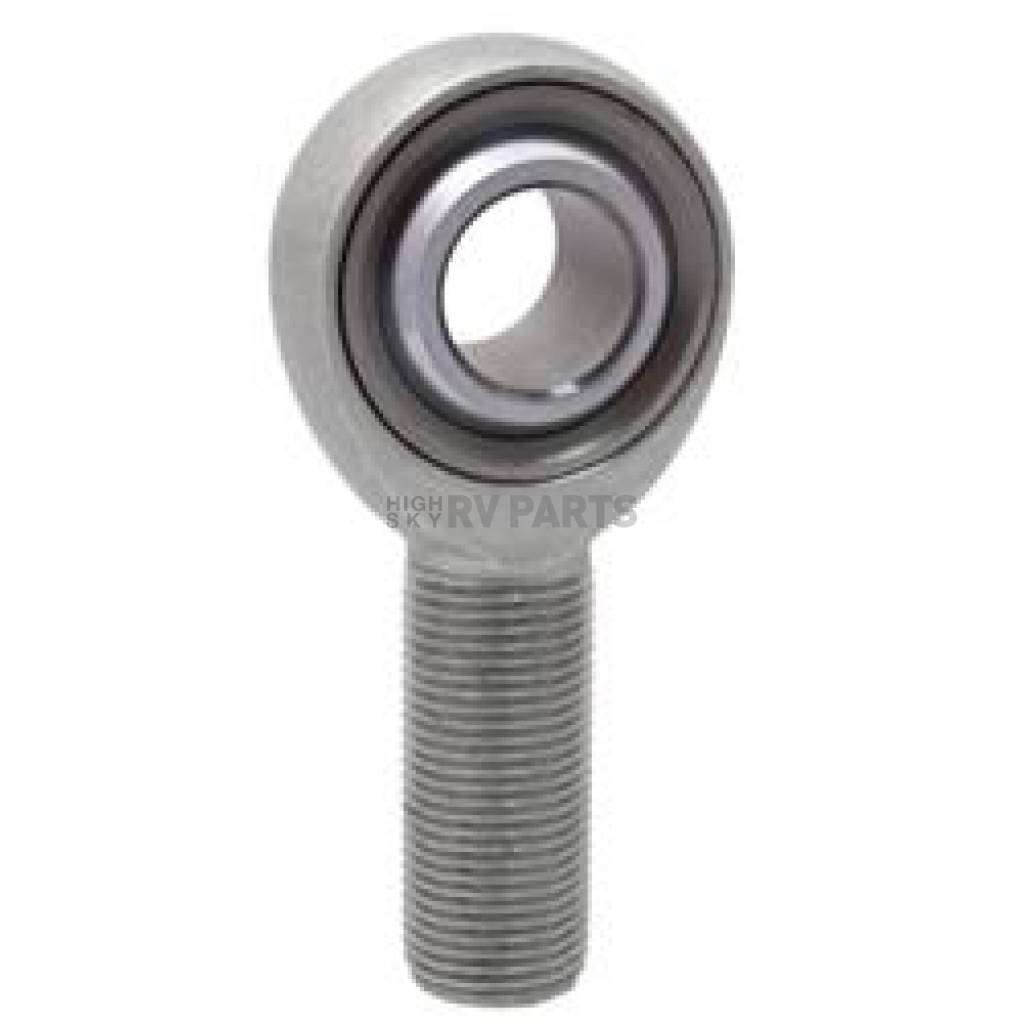

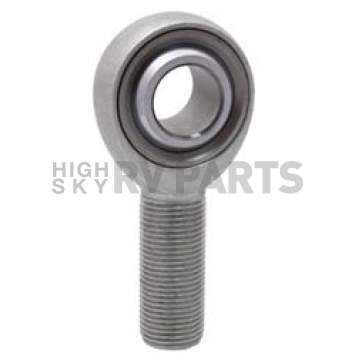

QA1 HM Series Rod End - HML14T1

Brand: QA1
0 reviews
  • Have a product question? Ask us
  • Part Number: HML14T1
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $94.49
Price: $89.99
You Save: $4.50
Ball Diameter
1-5/16 Inch
Bore Size
7/8 Inch
Color
Silver
Design
3-Piece
Finish
Chrome Plated Ball
Load Capacity
45051 Pound
Material
Chromoly Steel
Thread
7/8 Inch-14 Male Left Hand
Type
Teflon Lined Rod Eye
Share this page

QA1 Rod End

Rod End; HM Series; Teflon Lined Rod Eye; 3 Piece Design; 7/8 Inch-14 Male Left Hand Thread; 7/8 Inch Bore Size; 1-5/16 Inch Diameter Ball; 45051 Pounds Load Capacity; Chromoly Steel

MPN: HML14T1

QA1’s HM Series rod ends are a traditional three-piece chromoly steel male rod end. These precision rod ends are heat treated, are available in right and left hand threads and in Metric and Inch dimensions. In QA1’s 3-Piece rod end, the ball is pressed into a sleeve that is swaged around the ball. After swaging, the unit is called the insert. The O.D. of the insert is then turned down and faced off to square up the sides for staking into a rod end body. This unit offers better ball-to-race conformity for tighter tolerances.
Type: Teflon Lined Rod Eye
Design: 3-Piece
Thread: 7/8 Inch-14 Male Left Hand
Bore Size: 7/8 Inch
Ball Diameter: 1-5/16 Inch
Load Capacity: 45051 Pound
Finish: Chrome Plated Ball
Color: Silver
Material: Chromoly Steel

Features

  • Heat Treated Chromoly Steel Body
  • Protective Coated Body For Corrosion Resistance
  • Heat Treated 52100 Steel Ball Bearing
  • Precision Ground, Hard Chrome Plated Ball
  • Limited 1 Year Warranty
Specifications of QA1 HM Series Rod End - HML14T1
Ball Diameter 1-5/16 Inch
Bore Size 7/8 Inch
Color Silver
Design 3-Piece
Finish Chrome Plated Ball
Load Capacity 45051 Pound
Material Chromoly Steel
Thread 7/8 Inch-14 Male Left Hand
Type Teflon Lined Rod Eye
