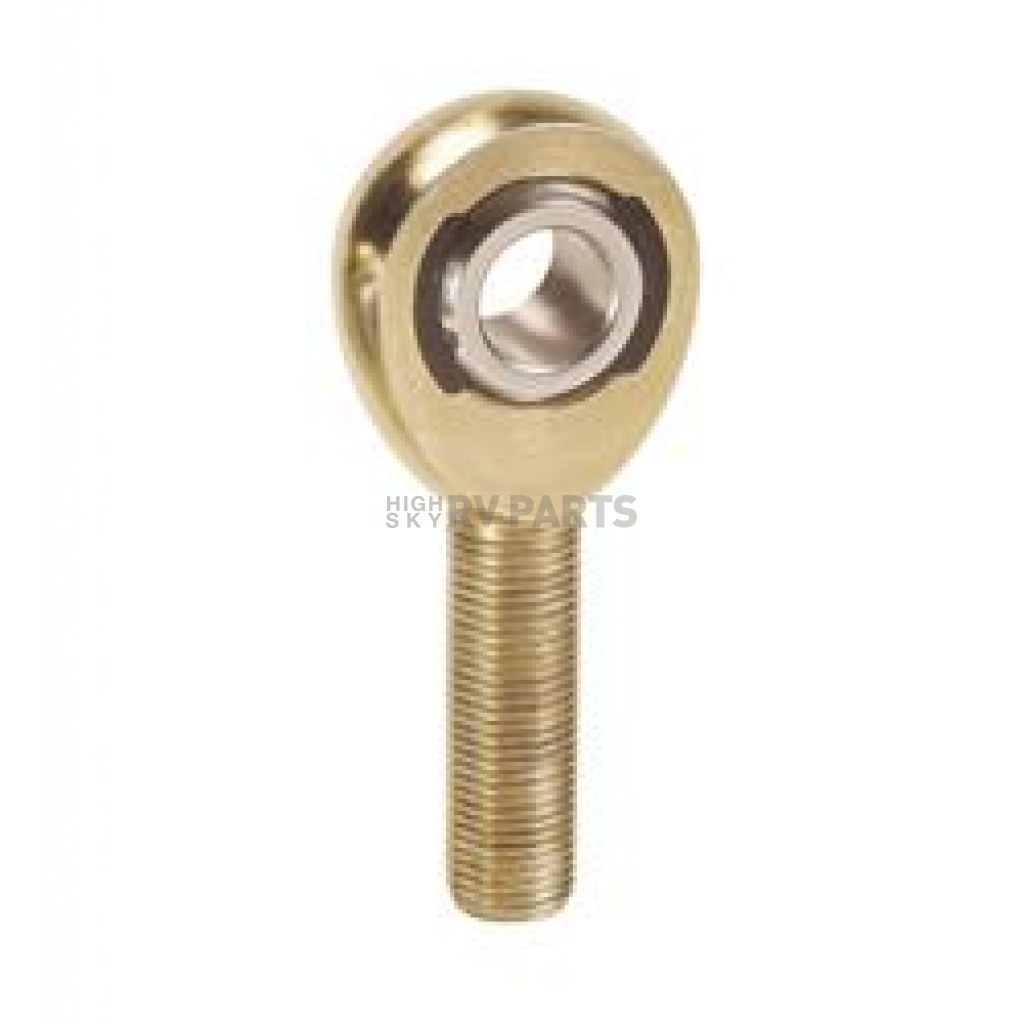

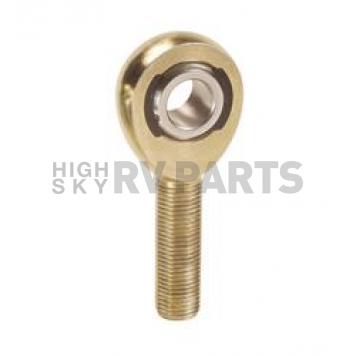

QA1 EXM Series Rod End - EXML12

Brand: QA1
0 reviews
  • Have a product question? Ask us
  • Part Number: EXML12
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $51.44
Price: $48.99
You Save: $2.45
Ball Diameter
1.312 Inch
Bore Size
3/4 Inch
Color
Gold/ Silver Ball
Design
2-Piece
Finish
Chrome Plated Ball
Load Capacity
16565 Pound
Material
Carbon Steel
Thread
3/4 Inch-16 Male Left Hand
Type
Rod Eye
Share this page

QA1 Rod End

Rod End; EXM Series; Rod Eye; 3/4 Inch-16 Male Left Hand Thread; 3/4 Inch Bore Size; 1.312 Inch Diameter Ball; 16565 Pounds Load Capacity; Carbon Steel

MPN: EXML12

The QA1 Endura Racing Series is a loaded slot style of rod end that was introduced in the U.S. by QA1 in 1995. The body is machined with a significant groove going all the way around the interior of the body. The ball is then inserted into the machined slot, and a PTFE/Nylon material is injected. Serving as a liner to keep dirt and debris out, while also lubricating the rod end. In addition to providing added strength, the injection molded race also won't pound out like traditional PTFE liners, increasing the longevity of your rod ends. This is simply the best rod end design for most motorsports applications.
Type: Rod Eye
Design: 2-Piece
Thread: 3/4 Inch-16 Male Left Hand
Bore Size: 3/4 Inch
Ball Diameter: 1.312 Inch
Load Capacity: 16565 Pound
Finish: Chrome Plated Ball
Color: Gold/ Silver Ball
Material: Carbon Steel

Features

  • Metal To Metal Support For Heavy Shock Loads
  • Increased Cross-Sectional Thickness For Greater Tensile Strength
  • Protective Coated For Corrosion Resistance
  • EXM Carbon Steel Series Male Rod Ends Have Increased Cross-Sectional Thickness And Are Completely Self-Sealing And Self-Lubricating
  • Nylon/PTFE Injection Molded Race Won’t Pound Out And Keeps Dirt And Debris Out For Excellent Performance
  • Limited 1 Year Warranty
Specifications of QA1 EXM Series Rod End - EXML12
Ball Diameter 1.312 Inch
Bore Size 3/4 Inch
Color Gold/ Silver Ball
Design 2-Piece
Finish Chrome Plated Ball
Load Capacity 16565 Pound
Material Carbon Steel
Thread 3/4 Inch-16 Male Left Hand
Type Rod Eye
