QA1 CM Series Rod End - CML45
Ball Diameter
1/2 Inch
Bore Size
1/4 Inch
Color
Silver
Design
2-Piece
Finish
Chrome Plated Ball
Load Capacity
5534 Pound
Material
Carbon Steel
Thread
5/16 Inch-24 Male Left Hand
Type
Rod Eye
Share this page
QA1 Rod End
Rod End; CM Series; Rod Eye; 2 Piece Design; 5/16 Inch-24 Male Left Hand Thread; 1/4 Inch Bore Size; 1/2 Inch Diameter Ball; 5534 Pounds Load Capacity; Carbon Steel
MPN: CML45

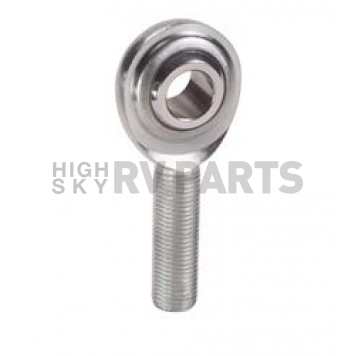

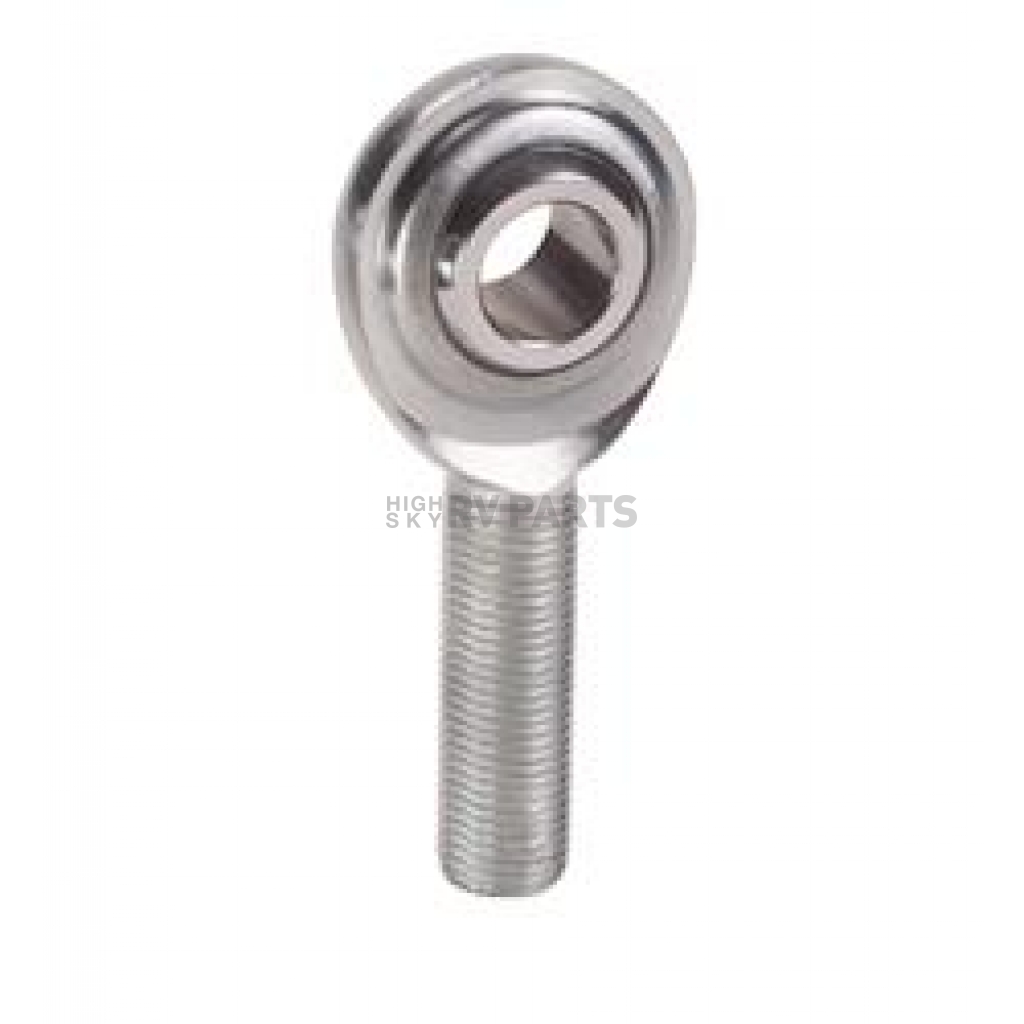

QA1’s 2-piece economy style rod end, commonly referred to as a mohawk design, has only two components: the ball and the body. The body is swaged around the ball on each side to lock it in, and then loosened. This style is generally very economical and is commonly used in light duty applications.
Type: Rod Eye
Design: 2-Piece
Thread: 5/16 Inch-24 Male Left Hand
Bore Size: 1/4 Inch
Ball Diameter: 1/2 Inch
Load Capacity: 5534 Pound
Finish: Chrome Plated Ball
Color: Silver
Material: Carbon Steel
Features
- These Metal To Metal Rod Ends Are Protective Coated For Corrosion Resistance
- Available In Both Metric And Inch Dimensions With Left And Right Hand Threads In Male And Female Styles
- Limited 1 Year Warranty
| Specifications of QA1 CM Series Rod End - CML45 | |
| Ball Diameter | 1/2 Inch |
| Bore Size | 1/4 Inch |
| Color | Silver |
| Design | 2-Piece |
| Finish | Chrome Plated Ball |
| Load Capacity | 5534 Pound |
| Material | Carbon Steel |
| Thread | 5/16 Inch-24 Male Left Hand |
| Type | Rod Eye |
