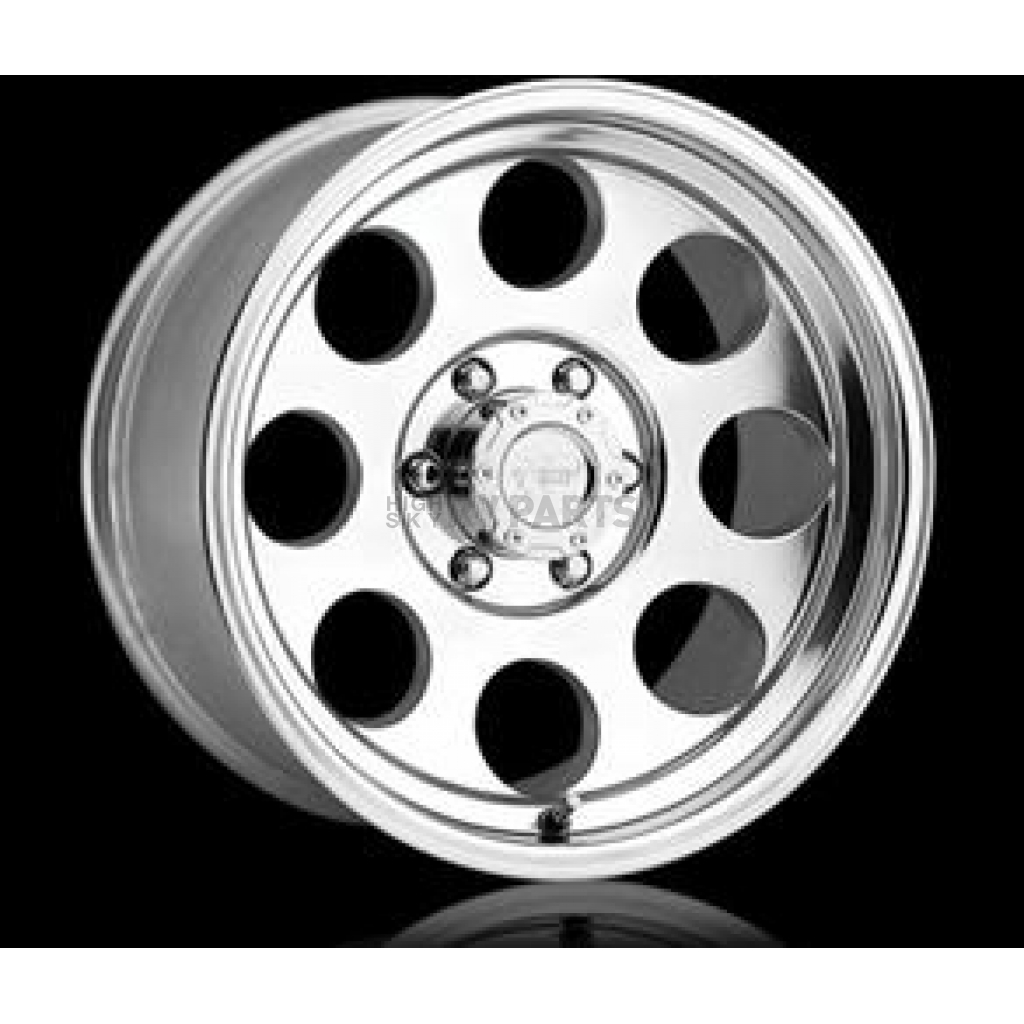

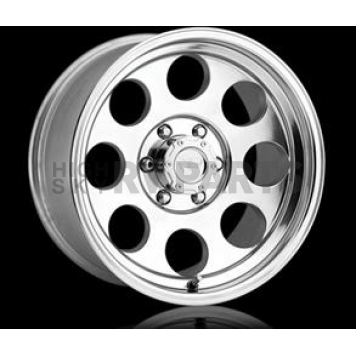

Pro Comp Wheels Series 69 - 16 x 10 Natural - 1069-6170
Backspacing
4.50
Basic Design
8 Hole
Bolt Pattern Inch
Not Applicable
Bolt Pattern Millimeter
Not Applicable
Center Bore
130.81
Center Cap
See Replacement Items
Center Cap Design
Pro Comp Alloys Xtreme Logo
Color
Natural
Compatible With TPMS (Tire Pressure Monitoring Sys
Yes
Construction
One Piece Cast
Diameter
16
Share this page
Pro Comp Wheels Wheel
Wheel; Series 69; 16 Inch Diameter x 10 Inch Width; 8 x 170 Millimeter/ 8 x 6.69 Inch Bolt Pattern; -25 Millimeter Offset; 4.50 Inch Backspacing; 60 Degree Conical Seat Lug; 130.81 Millimeter Center Bore; 8 Hole; 1 Piece Cast Aluminum Construction; Polished; 3500 Pound Load Capacity; Compatible With TPMS (Tire Pressure Monitoring System); 38 Inch Max Tire Diameter; With Pro Comp Alloys Xtreme Logo Center Cap; Single
MPN: 10696170
Pro Comp Alloys are designed using State-Of-The-Art Low-Pressure-Casting Technology providing unsurpassed wheel strength, style and value. Pro Comp Alloy Wheels combine head turning style, light weight, durable finish in black, black powder coat chrome and polished. Pro Comp Alloys also incorporate a high offset brake clearance for todays performance trucks and sport utility vehicles.
Bolt Pattern Inch: Not Applicable
Bolt Pattern Millimeter: Not Applicable
Diameter: 16
Width: 10
Offset: -25
Backspacing: 4.50
Finish: Polished
Color: Natural
Material: Aluminum
Bolt Pattern Inch: 8x6.69
Bolt Pattern Inch: Not Applicable
Bolt Pattern Millimeter: 8x170
Bolt Pattern Millimeter: Not Applicable
Lug Nut Seat Type: 60 Degree Conical
Center Cap: See Replacement Items
Center Bore: 130.81
Lug Nut Design: Acorn Duplex
Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
Basic Design: 8 Hole
With Inserts: No
Load Capacity: 3500
Size: 16x10
Max Tire Diameter: 38
Center Cap Design: Pro Comp Alloys Xtreme Logo
Finish Warranty: No Warranty
Structural Warranty: Lifetime
Quantity: Single
Construction: One Piece Cast
With Hub Centric Ring: No
Estimated Install Time (Hours): 0.5
Features
- Highly Polished Surface
- 1-Piece Cast Aluminum Construction
- Compatible With TPMS (Tire Pressure Monitoring System)
- With Pro Comp Alloys Xtreme Logo Center Cap
- Classic Design
- Limited Lifetime Structural Warranty
| Specifications of Pro Comp Wheels Series 69 - 16 x 10 Natural - 1069-6170 | |
| Backspacing | 4.50 |
| Basic Design | 8 Hole |
| Bolt Pattern Inch | Not Applicable |
| Bolt Pattern Millimeter | Not Applicable |
| Center Bore | 130.81 |
| Center Cap | See Replacement Items |
| Center Cap Design | Pro Comp Alloys Xtreme Logo |
| Color | Natural |
| Compatible With TPMS (Tire Pressure Monitoring Sys | Yes |
| Construction | One Piece Cast |
| Diameter | 16 |
| Estimated Install Time (Hours) | 0.5 |
| Finish | Polished |
| Finish Warranty | No Warranty |
| Load Capacity | 3500 |
| Lug Nut Design | Acorn Duplex |
| Lug Nut Seat Type | 60 Degree Conical |
| Material | Aluminum |
| Max Tire Diameter | 38 |
| Offset | -25 |
| Quantity | Single |
| Size | 16x10 |
| Structural Warranty | Lifetime |
| Width | 10 |
| With Hub Centric Ring | No |
| With Inserts | No |
2000-2004 Ford F-250 Super Duty
2000 Ford F-250 Super Duty
2001 Ford F-250 Super Duty
2002 Ford F-250 Super Duty
2003 Ford F-250 Super Duty
2004 Ford F-250 Super Duty
2001 Ford F-250 Super Duty
2002 Ford F-250 Super Duty
2003 Ford F-250 Super Duty
2004 Ford F-250 Super Duty
