Pertronix Ignition Coil 60103
Coil Style
E-Core
Color
Black
Height (IN)
3.15 Inch
Internal Construction
Epoxy Filled
Maximum Voltage
60000 Volt
Primary Resistance
0.32 Ohm
Secondary Resistance
6 Kilo Ohm
Share this page

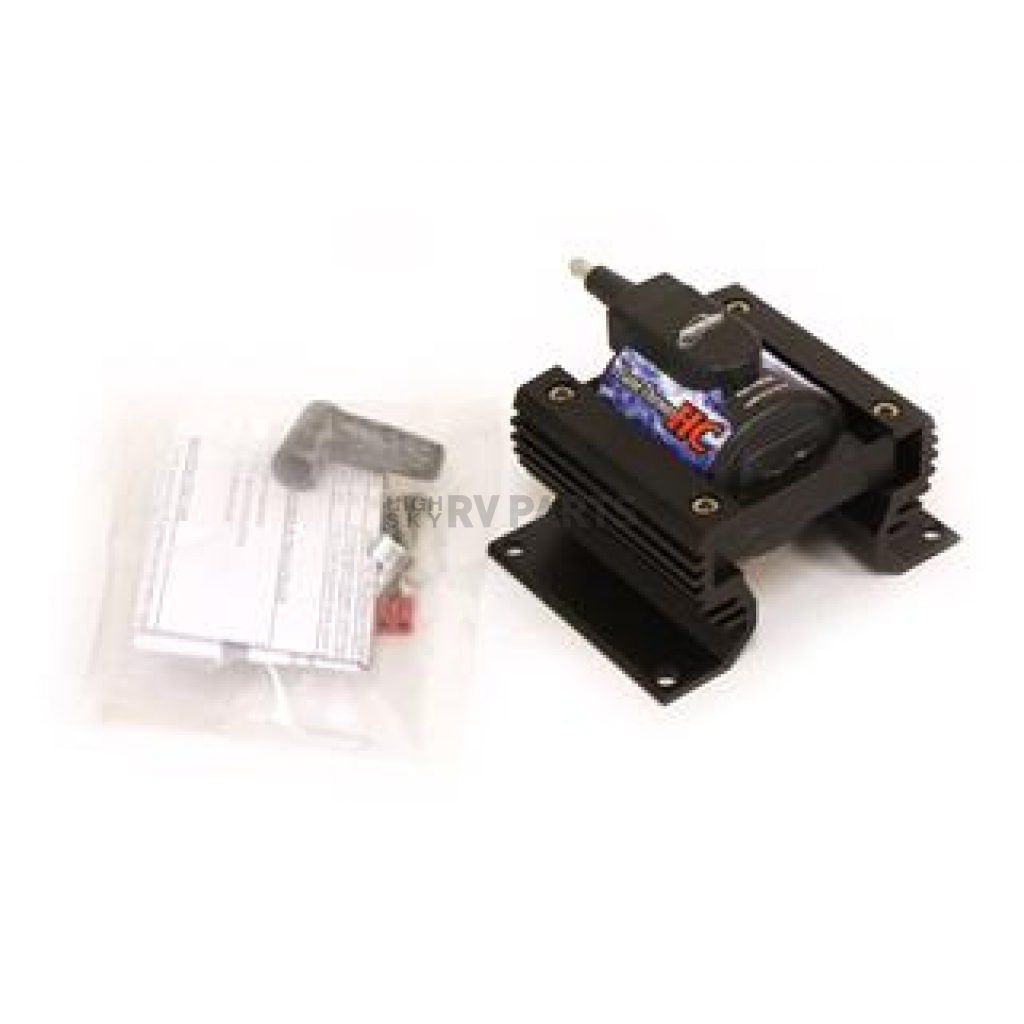

Pertronix Ignition Coil
Ignition Coil; Flame-Thrower ® HC; E-Core; 60000 Volts; 0.320 Ohms Primary Resistance
MPN: 60103
New HC (HIGH CURRENT) E-core coils were engineered specifically for our Ignitor III ignition modules. HC coils have a high turns ratio and ultra low primary resistance enabling the ignition system to charge faster at high RPM’s. The coil is supported in a special heat sink made from aircraft 6063 T5 aluminum which efficiently transfers heat away from the windings
Coil Style: E-Core
Primary Resistance: 0.32 Ohm
Secondary Resistance: 6 Kilo Ohm
Maximum Voltage: 60000 Volt
Internal Construction: Epoxy Filled
Height (IN): 3.15 Inch
Color: Black
Features
- 60,000 Volts
- Highly Efficient E-Core Design
- Vacuum Potted Coil Body For Longer Life And Increased Reliability
- 6063 T5 Aluminum Heat Sink With Black Anodized Corrosion Resistant Finish
- Precision Machined Male High Tension Terminal And Brass Primary Terminals
- Limited 90 Day Warranty
Specifications of Pertronix Ignition Coil 60103 | |
Coil Style | E-Core |
Color | Black |
Height (IN) | 3.15 Inch |
Internal Construction | Epoxy Filled |
Maximum Voltage | 60000 Volt |
Primary Resistance | 0.32 Ohm |
Secondary Resistance | 6 Kilo Ohm |
