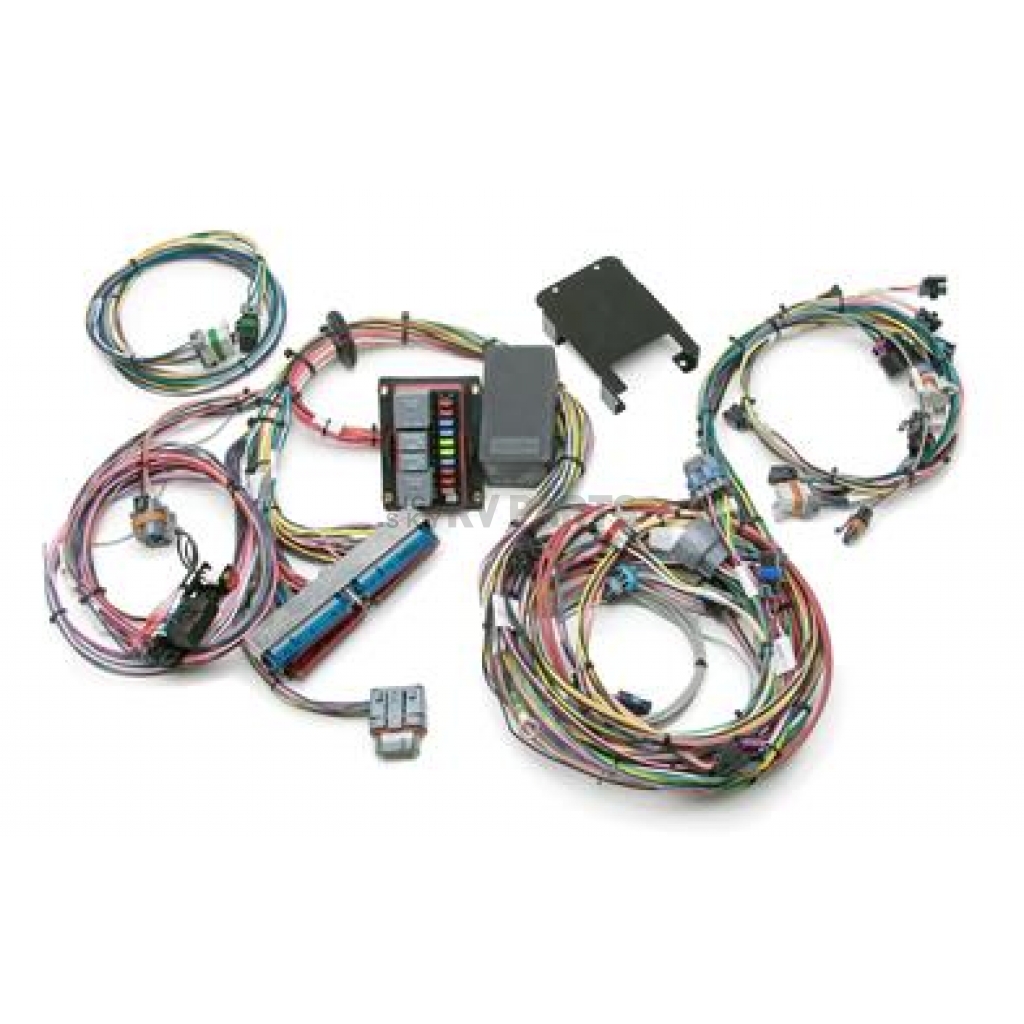

Painless Wiring Engine Wiring Harness 60221
Compatibility
2003-2006 Throttle By Wire GM Gen III 4.8L/ 5.3L/ 6.0L Engine With 4L60E Or 4L80E Transmission
Includes Bulkhead Connector
Yes
Share this page
Painless Wiring Engine Wiring Harness
Engine Wiring Harness; Universal/ Will Not Work With Flex Fuel Engines; For Use With 2003-2006 Throttle By Wire GM Gen III 4.8L/ 5.3L/ 6.0L Engine With 4L60E Or 4L80E Transmission; With Standard Length Wiring Harness/ OBDII Connector/ Mounting Bracket/ Check Engine Light/ Terminals/ Grommet
MPN: 60221
Engine codes supported are LR4, LM7, LM4, LQ4 and LQ9. Harness includes all connections for fuel injection operation: ECM, TAC module, Accelerator Pedal, IAC, CTS, IAT, MAF, MAP, Injectors (Non-flex and flex fuel connector pigtails included in kit), Fuel Composition Sensor, Coils, CMP, CKP, Knock, VSS, ISS, 4L60E and 4L80E Transmissions, Front Bank 1 and 2 Oxygen Sensors. Harness does not include any emission device connections. Harness incorporates its own 10 circuit/4 relay weather-proof fuse block. This standard length harness allows four Feet from the back of the intake manifold to where the fuse block and ECM mount. Perfect for those that plan to mount these components under the dash or in the glove box.
Compatibility: 2003-2006 Throttle By Wire GM Gen III 4.8L/ 5.3L/ 6.0L Engine With 4L60E Or 4L80E Transmission
Includes Bulkhead Connector: Yes
Features
- Includes All New Fuel Injection Harness With OEM Fitment Connectors And Harness Breakouts, OBDII Connector, Mounting Bracket And Check Engine Light
- Also Includes Crimp-On Terminals And Rubber Grommet, Mounting Hardware
- Limited Lifetime Warranty
Specifications of Painless Wiring Engine Wiring Harness 60221 | |
Compatibility | 2003-2006 Throttle By Wire GM Gen III 4.8L/ 5.3L/ 6.0L Engine With 4L60E Or 4L80E Transmission |
Includes Bulkhead Connector | Yes |
