Painless Wiring Chassis Wiring Harness 20101

Brand: Painless Wiring

Have a product question? Ask us
Part Number: 20101
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 06

Retail: $838.94

Price: $798.99

You Save: $39.95

Compatibility

1967-1968 Chevrolet Camaro, Firebird

Fuse Type

Blade And Maxi

Includes Air Conditioning Connector

Includes Back Up Light Connector

Includes Brake Light Connector

Includes Charging System Connector

Includes Dashboard Instrument Connector

Includes Dome Light Connector

Includes Electric Choke Connector

Includes Electric Fan Connector

Includes Emergency Flasher Connector

Share this page

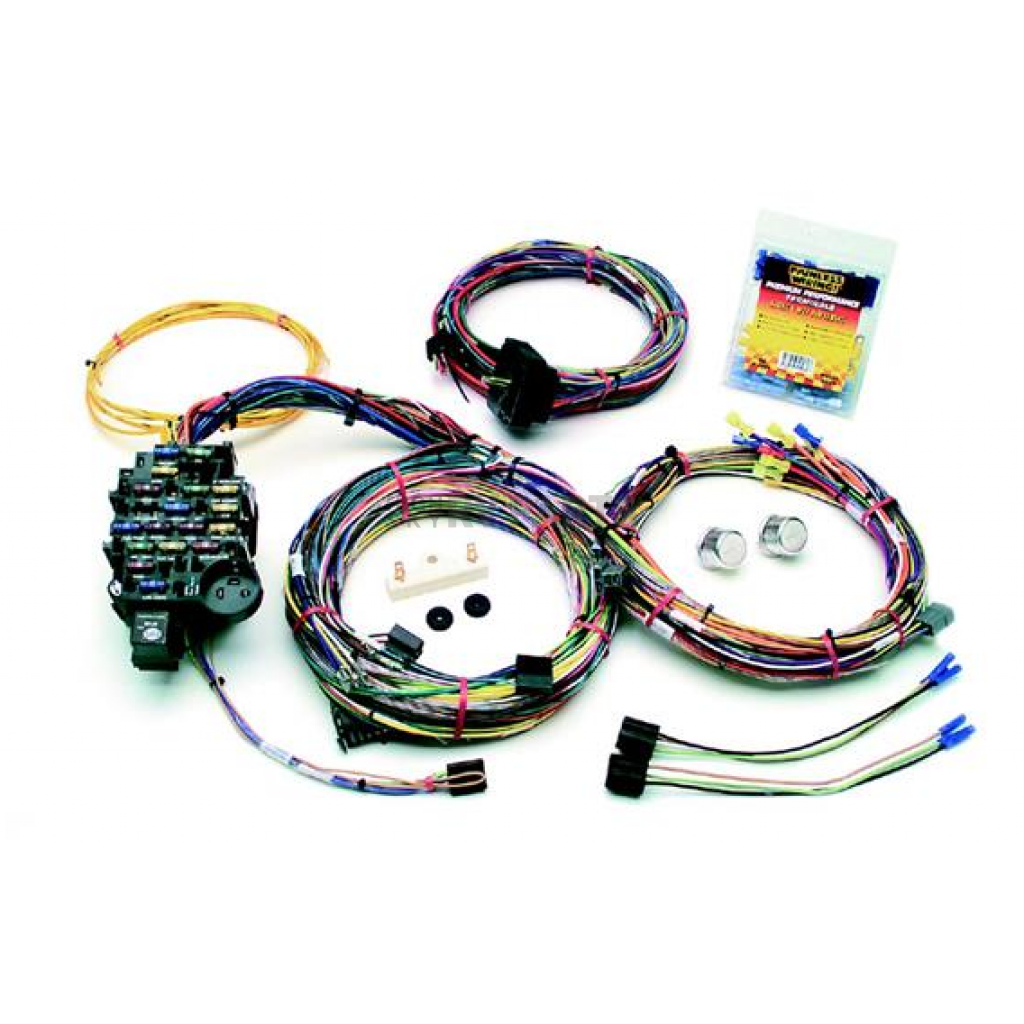

Painless Wiring Chassis Wiring Harness

Chassis Wiring Harness; 24 Circuit; With Connectors For GM Steering Column Turn Switch/ Ignition Switch/ Dimmer Switch/ Two Headlight Pigtails/ 10SI and 12 SI Alternator/ HEI Power and Tach/ 20 Extra 56 Series Terminals/ Fuse Block Mounting Bracket/ Grommet/ Zip Ties/ Maxi Fuse/ Crimp Connectors

MPN: 20101

This 24 circuit harness is designed for the 1967 and 1968 Camaro and Firebird. It uses a 1969 and newer style bulkhead connector design along with blade fuses and enough circuits to wire up just about any installed upgrade to your 1st generation F-body. Factory original quick connect terminals are included for the in dash printed circuit board. Pre-terminated plugs for a dimmer switch, headlights and headlight switch, blower motor, wiper motor, and turn signal switch. Each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.

Compatibility: 1967-1968 Chevrolet Camaro, Firebird

Type: 24 Circuit

Includes Fuse Block: Yes

Fuse Type: Blade And Maxi

Includes Horn Relay: Yes

Includes Air Conditioning Connector: No

Includes Back Up Light Connector: Yes

Includes Brake Light Connector: Yes

Includes Charging System Connector: Yes

Includes Dashboard Instrument Connector: Yes

Includes Dome Light Connector: Yes

Includes Electric Choke Connector: Yes

Includes Electric Fan Connector: Yes

Includes Emergency Flasher Connector: Yes

Includes Head Light Connector: Yes

Includes Horn Connector: Yes

Includes Ignition Connector: Yes

Includes Radio Connector: Yes

Includes Starting System Connector: Yes

Includes Third Brake Light Connector: Yes

Includes Turn Signal Connector: Yes

Features

Each Wire Is Custom Printed With The Circuit Identification As Well As Using GM Color Codes
Expertly Made From Premium Materials
Built To Match Your Exact Requirements
Easy Installation
Limited 1 Year Warranty

Specifications of Painless Wiring Chassis Wiring Harness 20101
Compatibility	1967-1968 Chevrolet Camaro, Firebird
Fuse Type	Blade And Maxi
Includes Air Conditioning Connector	No
Includes Back Up Light Connector	Yes
Includes Brake Light Connector	Yes
Includes Charging System Connector	Yes
Includes Dashboard Instrument Connector	Yes
Includes Dome Light Connector	Yes
Includes Electric Choke Connector	Yes
Includes Electric Fan Connector	Yes
Includes Emergency Flasher Connector	Yes
Includes Fuse Block	Yes
Includes Head Light Connector	Yes
Includes Horn Connector	Yes
Includes Horn Relay	Yes
Includes Ignition Connector	Yes
Includes Radio Connector	Yes
Includes Starting System Connector	Yes
Includes Third Brake Light Connector	Yes
Includes Turn Signal Connector	Yes
Type	24 Circuit
