Northern Radiator Radiator 209686B

Authorized Dealer
Brand: Northern Radiator Northern Radiator
0 reviews
  • Have a product question? Ask us
  • Part Number: 209686B
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 07
Retail: $589.04
Price: $560.99
You Save: $28.05
Color
Silver
Core Depth (IN)
3-7/16 Inch
Core Height (IN)
18 Inch
Core Length (IN)
22-1/2 Inch
Core Material
Aluminum
Core Rows
3 Rows Of 1 Inch Tubes
Finish
OEM
Flow Direction
Crossflow
Includes Fittings
No
Includes Mounting Hardware
No
Inlet Hose Location
OEM
Share this page

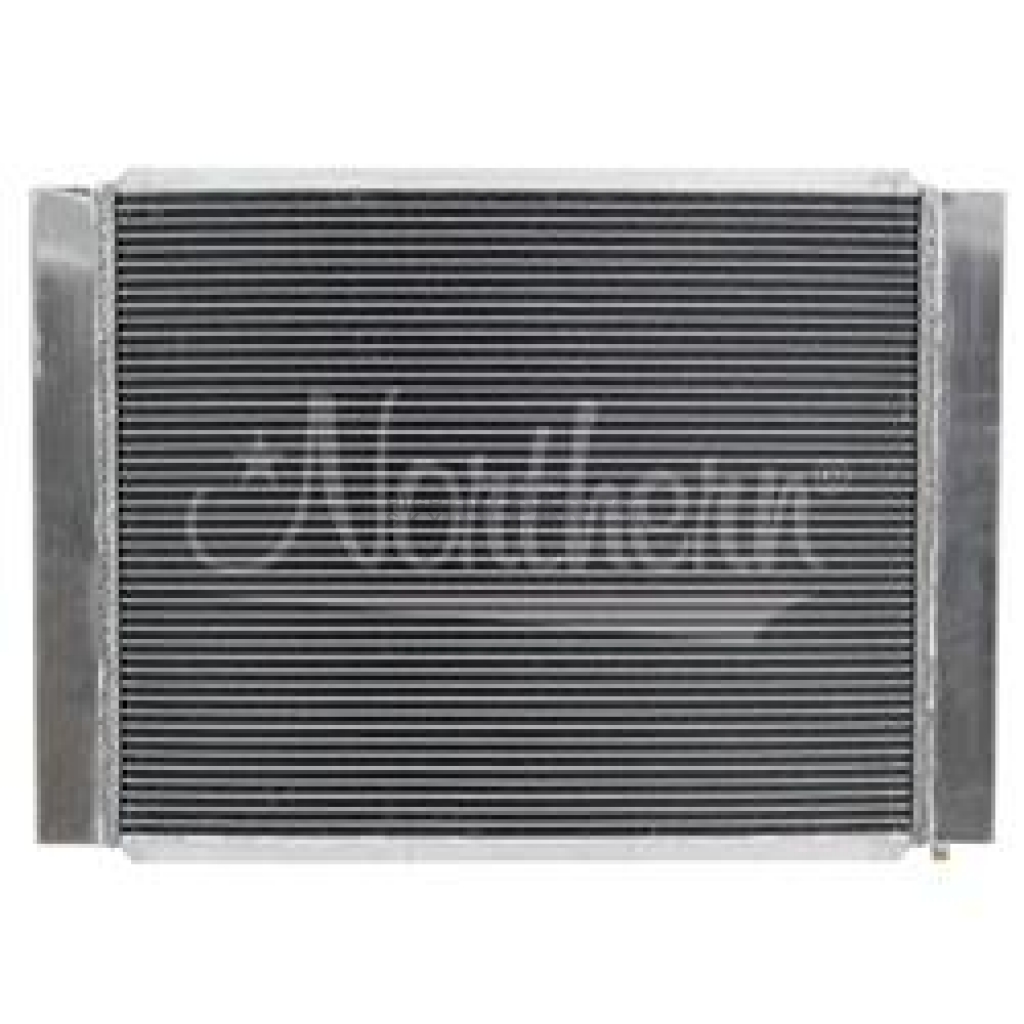

Northern Radiator Radiator

Radiator; Overall Dimensions 27-1/8 Inch Width x 19-9/16 Inch Height x 4-1/4 Inch Depth; Core Dimensions 22-1/2 Inch Width x 18 Inch Height x 3-7/16 Inch Depth; 3 Rows Of 1 Inch Tubes; Crossflow; Aluminum; Inlet And Outlet Must Be Welded; Without Transmission Cooler; With Single 28 Inch x 19 Inch 3 Row Radiator Blank/ Single 1-1/2 Inch Hose Connector/ Single 1-3/4 Inch Hose Connector/ Single Billet Aluminum Filler Neck/ Single Overflow Tube/ Single Weld-On Bung/ Single Draincock

MPN: 209686B

When you want quality and dependability, you want Northern Radiator! From hobby and restoration to high performance racing, Northern Radiator has you covered. The most complete all makes/all models program in the industry.
Flow Direction: Crossflow
Overall Length (IN): 27-1/8 Inch
Overall Height (IN): 19-9/16 Inch
Overall Depth (IN): 4-1/4 Inch
Core Rows: 3 Rows Of 1 Inch Tubes
Core Length (IN): 22-1/2 Inch
Core Height (IN): 18 Inch
Core Depth (IN): 3-7/16 Inch
Core Material: Aluminum
Inlet Hose Location: OEM
Inlet Size (IN): 1-1/2 Inch
Outlet Hose Location: OEM
Outlet Size (IN): 1-3/4 Inch
Finish: OEM
Color: Silver
Tank Material: Aluminum
With Radiator Cap: No
With Transmission Cooler: No
With Engine Oil Cooler: No
Includes Fittings: No
Includes Mounting Hardware: No

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • 3 Rows Of 1 Inch Tubes For High Performance Cooling. 30 Percent More Cooling Capacity Than Any Brand Of 2 Row 1 Inch Tube Radiator
  • Machined Billet Aluminum SAE Compliant Filler Neck
  • Radiator Has A 1/4 Inch Plugged NPT Port
  • Built To Meet Or Exceed OEM Expectations
  • Designed And Engineered To Provide You The Quality Product For Worry Free Operation
  • Built To Cool Efficiently And Manufactured Properly For Ease Of Installation
  • Limited 1 Year Warranty
Specifications of Northern Radiator Radiator 209686B
Color Silver
Core Depth (IN) 3-7/16 Inch
Core Height (IN) 18 Inch
Core Length (IN) 22-1/2 Inch
Core Material Aluminum
Core Rows 3 Rows Of 1 Inch Tubes
Finish OEM
Flow Direction Crossflow
Includes Fittings No
Includes Mounting Hardware No
Inlet Hose Location OEM
Inlet Size (IN) 1-1/2 Inch
Outlet Hose Location OEM
Outlet Size (IN) 1-3/4 Inch
Overall Depth (IN) 4-1/4 Inch
Overall Height (IN) 19-9/16 Inch
Overall Length (IN) 27-1/8 Inch
Tank Material Aluminum
With Engine Oil Cooler No
With Radiator Cap No
With Transmission Cooler No
