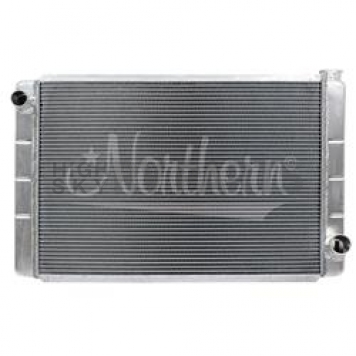

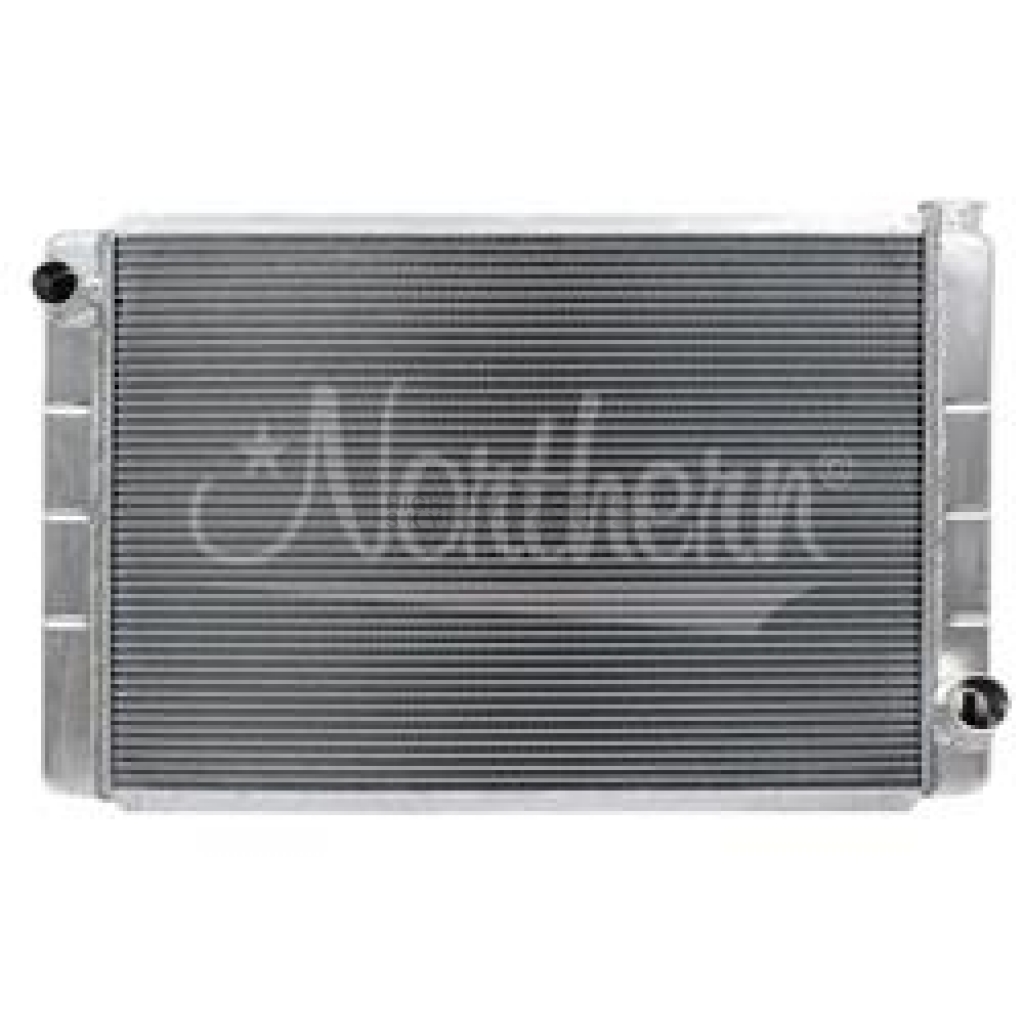

Northern Radiator Radiator 209677
Color
Silver
Core Depth (IN)
2-1/4 Inch
Core Height (IN)
18 Inch
Core Length (IN)
26-1/4 Inch
Core Material
Aluminum
Core Rows
2 Rows Of 1 Inch Tubes
Finish
OEM
Flow Direction
Crossflow
Includes Fittings
No
Includes Mounting Hardware
No
Inlet Hose Location
OEM
Share this page
Northern Radiator Radiator
Radiator; Race Pro; Overall Dimensions 30-7/8 Inch Width x 19-5/8 Inch Height x 3-1/8 Inch Depth; Core Dimensions 26-1/4 Inch Width x 18 Inch Height x 2-1/4 Inch Depth; 2 Rows Of 1 Inch Tubes; Crossflow; Aluminum; 1-1/2 Inch Inlet x 1-3/4 Inch Outlet; Without Transmission Cooler; Filler Cap On Right; Inlet and Outlet On Right Bottom and Top Left
MPN: 209677
When you want quality and dependability, you want Northern Radiator! From hobby and restoration to high performance racing, Northern Radiator has you covered. The most complete all makes/all models program in the industry.
Flow Direction: Crossflow
Overall Length (IN): 30-7/8 Inch
Overall Height (IN): 19-5/8 Inch
Overall Depth (IN): 3-1/8 Inch
Core Rows: 2 Rows Of 1 Inch Tubes
Core Length (IN): 26-1/4 Inch
Core Height (IN): 18 Inch
Core Depth (IN): 2-1/4 Inch
Core Material: Aluminum
Inlet Hose Location: OEM
Inlet Size (IN): 1-1/2 Inch
Outlet Hose Location: OEM
Outlet Size (IN): 1-3/4 Inch
Finish: OEM
Color: Silver
Tank Material: Aluminum
With Radiator Cap: No
With Transmission Cooler: No
With Engine Oil Cooler: No
Includes Fittings: No
Includes Mounting Hardware: No
Please refer the Technical Bulletins attached to the Product Manual tab
Features
- Machined Billet Aluminum SAE Compliant Filler Neck
- Core Has 2 Rows Of 1 Inch Tubes
- Up To 24 Percent Improvement In Heat Transfer Over Other Brand's Of Racing Radiators
- Louvered Cooling Fins Exclusively Designed For High Performance Heat Dissipation
- Epoxy Free Construction, Nothing To Crack, Chip Or Leak
- Extra Heavy Reinforced Die Stamped Tanks For Added Rigidity
- All Welded Construction
- Heavy Wall Inlet And Outlet Fittings For Secure Hose Connection
- Built To Cool Efficiently And Manufactured Properly For Ease Of Installation
- Limited 1 Year Warranty
| Specifications of Northern Radiator Radiator 209677 | |
| Color | Silver |
| Core Depth (IN) | 2-1/4 Inch |
| Core Height (IN) | 18 Inch |
| Core Length (IN) | 26-1/4 Inch |
| Core Material | Aluminum |
| Core Rows | 2 Rows Of 1 Inch Tubes |
| Finish | OEM |
| Flow Direction | Crossflow |
| Includes Fittings | No |
| Includes Mounting Hardware | No |
| Inlet Hose Location | OEM |
| Inlet Size (IN) | 1-1/2 Inch |
| Outlet Hose Location | OEM |
| Outlet Size (IN) | 1-3/4 Inch |
| Overall Depth (IN) | 3-1/8 Inch |
| Overall Height (IN) | 19-5/8 Inch |
| Overall Length (IN) | 30-7/8 Inch |
| Tank Material | Aluminum |
| With Engine Oil Cooler | No |
| With Radiator Cap | No |
| With Transmission Cooler | No |
